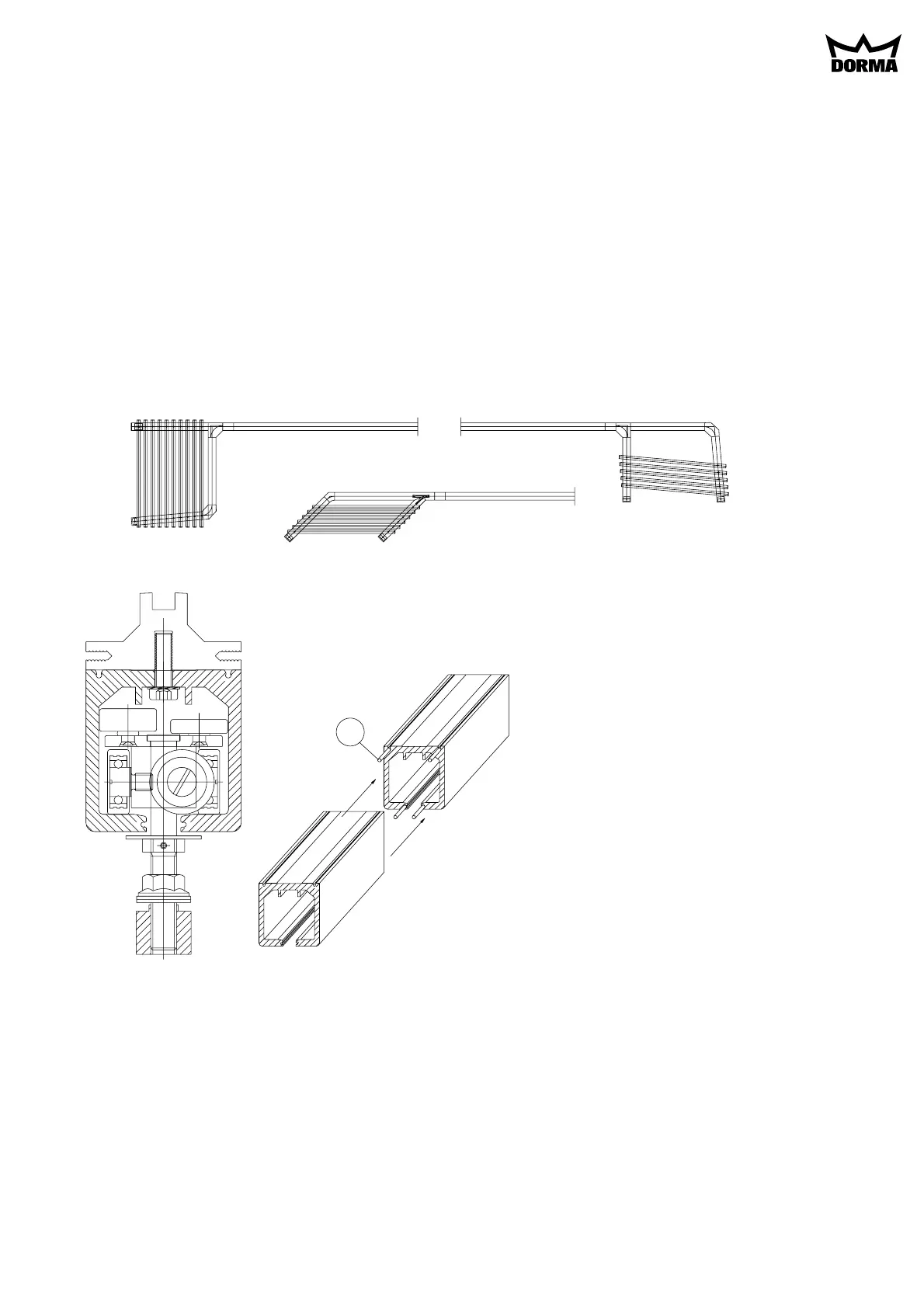

HSW-ISO Installation Instructions
Track rail 72 x 75 mm
1. Ceiling substructure for track rail and installation of the track rail:
The track rail must be bolted over its entire length (including the stacking track area) to a correctly
aligned, horizontal (longitudinally and transversely) substructure (e.g. DORMA substructure system).The
substructure should be designed to accommodate the total weight of all the panels both in the stacking
area and in the partition section.
The fixing point intervals for mounting the track rail to the substructure should be approx. 300 mm
along the straight sections and approx. 100 mm in the stacking area.
Caution: All the track joints must be provided with connection pins (a) in order to ensure a flush
transition between the track sections and thus smooth sliding panel operation. (Fig. 1)
a
Fig. 1
2. Preparing the floor (Fig. 2):
The floor must be smooth and continuous to ensure full-facial contact with the bottom seal.
A lip should also be provided to repel driving wet.
DORMA-Glas 800.52.121.6.32 Stand/Issue 01/03 Seite/Page 1/10
DORMA-Glas 800.52.121.6.32 Stand/Issue 01/03 Seite/Page 2/10
Fig. 2
3. Glazing:
The aluminium frame is supplied ready assembled and surface treated.
In performing the glazing work, ensure compliance with the instructions and guidelines of the double
glazing manufacturer and especially the padding instructions for fitting the sealed units in the frames.
4. Installing the sliding panels:
Slide the complete panel with track rollers into the track in accordance with the required panel
sequence and guide roller arrangement (Fig. 3) through the gap filled by the maintenance end piece.
A
a
B
a
Fig. 3
