INSTALLATION INSTRUCTIONS

Prepare for New Installation of the Lock (If Required)

1. Use the installation template provided to establish the exact

locations (relative to the spindle hole) of the mounting holes

for the dial assembly and the lock assembly.

2. The spindle hole diameter can be a minimum of .406”

(10.3mm) to a maximum of .438” (11.1mm). The .406”

(10.3mm) diameter is recommended. Spindle hole must be

deburred.

3. The dial assembly mounting screws require drilled and

tapped holes to 3/8” (9.5mm) depth if possible (minimum

1/4” or 6.4mm depth required.) Drill either the two horizontal

mounting holes or the two vertical holes.

4. When mounting the lock unit (i.e., integrating it in a

boltwork), make sure that the lock bolt has clearance to

freely move to its end positions and that the shifting force

works only in the axial direction (direction of movement).

Lateral forces should not be exerted on the lock.

5. If other parts of the boltwork are to be connected to the lock

unit (e.g., for activating a blocking device), corresponding

adapters can be fixed with screws (#10-32 or M4) to the

front of the lock bolt (tightening torque for 15mm screwing

depth: 200Ncm maximum).

Part I: Install Lock Case Assembly

WARNING: Do not take the lock case assembly apart. There are

no field servicable parts inside lock case. This action will void the

warranty.

1. Insert a cable shield into the

deburred spindle hole from

the back side of the container

door.

2. Place the protective tube over

the tube retainer on the lock

case. (Figure 2)

3. While holding the lock case

assembly, guide the tube

through the spindle hole

and place the lock case flush

against the inside of the container door.

4. Mark the tube flush to the outside of the container door (to

within 1/16” or 1.6mm).

5. Remove lock case assembly from door and cut the tube just

inside your mark.

The installation instructions are the basis for Security Agency

Approvals. The lock installation must be done in accordance

to these instructions in order to maintain the labeled

approval level.

Design Parameters for Auditcon 2 Series Locks

1. Bolt dimensions (nominal): .312 inches x 1.000 inches/

8 x 25.4mm

2. Bolt movement (nominal): .465 inches/11.8mm

3. Bolt extension: .465 inches/11.8 mm

4. Maximum load movable by the bolt: 5 lbs. (22N)

NOTE: Auditcon 2 dead bolt locks may not open if more than

5 lbs. (22N) of force is applied to the end or side of the bolt.

5. Maximum load against bolt when thrown (all directions):

224.8 lbs. (1kN)

6. The lock can be fitted to safes or vault doors of any

material.

NOTE: As is the case with all mechanical and electronic

locking devices, the container and boltworks must be

designed to protect the lock.

AUDITCON

2 SERIES LOCKS

MODELS 52, T52, 252, 552  VERTICAL HOUSING DEAD BOLT

Basic Tools and Materials Needed

• Medium Phillips head screwdriver (#2) (recommend

magnetized tip)

• Fine pitch hacksaw (32 teeth/inch)

• Small flat file

• All-purpose scissors

• Tape measure or ruler

• ESD wrist band

Recommended, but not required:

• Torque screwdriver (30 inch-pounds/3.4 newton-meters

capacity)

• Small vise grip

• Needle-nosed pliers

• Loctite

262 (Red) for use on lock case mounting screws

WARNING: dormakaba locks are protected from 25,000

V Electrostatic Discharge (ESD) damage when correctly

installed. Follow these precautions to avoid ESD damage

when installing the lock:

• Handle the keypad assembly by the outer edge only.

• Use an ESD wrist band grounded to the lock or container

during installation.

Figure 2

Figure 1 - Dead Bolt Lock Parts

Not Shown in Photo: Insulator Tape

Front Cover &

Keypad Assembly

Spindle

Clip

Spindle Mounting

Screw

Lock Case

Assembly

Lock Case

Mounting

Screws (4)

Spindle

& Tube

Cable

Shields (2)

Front Cover

Mounting

Screws (3)

Keypad/Base

Mounting

Screws (2)

Cable

Dial Label

Dial

- Rev G

(P/N) 3045.025 Rev G0

dormakaba USA Inc.

Page 2 of 4

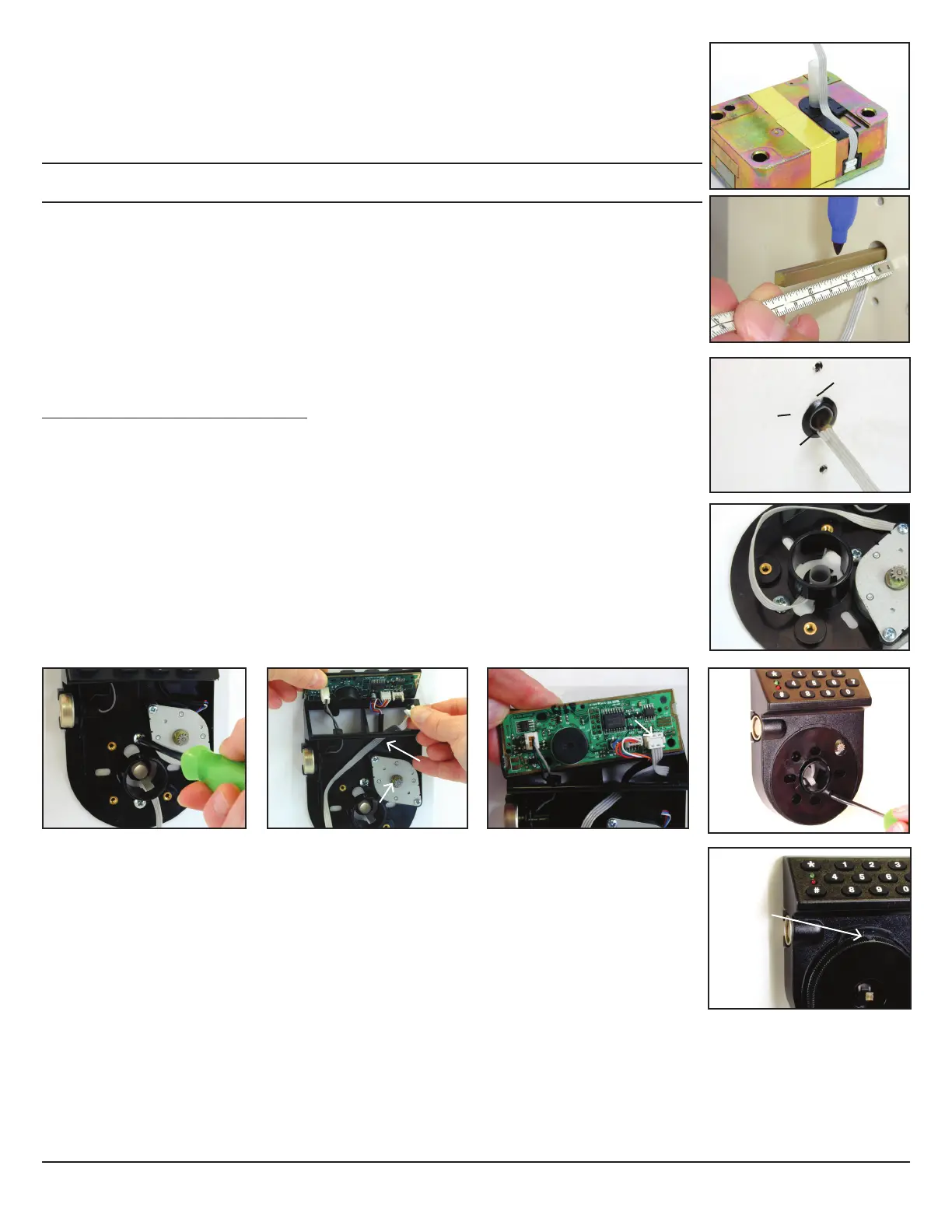

6. Plug one end of the ribbon cable into the connector on the bottom of the lock case. (Figure 3)

7. Lay the ribbon cable in the cable routing path on the lock case and tape the cable to the outside

of the tube with the insulator tape provided. (Figure 3)

8. Hold the lock case assembly and carefully guide the loose end of the ribbon cable and the tube

through the spindle hole so that they are accessible outside of the container door.

9. Mount the lock case assembly to the inside of the container door using the four 1/4-20 (or M6-1)

lock case mounting screws. (Torque 25-30 lbs., 2.8-3.4 N-M)

NOTE: The lock case assembly can be mounted in all orientations for all mounting locations. It is

recommended that you use Loctite

262 (Red) on the lock case mounting screws.

10. Insert the end of the spindle with the screw hole into the lock case assembly until the spindle

is properly seated. The grooved side of the spindle should be oriented so that the grooves in the

spindle align with the grooves in the drive cam. Turn the spindle so that the grooves are facing

toward the bolt and the bolt is extended.

11. Mark the spindle shaft 1 3/8” (34.9mm) from the outside of the container door (plus or minus

1/8” or 3.2mm allowed). (Figure 4) NOTE: Locks manufactured before 09/2021 utilize a different retainer clip

and require measurement at 1 1/4” (31.8mm).

12. Remove the spindle from the lock case to prevent damage to the cable while cutting.

13. Cut the spindle on the mark, deburr, and lay aside.

14. Insert the second cable shield into the spindle hole from the front of the container with the

cable feeding through the center of it. (Figure 5)

Part II: Install Front Housing Assembly

1. Remove the front cover from the keypad/base assembly.

2. Hold the keypad/base assembly in the upright position (keypad positioned at the top). Guide

the ribbon cable through the appropriate cable receiving hole on the back of the keypad/base

assembly (Figure 6), based on the orientation of the ribbon cable to the spindle.

3. Place the keypad/base assembly flush against the container door and align so that the dial

bushing (Figure 6) is centered over the spindle.

4. Attach the keypad/base assembly to the container door using the two #8-32 (or M4-0.7)

mounting screws. (Figure 7) Do not fully tighten screws.

5. Route the ribbon cable toward the keypad so that the cable will not be pinched by the

generator. Gently lift the keypad board assembly and guide the cable up through the cable

receiving hole in the keypad/base assembly. (Figure 8)

6. Insert the keyed Picoflex connector on the end of the ribbon cable into the connection header

on the keypad. (Figure 9)

Figure 4

Figure 5

Figure 6

Figure 7

Cable

Rcv

Hole

Figure 8

Generator

Connection

Header

Figure 9

Figure 10

7. Fold the excess cable accordian style and place under the keypad assembly, positioning the

cable and the keypad so that they will not be pinched when the front cover is snapped into

place.

8. Center the front cover over the keypad/base assembly and gently snap into place.

9. Mount the front cover to the keypad/base assembly using the round mounting holes on the

cover and the three #6-32 front cover mounting screws. (Torque 14-16 lbs., 1.6-1.8 N-M)

(Figure 10)

10. Re-insert the spindle. Refer to Step 10 in the previous “Install Lock Case Assembly” section

for proper positioning.

11. Hold the dial and orient the lip of the dial in the upright position so that it will cover the red

bar on the front cover once placed onto the spindle. This is referred to as the “HOME” position. (See correct dial position

in Figure 11.) Place the dial onto the spindle and seat into the dial bushing. Push gently on the dial so that the gear on the

generator seats properly into the gear teeth on the dial.

12. While holding the dial in place, insert the #6-32 spindle mounting screw through the back of the lock case and into the end

of the spindle. (Figure 12) Turn the screw until it is securely attached to the spindle. (Torque 14-16 lbs., 1.6-1.8 N-M) Verify

that the spindle grooves are still facing toward the bolt and that the bolt is still extended.

Figure 3

Figure 11

HOME: Red

portion is not

showing

Cable

Shield

Ribbon

Cable

Figure 5

Tube
