Original Instructions

Version 1 – March 2022

RECHARGEABLE

FOLDING

SITE LIGHT

These are the original product instructions. This document is part of the product; retain it for the life of the product, passing it on to subsequent holders. Read

this manual in full before attempting to assemble, operate, or maintain this product. Always use the latest version of the product manual. The latest version can

be downloaded from drapertools.com/manuals

1. Specication

Stock No. Part No. Bulb wattage (W) Lumens (lm) USB output Beam angle (°) Colour temperature (K)

03182 RC/FSL/10W 10

1,100

5V, 1.5A

100 6,000~6,500

03183 RC/FSL/20W 20

2,200

5V, 1.5A

100 6,000~6,500

03185 RC/FSL/30W 30

3,300

5V, 1.5A

100 6,000~6,500

EU 04347 RC/FSL/20WFOB 20

2,200

5V, 1.5A

100 6,000~6,500

This light is rated IP65. It is fully protected against dust and is protected

against low pressure jets of water from all directions (limited ingress

permitted). This does not include the attached plug.

2. Health and Safety Information

Important: Read all Health and Safety instructions before attempting to

operate, maintain or repair this product. Non-compliance with these

instructions may result in injury or damage to the user or the product.

Draper Tools accepts no responsibility for improper use of this device.

• Inspect the product and electrical connections for signs of damage or

battery leakage before every use.

WARNING! Do not use the product if defects are present and

withdraw it from service until it has been repaired. If the external

power cable is damaged, it must be replaced by suitably qualied

personnel or returned to Draper Tools for repair.

• ONLY the supplied adaptor should be used to charge this product; DO

NOT use the adaptor to charge other products or batteries.

• DO NOT use the charging adaptor if wet.

• Always ensure that the voltage rating on the charging adaptor is

appropriate for the power supply to be used.

• Remove all packaging and wrapping before use.

• Position the product appropriately.

− Use only on level surfaces.

− Ensure that the product is stable and unlikely to tip over.

− Where necessary, apply weights to the stand or secure it.

− Ensure that all joints are securely fastened when the product is in

use or stored.

− This is a Class III appliance and should only be used with the

charging adaptor supplied.

• WARNING! This product gets hot when in use.

− NEVER place objects on the lamp area or hang objects on any part

of this product.

− NEVER use the light near ammable or combustible substances or

equipment.

− ALWAYS disconnect the power supply and allow at least ten minutes

for the product to cool before attempting any maintenance or

adjustment.

• WARNING! Do not stare at the operating light source.

• ALWAYS ensure that the light is switched o during charging.

− Keep trailing cables and extension leads tidy and secured to avoid

trip hazards.

− This product is certied for use in ambient temperatures of 0 to

+40°C.

− Replace any cracked protective shield.

− This product includes a 4mm glass shield rated IK08.

3. Maintenance and Troubleshooting

Important: Maintenance and repair, including replacement of the light

source, must only be performed by qualied personnel with sucient

knowledge of the electrical circuits used in this device.

• Charge the product for at least six hours before rst use.

• Always disconnect the power supply and allow the lamp to cool before

cleaning.

• Clean the lamp using a dry cloth ONLY.

CAUTION! Do not immerse this product in water.

• Store the product in a clean and dry environment, out of reach of

children, with all joints rmly secured.

• Charge the light fully before storing and at least every three months

between uses to maintain the battery life.

If the light does not illuminate when switched on, check the charge level.

Ensure that charge is retained when disconnected from mains power.

Risk of electric shock

Class III product, use only with the

charging adaptor supplied

Replace any cracked

protective shield

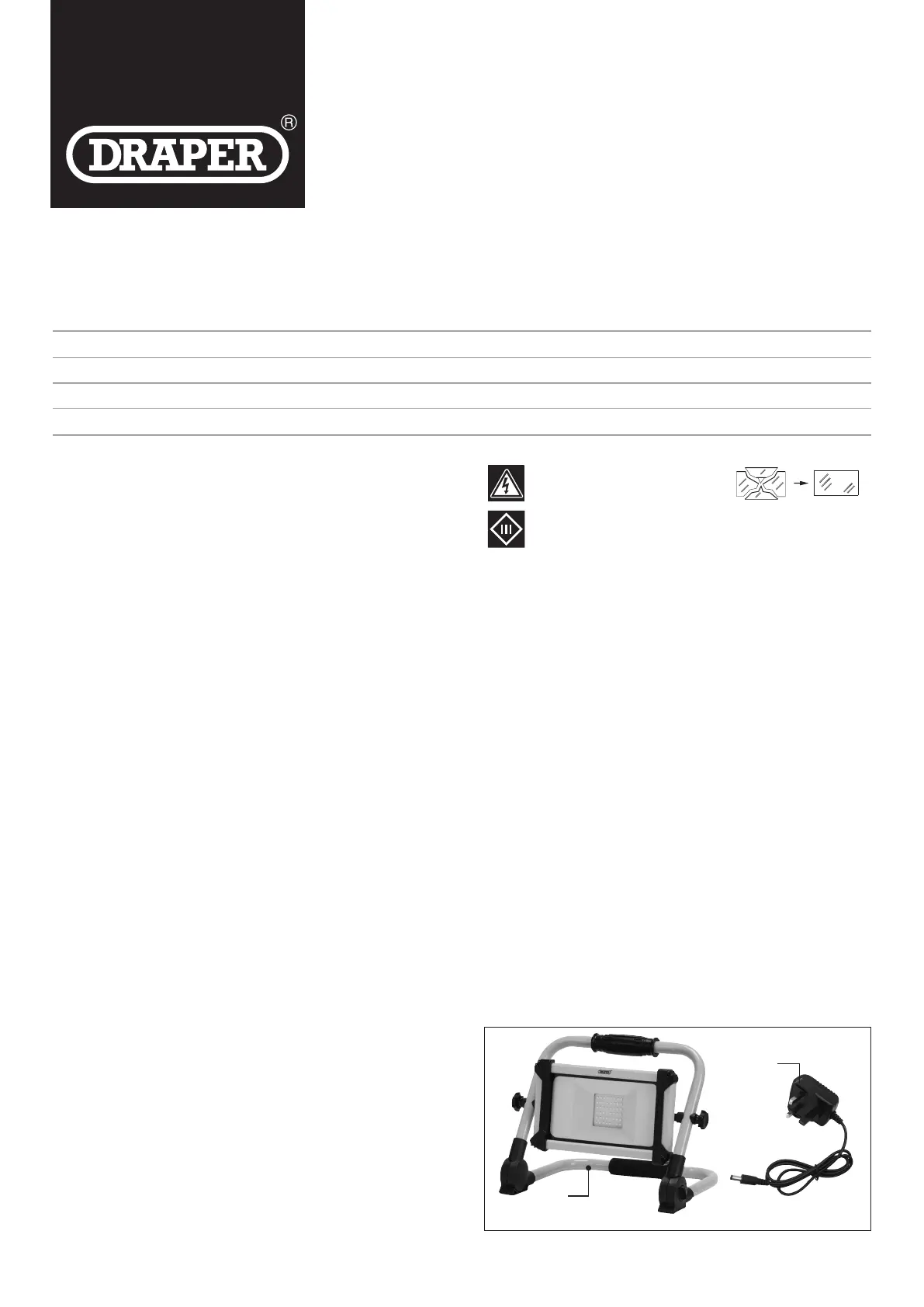

4. What’s in The Box?

Carefully remove the product from the packaging and examine it for any

signs of damage that may have occurred during shipment.

A. Rechargeable folding site light B. Power adaptor

(A)

(B)

Stock No. 03182 shown

5. Operation Instructions

Before use, check that all parts are present and not damaged.

7. Bulb Brightness

Press the on/o button (9) to cycle through the bulb brightness settings:

• 30% brightness

• 50% brightness

• 100% brightness

• O

6. Accessing the Control Panel

To open, press inwards on the panel door (3) beside the latch (4) and unclip

the latch to open.

Depending on the Stock Number, the product shipped may dier slightly

from the product illustrated in this document.

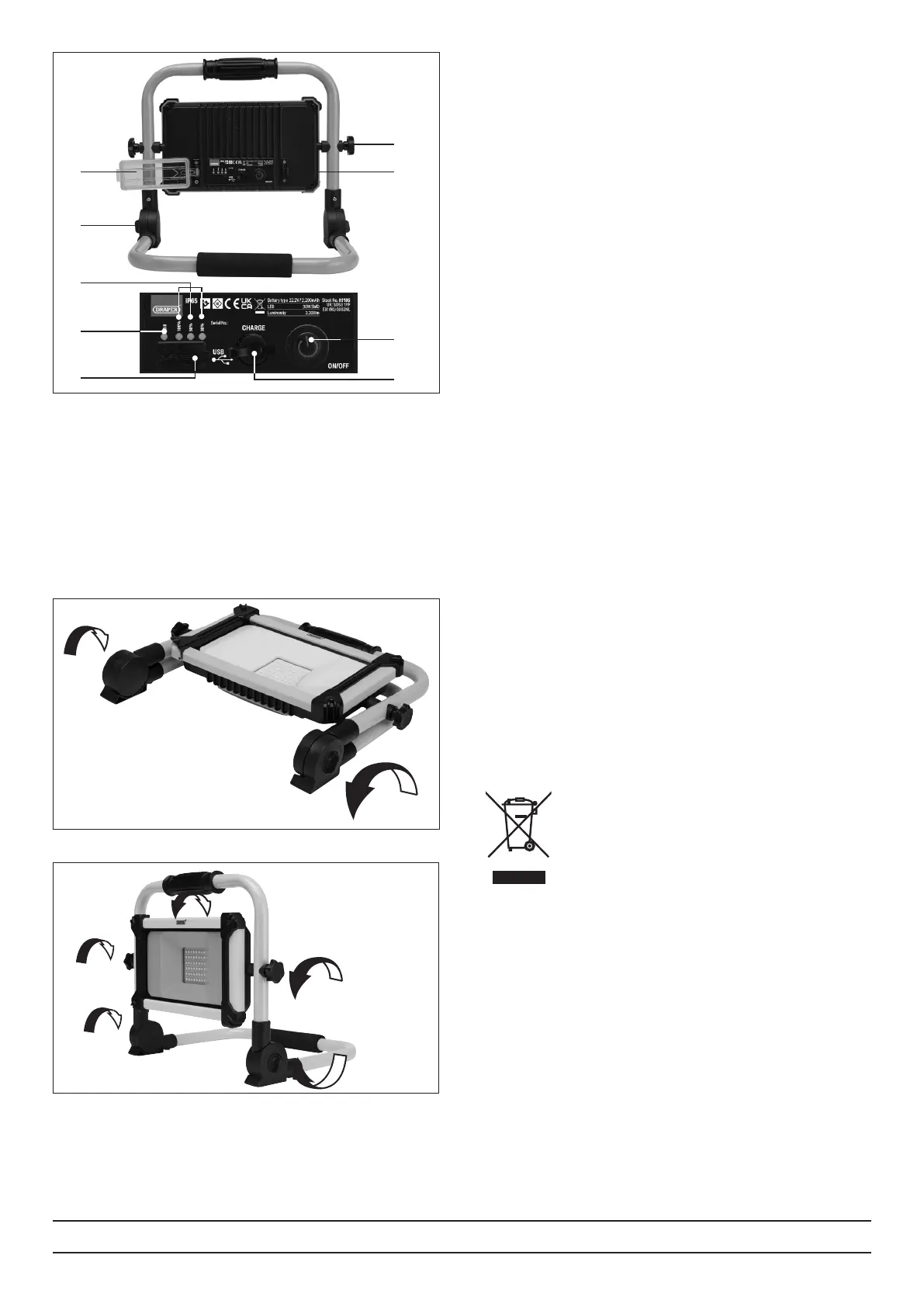

1 Fig.

1. Base joint locks

2. Lamp position locks

3. Control panel cover

4. Control panel cover latch

5. USB output port

6. USB function indicator (blue)

7. Battery level indicators

8. DC charging port

9. On/o/brightness button

(1)

(5)

(6)

(7)

(3)

(2)

(4)

(8)

(9)

11. Disposal

Do not dispose of electrical products with household waste. At the end of

its working life, or when it can no longer be repaired, dispose of the site

light according to local regulations.

8. USB Power Bank Functionality

The product can be used as a power bank for devices with low-power USB

charging. To enable USB functionality:

1. Connect a device to the USB output port (5)

2. Press and hold the on/o button (9) for two seconds

3. Illumination of the USB function indicator (6) signals that USB

functionality is enabled

4. To disable USB functionality, hold the on/o button for two seconds

until the indicator goes out

To extend the lamp’s battery life, remove any connected devices and

disable USB functionality when not required.

9. Charging

To charge, switch o the light and connect the supplied power cable from

the light to an appropriate mains socket. The charge level is signalled by

the battery level indicator LEDs (7).

CAUTION! ONLY use the charging adaptor supplied. DO NOT charge the

light while it is switched on.

10. Battery Level Indicators

The light’s approximate battery level is displayed by the battery level

indicator LEDs (7):

• 100% – Green

• 50% – Green

• 30% – Red
