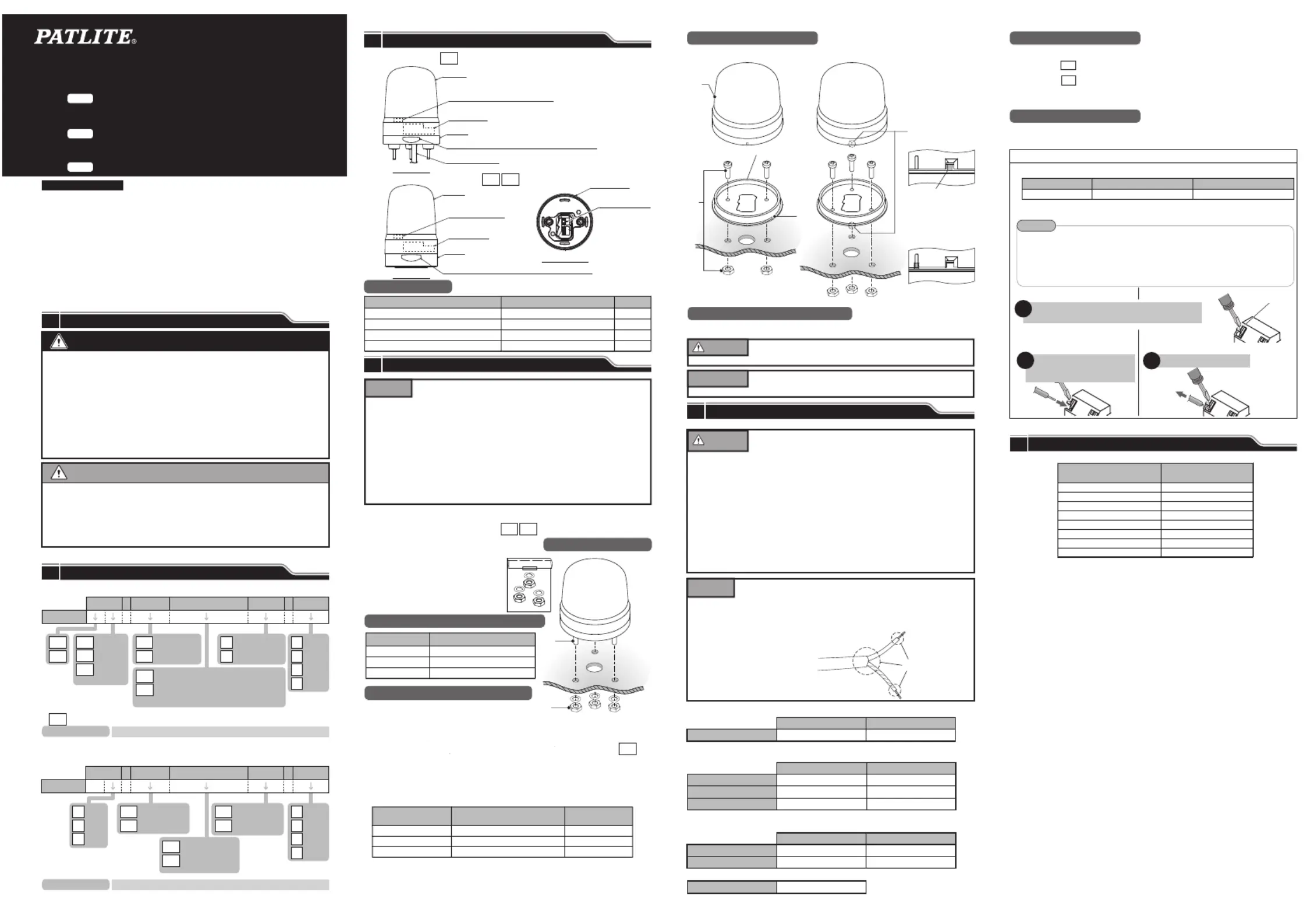

Thank you very much for purchasing our Patlite products.
● Request the installation and wiring be performed by a professional
contractor if construction work is involved.
● Prior to installation, read this manual thoroughly before using this
product to ensure correct use.
● In addition, please store this manual for future reference when
performing maintenance, repairs or inspections.
●For options and repair parts, please visit our website
(https://www.patlite.com).
If there are any questions concerning this product, refer to the contact
information at the end of this document and contact your nearest
PATLITE Sales Representative.
● Ensure that the product is installed in an environment that meets the following
- Where excessive vibration is not present.
When it is necessary to waterproof the backside of the installation surface;
- Provide a sealant coating around the nuts of the backside of the installation
- Waterproof the cable mounting area.
Ensure that the product is mounted upright when installed outdoors.
Ensure that the speaker is facing forward when installing the buzzer models.
● Depending on your operating environment, additional waterproofing may be
required on the Terminal Block openings for SKH-M
3-Screw Mounting • Cabtyre Cable
2-point Hole Type Mounting • Terminal block
3-point Hole Type Mounting • Terminal block (SL15 only)
2-point hole type mounting • Terminal block
● With buzzer ● Red color
● Ø100 ● 12 - 24 V DC ● Cabtyre Cable ● With buzze ● Red color
Installation • Wiring Buzzer
(1) Insert the bolts of the beacon into
the holes of the mounting surface.
(2) Use the nuts and washer
(accessory) to secure in place.
SF08- J/SL08- J/SKS Model□□ □□
SF10- J/SL10- J/SKH Model□□ □□
Mounting Bracket, Waterproof Sheet
Buzzer Opening (Model with Buzzer Only)
* The SF model has a rotary switch
Buzzer Opening (Model with Buzzer Only)
● To prevent from short-circuits or damage, observe the following:
- Be sure the power is disconnected before replacement or repair, including the
- Use this product in a properly maintained condition. (Replace or repair if the
globe, case, etc. are damaged.)
● If installing this product requires construction work, ask a specialist in order to
avoid fire, or personal injury.
● When this product is used for security purposes, it should be inspected daily.
In case a malfunction should occur, it is recommended that you use this
product together with other security products.
● After installation, do not use this product to climb up onto the equipment with.
Failure to comply will result in product damage and/or falling off the machinery.
● Be sure to put a fuse in the wiring circuit between the power source and
equipment for protection. If a fuse is not added, it may result in product and/or
● Be sure to prevent electrostatic damage due to discharge when working with
this product for wiring, exchanging units, setting up parameters, etc. by
discharging static electricity on your body, etc.
● Do not disassemble or detach during operation.
Failure to observe the following may result in
Failure to comply with the following points may
result in injury, physical loss or damage.
2-point Hole Type Mounting 3-point Hole Type Mounting
● Make sure the power is OFF before wiring. A short circuit
may damage internal circuits.
● Ensure the proper working voltage is used. Any mistake in wiring may result in
● Do not pull the wire, or stu ff it inside of this case.
Be sure the wiring is done properly. Any mistake in wiring may result in damage.
In the M2 model, do not perform blinking control by turning the power supply
ON / OFF. Any mistake in wiring may result in damage.
● Do not apply a voltage to the common wire. (M1 type)
Do not apply a voltage to any wire other than the power supply wire. (M2 type)
Failure to comply will result in product damage.(except buzzer wire of SKH-M1)
● Do not expose the wiring from the device. If tension is applied to the wiring, the
wiring may be disconnected, resulting in a short circuit or an electric shock.
● Use either a Contact Switch or Contact Relay for External Contact that power
supply wire of SF, SL, SK Models and buzzer wire of SK Model. Failure comply
may result in fire, product malfunction.
Mounting Bracket + Waterproof Sheet
● Use a soft cloth moistened with water to clean the globe or
case. (Do not use thinner, benzine, gasoline or oil.)
Rotary switch (SF model only)
● EMC Directive (EN61000-6-4, EN61000-6-2)
● RoHS Directive (EN50581)
● UL508, CSA-C22.2 No.14 (File No. E215660)
● FCC Part 15 Subpart B Class A
<Conformity requirements for the CE Marking>
This product conforms to EN standards and shows the CE Marking.
This product has been tested and found to comply with the limits for a Class A
device, pursuant to EMC DIRECTIVE.
These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in
a commercial environment.
This product must not be used in residential areas.
<Conformity to FCC Compliance>
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment.
The equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in aresidential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
● Dimensions and specifications may change without notice due to
continual product improvement.
● PATLITE and the PATLITE logo is a trademark, or registered trademark of
the PATLITE Corporation of Japan and each country.
PATLITE Europe GmbH Am Soeldnermoos 8, D-85399 Hallbergmoos, Germany
Recommended lead wire specifications
Wire Gauge (Stranded Wire)
Strip 8-9 mm f wire in ula ion rom he lead wire in ert he erminal bloc o s t f t to s into t t k.
• Do not tug on to the lead wire to remove- always unlock the lever before
• The tip of the flathead screwdriver should be no more than 2mm wide and
• Do not put excessive force on the lever, as this may cause the lever to break.
• Temperature rating should be above 75°C, and the conductor material should
100 - 240 V AC (50/60 Hz)
100 - 240 V AC (50/60 Hz)
100 - 240 V AC (50/60 Hz)
100 - 240 V AC (50/60 Hz)
Align a flathead screwdriver to the groove of
the lever. Press down to release the lock.
Re er he ns alla ion Manuaf t to "I t t l".
Re er he ns alla ion Manuaf t to "I t t l".
Re er he ns alla ion Manuaf t to "I t t l".
● The type with a buzzer, if the buzzer opening is splashed
with water, the Sound Pressure Level may drop.
External contact capacity of power supply wire
3A or more 1A or moreCurrent Capacity (Is)
[ External contact capacity of signal wire and buzzer wire ]
● The protection rating does not include the Cabtyre Cable
If the ends of the it are in contact with water or exposed to dew or
condensation, refer to the indications below to dress the wire ends for water
Connect the it ends in a location which will not expose the ends to water.
Use Fillers, such as silicon, etc., to seal the it ends.
Read this First (Safety Precautions)
Model Number Configuration
Maximum Board Thickness of Mounting Surface
■ 2-point Hole Type Mounting (SF • SL Models)
3-point Hole Type Mounting (SL15 Model Only)
When using an NPN open-collector transistor.
(1) Use the screws or bolts, nuts. to secure the mounting bracket
(accessory) to the mounting surface.
(Installation screws and nuts are not included with this product.
Binding head screws or pan head screws are recommended.)
(2) Check that the O-ring is not twisted.
(3) Align the main unit of product with the positioning Indicator and
turn it clockwise to lock it.
Excluding Power Supply Wire
