220-240V LVC-IV Low-Voltage Control Module
Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385
draperinc.com | 765.987.7999 | 800.238.7999
© 2023 All Rights Reserved
|
FORM: LVCIV_220_Wiring23
WIRING
INSTRUCTIONS
Uses
IR (Infrared)
Remote Control
RJ25 Ports for
RS-232/RS-485
Communication
Low-Voltage Wall Switch
“Dry” Contact Closure
RF (Radio Frequency)
Remote Control
3rd Party Control
Control systems employing “dry”
contacts or Serial Communication.
FUSE - 3.15 AMP
250 VAC 5x20mm
Low-Voltage wiring by others
Factory wiring
DASHED WIRING BY ELECTRICIAN
SIGNAL LED
LVC-IV
Radio Frequency
(RF) Transmitter Part#: 121226
Operating range is 250’ (76M) open distance.
Each time the RF signal penetrates a wall,
distance will fall off 50%.
RF RECEIVER
BUTTON
RS232/485
Inputs/Outputs
(Ports are identical)
RJ25
Connector
RJ25
Connector
ELECTRICALLY STRAIGHT DATA CABLE
6 - WHITE - 6
5 - BLACK - 5
4 - RED - 4
3 - GREEN - 3
2 - YELLOW - 2
1 - BLUE - 1
NOTICE: Remove this test
lead before installation.
IR Transmitter
Part#: 121227
Transmitter range: 26’ (7.9M)
IR Eye
Input
IR Eye
Low Voltage
Trigger
4-28 VDC
LVC-S: 3 Button Wall Switch(es) Part #: 121225
SWITCH B
SWITCH A
Low-Voltage
Wall Switch(es)
Dry Contact Closure
The 230V LVC-IV also used as a Single-Pole, Double-Throw dry closure to control equipment by the same means listed above.
If you encounter any difficulties installing or servicing
your LVC-IV, call your dealer or contact Draper, Inc.

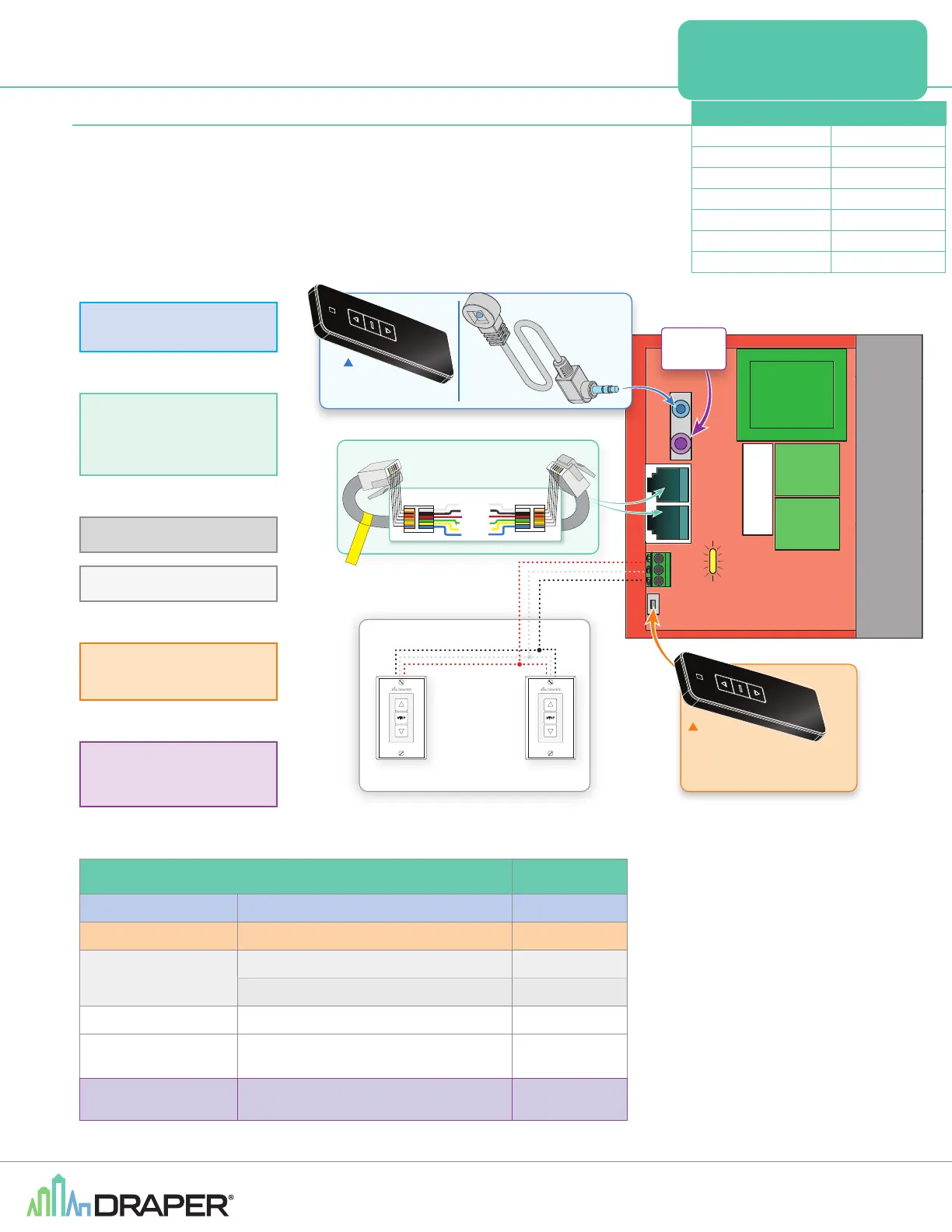

Section 1 - Overview
The LVC-IV module contains a 3-screw terminal block for a low-voltage wall switch,
an IR receiver jack, a built-in RF receiver, two-RJ25 ports for RS232
/
RS485,
a low-voltage relay port with cable and a user-serviceable 3.15 Amp fuse.
Compatible components for each are listed below.
Technical Specifications:
Power Supply: 230V / 50Hz
Temperature: -40° C – 85° C
Frequency: 433 MHz
Power: <300W
Transmit Power: <10mW
Sensitivity: -110dBm
Fuse: 3.15 Amp
COMPATIBLE COMPONENTS PART NO.
IRT / R Infrared Remote Control (Connects to IR Port)
121228
WRT / R Radio Frequency Remote (antenna built in)
121226
LVC-S
Low-Voltage Wall Switch.
121225
Low-Voltage Wall Switch w/ Locking Cover
121232
KS-1 Power Supply Key Switch.
121017
SP-KSM
3-position Momentary Key Switch
(Please Note: 'Stop' won’t work)
121022
Auxillary Control
Control systems employing “dry” contacts
or Serial Communication.
By Others
220-240V LVC-IV Low-Voltage Control Module
page 2 of 4
Section 3 - Infrared (IR) Remote Control
1.
Plug Optional IR Eye into mini plug input provided on LVC-IV (see Figs. 1 and 3).
2.
IR Remote Control transmitter does not need to be "learned" by the LVC-IV. Simply point and operate.
3.
Maximum IR Eye cable length is 42" (1 meter).
Please Note: IR Transmitter Range is 26ft. (7.9 meters).
Figure 3

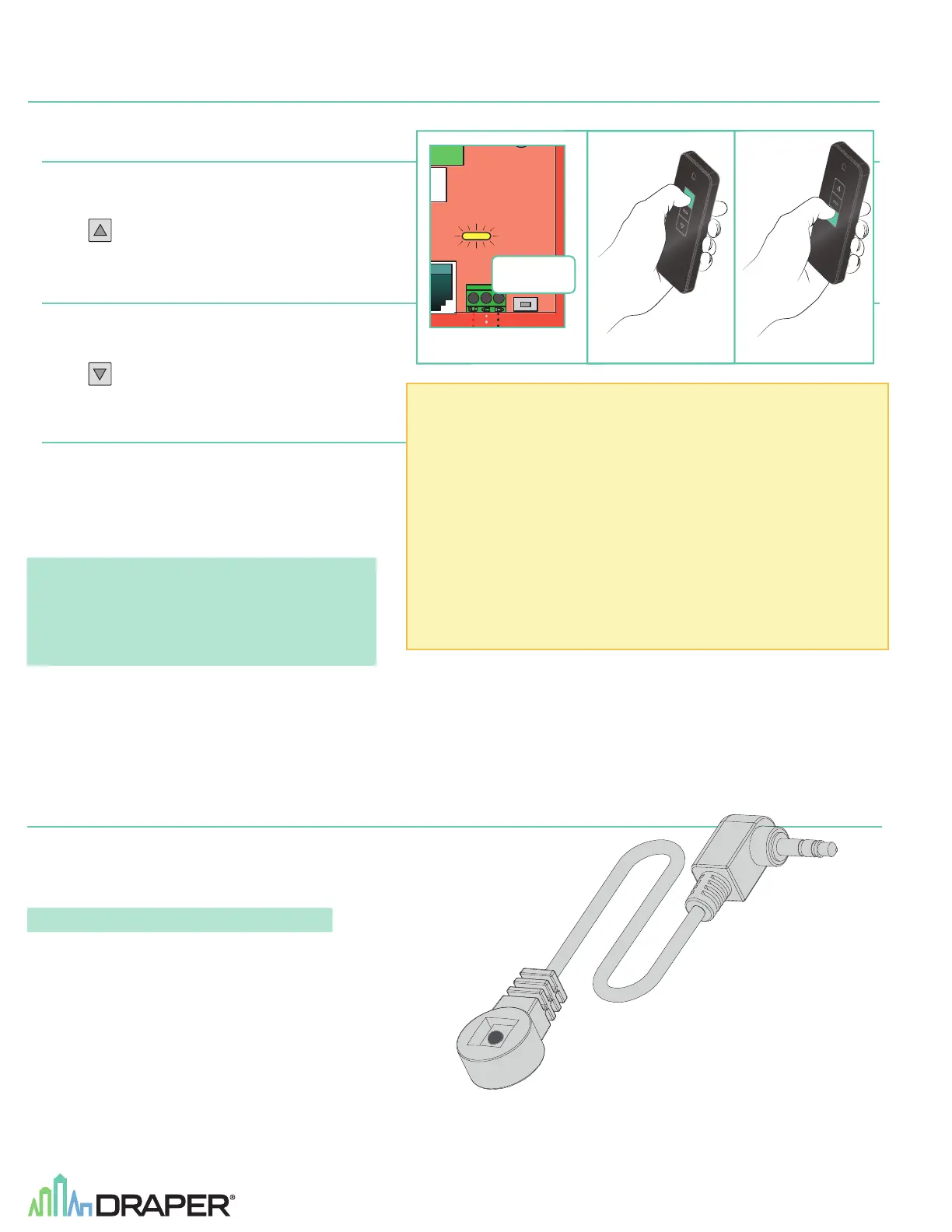

Section 2 - Programming Radio Frequency (RF) Remote Control
The LVC-IV comes with built-in Radio Frequency Remote control capability (optional handheld transmitter NOT included).
To "Learn" a remote
1.
Press receiver button on LVC-IV (see Fig. 2A).
2.
Signal light will flash slowly.
3.
Press
(UP) on transmitter within 10 seconds (see Fig. 2B).
4.
Signal light flashes three times quickly.
To "Un-Learn" a remote
1.
Press receiver button on LVC-IV (see Fig. 2A).
2.
Signal light will flash slowly.
3.
Press
(DOWN) on transmitter within 10 seconds (see Fig. 2C).
4.
Signal light flashes three times quickly.
To "Un-Learn" all remotes
1.
Press receiver button on LVC-IV until signal light flashes quickly,
then release.
2.
Press receiver button once while signal light is flashing.
3.
Signal light will stop flashing.
PLEASE NOTE:
1. RF receiver MUST NOT TOUCH METAL OBJECTS!
Maximum Distance of Transmitter will be affected negatively.
2. Disconnect the power supply before installing the RF receiver.
3. Avoid electrostatic interference:
Static electricity will damage the electronic components.
4. Ensure there is > 5' (1.52M) between RF receiver and ground.
5. Ensure there is > 1' (30.5cm) between RF receiver and ceiling.
6. Ensure there is > 1' (30.5cm) between RF receiver and transmitter.
7. Multiple receivers must be spaced > 8" (20cm) apart.
Please Note: Operating range is 250ft (76 meters) open distance.
RF Signal will degrade significantly with each wall
it is required to penetrate.
If you are experiencing issues with RF signal
strength, the RF antenna can be threaded out
one of the knockouts for better reception.
Figure 2
FUSE - 3.15 AMP
250 VAC 5x20mm
DASHED WIRING BY ELECTRICIAN
LVC-IV
WHITE - Common to screen
& 110V AC Neutral
RED - to screen (directional)
BROWN - to screen (directional)
YELLOW - to 110V AC-Hot
BLACK - to 110V AC-Hot
GREEN/YELLOW (Ground)
WHITE - Common to screen
& 220V AC Neutral
RED - to screen (directional)
BROWN - to screen (directional)
YELLOW - to 220V AC-Hot
BLACK - to 220V AC-Hot
GREEN/YELLOW (Ground)
SIGNAL LED
LVC-IV
RS232/485
Inputs/Outputs
(Ports are identical)
RF Transmitter
Operating range is 250 feet (open distance). Each time
the RF signal penetrates a wall, distance will fall off 50%.
IR Eye
Input
IR Transmitter
Transmitter range: 26’ (7.9M)
IR Eye
Low Voltage
Trigger
4-28 VDC
BACK
LVC-S
3 BUTTON WALL SWITCH
PN: 121225
Low voltage wiring by others
FRON T
RED - UP
WHITE - COMMON
BLACK - DOWN
CBA
.
Receiver
Button
