Original Instructions

Version 1 – June 2022

Stock No. 28369 Part No. DAT-IWTF

INLINE

WATER

TRAP AND

F I LTE R

Read this manual in full before attempting to

use this product and retain it for later use.

Always use the latest version of the manual.

1. Scope

This inline water trap and lter is designed to

catch water and other impurities in

compressed air systems and can be installed

directly onto the tool inlet or elsewhere in the

air line. Part of our core range, this product is

suitable for regular use by enthusiasts and

tradespersons alike.

WARNING! This product is not a toy

and must be respected.

2. Specication

Stock No. 28369

Part No. DAT-IWTF

Rated pressure 8bar (115psi)

Max. pressure 10bar (145bar)

Thread size 1/4” BSP

Weight 0.09kg

3. Health and Safety

Information

Important: Read all the Health and

Safety instructions before attempting to

operate, maintain or repair this product.

Non-compliance with these instructions

may result in injury or damage to the user,

the product or the vehicle to be lifted.

3.1 General Health and Safety

Precautions

• Observe all standard safety precautions

and good practices when working with air

tools.

• Before every use, inspect the tools for

missing, broken, loose or corroded parts.

Important: DO NOT use this product if it

is damaged in any way. Contact Draper

Tools to discuss repair and replacement

options.

• Ensure that all accessories and

attachments are securely tightened

before use.

• Use the product only in the manner

instructed in this manual.

• DO NOT modify this product in any way.

• ONLY use spare parts supplied by Draper

Tools.

Helpline: +44 (0) 23 8049 4344 Sales Desk: +44 (0) 23 8049 4333

General Enquiries: +44 (0) 23 8026 6355 Website: drapertools.com

Email: sales@drapertools.com

Draper Tools Limited, Hursley Road, Chandler’s Ford, Eastleigh, Hampshire, SO53 1YF, UK

2. Screw the water trap outlet (3) onto the air

tool or other connecting inlet.

3. Wrap a length of PTFE tape around the

inlet of the water trap inlet (2) and attach

the desired coupling.

4. Connect the inlet to the air line.

After use, hold the product upright and press

the valve (4) to release any water from the

reservoir.

6. Maintenance and

Disposal

Important: Always disconnect the product

from the air line before attempting to

maintain the product.

• Drain the reservoir weekly and before

storing.

• Replace the water trap if it no longer

creates an airtight seal or becomes visibly

dirty on the inside.

• Store the product in a clean and dry

environment, out of reach of children.

• DO NOT allow dirt, dust and other debris

to enter the product.

At the end of its working life, or when it can

no longer be repaired, dispose of the product

according to local regulations.

7. Explanation of Symbols

Read the instruction manual

Warning!

1/4"

BSP

Thread size

Maximum pressure

Operating pressure

Contact your local authority for details of

collection schemes in your area.

3.2 Additional Safety

Instructions for Air Tools

• Compressed air can cause severe injury.

− ALWAYS turn o and disconnect the

air supply before leaving the product

unattended.

− Ensure that compressed air is not

blocked by or in contact with any part

of your body.

• ONLY use clean, dry and regulated

compressed air.

WARNING! NEVER use oxygen,

combustible gases or other

bottled gasses as a supply for this

product. Use of these substances

may cause the product to explode.

• Ensure that the product is compatible with

the air supply before use.

• Ensure all connections are securely

tightened.

• DO NOT exceed the maximum stated air

pressure.

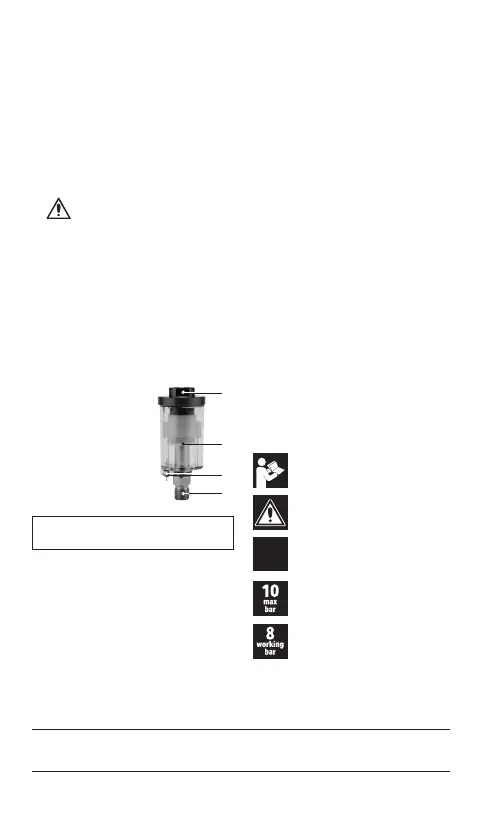

4. Product Overview

Carefully remove

the product from the

packaging and examine

it for any signs of damage

that may have occurred

during shipment.

(1) Filter

(2) Inlet

(3) Outlet

(4) Valve

Please visit drapertools.com for our full

range of accessories and consumables.

5. Operation

Important: Before using this product, read

and understand all the safety instructions

listed in this manual.

1. Wrap a length of PTFE tape around the air

line inlet of the air tool or other air line

component to which the product will be

connected.

Important: For a more secure seal, the

PTFE tape should be wrapped in the

opposite direction to the thread.

(3)

(1)

(4)

(2)
