Stock No’s: 30620, 30621, 30622

110 V

PORTABLE

TRANSFORMERS

Original Instructions

Version 2 – June 2025

3. Health and Safety Information

Important: Read all the Health and Safety instructions before

attempting to operate, maintain or repair this product. Failure to

follow these instructions may result in injury or damage to the

user or the product.

• Maintain the transformer in good condition. ALWAYS check

the transformer, sockets and power cord for signs of damage

or wear before EVERY use. Any repairs must be carried out by

a fully qualied electrician.

WARNING!

DO NOT use the product if it is

damaged in any way.

• DO NOT use this product in environments where ammable

or explosive substances are present.

• ALWAYS ensure that this product is compatible with the

intended power supply; it is intended ONLY for connection

to domestic power supplies rated at 230V AC.

• This is a Class I appliance: there MUST be an earth

connection in the power supply.

• ALWAYS ensure that this product is compatible with the

tool to be connected; it is ONLY intended to supply

110V AC power.

Read this manual in full before using this product and retain it for future use. Always use the latest version of the manual.

Please visit drapertools.com/manuals for the latest version.

1. Intended Use

This portable site transformer is designed to converts 230V

electrical supplies to a 110V output.

Suitable for intermittent running of power tools and continuous

running of lighting products up to the rated value.

Any other application beyond the conditions established for use

will be considered misuse. Draper Tools accepts no responsibility

for improper use of this product.

2. Specication

Stock No. 30620 30621 30622

Part No. DT5000A DPT3300A DPT1500A

Input voltage: 230V AC 230V AC 230V AC

Input frequency: 50Hz 50Hz 50Hz

Input amperage: 13A 13A 13A

Output voltage: 110V AC 110V AC 110V AC

Output amperage: 16A/32A 16A 16A

Max rated output:

Intermittent: 5.0kVA 3.3kVA 1.5kVA

Continuous: 3.0kVA 1.65kVA 1.0kVA

Duty cycle for intermittent use: 5mins on/15mins o 5mins on/15mins o 5mins on/15mins o

Insulation class: Class I Class I Class I

Max. ambient temperature: 20°C 20°C 20°C

No. of output sockets: 2 x 16A, 1 x 32A 2 x 16A 2 x 16A

Power cord length: 1M 1.6M 1.6M

IP rating: IP44 IP44 IP44

Net weight: 29kg 15.8kg 12.2kg

Earth type: CTE (centre tapped) CTE (centre tapped) CTE (centre tapped)

Overload protection: Yes – resettable Yes – resettable Yes – resettable

WARNING!

30620 - 29kg, take care when lifting.

• DO NOT connect an extension cord to the 230V power

supply; extensions cords may ONLY be used with the 110V

outputs and must NOT exceed 50m in length.

• The supply cord is not replaceable. If the cord is damaged the

transformer will need to be disposed of.

• DO NOT pull or carry the product by the power cord or use

the cord to remove the plug from a socket.

WARNING!

This product will become hot during use;

DO NOT touch or cover the product during or

immediately after use and allow the product to cool

thoroughly before handling or storing it.

DO NOT use the transformer continuously for more the

5minutes without a rest period of 15minutes.

• Use this product ONLY on heat-resistant surfaces.

• Keep this product out of reach of children.

• DO NOT expose this product to liquids, wet environments

or frost.

• NEVER exceed the maximum load of the product.

• ALWAYS operate, transport and store this product in an

upright position.

4. Usage Modes

The transformer can accommodate dierent loads according to

the way in which it is used:

• When used intermittently for short periods, a load of up to

50% of the maximum rated power may be applied to the

transformer. Important: NEVER exceed the maximum rated

load of the product.

Important: When used intermittently, the product MUST be

allowed to rest for 15 minutes after every 5 minutes of use.

• Important: Continuous use is intended for low-wattage

appliances ONLY. Continuous use to power higher-wattage

appliances will overload the product and may cause

signicant damage to the circuitry.

5. Overload Protection

The transformer is equipped with an overload circuit breaker. If

the circuit breaker trips, switch o, disconnect all appliances

and allow the transformer to cool before gently pressing the

reset button. If the breaker trips frequently, contact Draper Tools

for support.

6. Disposal

At the end of its working life, dispose of the product responsibly

and in line with local regulations. Recycle where possible.

• DO NOT dispose of this product with domestic waste; most

local authorities provide appropriate recycling facilities.

• DO NOT incinerate this product.as this may release toxic or

corrosive substances.

7. Warranty

Should the tool develop a fault, return the complete tool to your

nearest distributor or contact Draper Tools directly. Proof of

purchase must be provided.

If, upon inspection, it is found that the fault occurring is due to

defective materials or workmanship, repairs will be carried out

free of charge. This warranty covers parts and labour for

12months. However, if the tools are hired out, the warranty

period is 90 days from the date of purchase.

This warranty does not apply to any consumable parts, batteries

or normal wear and tear, nor does it cover any damage caused

by misuse, careless or unsafe handling, alterations, accidents,

or repairs attempted or made by any personnel other than the

authorised Draper Tools repair agent.

Visit drapertools.com/warranty for full details.

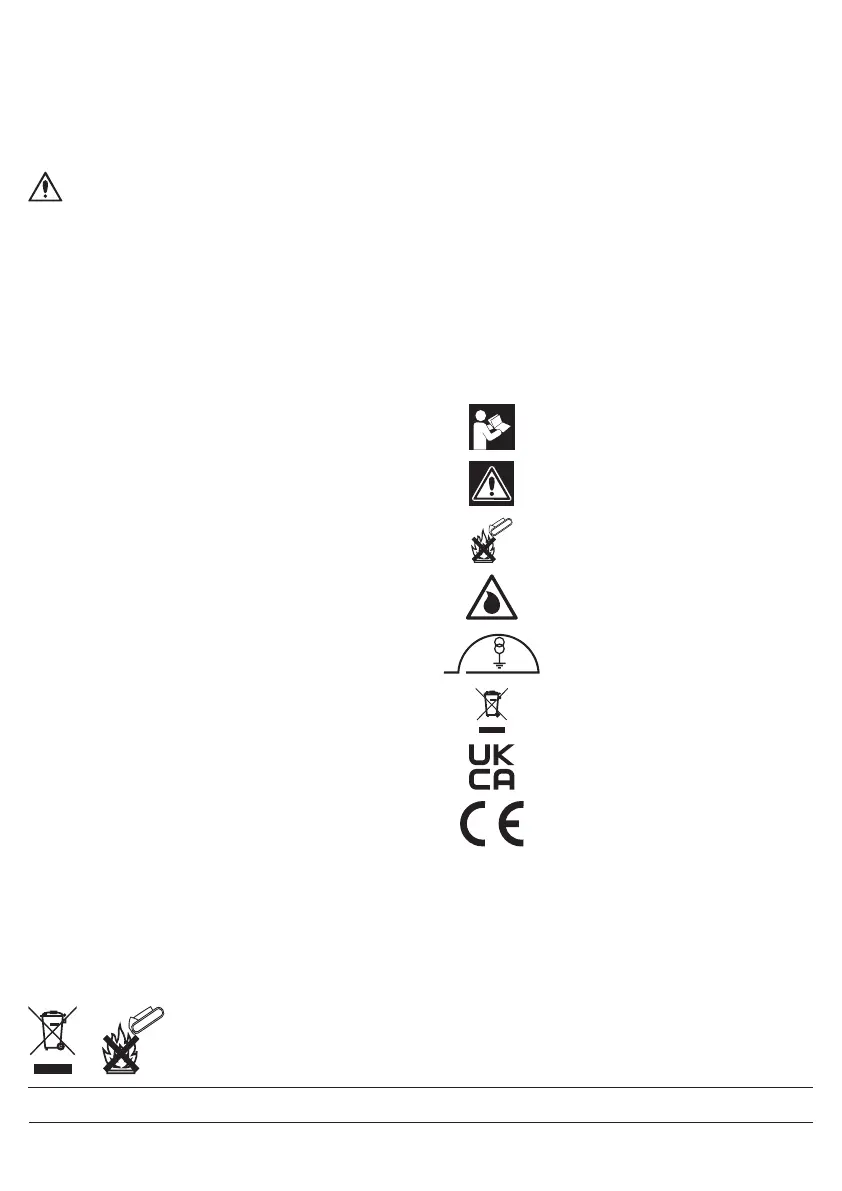

8. Explanation of Symbols

Helpline: +44 (0) 23 8049 4344 Sales Desk: +44 (0) 23 8049 4333 General Enquiries: +44 (0) 23 8026 6355 Website: drapertools.com Email: sales@drapertools.com

Draper Tools Limited, Hursley Road, Chandler’s Ford, Eastleigh, Hampshire,

SO53 1YF, UK

Delta International, Delta International BV, Oude Graaf 8, 6002 NL,

Weert, Netherlands.

Read the instruction manual

WARNING!

Do not incinerate or throw onto re

Do not expose to heat or open ames

Two-winding transformer with

functional earthing

WEEE – Waste Electrical & Electronic Equipment

Do not dispose of this product with domestic waste
