Original Instructions

Version 1 – February 2022

21714, 21715, 21721, 82631, 21723, 21744, 03711

METRIC THREAD

REPAIR KIT

Stock No. Part No. Tap size

Drill bit size

(mm)

Hex key size

(mm)

Thread inserts

included

21714 DHCK-A M5 x 0.8mm 5.2 2 20

21715 DHCK-A M6 x 1.0mm 6.2 2 20

21721 DHCK-A M8 x 1.25mm 8.3 2 20

82631 DHCK-A M9 x 1.25mm 9.3 2 20

21723 DHCK-A M10 x 1.5mm 10.3 2 10

21744 DHCK-A M12 x 1.75mm 12.4 2 10

03711 DHCK-A M14 x 1.25mm 14.3 2 10

(E)

(A)

(B)

(F)

(D)

(C)

A. 1 x HSS drill bit

B. 1 x HSS

tapping tool

C. 1 x Hex key

D. 1 x Insert tool

E. 1 x Lug

breaking tool

F. Thread inserts

G. 1 x Case

1. Health and Safety

Information

• Inspect the product thoroughly for

damage before every use; DO NOT use it if

it is damaged.

• ALWAYS wear eye protection.

• This manual is supplied as a guide only.

− Assess any other precautions that

must be taken before use with each

specic workpiece.

− Where the workpiece is part of a larger

tool or machine, refer to the

manufacturer’s manual for the correct

procedure for use.

• Keep the work area clean and well lit,

with bystanders at a safe distance.

• Secure the workpiece during operation.

WARNING! This product requires the use of

additional tools (not supplied). Read and

adhere to all Health and Safety information

and operating instructions associated with

the chosen tools before use.

Read this manual in full before attempting to use this product and retain it for later use.

Always use the latest version of the manual.

(G)

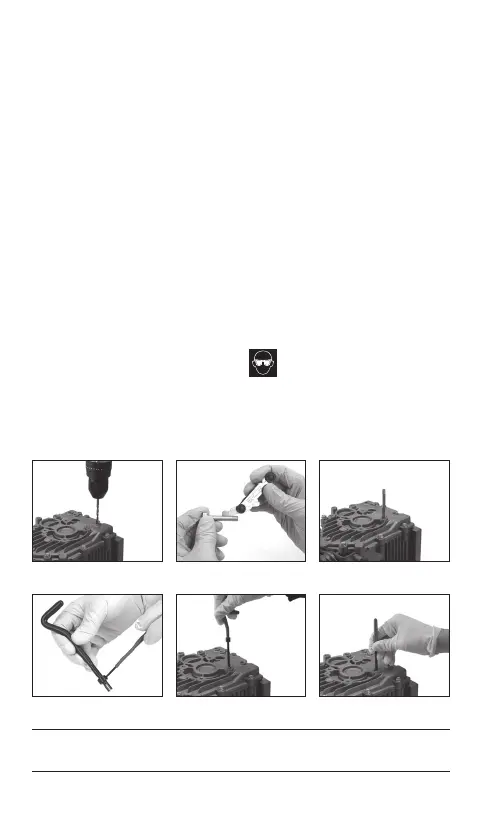

Fig. 1

Fig. 4

Fig. 3

Fig. 6

Fig. 2

Fig. 5

Helpline: +44 (0) 23 8049 4344 Sales Desk: +44 (0) 23 8049 4333

General Enquiries: +44 (0) 23 8026 6355 Website: drapertools.com

Email: sales@drapertools.com

Draper Tools Limited, Hursley Road, Chandler’s Ford, Eastleigh, Hampshire, SO53 1YF, UK

6. With the insert tool at the correct angle,

wind the thread insert into the hole using

light downward pressure until the set

depth is reached and then remove the

insert tool – Fig. 5.

CAUTION! DO NOT work against the

direction of the thread as this may

damage the insert tang.

7. Position the lug breaking tool (E) above

the insert thread tang and strike it to

break the tang – Fig. 6.

3. Care and Disposal

• Clean all parts of the product before and

after each use, and before storing.

• Do not use damaged or defective tools

with this product.

• Store the product in a clean and dry

location, out of reach of children.

At the end of its working life, or when it can

no longer be repaired, dispose of this product

according to local regulations.

Wear eye and face protection

2. Operating Instructions

1. Drill out the damaged thread using the

appropriate drill bit (A) (supplied) – Fig. 1.

Important: Some xings may need to be

removed by a specialist engineer. Draper

Tools accepts no responsibility for the

incorrect removal of broken xings and

fasteners.

2. Use a thread gauge (not supplied) to

ensure that the thread and pitch of the

new fastener are compatible with the

thread insert (F) – Fig. 2.

3. Fix the tapping tool (B) into a tap wrench

(not supplied) and cut a new thread into

the cleared hole – Fig. 3.

Important: Use of an appropriate cutting

oil is recommended. Clear the tapping

tool of chips after use.

4. Use the adjustable ring of the insert tool

(D) to set the depth at which the thread

insert will be positioned and use the hex

key (C) to lock it in place – Fig. 4.

Important: When inserted, the thread

insert should be positioned roughly a

half-turn below the surface.

5. With the thread insert tang positioned at

the bottom, push the insert tool through

the top of the thread insert and locate the

tang in the tang slot.
