Side 1/2

ZONE

VALVE PACK

WITH

LWC 1

WIRING

CENTRE

CONTENTS

Programmer

Zone V

alve Heating

Zone Valve

Hot Water

Room

Thermostat

Cylinder

Thermostat

LWC 1 Wiring

Centre

Heating Control Pack

with

Switchmaster, Lifestyle or Tempus Programmer

INSTALLATION

AND

WIRING GUIDE

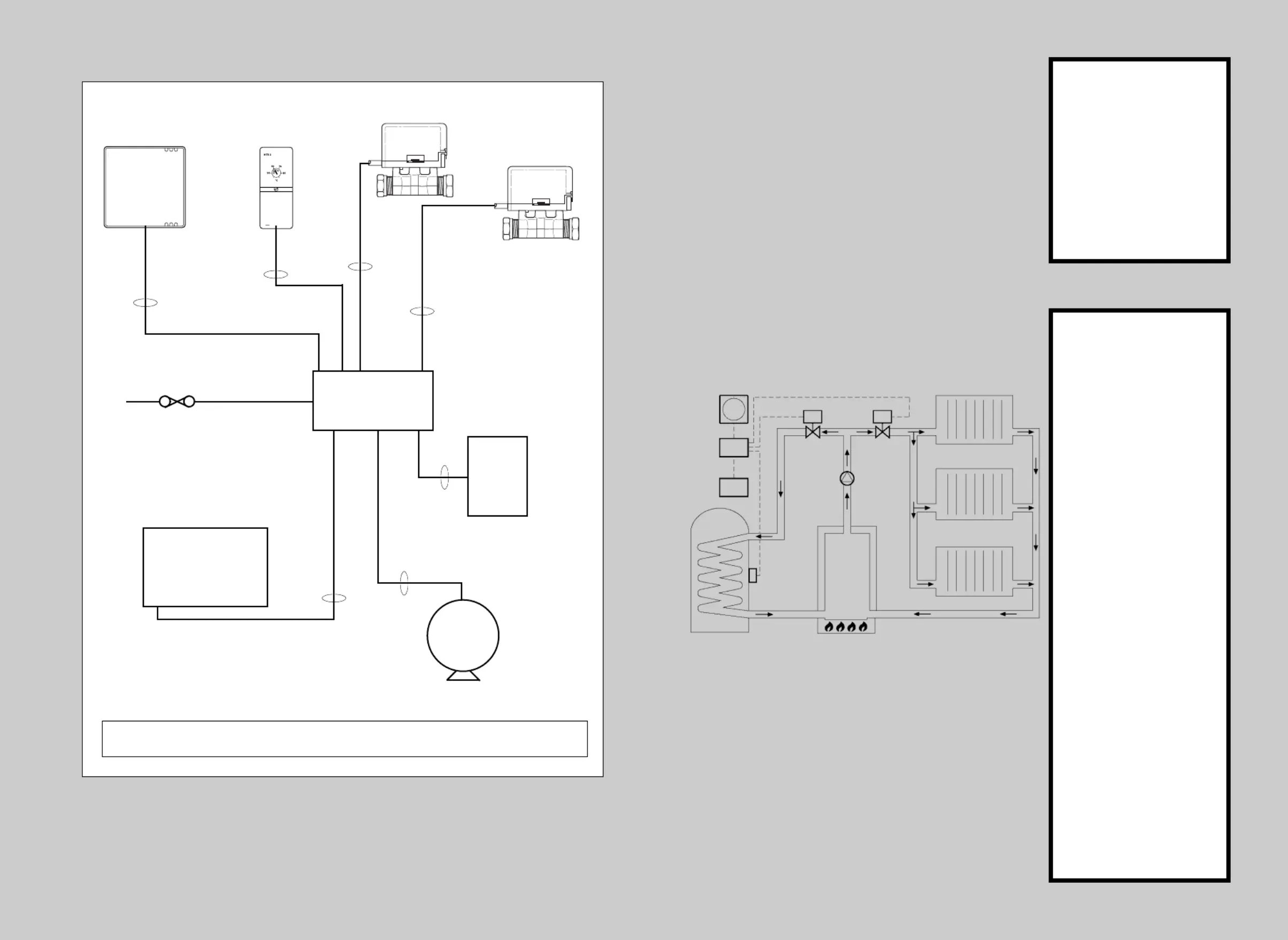

FIRST FIX DIAGRAM

LWC 1 WIRING

CENTRE

PROGRAMMER

BOILER

PUMP

ROOM STAT

HTS 3

CYLINDER

STAT

3 CORE

+ EARTH

2 CORE

+ EARTH

2 CORE

+ EARTH

MAINS 230V. AV

FUSED 3A

NOTE: 1. The 2-port Zone Valves are supplied with 30" of cable

DHW

VALVE

090-667 Iss C

28mm

5 CORE

+ EARTH

22mm

4 CORE

+ EARTH

28mm

5 CORE

+ EARTH

22mm

4 CORE

+ EARTH

4 CORE

SM 400 LP 112

SM 600 LP 241

SM 805 LP 522 Tempus 6

SM 905 LP 722 Tempus 7

Lifestyle

Wiring Centre

Programmer

Cylinder

Thermostat

Boiler

Hot Water Valve Heating Valve

Pump

Room

Thermostat

B A

HTG

VALVE

Invensys Controls Europe

Customer Service Tel: 0845 130 5522

Technical Helpline Tel: 0845 130 7722

Email: customer.care@invensyscontrols.com

Website: www.draytoncontrols.co.uk

INSTALLATION INSTRUCTIONS

PROGRAMMER

Please refer to separate leaflet.

MOTORISED VALVE

Installation

Install the valve in a clean, dry location where the ambient temperature does not exceed 52°C. Ensure that the motor housing is not

below the valve body. The manual lever and motor cover retaining-screw should be left accessible and the position indicator visible.

Cut connecting copper tubes to allow 10-15mm penetration (22mm valve) or 22-25mm penetration (28mm valve) into the valve

body, and ensure tube ends are square and free of burrs. Slip the compression nuts over the ends of the tubes, followed by the

copper olives so that these fit within the threaded sections of the nuts. Offer up to the valve body, screw on and tighten the

compression nuts by hand until finger tight and then tighten fully using suitable spanner or adjustable wrench.

Care must be taken not to over tighten or to put any mechanical force on the plastic parts of the valve.

OPERATION

Lifestyle two port valves are supplied

normally

closed, ie. they have to be powered to open. They spring return to the closed position

when the power is removed. Flow direction should be in through Port ‘A’ and out through Port ‘B’.

MANUAL LEVER

The manual lever is used when filling, venting and draining the installation. To open the valve, the manual lever should be moved

from left to right across the valve and then pressed in. When released it will lock in this position. It automatically releases when

power is applied to the valve.

VALVE POSITION INDICATOR

A = valve closed B = valve open

ROOM THERMOSTAT

Location

Care should be taken to mount the thermostat in a position which is not subject to direct sunlight or draughts. Preferably it should be

fixed on an inside wall about 1.5m above the floor in a position where it can respond to room temperature but away from the direct

influence of radiators or other appliances giving off heat.

Fixing

Remove the dial, undo the screw and lift off cover. Fix the base onto a flat wall or flush mounting single conduit box. If the pattress is

required, fix this first and then mount thermostat base using the screws supplied. Wire to terminals as shown in the diagram

opposite.

IMPORTANT

This thermostat requires a neutral and must be earthed.

CYLINDER THERMOSTAT

Positioning

The HTS3 should be installed approximately one third of the way up the hot water cylinder, and at the front for ease of access. With

pre-insulated cylinders, mark the position and size, and remove just enough insulation to allow the HTS3 to fit against the metal of

the cylinder in the recess formed.

The base of the HTS3 should be held in good contact with the metal of the hot water cylinder.

The plastic covered spring fixing cable should be cut to an unstretched length of approximately 2

/2” - 3” less than the circumference

of the cylinder and the hook and eyelet screwed into the ends. Stretch the cable round the cylinder, above the insulation, and

position it in the groove across the front of the HTS3. Engage the hook and eyelet.

Commissioning

The two setting marks outside the temperature scale on the HTS3 provide positive ON and OFF positions to assist with

commissioning or checking the system operation. Rotate the setting arrow fully clockwise for ON, and anticlockwise for OFF.

Setting

With a screwdriver, position the setting arrow at the desired nominal hot water temperature. A popular setting is 60°C but if this is not

exactly suitable, simply adjust up or down as appropriate.

Frost Protection

If frost protection is required, we recommend that a frost thermostat (RTS3) is fitted in series with a pipe thermostat (PTS1) to

provide ‘Two Stage’ protection.

CONFORMS TO THE ESSENTIAL REQUIREMENTS OF THE FOLLOWING DIRECTIVES:

2004/108/EC - Electromagnetic compatibility; 2006/95/EC - Low Voltage Directiveive

See back of this leaflet for details on cable requirements for installation.

WHERE ANY DOUBT EXISTS, PLEASE SEEK PROFESSIONAL ADVICE

DHW VALVE CH VALVE

ZONE VALVE Systems with LW ng CC1 Wiri entre

Every effort has been made to s he i ns and to ensure acimplify t nstructio curacy. However, the information is

provided for guidance only and Invensys Controls Europe are unable to accept liability for incorrect installation.

CONNECTIONS

The numbers printed at

the tip of each arrow rep-

resent the Wiring

Centre

erminals to which

those

leads or

terminals should

be connected.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Wiring Centre - BASIC LINKS

Link 2+3 if Roomstat

is not required

Links shown dotted

should be made by

installer

Pump

Controls

Room Thermostat

E N L 3 2

Cyl. Thermostat

Programmer

Switchmaster

805 905 9001

Switchmaster

400 600

Lifestyle LP722 LP522 LP241 LP112

Tempus 3, 4, 6, 7

1324

OFF

13——

4321

N 11

NOT

USED

10 9

L N E

13 N E

Perm.

N E

Switch

NL E 12

★

Refe iler to Bo r Handbook for wiring

details of Pump Overrun boilers. Use

boiler manufacturers instructions.

Boiler

★

Motorised Valves

Function of

Leads

Drayton

22mm 2 Port Valve

28mm 2 Port Valve

Aux.SWMotor

Brown

Blue

Yell/Green

Orange

Grey

White

(28mm only)

N.CN.O

8 N E 6 7 5

4 N E 6 7 16

Aux.SWMotor

Brown

N.CN.O

Blue

Yell/Green

Orange

Grey

White

(28mm only)

The white wire (28mm Valves) becomes live when the valve closes, it is not

used and is wired to 'spare' terminals for safe isolation.

Mains Input

230V 50HZ

L N E

Mains

Isolator

ETS 1

COM

CALL

SAT.

RTS 1&2

RTS 4,6,9&10

Function

E 4 1 2

N L 3

N L

E N L

1 3

NO SEDT U

COM

CALL

SAT.

Drayton

HTS 3

Function

C 1 2
