Side 1/40
Contents of the kit
● HDMI Extender Sender
● HDMI Extender Receiver
● DC 5V/1ª Power Adapter x 2
● User Manual
● IR Blaster extension cable
● IR Receiver extension cable
● USB cable
www.ebodeelectronics.eu
User Manual
HD120IR
HDMI Extender over Single CAT5e/6 with IR
User Manual 3
Bedienungsanleitung 7
Gebruikershandleiding 11
Användarmanual
15
Guide utilisateur 19
Manual de usuario 23
Manual do utilizador 27
Manuale per l’utente 31
Before using this product, please read this document carefully and visit
www.ebodeelectronics.eu for latest manual, Software and FAQ.
Technical Specification
● Power Supply: 2pc X DC 5V/1A
● HDCP Compliant: Yes
● DDC Signal: 5Vp-p(TTL)
● Bandwidth Frequency: 10.2 GBPS
● Supports HDMI input: 480i + 480p @ 60Hz, 576i + 576p @ 50Hz,
720p @ 50/60Hz, 1080I + 1080P @ 50/60Hz
● Supports HDMI output: 480p @ 60Hz, 576p @ 50Hz, 720p @ 50/60Hz,
1080P @ 50/60Hz
● Type of category cable: UTP/STP CAT5e/6
● Ethernet Bandwidth: 1000Mbps
● Power Consumption: 3W (max) each
● Transmission Distance: Extends HDMI signals up to 100m at full HD
1080P by CAT5 cable
● IR Remote control: Carrier frequency 38kHz
● Dimensions: 130 x 85 x 24mm
Disclaimer
The product name and brand name may be registered trademark of
related manufacturers.TM and ® may be omitted on the user manual.
Design and specifications of this unit are subject to change without
prior notice. Pictures are for reference only. Products may differ
slightly from images shown.
ebode HD120IR
2
User Manual
1. Conformity of Use
For carefree and safe use of this product, please read this manual and
safety information carefully and follow the instructions. The unit is
registered as a device that does not cause or suffer from radio-frequency
interference. It is CE approved and it conforms with the Low Voltage
Directory. The safety and installation instructions must be observed.
Technical manipulation of the product or any changes to the product are
forbidden, due to security and approval issues. Please take care to set up
the device correctly - consult your user guide. Young children should use
the device only under adult supervision. No guarantee or liability will be
accepted for any damage caused due to incorrect use of the equipment
supplied, other than indicated in this owner’s manual.
Safety Warnings
● To prevent short circuits, this product (except if specified for outdoor
usage) should only be used inside and only in dry spaces. Do not expose
the components to rain or humidity.
● Only connect the power cord to the mains after checking whether the
mains voltage is the same as the values on the rating labels. Never
connect a power cord when it is damaged. In that case, contact your
supplier. If there is any danger of a thunderstorm, it is a good precaution
to unplug the power supply from the mains network in order to protect it
from lightning. The same applies if the system is to be out of action for
any length of time.
● Avoid strong mechanical tear and wear, extreme ambient temperatures,
strong vibrations and atmospheric humidity.
● Do not disassemble any part of the product: no user-serviceable parts
are inside. The product should only be repaired or serviced by qualified
and authorized service personnel. Defected pieces must be replaced by
original (spare) parts.
● Batteries: keep batteries out of the reach of children. Dispose of
batteries as chemical waste. Never use old and new batteries or different
types of batteries together. Remove the batteries when you are not using
the system for a longer period of time. When inserting batteries be sure
the polarity is respected. Make sure that the batteries are not short
circuited and are not disposed in fire (danger of explosion).
In case of improper usage or if you have opened, altered and repaired
the product yourself, all guarantees expire. The supplier does not accept
responsibility in the case of improper usage of the product or when the
product is used for purposes other than specified. The supplier does not
accept responsibility for additional damage other than covered by the
legal product responsibility.
2. Introduction
Thank you for purchasing the ebode HD120IR. The HD120IR HDMI
Extender over single CAT5e/6 with IR is designed to convert and
transmit HDMI signal to standard TCP/IP by internet cable or LAN.
With the advantage of TCP/IP standard with 38KHz IR, the HD120IR
can transmit HDMI signals from sources such as HD STB, PS3, Blu-Ray
player, HDMI display card to HD projector, LCD, LED, Full HDTV and
other A/V devices over a distance up to 120 meters (CAT6), 100
meters (CAT5e) or 80 meters (CAT5). Includes USB cable which
enables you to power the receiver from USB port of your HDTV.
3. Important Safety Instructions
● Incorrect placement of sender and receiver may result in the failure
of the installation.
● Incorrect placement of IR blaster and receiver may result in the
failure of the IR extenders.
● Do not unplug the device ,when it is in using, keep distance from
inflammable and explosive devices.
● Power Supply :DC 5V , Use only the power adapter and power cords
and connection cables designed for this unit.
4. Installation Requirements
● HDMI source with IR function (Computer graphics card, DVD, PS3,
HD monitoring equipment etcetera)
● SDTV,HDTV ,Projector with HDMI port.
● Link Connector (Sender/Receiver): UTP/STP CAT5e/6.
● Extends by Router or LAN connection ,Cable length requirements are
as follows:
o CAT5 Maximum 80 meters between two Devices
o CAT5e Maximum 100 meters between two Devices
o CAT6 Maximum 120 meters between two Devices
ebode HD120IR
4
ebode HD120IR
3
5. Installation Guide

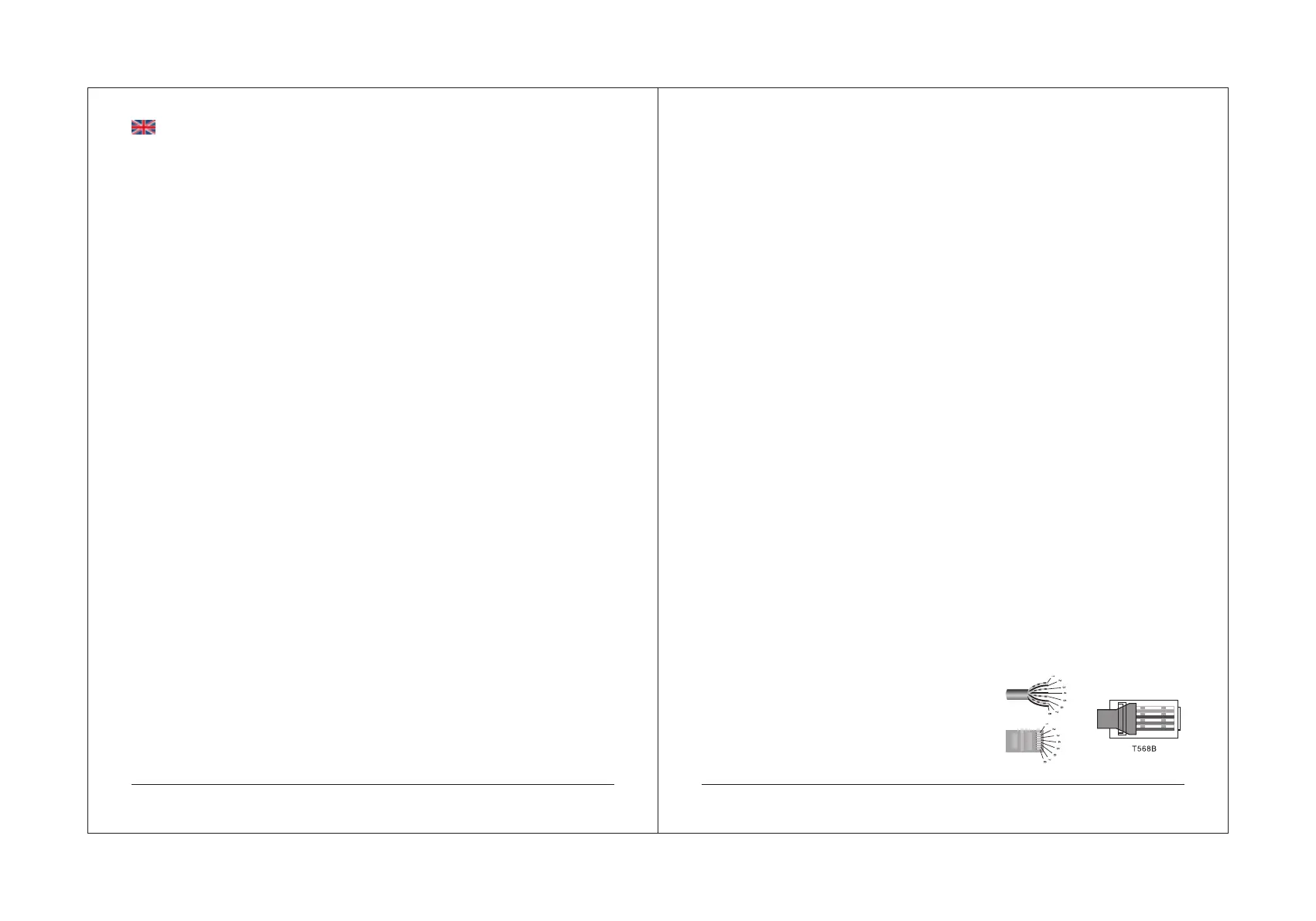

5.1 CAT5e/6 cable.
Follow the standard of IEEE-568B.
1 = Orange / White 5 = Blue / White
2 = Orange 6 = Green
3 = Green / White 7 = Brown / White
4 = Blue 8 = Brown
