Side 1/15

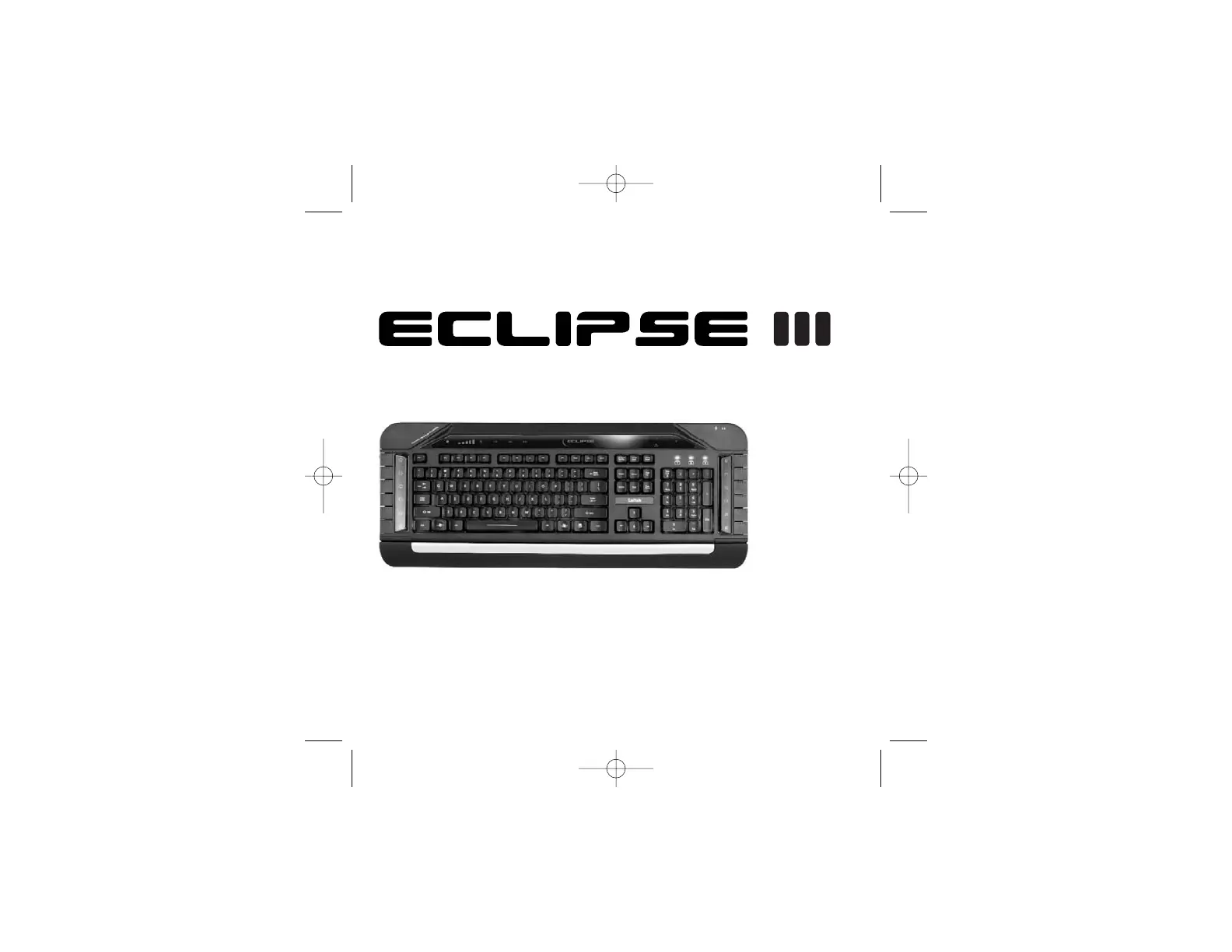

Backlit Multimedia Keyboard

USER MANUAL

BEDIENUNGSANLEITUNG

GUIDE D’UTILISATION

MANUALE D’USO

MANUAL DEL USUARIO

Saitek

Eclipse_III_KB.qxd 31/07/2008 10:35 Page 1

To change the color of the key backlighting, first press the color selector control (b) and then “-” (c)

or “+” (d) to scroll through the backlighting colors.

Press the backlighting on/off control (e)

to switch the keyboard backlighting on

or off. To increase or decrease the

volume of your PC’s media player,

press the “-” or “+” on the volume control (f). The mute control (g) temporarily mutes all sound

from your PC and play/pause (h), previous track (i) and next track (j) control the tracks playing on

your PC media player.

The Eclipse III has six buttons at each side of the keyboard which control various Windows and

Office functions.

Sleep function

Your Eclipse III keyboard features a sleep button which is operated by pressing for three seconds.

Please note that for Vista users, the sleep button may have a different function depending on your

PC settings. To check that the sleep button will make your PC sleep, go to Windows Start, Control

panel, Power options. Click on the “Choose what the power buttons do" link on the left hand side of

the window, under “When I press the sleep button on my computer”, select “Sleep” from the drag

down menu.

ECLIPSE III BACKLIT MULTIMEDIA KEYBOARD

Congratulations on buying your Eclipse III Backlit Keyboard. The keyboard features a sleek design,

touch-sensitive lighting and volume controls, and a range of Windows Office and multimedia keys.

Features

• Adjustable, multi-color backlighting

• Touch sensitive control panel

• Two stage height adjustment and removable wrist rest

• Pass through headphone and microphone audio ports

• Time-saving Windows and Internet shortcut keys

• USB plug and play

• Color and keyboard settings remain even after system reboot

• Laser-etched, soft-touch, durable keys

System compatibility

PC running Windows XP/XP64/Vista

Installation for all platforms

1 First plug plug the USB connector of the keyboard into one of your

computer's USB ports.

2 Follow the device installation wizard to complete the installation of the

new USB device to the system.

3 If you intend to use headphones, speakers, headset or microphone, also plug the pink and

green mini jackplugs into the corresponding audio in and out sockets of your

PC. Now plug your headset, speaker cables etc into the pink audio in (k) and

green audio out (l) sockets at the rear right side of your keyboard.

4 Go to http://www.saitek.com/uk/down/drivers.htm to download the Eclipse III

software driver. The Eclipse III keyboard’s volume indicators will not illuminate

unless you install a driver.

5 Your keyboard is now ready to use.

Touch sensitive panel controls

The panel at the top of your Eclipse III keyboard controls backlighting

color and intensity, as well as your PC’s media player. To change the

brightness of your keyboard backlighting, press the brightness control

(a) and then “-” (c) or “+” (d) to decrease or increase brightness.

Internet home

Internet browser forward

Internet browser back

New tab

Internet page reload

Open favorites

Sleep (press for 3 seconds to operate)

My computer

Open Outlook

Open media player

Open calculator

Eclipse_III_KB.qxd 31/07/2008 10:35 Page 2

Produkt Specifikationer

Mærke:	Eclipse
Kategori:	Tastatur
Model:	III
Produktfarve:	Sort
Forbindelsesteknologi:	Ledningsført
LED-indikatorer:	Ja
Enhedsgrænseflade:	USB
Kompatible operativsystemer:	Win 7/Vista/XP
Understøttede Mac-operativsystemer:	Ingen
Intern:	Ingen
Plug and play:	Ja
Mus inkluderet:	Ingen
Tastaturopsætning:	QWERTY
