RADIOLINK RELAY

FOR USE WITH EI168, 405, 405TY & 3105RF

Instruction Manual

MODEL Ei428

Contains vital information on the products operation and

installation. Read and retain carefully. If you are just installing

this product the manual MUST be given to the householder.

1. Introduction

The Ei428 RadioLINK Relay Module is a device that switches

a relay upon receipt of an alarm signal from a suitable Ei

smoke/heat alarm. The electrically isolated contacts can be

used for many applications such as signalling, turning on

lights, etc. The Ei428 is designed to operate with Ei

RadioLINK products (Ei168, 405, 405TY, 407, 410, 411 &

3105RF).

The Ei428 RadioLINK Relay Module is powered by the

230VAC mains and has rechargeable back-up cells. As sup-

plied the relay operates continuously (i.e. it switches when

one of the smoke / heat alarms detects fire and switches back

when the smoke clears). When the slide switch is moved to

the pulse ‘P’ position (see figure 1b) the relay will switch when

fire is detected but will automatically switch back after 5 sec-

onds. This is commonly used with warden call systems where

only momentary short circuit signalling is required.

2. Installation

WARNING: Mains powered Ei428 RadioLINK Relay modules

should be installed by a qualified electrician in accordance

with the Regulations for Electrical Installations published by

the Institution of Electrical Engineers (UK) (i.e. BS7671)

Failure to install the unit correctly may expose the user to

shock or fire hazards. This unit is not waterproof and must not

be exposed to dripping or splashing.

1. Choose a suitable mounting position near the mains supply

and the device to be connected to the relay. Keep it away

from metal surfaces or large metal objects (e.g. water cylin-

der, fuse boards) which can reduce the RF signal range.

2. Disconnect the AC mains supply from the circuit that is

going to be used.

3. Where the incoming wiring is on the surface of the ceiling,

the appropriately sized trunking / conduit must be chosen to

mate with the unit. Use a sharp knife to remove the material

Model: Ei 428

from the knockout, making sure that there is no gap when

mated with ducting/conduit. There is one suitable knockout

(the other two surface entries are not recommended as the

wiring will reduce the antenna signal). See figure 1b.

4. Screw the Ei428 module to the wall after first removing the

required knockout and bringing the house wires through it

(see figure 1b).

5. Connect the house wires (L-Live, N-Neutral) to the terminal

block as shown in figure 1b (Note the interconnect can be

hard wired to a non radio link Ei mains powered smoke alarm

(Ei141, 144, 146, 151TL, 154TL, 156TLH, 161, 161R, 164,

166, 166R) to switch the relay, if required). NB: The unit must

not be earthed so do not connect a green / yellow or copper

earth wire to any terminal.

6. Connect the wires to the required relay contacts for con-

trolling the auxiliary device. (The contacts are isolated and are

rated at 250VAC, 5 amps resistive).

MODEL: Ei428

WARNING: DISCONNECT

MAINS BEFORE REMOVAL

RADIOLINK

RELAY

HOUSE

CODE

SWITCH

INDICATOR LIGHT

GREEN - MAINS

RED - HOUSE CODING

OR LOW BATTERY

COVER ATTACHMENT

SCREWS

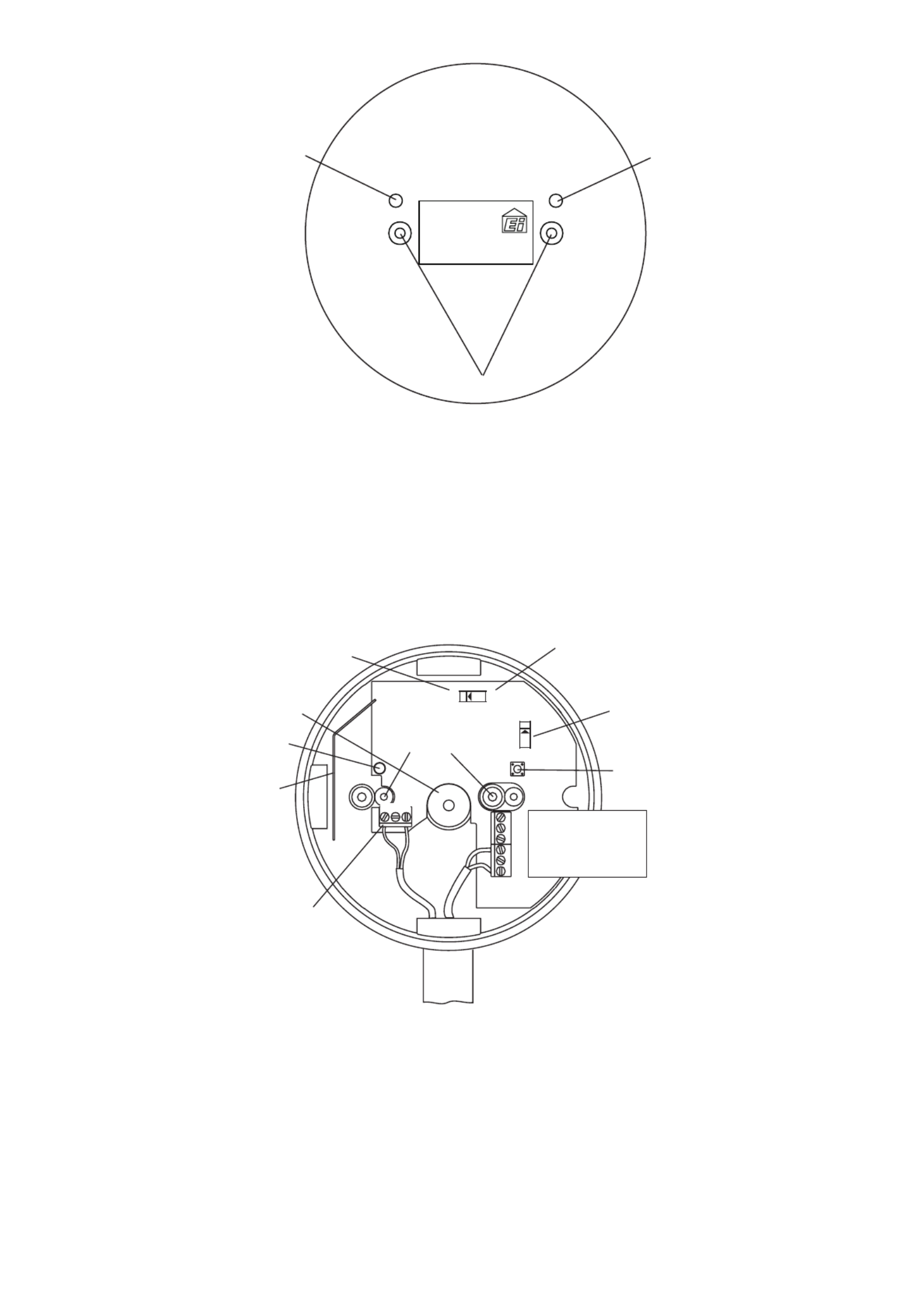

Figure 1a

RECHARGEABLE

CELLS

ON/OFF

SLIDE SWITCH

HOUSE CODE

SWITCH

C - CONTINUOUS RELAY

RELAY CHANGES

FOR 5 SECONDS

P - PULSE

ANTENNA

(KEEP CABLES

AWAY)

REAR ENTRY

KNOCKOUT

INDICATOR

LIGHT

CONNECT RELAY

WIRES TO THE

TERMINAL BLOCK

NO - NORMALLY OPEN

NC - NORMALLY CLOSED

C - COMMON

(DOUBLE INSULATE ALL WIRES) SURFACE

CONDUIT

CABLE

ENTRY

SCREW

MOUNTING

HOLES

P C

OFF

CONNECT MAINS

TO TERMINAL BLOCK

L - LIVE

N - NEUTRAL

(IC - INTERCONNECT

NOT NORMALLY USED)

Figure 1b

Produkt Specifikationer

Mærke:	Ei Electronics
Kategori:	Detektor
Model:	Ei428RF
Bredde:	141 mm
Dybde:	26 mm
Højde:	141 mm
Vægt:	180 g
Produktfarve:	Hvid
Batteriteknologi:	Lithium
Relativ luftfugtighed ved drift (H-H):	15 - 95 %
Driftstemperatur (T-T):	0 - 40 °C
Kan forbindes indbyrdes:	Ja
Monteringstype:	Overflademonteret
Indgangsspænding:	230 V
RF-transmissionsfrekvens:	868 Mhz
Mængde af sammenkoblede alarmer (maks):	12
RF-transmissionsområde:	150 m
Backup batteri:	Ja
UL 94 antændelsesstandard:	V0
Indbygget relæ:	Ja
