ER58000 rev. 1.0

12/2/2014

1 Unpacking

Unpack the items. Your package should include:

 One ER58000 Series hardened managed

switch

 Rack-mounting hardware brackets

 One CD containing this user’s guide

If items are missing or damaged, notify your

EtherWAN representative. Keep the carton and

packing material.

2 What Else You Need

 Appropriate cables for data ports

 Personal computer or laptop

3 Select a Location

 Desktop installations: Mount on a flat table

or shelf surface.

 Rack installations: Use a 19-inch (48.3-

centimeter) EIA standard equipment rack

that is grounded and physically secure.

 Identify a power source within 6 feet (1.8

meters).

 Choose a dry area with ambient temperature

between -40 and 75ºC (-40 and 167ºF).

 Be sure there is adequate airflow.

4 Connect to the Data Ports

Your switch has the following ports:

 8 10/100Base-M12 D-Code 4-pin female ports

 2 Gigabit-M12 A-Code 8-pin female/LC ports

10/100Base-M12 Ports

These ports support Power over Ethernet (PoE).

They conform to IEEE802.3at and provide up to

30W per port, with a total power budget of

120W. Use these ports to connect to devices such

as an IP surveillance camera or a Voice Over

Internet Protocol (VoIP) phone.

Gigabit-M12 Ports

These ports come as 10/100/1000Base-TX,

1000Base-SX, or 1000Base-LX interfaces.

These ports can connect to network devices such

as a computer, printer, network video recorder

(NVR), network storage, or they can connect to

the network itself. Wear an ESD-preventive wrist

strap before connecting to these ports.

5 Apply DC Power

The switch supports two sets of power supplies —

power input 1 and power input 2.The M23 6-pin

male connector on the front panel is used for the

dual power inputs. Use a power cord with an M23

6-pin female connector to connect the power

inputs to the switch.

Description

Power 2



24-48VDC



Power Ground

Power 1



24-48VDC



Power Ground

Earth Ground

Relay Output Rating

1A @ 250VAC

Description

PWR1 Live / DC + (24-48VDC)

PWR1 Neutral / DC -

Chassis Ground

PWR2 Neutral / DC -

PWR2 Live / DC + (24-48VDC)

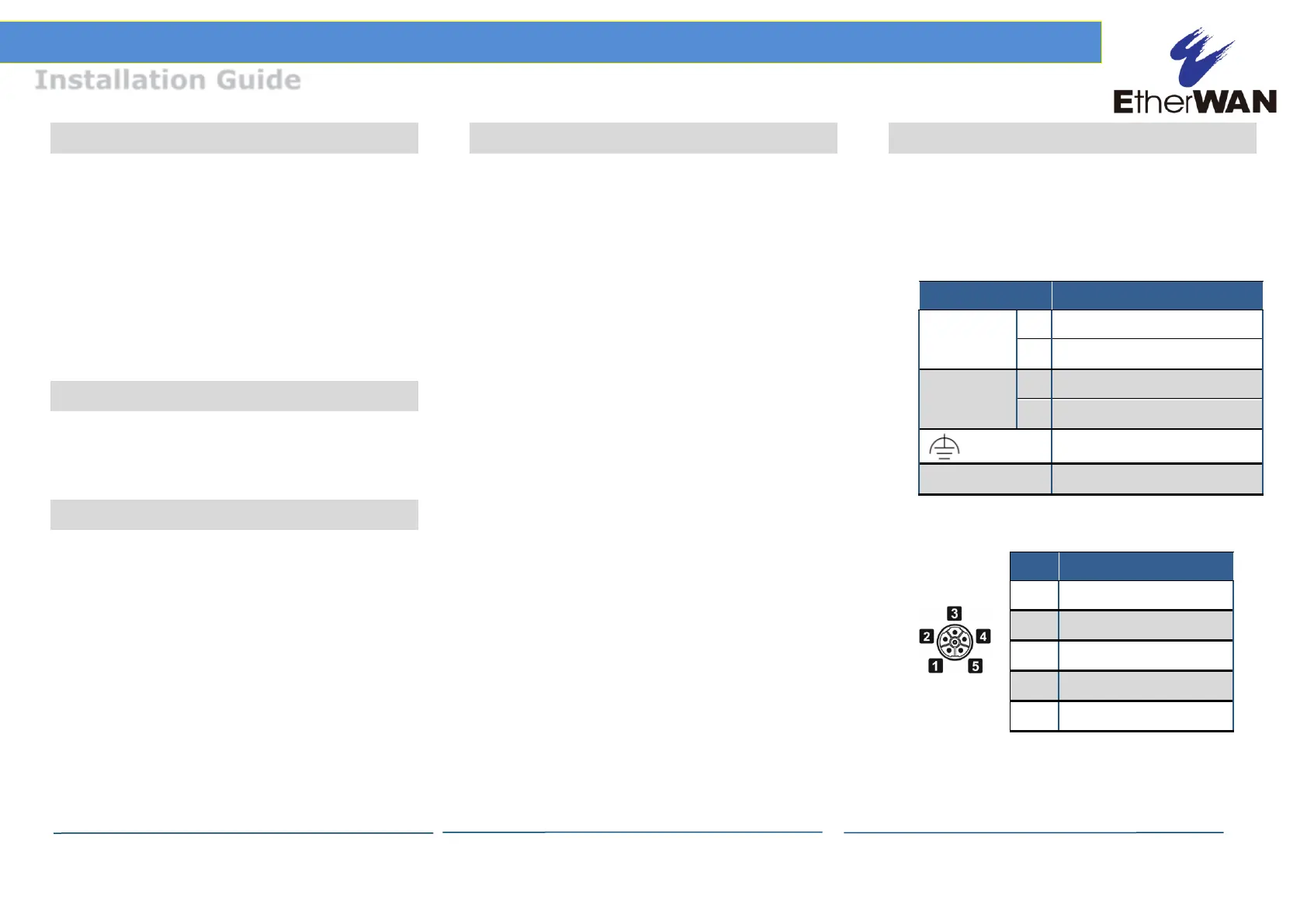

ER58000 Series Hardened Managed Ethernet Switch

Installation Guide

Continued on next page
