Side 1/2

All disclosures, noces and warranty condions are being wrien on the back of the box. Revision 1.0. Released on 15 th October, 2013. of

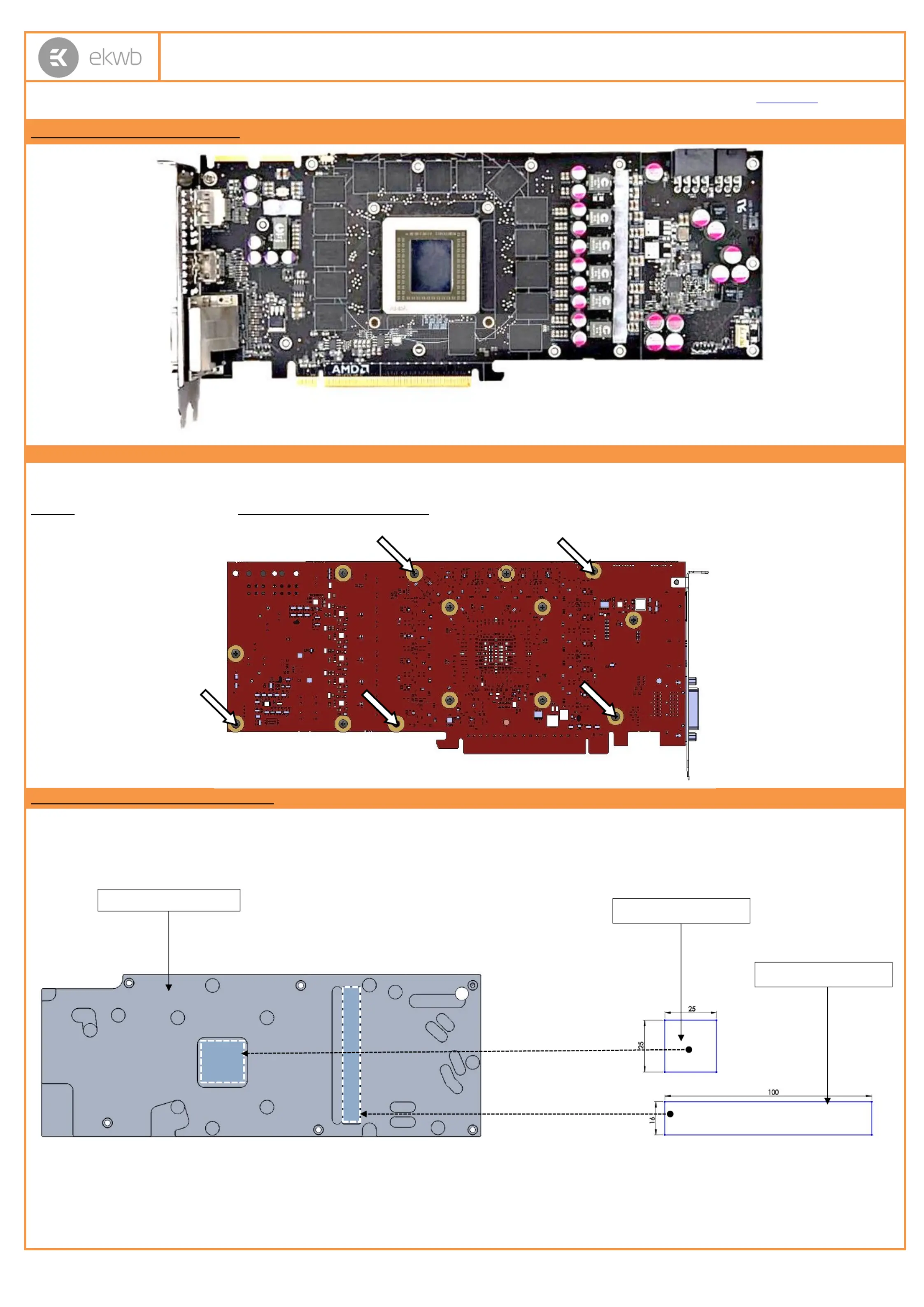

Installation and mounting manual for EK-FC R9-290X Backplate

This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability

whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at for updates. Before www.ekwb.com

installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.

STEP 1: GENERAL INFORMATION. Sample picture of AMD Radeon R9-290X graphics card.

STEP 2: PREPARING YOUR GRAPHICS CARD

EK-FC R9- Backplate is very easy to install. First install EK- - series water block according to its installation manual. If you have it 290X FC R9 290X

already installed lease check the picture below to see which mounting screws are to be left in their position and which are to be removed. Please , p

remove the five (5) M3x4 DIN7985 screws and their washers as well (marked with arrow).

STEP 3: APPLYING THE THERMAL PADS

EK-FC R9- 290X Backplate features passive cooling of the printed circuit board and it’s components therefore it is mandatory to install the enclosed

thermal pad. Please install enclosed 1mm and 1,5mm thick thermal pad (Thermal Pad A 1mm (100x16), Thermal Pad C 1,5mm (25x25) as – – )

shown on the picture below. You may need to trim the excess thermal pad.

Thermal PAD A 1mm

EK-FC R9-290X Backplate

Thermal PAD C 1,5mm

All disclosures, noces and warranty condions are being wrien on the back of the box. Revision 1.0. Released on 15 th October, 2013. of

Figure1: Detail A

Detail A

STEP 4 ATTACHING EK-FC R9- BACKPLATE TO THE GRAPHICS CARD: 290X

Take enclosed mounting screws and install them as shown on picture below. Depending on the variant please use the following combination of

screws:

a) Acetal Original CSQ and top type water block: Use five (5) M3x8 DIN on the back side and one (1) M3x4 DIN7985 securing the 7991

backplate from the front side.

b) (4 Plexi short top type water block: Use four ) M3x8 DIN 7991, one (1) M3x4 DIN7985 and one (1) M3x10 DIN7991 screw with M3 nut.

HINT: Do not tighten screws until they are all positioned in their mounting holes. The backplate has milled in standoffs, so there is no fear of over

tightening of the screws. Nevertheless do not exaggerate with screwing force as there is no need for it.

By all means users must also consider that this product is intended to be used only with EK-FC R9- series water blocks. No other 3290X rd party heat

sinks or coolers are supported!

Plexi short top type water block:

Acetal Original CSQ and top type water block:

IMPORTANT DISCLOSURES

VERY IMPORTANT NOTICE: Once the installation is completed, it is a recommended practice to test the cooling circuit for leaks prior to powering up the

computer. We recommend a 24 hour leak test prior to powering up the computer. Do not test the water block using city water pressure. This will rupture the top

of the housing and render the block unusable (and will void your warranty).While all efforts have been made to provide the most comprehensive tutorial possible,

EK Water Blocks assumes no liability expressed or implied for any consequential damage(s) occurring to your equipment as a result of using EK Water Blocks

cooling products, either due to errors or omissions on our part in the above instructions, or due to failure or defect in the EK Water Blocks cooling products.

WARRANTY:

Our products are warranted against defects in materials or workmanship for a period of 24 months beginning from the date of delivery to the final user. During

this period, products will be repaired or have parts replaced at our discretion provided that: (I) the product is returned to the agent from whom it was

purchased; (II) the product has been purchased by an end user and has not used for commercial purposes; (III) the product has not been misused, handled

carelessly, or used in a manner other than in cordance with the instructions provided describing its installation and proper use. This warranty does not confer ac

rights other than those expressly set out above and does not cover any claims for consequential loss or damage. This warranty is offered as an extra benefit and

does not affect your statutory rights as a consumer. This warranty is voided if the product comes in contact with aggressive chemical, chemical agents or other

improper liquids or solids.

EK blocks are sealed with warranty void circular label, which proves that the block has withstood a pressure leak test. Removing it will void leak-free guarantee
