Side 1/2

All disclosures, noces and warranty condions are being wrien on EKWB web page. Please check terms of use. Revision 1.0. Published on December 20 th 2013

This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability

whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at for updates. Before www.ekwb.com

installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.

Before you start using this product please follow these basic guidelines:

1. Please carefully read the manual before through before beginning with the installation process!

2. Please remove your motherboard from the computer to assure safest mounting process in order to prevent any possible damages to your CPU and/or motherboard’s circuit board (PCB).

3. The EK High Flow and EK-CSQ type fittings require only a small amount of force to screw them firmly place since the liquid seal is ensured by the rubber o-ring gaskets.in

4. The use of quality, market proved corrosion inhibiting coolants is always strongly recommended for any liquid cooling system.

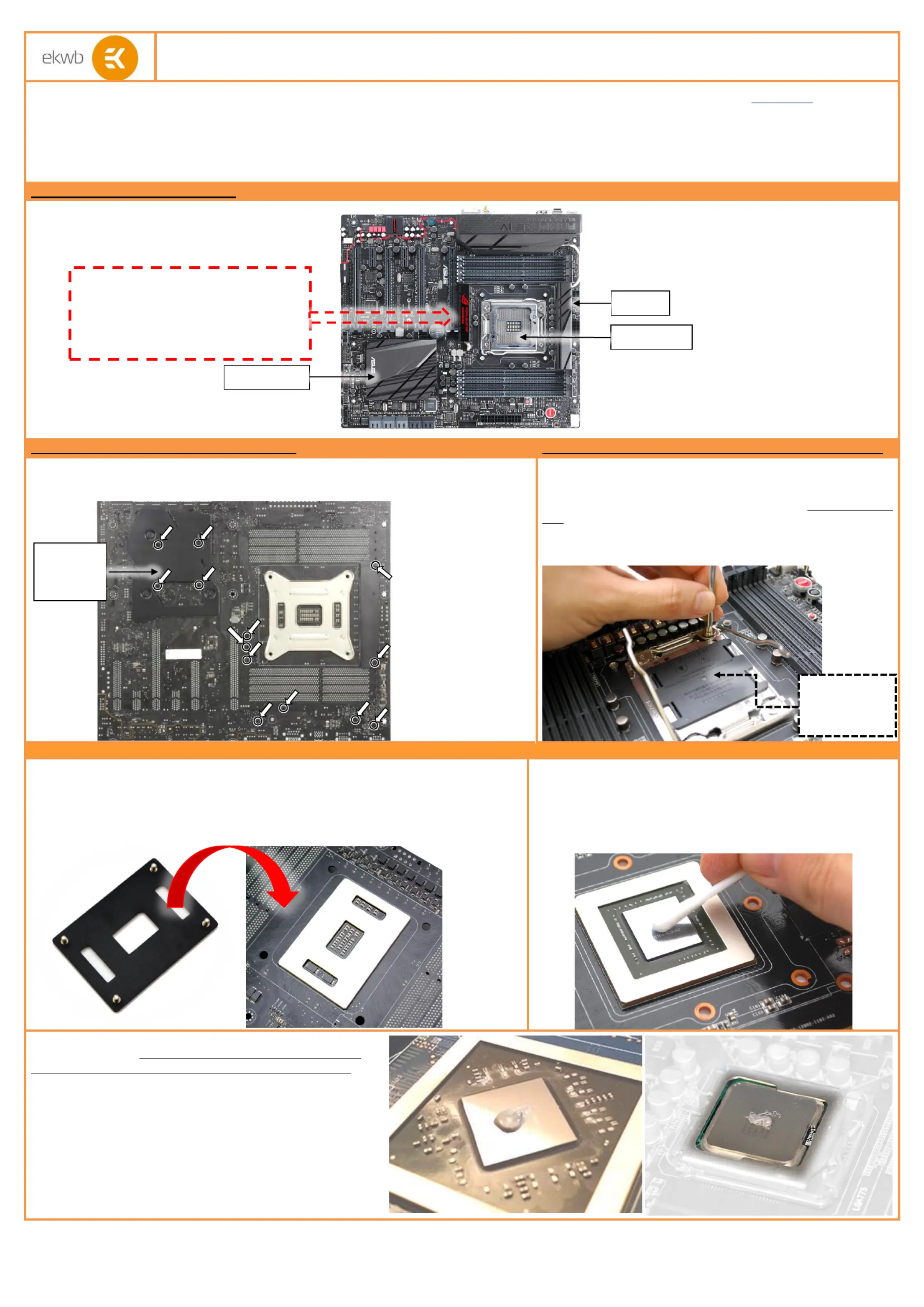

STEP 1: GENERAL INFORMATION Sample photo of ASUS Rampage IV Black Edition motherboard

STEP 1: PREPARING YOUR MOTHERBOARD

STEP 2: REMOVING THE ORIGINAL LATCH MECHANISM

1. REMOVING STOCK COOLER. Remove all encircled screws. There are 13 screws on the back of

the motherboard that needs to be removed in order to remove the factory installed SB/MOSFET heat

pipe cooling solution.

Please remove your motherboard from the computer to assure safest

mounting process possible in order to prevent any possible damages to

your PCB. With the enclosed Torx T20 key please remove all four (4)

screws securing the socket latch mechanism (ILM) to original backplate

(BP) to the motherboard. Make sure you have install the plastic

cover over the socket pins and that the socket latches are in

OPEN position during this procedure!

STEP 3: INSTALLING ALTERNATIVE LGA-2011 BACKPLATE

STEP 4: PREPARING YOUR MOTHERBOARD

After removing the original LGA-2011 backplate, installed on your ASUS Rampage IV Black Edition

motherboard, it is mandatory to install the alternative LGA-2011 provided with your motherboard.

Use the enclosed Torx T20 key to re-install it. Make sure you have install the plastic cover

over the socket pins and that the socket latches are in OPEN position during this

procedure! It is now a prime time to install your LGA-2011 CPU into the motherboard socket.

2. CLEANING THE PCB. Carefully detach the original stock cooler after

removing screws securing it to the board. Wipe off the remains (by all

using non abrasive cloth or –

qtip

, as shown on sample photo) of the

original thermal compound until the components and circuit board are

completely clean. EKWB recommends the use of denatured alcohol for

removing TIM leftovers.

3. APPLYING THERMAL COMPOUND. Apply thermal compound:

lightly coat the Intel X79 (PCH) see sample photo on the left and –

CPU heat spreader (IHS) - see sample photo on right with

enclosed -TIM Ectotherm thermal grease. EK

The quantity of about two rice grains is just about right. There is no need to cover the

whole IHS. Applying too much thermal grease will have negative impact on the cooling

performance!

Installation manual for water block EK- ASUS R4BE Monoblock FB

X79 PCH (SB)

CPU socket

Mosfets

IMPORTANT NOTICE:

ROG LED (Logo) has to be removed in order to

successfully complete installaon of the FB KIT

ASUS R4BE and cannot be used in combinaon

with the FB KIT ASUS R4BE.

Use plasc

socket cover

during install!

Do not

remove the

X79 PCH (SB)

backplate!

All disclosures, noces and warranty condions are being wrien on EKWB web page. Please check terms of use. Revision 1.0. Published on December 20 th 2013

4. CUTTING THERMAL PADS. Your block comes with thermal pads which needs to be trimmed in order to fit the voltage

regulation area (VRM/MOSFET) on the motherboard’s circuit board. WARNING: DIMENSIONS ON PICTURES BELOW ARE

SCALED.

Replacement thermal pads @ EKWB web shop:

Thermal PAD A 1 - (100x16mm) [EAN: 3830046996626] mm

Thermal PAD A 0.5 - (100x16mm) [EAN: 3830046996619]mm

5. PLACING THERMAL PADS ON MOTHERBOARD. Place thermal pads you cut on PCB as shown on picture bellow (PLEASE REMOVE THE PROTECTIVE FOIL FROM BOTH

SIDES OF THE THERMAL PADS PRIOR TO INSTALLATION). EK recommends using small drops of electrically non-conductive (for example: -Ectotherm, Gelid GC-Extreme, EK

Arctic Cooling MX- - her improve the 2 ™ or MX 4 ™) thermal grease on each phase regulator (that is being covered with thermal pad; see picture below) in order to even furt

thermal performance of the EK-FB ASUS BE Monoblock series water block. RE4

STEP 5: PLACING THE BLOCK ON TO MOTHERBOARD

STEP 6: ATTACHING BLOCK ON TO THE MOTHERBOARD

1. PLACING THE BLOCK ON THE MOTHERBOARD. Place the EK-FB ASUS M6I series

water block gently to the motherboard or vice versa (as shown on photo below). Make

sure that mounting holes are aligned.

Prior to fastening the screws please make sure the mounting holes on the

motherboard’s circuit board are aligned with the water block.

A Use five M3x4 DIN7985 and washers. Tighten the screws, beginning near ) SB part:

the south bridge, and continue evenly outwards. Do not use excessive force when

tightening the screws!

B Use stock backplate and two M3x8 DIN7985 ) MOSFET part: ASUS factory (“ ”)

screws. Do not use excessive force when tightening the screws!

C) Use four M4x8 DIN7985 screws and washers. Tighten the screws using CPU part:

enclosed Alley Key 2.5mm.

Use the enclosed screws and washers as shown in picture below:

8 POSITIONING FITTINGS AND CONNECTING TO WATER CIRCUIT .

For the EK-FB ASUS R4BE Monoblock series water block to operate properly the G1/4 port nearest to the center of the water block MUST BE USED AS THE

INLET PORT. EK recommends the use of EK- fittings. When using fittings other than EK- series please use hose clamps or appropriate substitute to CSQ CSQ

secure the tubing to the barb. The use of biocide containing and corrosion inhibiting coolant is always recommended for any liquid cooling system.

REQUIRED TOOLS AND MOUNTING SCREWS:

scissors philips screwdriver

2: Thermal pad A – 1.0mm

(for inductor coils):

1: Thermal pad A – 0.5mm

(for VRM/MOSFET):

Place 0.5mm thermal pads in larger

strips over marked area and make sure

all mosfet chips are covered.
