ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save this instruction.
CF35417A/C / CF35417BN / CF35417RBZ/B
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

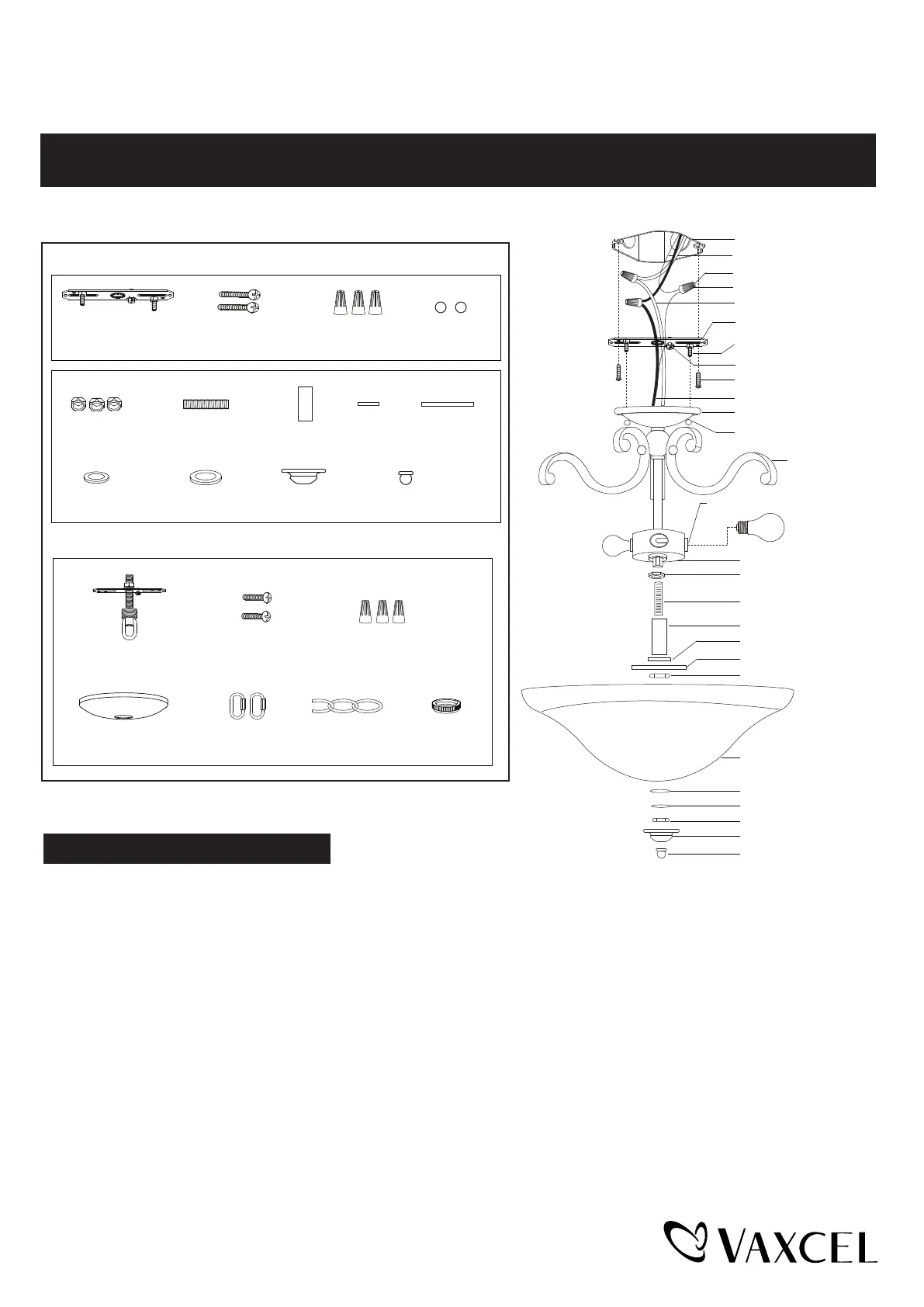

Hardware Package for Semi-Flush (included):
Hardware Package for Pendant (included):
Turn off the power at fuse or circuit box.
Installation Steps
Mounting Screw (B) Wire Connector (C)
Bolt Nut (D)
Mounting Strap Unit (A)
Stem (G) Cap-1 (H) Cap-2 (I)
Cap-3
(L)
Finial
(M)
Threaded Pipe (F)
Hex Nut (E)
Rubber Pad (J) Metal Pad (K)
Mounting Strap Unit (N) Wire Connector (P)Mounting Screw (O)
Canopy-2 (Q)
Quick Link (R)
Chain (S)
Collar (T)
For Semi-Flush
1. Attach the mounting strap unit (A) to the outlet box by using two mounting screws (B).
2. Cut the redundant wires if necessary, and make wire connections with wire connectors (C) :
---Connect the smooth wire (marked) from fixture to the black wire from power source.
---Connect the ridged wire(unmarked) from fixture to the white wire from power source.
---Attach the fixture ground wire to the mounting strap unit (A) with the green ground screw, then connect it to the house
ground wire with the wire connector (C).
Carefully tuck wires back into the ceiling box.
3. Attach the fixture canopy-1 to the mounting strap unit (A) by inserting the fixture mounting screws, then secure it with two
bolt nuts (D).
4. Attach the threaded pipe (F) to the coupling of the socket base, and secure with a hex nut (E). (You can adjust the
length of the threaded pipe.)
Page 1 / 3
Outlet Box
House Ground Wire
Wire Connector (C)
Mounting Strap Unit (A)
Green Ground Screw
Fixture Mounting Screw
Mounting Screw (B)
Fixture Wire
Fixture Mounting Screw
Fixture Ground Wire
Canopy-1
Bolt Nut (D)
Arm
Socket Base
Coupling
Hex Nut (E)
Threaded Pipe (F)
Stem (G)
Cap-1 (H)
Cap-2 (I)
Hex Nut (E)
Glass Shade
Rubber Pad (J)
Metal Pad (K)
Hex Nut (E)
Cap-3 (L)
Finial (M)
Max. 100W
Medium Base Bulb
(not included)
230511
