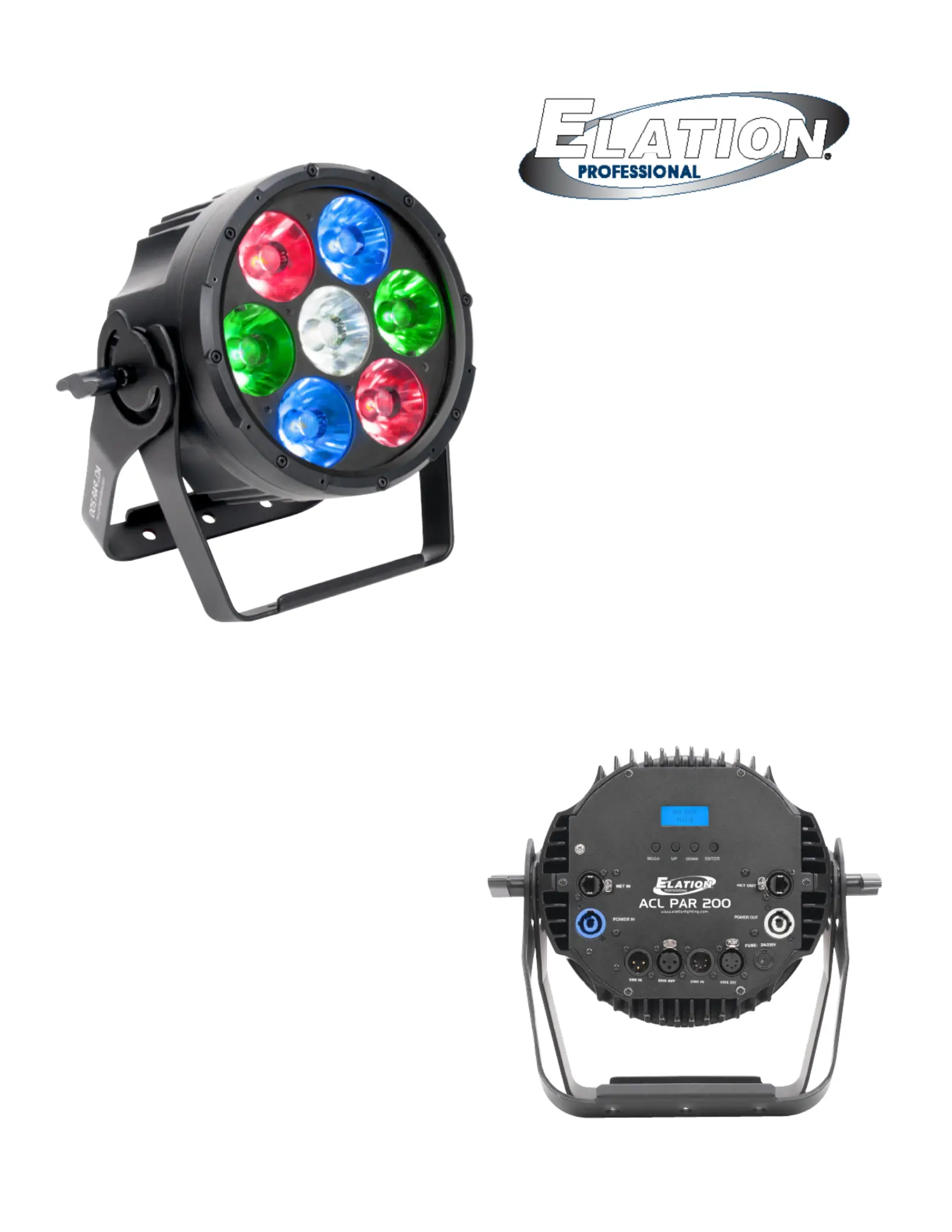

ACL PAR 200™

SKU# ACL047

The new ACL PAR 200™ is a versatile par luminaire

featuring (7) individual 15W RGBW 4-in-1 LEDs and the new

advanced collimator optic lens, producing a laser-like

homogenized 4° color-changing beam from each lens which

combined produce a 11° beam angle. Features include full

individual pixel control, strobe, and se

lectable dimming curve

effec

ts, DMX, RDM (Remote Device Management),

KlingNET™ and Ar

t-NET support, 3/5pin XLR, power , Cable

and RJ45 ethernet in/out connections, (4) button control full

color 180° reversible menu display, 110W max power

onsumption, and a multi-voltage universal auto

switching power supply (100-240v).

FEATURES

Versatile 11° Beam Par Luminaire

New Advanced Collimator Optic Lens

(7) Pixel Controlled 15W RGBW 4-in-1 LEDs

Laser-Like Homogenized 4° Color Changing Beams

Strobe and Selectable Dimming Curve Effects

RDM, KlingNET™ and Art-NET (DMX Over Ethernet)

Flicker Free Operation for Broadcast TV and FILM

Specifications are subject to change without notice ©Elation Professional 09/09/15

Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040

323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com

Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands

+31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu

ELATION I ACL PAR 200™ I Product Specification Sheet

SOURCE

(7) 15W RGBW 4-in-1 LEDs

100,000 Hour Average Lamp Life

PHOTOMETRIC DATA ( Full ON)11°

56,149 LUX 5,216 FC @3.3’ (1m)

36,935 LUX 3,431 FC @6.6’ (2m)

20,439 LUX 1,899 FC @9.8’ (3m)

11,897 LUX 1,105 FC @13.1’ (4m)

7,617 LUX 708 FC @16.4’ (5m)

EFFECTS

Individual Pixel Control

Strobe and Selectable Dimming Curves

COLOR

RGBW

CONTROL / CONNECTIONS

(11) DMX Channel Modes

( : / : / 6 / 8 / / / 4CH1 04 4CH2 04 10 12 27 28 / / 30 32 / / 35)

RDM (Remote Device Management)

4 Button Touch Control Panel

Full Color 180° Reversible LCD Menu Display

3pin/5pin DMX In/Out

RJ45 Ethernet In/Out (Art-NET)

Power Cable In/Out

SIZE / WEIGHT

Length: 12.3” (313mm)

Width: 5.6” (142mm)

Vertical Height: 11.8” (300mm)

Weight: 13.0 lbs. (5.9 kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz

110W Max Power Consumption

Power Linking: 9pcs Max @110V / 21pcs Max @230V

5F to 113°F (-15°C to 45°C)

APPR ALS / RATINGSOV

CE | IP30

INSTALLATION

Rigging: Clamps (Not Included)

Working Position: Any (360°)

INCLUDED ITEMS

Power Cable

sp atecific ions

ELA A PAR TION CL 200™

www.elationlighting.com

Specifications are subject to change without notice ©Elation Professional 09/09/15

Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040

323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com

Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands

+31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu

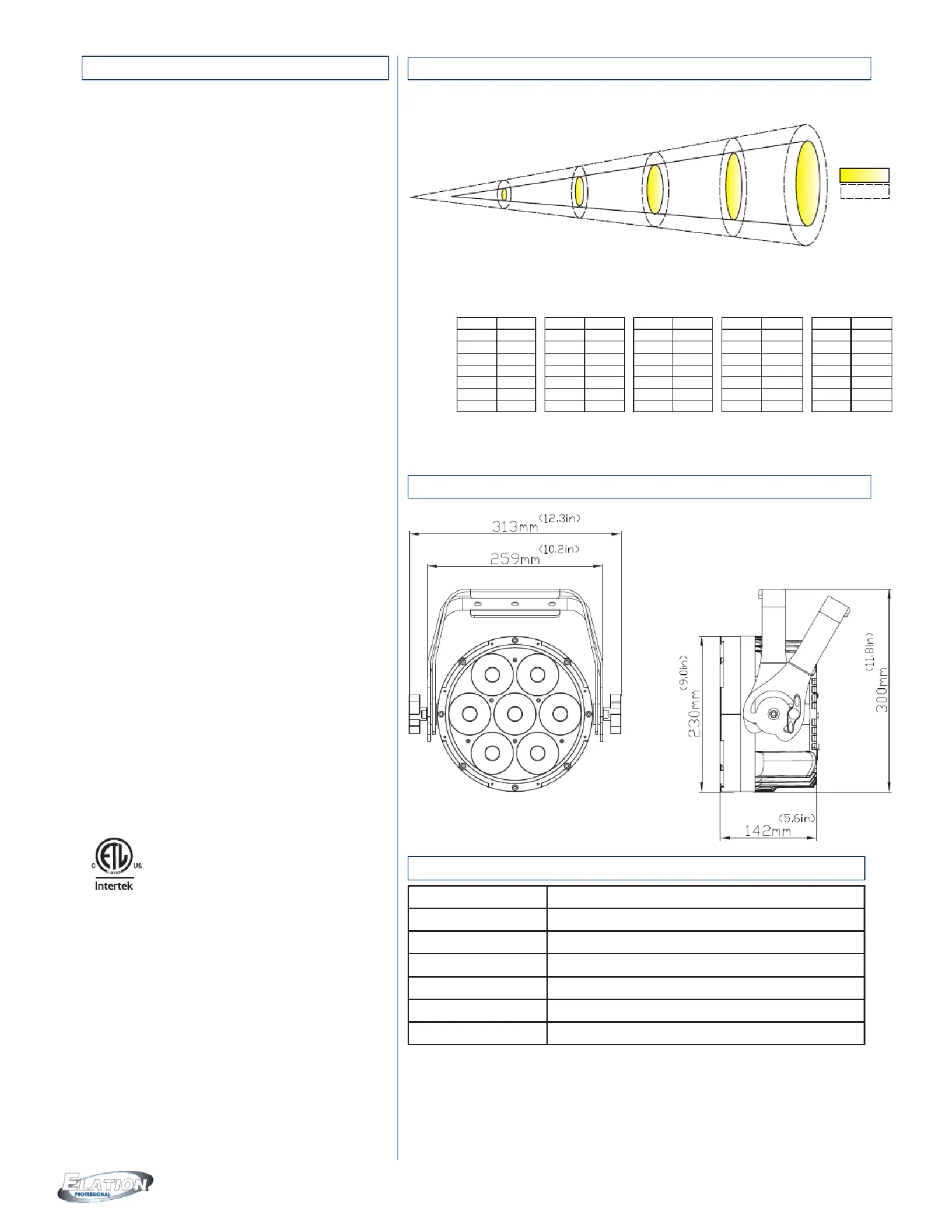

DI L IAGR SMEN ONASI D AM

PR A SODUCT SPECIFIC TION

PHOT D AOMETRIC AT

OP ONA ESSOTI L ACC RIES

13° Field

11° Beam

ORDER CODE ITEM

TRIGGER CLAMP Heavy Duty Wrap Around Hook Style Clamp

EWDMXSYSTEM Wireless DMX System (1 Transmitter, 1 Receiver)

PLC3 3’ (1m) PRO Link Cable

CAT6PRO5 5’ (1.5m) CAT6 Ethernet Cable

AC5PDMX5PRO 5 ft. (1.5m) 5pin PRO DMX Cable

Additional cable lengths available

1 m 3.3 ft 2 m 6.6 ft 3 m 9.8 ft 4 m 13.1 ft 5 m 16.4 ft

11° Beam

0.19 0.6 0.39 1.3 0.55 1.8 0.75 2.5 0.92 3.0

13° Field

0.29 1.0 0.83 2.7 0.83 2.7 1.11 3.6 1.42 4.7

lux fc lux fc lux fc lux fc lux fc

RED LEDs 11,493 1,068 7,530 700 4,135 384 2,319 215 1,554 144

GREEN LEDs

22,716 2,110 16,311 1,515 10,157 944 6,141 570 3,865 359

BLUE LEDs

4,664 433 3,352 311 1,932 179 1,120 104 713 66

WHITE LEDs

37,175 3,454 19,496 1,811 9,524 885 5,512 512 3,421 318

FULL ON

56,149 5,216 36,935 3,431 20,439 1,899 11,897 1,105 7,617 708

4010765
