Side 1/3

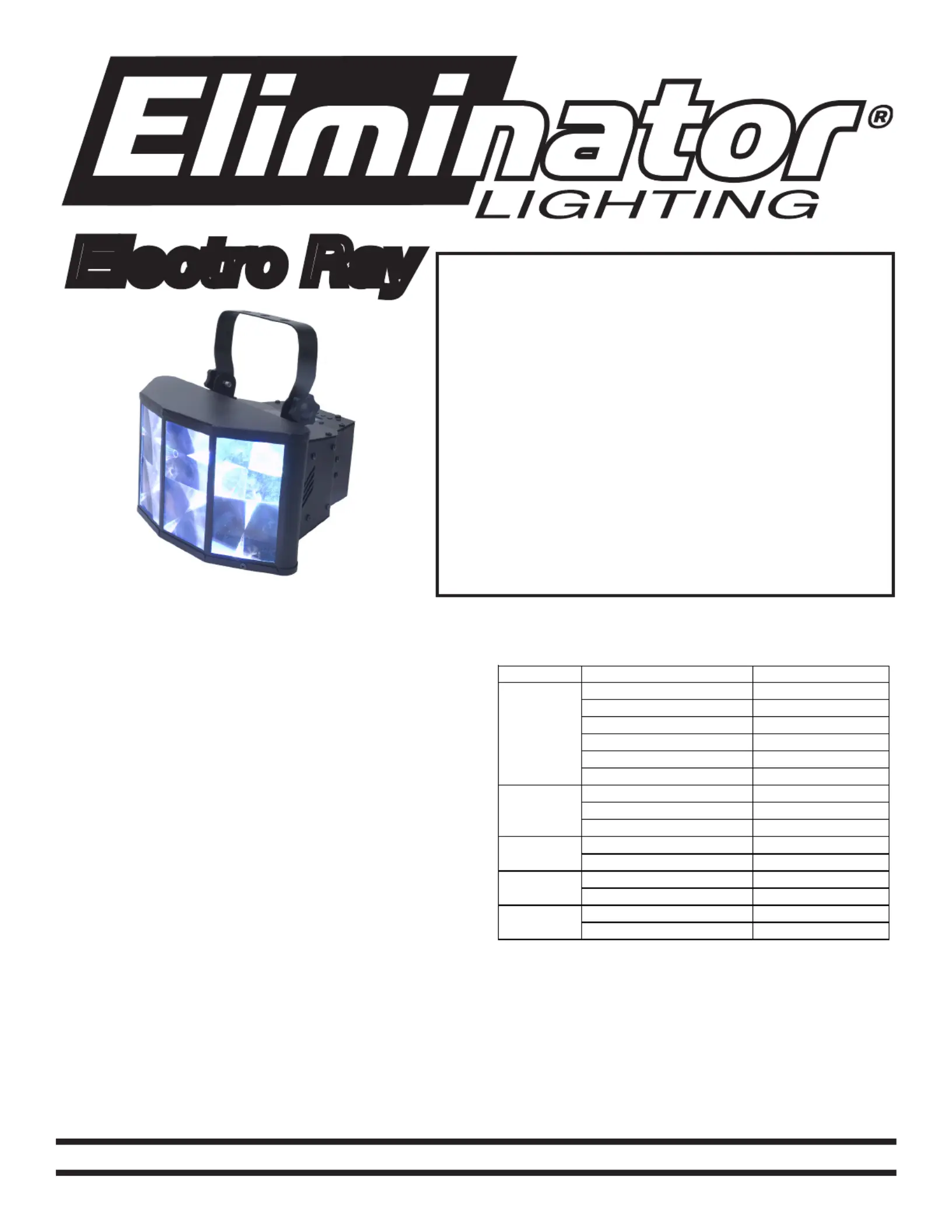

Electro Ray
SPECIFICATIONS:
Model: Electro Ray
Supply Voltage: 90~240V / 50~60Hz
LEDs: 3 x 3W (1 Red, 1 Blue, 1
Green
Power Consumption: 20W
Beam Angle: 90 Degrees
Size: 8.26”H x 12.5”W x 11”L
Fuse: 2 Amp
Working Position: Any Safe position
Duty Cycle: None
Colors: RGB
Warranty: 1 Year
CAUTION! Please read and understand these instructions before installing or operating this unit.
Introduction:
The Electro Ray is a powerful effect for clubs and
dj’s. The Electro Ray is bright, colorful, moonflower
effect. This unit features an internal microphone
that allows the beams to be triggered by sound.
The Electro Ray’s beams rotate and strobe to the
beat of the music. The Electro Ray is ready to be
hung or set on the ground in a safe position. When
mounting this unit to truss be sure to use a clamp.
Plug the unit in to a standard 110 wall outlet.
Fuse Replacement:
Caution! Never open unit when in use. Always dis-
connect main power before servcing. Remember to
always replace with the exact same type fuse. Locate
and remove the unit’s power cord. Once the cord
has been removed located the fuse holder located
inside the power socket. Insert a flat-head screw
driver into the power socket and gently pry out the
fuse holder. Remove the bad fuse and replace with
a new one. The fuse holder has a built-in socket for
a spare fuse be sure not to confuse the spare fuse
with active fuse.
©Eliminator® Los Angeles, CA. - wwwEliminatorLighting.com
CHANNEL
CHANNEL CHANNEL
CHANNEL
CH4
manual or sound green light dim
0-255 dim
0-255
CH5
manual or sound blue light dim
dim
CH3
0-255 dim
CH2
led beam angle
led auto scan fast--slow
led auto scan slow--fast
CH1
192-255
128-191 auto slow--fast
100-127 off
0-1 on
manual or sound red light dim
2-99 strobe slow--fast
0-127
128-191
sound slow--fast
192-255
VALUE
VALUE VALUE
VALUE FUNCTION
FUNCTIONFUNCTION
FUNCTION
Strobe, auto, sound active
©Eliminator® Los Angeles, CA. - www.EliminatorLighting.com
1 Year Limited Warranty: Eliminator Lighting warranty is valid from the date of purchase. Our
1 year limited warranty covers manufacturing defects only. Serial number, place of purchase with
dated valid receipt must be submitted at time of service. Eliminator Lighting warranty does not cover
items or parts prone to wear and tear: lamps, fuses, brushes and belts. Eliminator Lighting warranty
is only valid with-in the United States.
Sound Active or Test (Auto) Mode: This mode allows a single or several units to run to the beat of the music
or run an Test (Auto) Mode.
SOUND ACTIVE MODE:
1. To activate Sound Active mode, press the MODE, then press either the UP or DOWN buttons until “ ” AUDI
is displayed, press Enter. Press the Up button until “ON” is displayed. If “ON” is already displayed then
press Enter.
2. Press the MODE button until “ ” is displayed, press Enter. The unit will react to the low frequencies of TEST
music via the microphone.
2. Adjust the audio sensitivity knob on the bottom of the unit to make the unit more or less sensitive to sound.
Turning the sensitivity knob in the clockwise direction will increase the sensitivity, turning the knob in the
counter-clockwise direction will decrease the xture’s sensitivity to sound.
TEST (AUTO) MODE:
For Test Mode to run properly, sound active mode must be turned off. To turn off sound active mode follow
the instructions above. Instead of setting sound active mode to “ON” set it to “OFF”.
1. To activate Test (Auto) mode, press the MODE button, then press either the UP or DOWN buttons until
“ ” is displayed, press Enter. TEST
MASTER-SLAVE OPERATION (SOUND ACTIVE OR TEST MODE):
This function will allow you to link up to 16 units together and operate without a controller. The units can be
sound activate or run in a test mode. In Master-Slave operation one unit will act as the controlling unit and the
others will react to the controlling units programs. Any unit can act as a Master or as a Slave.
1. This is a very simple process. Using standard XLR microphone cables, daisy chain your units together via
the XLR connector on the rear of the units. Remember the Male XLR connector is the input and the Fe-
male XLR connector is the output. For longer cable runs we suggest a terminator at the last fixture. You do
not have to assign the units Master/Slave. They will automatically fall into Master/Slave mode.
UNIVERSAL DMX CONTROL:
This unit allows you to use any universal DMX-512 controller to control the RGB LEDs, auto mode, sound
active mode, and strobe. A DMX controller allows you to create unique programs tailored to your individual
needs. Follow the set-up specifications that are included with your DMX controller.
1. The Electro Ray uses five DMX channels. Please see the DMX chart on the front page for the DMX values
and functions.
2. To control your fixture in DMX mode, press the MODE button. Now press the UP or button until the
“ ” is displayed, press ENTER. A.001
3. Now press the UP button to set your desired address and press ENTER.
4. Use the controller’s faders to control the various DMX fixture traits.
5. For longer cable runs (more than a 100 feet) use a terminator on the last fixture.
6. For help operating in DMX mode consult the manual included with your DMX controller.
