Side 1/12

97461C (Rev. SIC - 1/11)

4595FR_FTN LK4595FR_FTN LK4595SFR_FTN

Owners Manual

4595 Freeze Resistant Pedestal Barrier Free Stone Fountain

4595FR Fountains are among the easiest to install Fountains on the market today. To assure

you install these models easily and correctly, PLEASE READ THESE SIMPLE INSTRUCTIONS

BEFORE STARTING THE INSTALLATION. CHECK YOUR INSTALLATION FOR COMPLIANCE

WITH PLUMBING, ELECTRICAL, AND OTHER APPLICABLE CODES. After installation, leave

these instructions with the Fountain for future reference.

IMPORTANT

ALL SERVICE TO BE PERFORMED BY AN AUTHORIZED SERVICE PERSON

IMPORTANT

THE GROUNDING OF ELECTRICAL EQUIPMENT SUCH AS TELEPHONE, COMPUTERS, ETC. TO WATER LINES IS A

COMMON PROCEDURE. THIS GROUNDING MAY BE IN THE BUILDING OR MAY OCCUR AWAY FROM THE BUILDING. THIS

GROUNDING CAN CAUSE ELECTRICAL FEEDBACK INTO A FOUNTAIN, CREATING AN ELECTROLYSIS WHICH CAUSES A

METALLIC TASTE OR AN INCREASE IN THE METAL CONTENT OF THE WATER. THIS CONDITION IS AVOIDABLE BY USING

THE PROPER MATERIALS AS INDICATED. ANY DRAIN FITTINGS PROVIDED BY THE INSTALLER SHOULD BE MADE OF

PLASTIC TO ELECTRICALLY ISOLATE THE FOUNTAIN FROM THE BUILDING PLUMBING SYSTEM.

INSTALLER

STOP!

PLEASE READ THE FOLLOWING

INFORMATION.

•INSTALLATION INSTRUCTIONS FOR THE 4595FR FTN.

WITH 97482C DUAL VALVE CONTROL ASSEMBLY ARE

LOCATED ON PAGES 2 - 5.

•INSTALLATION INSTRUCTIONS FOR THE 4595FR FTN.

WITH SANITARYFR2 VALVE ARE LOCATED ON PAGES

6 - 12.

PAGE 297461C (Rev. SIC - 1/11)

4595FR_FTN LK4595FR_FTN LK4595SFR_FTN

Owners Manual

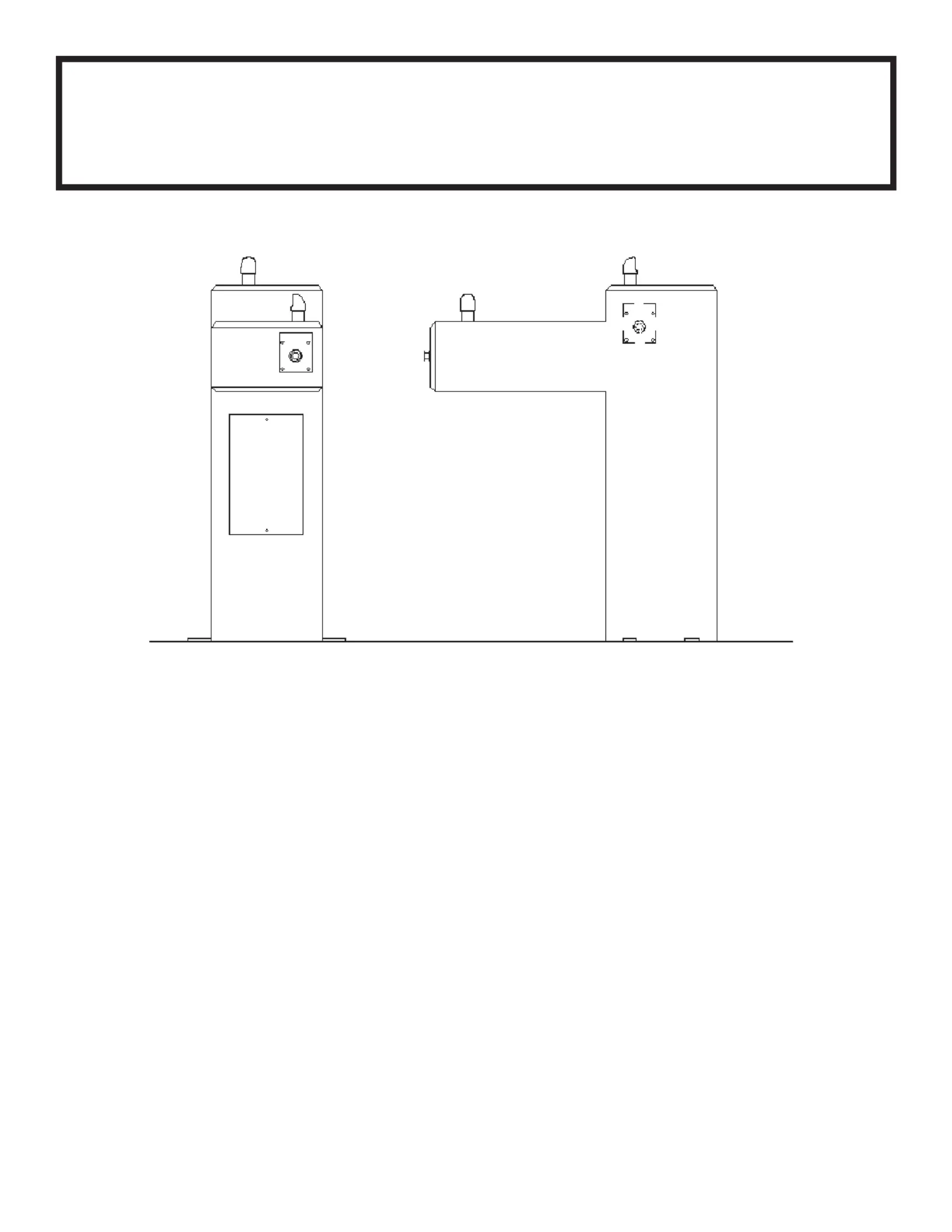

4595 Freeze Resistant Barrier Free Stone Pedestal Fountain

with 97482C Dual Valve Control Assembly

IMPORTANT! INSTALLER PLEASE NOTE

Do not pull up on lines coming out of the PVC column. This raises the water valve above the frost line with

disastrous results.

General Installation Tips

1. Be sure to flush water supply line before you connect it to the inlet fitting on Freeze Resistant Valve System.

2. There are two drain lines required for this unit. One for the drinking fountain basin drain and one for the valve/water supply line system. The bowl drain is the 3/4"

PVC fitting at the bottom of the 6" PVC tube and the valve drains through the small holes in the PVC cap. Provide ample drainage for these two items. It's always

better to have too much then not enough.

3. The column (6" PVC tube) must remain vertical. Be sure it remains vertical when backfilling the excavating trench.

4. When the concrete pad, for mounting the fountain, is poured, be sure to allow adequate space around the top of the column so that the flexible cap may be

removed for servicing the valve.

5. We recommend that the top of the column be flush or slightly above the top height of the concrete pad.

6. You should test the unit before you backfill. Simply blow on the clear, small diameter tubing. A steady stream should flow from the braided tubing line. When air

pressure is removed from the clear tubing the water stream should stop.

7. Once you have tested the valve, backfilled the hole and poured the concrete mounting pad you are ready to set the fountain. After bolting the fountain in place

connect the air control valve tubing, supply water tubing and drain lines. The water supply line must have a straight run from the basin bubbler down to the control

valve. If a straight run is not maintained water will become trapped and freeze leaving the unit inoperable. Test the fountain again. If it fails to work, the air

control line may be kinked or connected improperly. Be sure to keep water out of the air control line.

8. These products are designed to operate on 20 psig to 105 psig supply line pressure. If inlet pressure above 105 psig, a pressure regulator must be installed in the

supply line. Any damage caused by reason of connecting this product to supply line pressure lower than 20 psig or higher than 105 psig is not covered by

warranty.
