SAVE FOR CONSUMER

INSTALLATION / OWNER’S MANUAL

Avado - Pull-Out Kitchen Faucet

LKAV3041CR

LKAV3041NK

LKLFAV3041CR

LKLFAV3041NK

Includes:

Tools:

1/2”

[13 mm]

13/16”

[20 mm]

5/8”

[16 mm]

NOTE: these washers are not

used on this faucet model

321

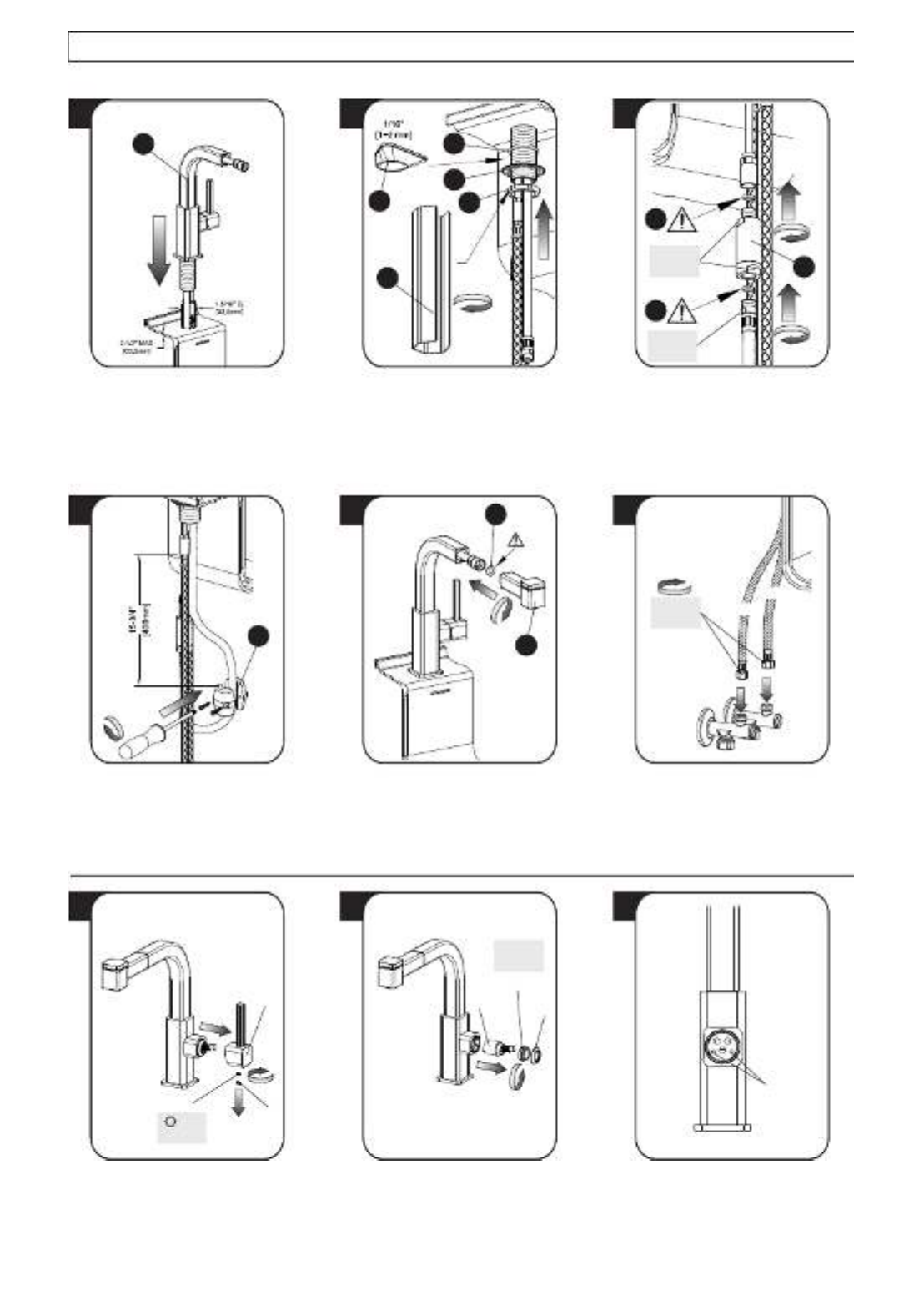

Before inserting the single lever group in the hole of

the sink, make sure that the base gasket is properly

positioned in its seat and that the exible hoses are

well tightened to the body of the tap.

Place the single lever group in the hole of the sink,

orienting the spout toward the sink tank.

For countertop thicknesses less than 1/16” thick

use the rubber gasket (B1) and mounting ange

(B2), for all other installations use the rubber gasket

(B1) and metal washer (B3).

Secure mounting hardware in place by tightening

mounting nut (B4) with wrench (E).

Install the check valve (C1) to the outlet hose with a

rubber washer (C2).

Secure with wrench.

Attach the pull-down hose to the bottom of the

check valve with a rubber washer (D1).

Secure with wrench.

13/16”

[20 mm]

WARNING: please carefully read and properly follow the instructions for installation found in this manual.

STEPS:

1/2”

[13 mm]

Attach the counterweight (D2) to the exible hose

approximately 15-3/4” [400mm] from the connection

to the outlet pipe.

Tighten the shower (F) to the hose interposing

the gasket (D3) and conrm the hose can slide

smoothly through the passage hole.

321

Before dissassembling the faucet be sure that the water supply is turned off.

Remove the nish cap (A), paying attention not to damage it. Remove the setscrew (B) with a 1/8” [2,5mm] hex wrench. Remove the handle (C). Lift the nishing ring nut (D)

using the reference notch. Unscrew the cartridge nut (E) then pull out the cartridge (F). Put the new cartridge into the body of the faucet, checking that the two centering pins
