Side 1/7
SAVE FOR CONSUMER
INSTALLATION / OWNER’S MANUAL
Avado - Pull-Down Kitchen Faucet
LKAV1031CR
LKAV1031NK
LKLFAV1031CR
LKLFAV1031NK
Includes:
Tools:
A
B
D
D1
D1
D2
B1
B2
B3
C1
C2
E
1/2”
[13 mm]
13/16”
[20 mm]
5/8”
[16 mm]
13/16”
[21 mm]
C
NOTE: only 1 D1 washer is
used with this faucet model
NOTE: these washers are not
used on this faucet model
WARNING: please carefully read and properly follow the instructions for installation found in this manual.

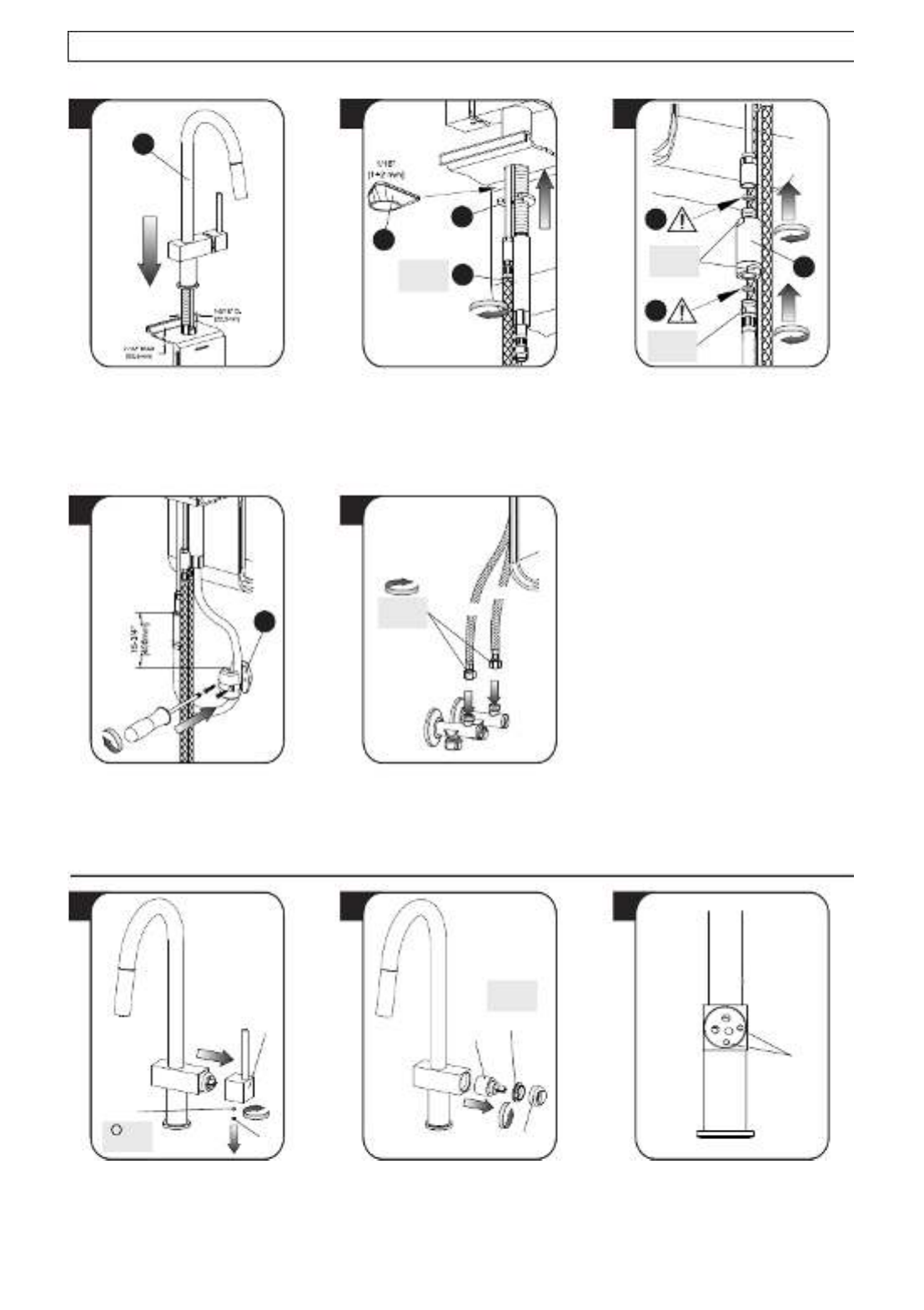

STEPS:
5
Connect the exible hoses to the supply connections
with rubber gaskets.
Secure with wrench.
Turn on the water and check for leaks.
321
Before dissassembling the faucet be sure that the water supply is tur ned off.
Remove the nish cap (A), paying attention not to damage it. Remove the setscrew (B) with a 1/8” [2,5mm] hex wrench. Remove the handle (C). Lift the nishing ring nut (D)
using the reference notch. Unscrew the cartridge nut (E) then pull out the cartridge (F). Put the new cartridge into the bod y of the faucet, checking that the two centering pins
enter into the respective seats (X) and that the gaskets on the cartridge are well positioned.
Reassmble the handle following the instructions in reverse order.
5/8”
[16 mm]
Hot
Cold
Red
Blue
CARTRIDGE REPLACEMENT
B
A
C
X
1/8”
[2,5 mm]
FE
1-1/8”
[28 mm]
D
321
Before inserting the single lever group in the hole of
the sink, make sure that the base gasket is properly
positioned in its seat and that the exible hoses are
well tightened to the body of the tap.
Place the single lever group in the hole of th e sink,
orienting the spout toward the sink tank.
For countertop thicknesses less than 1/16” thick
use the ange (B1), for all other installations use
the metal washer (B2).
Secure mounting hardware in place by tightening
mounting nut (B3).
Install the check valve (C1) to the outlet hose with a
rubber washer (C2).
Secure with wrench.
Attach the pu ll-down ho se to the bottom of the
check valve with a rubber washer (D1).
Secure with wrench.
13/16”
[20 mm]
1/2”
[13 mm]
4
Attach th e counterweight (D2) to the exible hose
approximately 15-3/4” [400mm] from the connection
to the outlet pipe.
B3
B
2
B1
A
C2
D1
C1
13/16”
[21 mm]
D2
