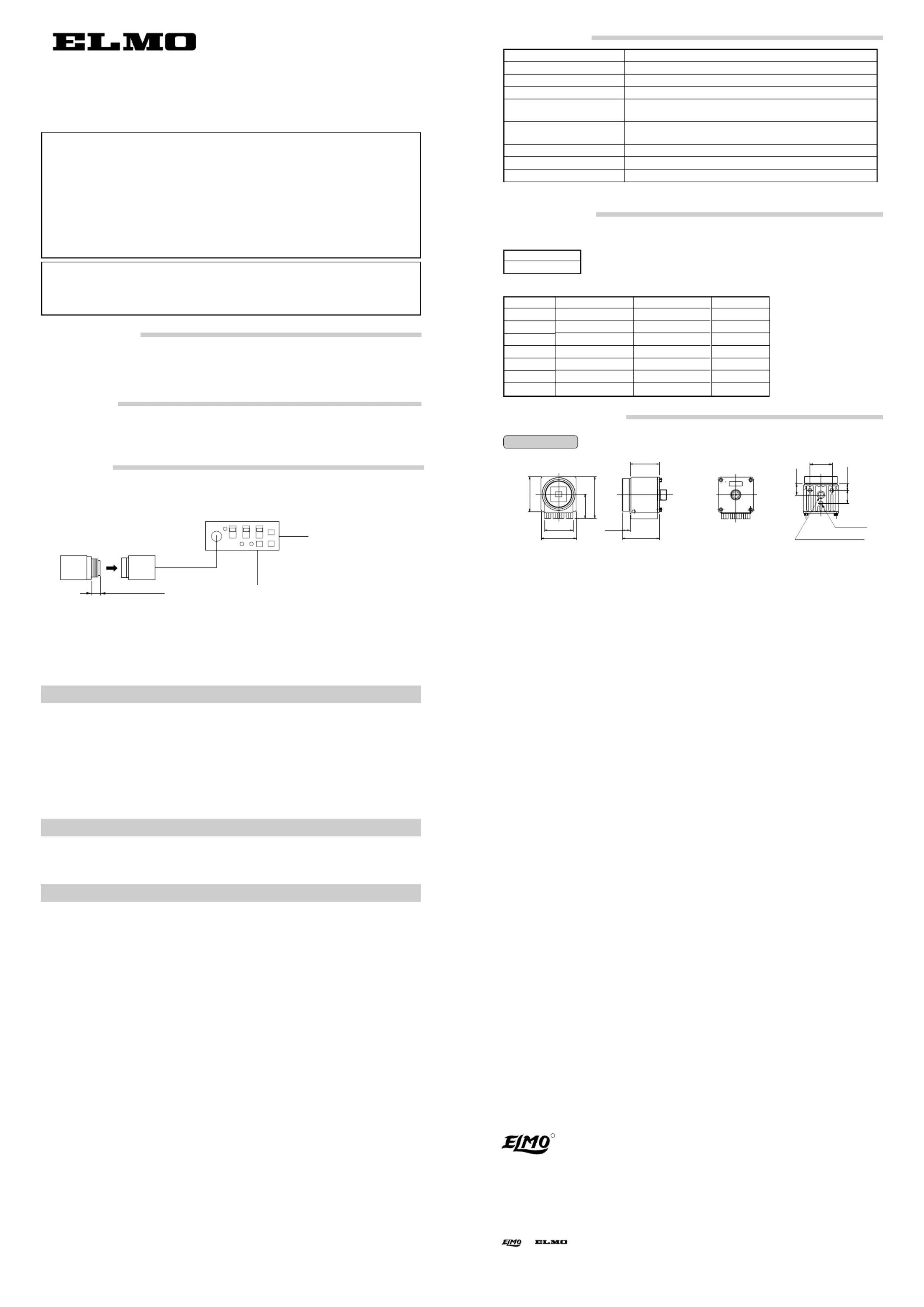

Side 1/1

INFORMATION

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a commercial environment. This equip-

ment generates, uses, and can radiate radio frequency energy and, if not installed and used in accor-

dance with the instruction manual, may cause harmful interference to radio communications. Opera-

tion of this equipment in a residential area is likely to cause harmful interference in which case the user

will be required to correct the interference at his own expense.

USER-INSTALLER CAUTION: Your authority to operate this FCC verified equipment could be voided

if you make changes or modifications not expressly approved by the party responsible for compliance

to Part 15 of the FCC rules.

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.

CCD Color Camera Head

Operation Manual

CAUTIONS ON USE

●Please use this apparatus by connecting only with camera control unit Elmo CC431E.

●Read the "CAUTIONS ON USE AND INSTALLATION" in the operation manual of CC431E, and follow

them.

COMPONENTS

(1) Camera head (without lens) .............................................................................. 1

(2) Accessory

(a) Operation manual ........................................................................................ 1

CONNECTION

Image sensor 1/2 inch IT-CCD

Effective pixels Horizontal: 768 pixels, Vertical: 494 pixels

Effective image area Horizontal: 6.54 mm, Vertical: 4.89 mm

Resolution Horizontal: More than 470 lines, Vertical: More than 350 lines

Standard intensity of 20 lx (F1.2, 3000K)

illumination for objects

Minimum intensity of 1.5 lx (F1.2, 3000K)

illumination for objects

S/N ratio 46 dB or more

Lens mount C-Mount

Weight 2.8 oz (78g)

SPECIFICATIONS

Camera control unit

OPTIONAL PARTS

For further details, contact your Elmo dealer.

Type name

CC431E

EXTERIOR DIMENSIONS

Camera Head

●When connecting or discon-

necting the camera cables

(for the camera head and

camera control unit), always

turn off the power switch of

the camera control unit first.

If not, the camera head may

be damaged.

●Use a C-mount lens with the

protruded section from the

mount base less than 8.5

mm.

●Design and specifications are subject to change without notice.

Camera cable

Type

EMC-02H

EMC-03H

EMC-05H

EMC-12H

EMC-20H

EMC-30H

EMC-54H

[0.24]

11.5

[0.45]

[0.39]

[0.79]

26.8

[1.06]

[1.02]

[0.87]

[1.26]

[0.28] 33.8

[1.33]

[1.5]

1/4-20UNC Threaded hole

3-M3 screw

Unit : mm [inch]

ø : diameter

Code #

9833

9833-1

9833-2

9833-3

9833-4

9833-5

9833-6

Nominal length

12m

20m

30m

54m

Diameter

5.0mm

Camera head

C-mount lens

(option)

Camera control unit

CC431E (option)

DC Supply

(12V)

CAMERA

VIDEO

DC IN 12V

Camera cable

(option)

Less than 8.5mm

M O D E L

C N 4 3 H

Printed in Japan (23552122)

DISCLAIMER

We disclaim any responsibility and shall be held harmless for any damages or losses incurred by the

user in any of the following cases:

1. Fire, earthquake or any other act of God; acts by third parties; misuse by the user, whether inten-

tional or accidental; use under extreme operating conditions.

2. Malfunction or non-function resulting in indirect, additional or consequential damages, including

but not limited to loss of expected income and suspension of business activities.

3. Incorrect use not in compliance with instructions in this instruction manual.

4. Malfunctions resulting from misconnection to other equipment.

5. Repairs or modifications made by the user or caused to be made by the user and carried out by an

unauthorized third party.

6. Notwithstanding the foregoing, ELMO’s liabilities shall not, in any circumstances, exceed the pur-

chase price of the product.

There may be a conflict with the Copyright Law and other laws when a customer uses, displays,

distributes, or exhibits an image picked up by a television camera without permission from the copy-

right holder. Please also note that transfer of an image or file covered by copyright is restricted to use

within the scope permitted by the Copyright Law.

●Carefully handle the units.

Do not drop, or give a strong shock or vibration to the camera. This may cause problems. Treat the

camera cables carefully to prevent cable problems, such as cable breakdown and loosened connec-

tions.

●Do not shoot intense light.

If there is an intense light at a location on the screen such as a spot light, a blooming and smearing

may occur. When intense light enters, vertical stripes may appear on the screen. This is not a malfunc-

tion. Ghosts may occur when there is an intense light near the object. In this case, change the shoot-

ing angle.

●Install the camera in a location free from noise.

If the camera or the cables are located near power utility lines or a TV, etc. undesirable noise may

appear on the screen. In such a case, try to change the location of the camera or the cable wiring.

●Moire

When thin stripe patterns are shot, stripe patterns that are not actually there (moire) may appears as

interference stripes. This is not a malfunction.

●Operating ambient temperature and humidity.

Do not use the camera in places where temperature and humidity exceed the specifications. Picture

quality will lower and internal parts may be damaged.

Be particularly careful when using in places exposed to direct sunlight. When shooting in hot places,

depending on the conditions of the object and the camera (for example when the gain is increased),

noise in the form of vertical strips or white dots may occur. This is not a malfunction.

●Handling of the protection cap.

Keep the protection cap away from children. Children may put them into mouth or swallow them

accidentally. The protection cap protects the image sensing plane when the lens is removed from the

camera, do not throw away.

●When not using the camera for a longtime.

Stop supplying power.

●When cleaning the camera

Always turn off the power and clean with a piece of soft dry cloth. Do not use benzine, alcohol, thinner,

household detergents, chemically treated cloths, etc. If used, coating and printed letters may be dis-

colored. When cleaning the lens, use a lens cleaning paper, etc.

●Avoid using or storing the camera in the following places:

Places filled with highly flammable gas.

Places near gasoline, benzene, or paint thinner.

Places subject to strong vibration.

Places contacting chemicals (such as pesticides), rubber or vinyl products for a long period of time.

CAUTIONS ON USE AND INSTALLATION

ELMO CO., LTD.

6-14, Meizen-cho, Mizuho-ku,

Nagoya, 467-8567 Japan

ELMO Canada Mfg. Corp.

44 West Drive, Brampton,

Ontario, L6T 3T6,

Canada

Tel. 905-453-7880

Fax. 905-453-2391

E-mail:info@elmocanada.com

Web:http://www.elmocanada.com

ELMO Mfg. Corp.

1478 Old Country Road,

Plainview, NY 11803-5034

U.S.A.

Tel. 516-501-1400

Fax. 516-501-0429

E-mail:elmo@elmousa.com

Web:http://www.elmousa.com

OVERSEAS SUBSIDIARY COMPANIES

ELMO (Europe) G.m.b.H.

Neanderstr. 18

40233 D sseldorf,ü

Germany

Tel. 0211-376051-53

Fax. 0211-376630

E-mail:elmoeurope@AOL.com

Web:http://www.elmo.de

and are registered trademarks of ELMO COMPANY, LIMITED.
