- J type thermocouple,
K type thermocouple,
PT-100 2-wire or 3-wire temperature input
( Must be determined in order ),
- On/Off or Proportional control form selection,
- Working time selection in minutes or seconds,
- Hysteresis adjustment,
- Voiced warning via internal buzzer,
- Cover switch input,
- Steam output (ESM- 9945)
SPECIFICATIONS
INPUT
Thermocouple (TC) : J, K (IEC 584.1) (ITS90)
Thermoresistance (RTD) : 2 or 3 wire PT 100 (IEC
751) (ITS90)
Measurement Range : It is in ordering information
Accurary : ± 1% of full scale
Cold Jonction Compensation : Automatically
±0.1°C/1°C
Sensor Break Protection: Upscale
Sampling Cycle: 3 samples per second
CONTROL
Control Form : ON/OFF & PROPORTIONAL
OUTPUTS
Temperature Control Output :
Relay (7A@250VV @ resistive load) or optional
SSR Driver Output (Maximum 20mA, 12V Z )
Time Output:
Relay (7A@250VV @ resistive load) or optional
SSR Driver Output (Maximum 20mA, 12V Z )
Steam Output(ESM-9945):
Relay (7A@250VV @ resistive load) or optional
SSR Driver Output (Maximum 20mA, 12V Z )
Besides these, there is an internal buzzer for voiced
warning.
SUPPLY VOLTAGE
230 V V ( %±15 ) 50/60 Hz - 4VA ,
115 V V ( %±15 ) 50/60 Hz - 4VA ,
24 V V ( %±15 ) 50/60 Hz - 4VA
(Must be determined in order).
ENVIRONMENTAL RATINGS and PHYSICAL
SPECIFICATIONS
Operating Temperature : 0...50°C
Humidity : %0-90RH (none condensing)
Protection Class : IP65 at front, IP20 at rear
Weight : 360 gr.
Diemensions: 96 x 96 mm, Depth:96 mm
Panel Cutout: 92 x 92 mm

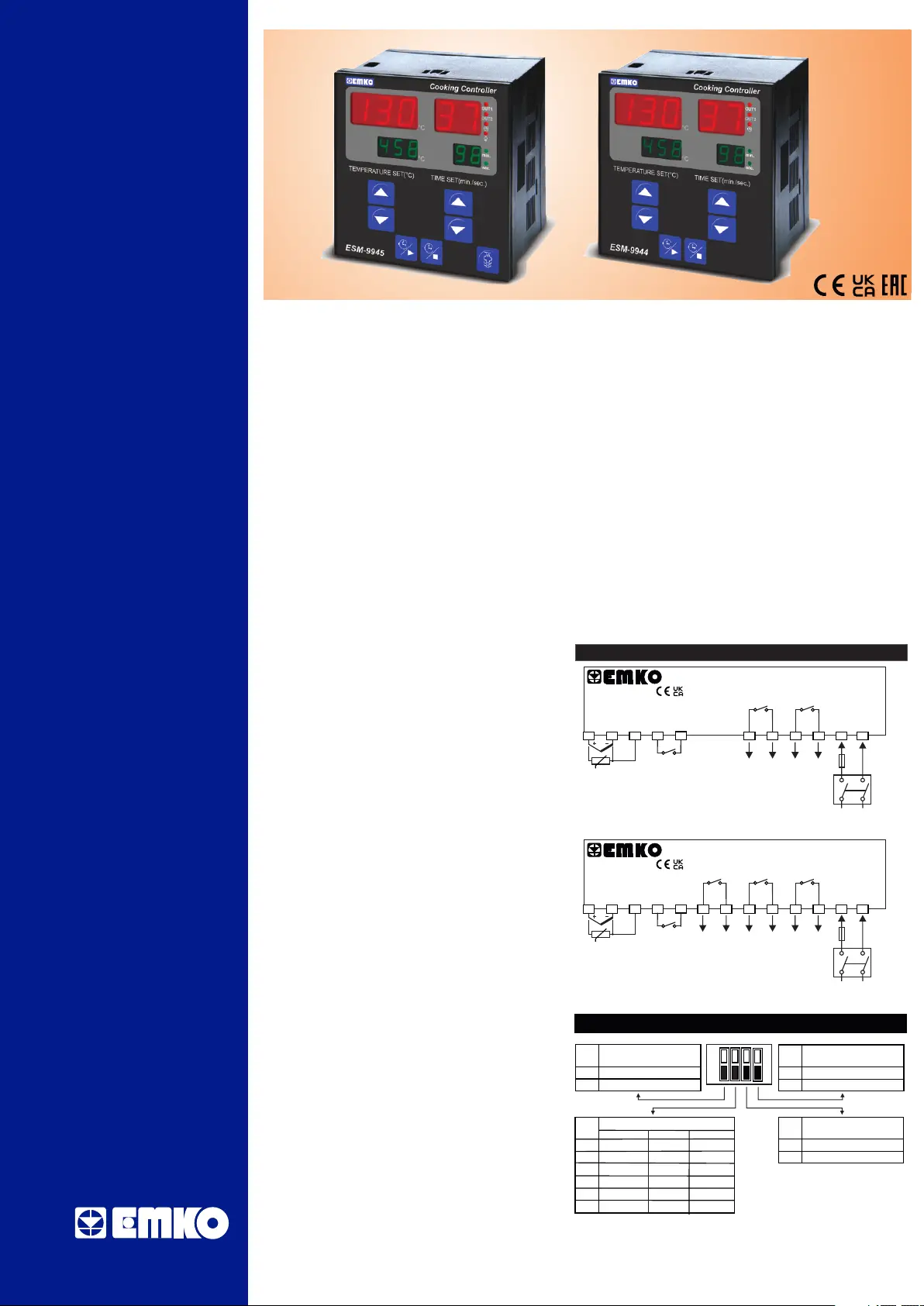

Introduction Brochure. ENG ESM-994X 01 V07 07/23
ESM-9944
ESM-9945
Cooking Controllers
APPLICATION FIELDS
- Bakery Applications,
- Fermentation Cabinets,
- Ceramics and Glass ovens,
- Grain drier cabinet,
- Industrial fryer,
- Incubators
DISPLAY
Temperature Value Display :
14 mm red 3 digit LED Display
Temperature Set Value Display :
8 mm green 3 digit LED Display
Time Value Display :
14 mm red 2 digit LED Display
Time Set Value Display :
8 mm green 2 digit LED Display
ELECTRICAL WIRING
DIP- SWITCH ADJUSTMENTS
ONOFF
S2
HYSTERESIS SELECTION
ON
OFF
ON
OFF
INPUT TYPE
HYSTERESIS
ON
OFF
0- 400°C
0- 400°C
0- 800°C
0- 800°C
0- 999°C
0- 999°C
1°C
4°C
2°C
4°C
2°C
4°C
S3
TIME UNIT SELECTION
ON
OFF
SECOND (1- 99 sec)
MINUTE (1- 99 min )
S4
RELAY ON DURATION
ON
OFF
10 sec
CONTINUOUSLY
S1
CONTROL FORM
ON
OFF
ON- OFF
PROPORTIONAL
Pt100
Pt100
J, Fe CuNi
J, Fe CuNi
K, NiCr Ni
K, NiCr Ni
SCALE
LED Display :
OUT1: Red,
OUT2: Red,
TIME: Red,
STEAM: Red (ESM-9945),
MIN: Green,
SEC: Green
N
L
Fuse
CAT II
Yc
ESM-9945
TC
Temperature
Sensor Input
(TC or PT-100)
Output-1
1 2 3 8 9 10 11 12 13
Digital Input
4
5
C
NO
7A@250VV7A@250VV
Output-2
C
NO
1A TV
6 7
C
NO
7A@250VV
Output-3
Temperature
Control
Output
Time
End
Output
Steam
Output
( ) ( )( )
Cover
Switch
( )
230VV
Pt-100
Power
Supply
Switch
N
L
Fuse
CAT II
Yc
ESM-9944
TC
Temperature
Sensor Input
(TC or PT-100)
Output-1
1 2 3 8 9 10 11 12 13
Digital Input
4
5
C
NO
7A@250VV7A@250VV
Output-2
C
NO
1A TV
Temperature
Control
Output
Time
End
Output
( )( )
Cover
Switch
( )
230VV
Pt-100
Power
Supply
Switch
Cooking
Controllers
