Side 1/3

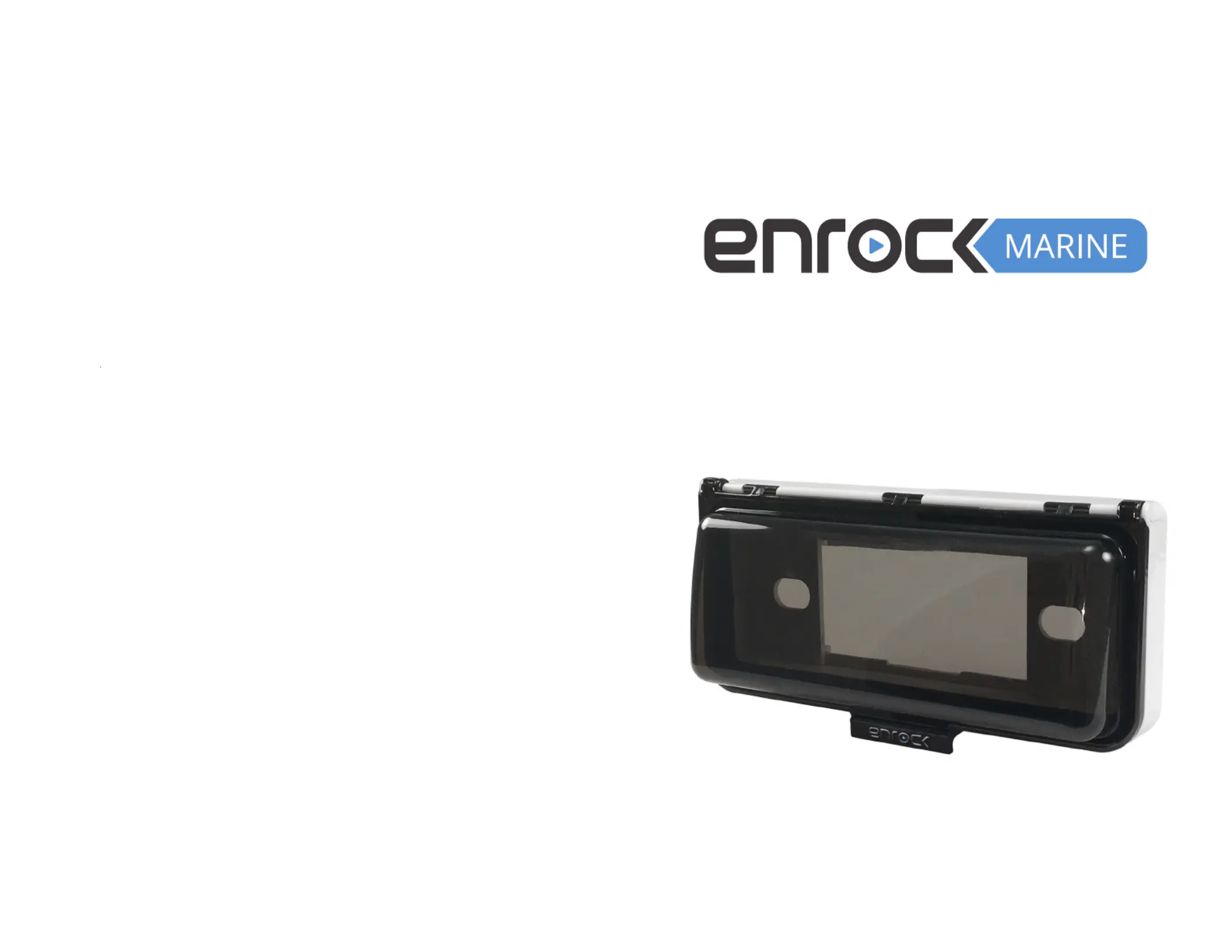

EMC56W / EMC58B
CAR / BOAT STEREO WEATHER SHIELD
INSTALLATIO / OWNER’S MANUALN
EMC56W / EMC58B
CAR / BOAT STEREO WEATHER SHIELD
INSTALLATIO / OWNER’S MANUALN
EMC56W / EMC58B
Front Gasket
stereo’s
mounting sleeve
Din Stereo
and lid assembly
Rear Gasket
INSTALLATION
DIN UNIT INSTALLATION
1) Using the supplied drilling template, trace the opening and drilling
location outline onto the proper mounting location. Cut out and drill the
proper openings. Note: The mounting screws require a 3/32” drilled hole.
2) Position the rear gasket onto the backside of the Weather Shield, using
proper care to align the gasket.
3) Using the supplied Phillips head screws, attach the Weather Shield, using
proper care to align the gasket.
4) Press the front gasket into the front side of the Weather Shield, using
proper care to align the gasket.
5) Insert the stereo’s mounting sleeve in the opening of the base. Secure the
mounting sleeve to the mounting surface by bending the tabs outward
(see below) Note: The mounting sleeve is supplied with your stereo.
6) Connect the stereo wiring harness to the car/boat. Insert the stereo into
the sleeve, making sure the stereo locks into place properly.
INTRODUCTION
The Enrock Weather Shield has been designed for the marine environment.
When the cover is down and closed, it meets with special gaskets positioned
in the front and rear of the base plate, forming a seal to protect your stereo.
The cover provides quick and easy stereo accessibility.
The Enrock Weather Shield works with most shaft and din style radios.
PARTS LIST
Weather Shield base and lid assembly (1)
Shaft Tabs (2)
Rear Gasket (1)
1” Phillips head screws (6)
Drilling Template (1)
Instruction Manual (1)
Front Gasket
Shaft Tabs
Weather Shield base
and lid assembly
Rear Gasket
Shaft Tabs
