Installation Guide

Table of Content:

1. Accessories

Please check the following included accessories before installation:

AC cable

one pcs

Monitor Base

o ne pcs

Remote Control

one pcs

Installation Guide

one pcs

2. Installation

Rear Interface Side Interface

3. Connecting the Monitor

Cables to Your Video Source

Make all cable connections are secure

by tightening the cable screws. Shaking

and vibration may dislodge cables that

are improperly connected. Route all

wiring and cabling away from heat

sources, sharp metal edges, and any

sources of electromagnetic and radio

frequency interference.

5. Controls & Functions

Buttons on the Bezelright side of the

If you cannot locate your remote, you can use the side panel buttons of your monitor to operate many of the

monitor’s features.

1. POWER: Turns the monitor on or off.

2. SOURCE: Accesses the available video input signals (AV, BNC, , SVIDEO VGA, HDMI)

3. MENU: Brings up the MONITOR Main menu. When using the OSD (On Screen Display) system, press

MENU button to return to the previous menu or exit.

4. : Up arrow button.

5. : Down arrow button.

6.＋

＋

＋＋ : Increases the volume. In the MONITOR menu system, acts like the right arrow button on the remote

control and adjusts menu controls.

7. :

－

－－ Decreases the volume. In the MONITOR menu system, acts like the left arrow button on the remote

control and adjusts menu controls.

HOW to use buttons

Use the buttons on the right side control panel to adjust the OSD

(1) Power on the LCD monitor.

(2) Press source button to accesses the available video input signals, press or button to enter the ＋ —

video mode.

(3) Press MENU button then press ＋／－ button move highlight icon left / right.

(4) Press SOURCE button to enter the submenu, then press ＋／－ button corresponding to edit.

(5) When you are satisfied with the setting, press MENU button to return to the previous menu or exit.

1. Accessories

4. Testing the Monitor

7. Mounting Your MONITOR to the Wall

2. Installation

5. Controls & Functions

8. Specification

6. Choose the Input Source

9. Reference

3. Connecting the Monitor

Cables to Your Computer

Pull to open rear cover for BNC and

Audio In/Out as highlighted area.

4. Testing the Monitor

After making all connections secure and tight, turn on the power switch

located on the side bezel.

1. Turn on your computer.

2. Ensure the front LED is green.

3. Make sure the video image is centered within the screen area. Use the

monitor controls to adjust the image, if necessary. Perform an Auto

Config first, then if you wish you can adjust the horizontal and vertical

position, contrast, and brightness to better suit your video card and your

personal preference. Refer to Basic OSD setup for more information on

using the on-screen menu to adjust the video display.

6. Choose the Input Source

Press Source button on the monitor or remote control, and the source menu appears on the screen. Then press Up/Down

arrow button to select your video source, and press menu to exit.

AV: the input source from AV or video camera terminal input.

BNC: the input source from BNC terminal input.

S-Video: the input source from S-Video terminal input.

VGA: the input source from VGA terminal input.

HDMI: the input source from HDMI in terminal input.

7. Mounting Your MONITOR to

the Wall

CAUTION: The wall mount must bear

a minimum of five times the monitor’s

net weight without causing damage. To

mount your MONITOR to the wall, you

need to purchase a VESA wall mount.

For models 17inch and 19inch,

purchase a VESA 75 x 75, KM 4 x

8mm (75 x 75, for example, it means

the mounting measurements are

75mm horizontally and 75mm vertically;

Metric (M4 x 8 mm) is screw type that

needs to be used).

1. You need to remove the base first

before attaching the wall mount.

A. Place the MONITOR to

face down on a surface that is

soft, yet strong enough to hold

the MONITOR.

B. Remove the screws from

the four holes on each side of the

bottom of the MONITOR’s base (only

use with base).

2. Follow the directions included with

the wall mount to mount the monitor to

the wall.

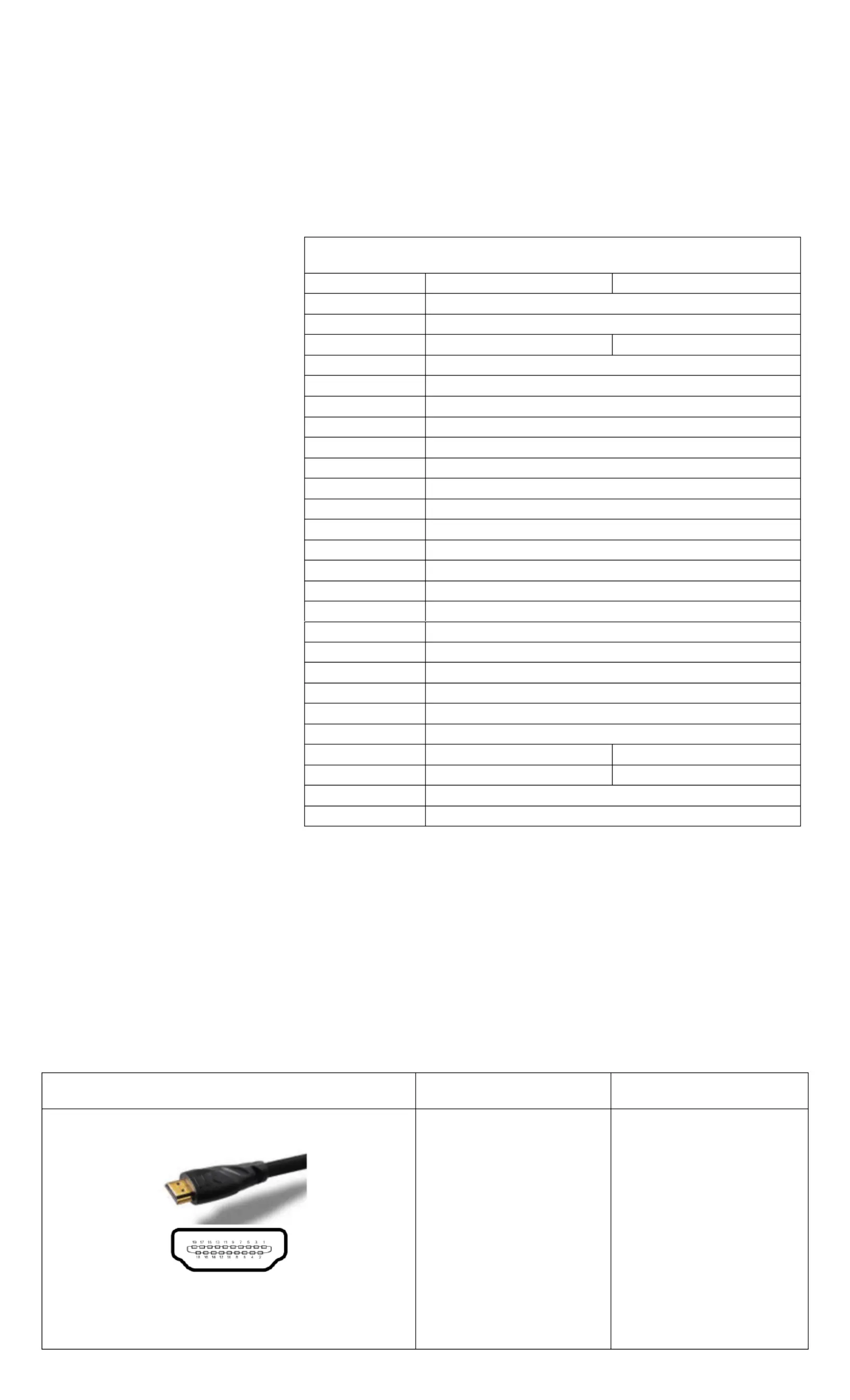

9. Reference

Connector Benefits and Limitations

High resolution LCD monitors are capable of displaying very detailed images. However, the type of input signal being

used plays a large role in determining the quality of the image displayed. This guide lists common connectors used

for various signal types and lists them in overall decreasing picture quality. Most LCD monitors have multiple inputs

but only the digital signals/inputs are capable of providing pixel- -by pixel matching. Pixel matching allows the optimal

possible picture by matching the native resolution of the LCD panel to the incoming digital signal. When possible,

always use a digital signal instead of an analog signal. If an analog signal is required, always use the best possible

analog signal/connector type (listed in this guide in descending order).

Connector Type

Benefits

Drawbacks

HDMI

High Definition Multimedia Interface

• Digital

• Highest bandwidth of

any current connector

( 10.2 Gigabit/sec at

340 Megapixels/sec)

• Highest resolution (2560

x1600) from a single

cable

• Allows DRM (Digital

Rights Management)

• Partly compatible with

DVI (but with DVI no

audio is included)

• Small footprint

• Audio included

• No method for locking

connector onto the input

(unlike DVI or BNC)

• Limited to cable length of

8 meters unless a

repeater or amplifier is

used

• No analog signal carried

simultaneously (unlike

DVI- I)

• Fragile connector that

can slip free in vertical

orientations or vibrating

environments.

• Locks out most monitor

8. Specification

Model

19inch

17inch

Resolution

1280 x 1024 (SXGA)

Viewing lines

>500 lines (TVL)

Pixel pitch

0.294mm

0.264mm

Brightness

300 cd/m2

Contrast ratio

800:1

Response time

5ms

Viewing Angles

170/170

3D Comb filter

Yes

De- interlace

Yes

OSD

2 out of 9 Language options

Display colors

16.7 Million

Speakers

2 each (3 watts)

Video Inputs

HDMI, VGA, BNC, S-Video, RCA

Video Outputs

BNC (1 each)

Audio Inputs

RCA, PC

Audio Outputs

RCA

Mounting

75mm VESA

Power Input

AC100- 240V 60/50Hz

Power Use

<45W, <2W (standby)

Desk Stand

Removable-Metal

Options

Rack and wall mounts

Accessories

VGA cord, PC audio cord

Packaging

580 x 515 x 165

518 165 x 465 x

Weight

7 kg net (9 kg in carton)

6 kg net (7.5 kg in carton)

Operating temp

5- C 40°

Safety

UL, CE, FCC, CB

Produkt Specifikationer

Mærke:	EverFocus
Kategori:	Skærm
Model:	EN7519HDMI
Vekselstrømsindgangsspænding:	100 - 240 V
Vekselstrømsindgangsfrekvens:	50 - 60 Hz
Produktfarve:	Sort
Skærm diagonal:	19 "
Skærmopløsning:	1280 x 1024 pixel
Berøringsskærm:	Ingen
Naturligt aspektforhold:	4:3
Responstid:	5 ms
Synsvinkel, horisontal:	170 °
Synsvinkel, vertikal:	170 °
3D:	Ingen
Indbyggede højttaler(e):	Ja
Format til analogt signal:	NTSC, PAL, SECAM
Antal højttalere:	2
Udgangseffekt (RMS):	3 W
Antal HDMI-porte:	1
Antal RF-porte:	2
Skærmvisning (OSD):	Ja
Antal OSD sprog:	2
VESA montering:	Ja
Panel montering grænseflade:	75 x 75 mm
Strømforbrug (standby):	2 W
Strømforbrug (typisk):	45 W
Bredde (uden stativ):	- mm
Dybde (uden stativ):	- mm
Højde (uden stativ):	- mm
Vægt (uden stativ):	7000 g
Bredde (med stativ):	580 mm
Dybde (med stativ):	165 mm
Højde (med stativ):	515 mm
Driftstemperatur (T-T):	0 - 40 °C
Skærm:	LCD
Kabler inkluderet:	AUX, VGA
Understøttede grafikopløsninger:	1280 x 1024 (SXGA)
Fjernbetjening inkluderet:	Ja
Certificering:	UL, CE, FCC, CB
Indbygget kamera:	Ingen
Pc lydindgang:	Ja
Slot til kabellås:	Ingen
Lydindgang:	Ja
Billedformat:	4:3
Vis antal farver:	16,78 millioner farver
Skærmens lysstyrke (typisk):	300 cd/m²
Kontrastforhold (typisk):	800:1
Pixel pitch:	0.294 x 0.294 mm
Antal VGA-porte (D-sub):	1
AC (strøm) indgang:	Ja
TV-tuner, integreret:	Ja
Gennemsnitstid mellem fejl (MTBF):	50000 t
Antal af S-video-indgange:	1
Tynd klient installeret:	Ingen
