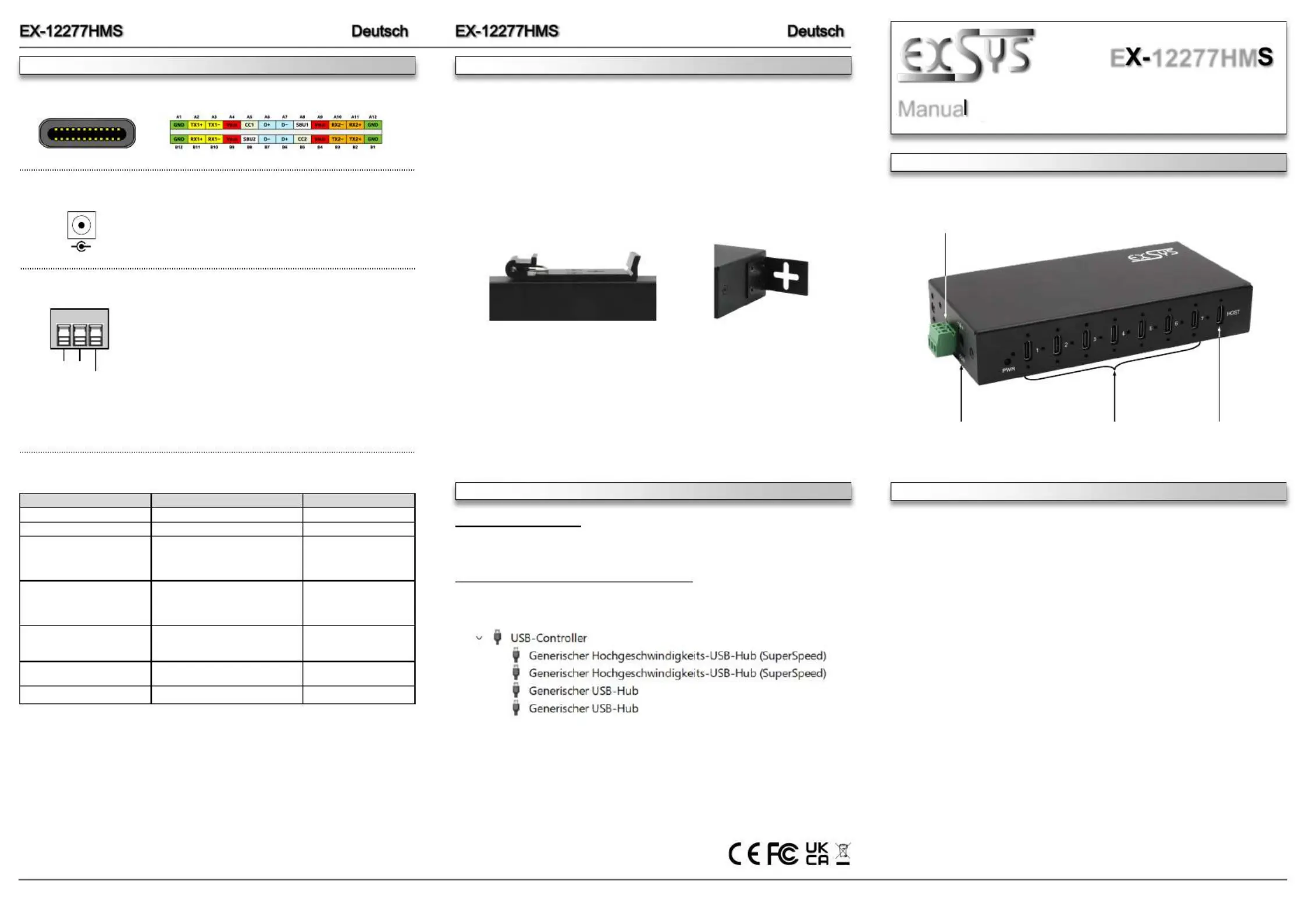

Anleitun

E 12277HM

CONNECTORS

USB 3.2 Gen 2x1 C Port:-

+9V to +24V T Block:-

- V

ATTENTION!

Only for use with the power supply included in the

scope of delivery or another compliant power supply!

ATTENTION!

Please pay attention to the correct polarity!

Never connect power to GND it will destroy your

Hardware!

Never connect the power supply to the terminal block

while it is switched on!

Redundant power supply is possible by simultaneous use of DC Connector and Terminal -

Block. Both power supplies must use the same voltage!

GND

(Ground)

USB Version Naming Max. data rate-

USB 1.0 Full Speed 12 Mbit/s

USB 2.0 Hi-Speed 480 Mbit/s

USB 3.2 Gen 1

formerly:

USB 3.1 Gen 1

USB 3.0

USB 5Gbps

formerly:

SuperSpeed USB

5 Gbit/s

USB 3.2 Gen 2x1

formerly:

USB 3.2 Gen 2

USB 3.1 Gen 2

USB 10Gbps

formerly:

SuperSpeed USB 10 Gbps

10 Gbit/s

USB 3.2 Gen 2x2 USB 20Gbps

formerly:

SuperSpeed USB 20 Gbps

20 Gbit/s

USB 4 (Version 1)

USB 4.0

USB 40Gbps 40 Gbit/s

USB 4 Version 2 USB 80Gbps 80 Gbit/s

USB versions overview:

BESCHREIBUNG & TECHNISCHE DATEN

AUFBAU

Kompatibilität: USB 1.1, 2.0 & 3.0/ 3.1/ 3.2

Betriebssysteme: Alle Betriebssysteme

Anschlüsse: 8x USB 3.2 Gen 2x1 C Buchse 1x DC Buchse 9 24V, - , - -

- 1x Terminal Block 9 24V

Lieferumfang: 12277HMS, Netzteil (12V/5A), EX-

USB 3.2 Gen 2x1 Kabel (verschraubbar) 1m,

- DIN Rail Kit, Wandmontagehalterung, Anleitung

Der robuste und industrietaugliche EX 12277HMS ist ein USB 3.2 Gen 2x1 Metall Hub für bis - -

zu sieben Endgeräte, der an der Wand oder auf einer Hutschiene montiert werden kann. Er wird

über ein USB C Kabel mit dem Host PC verbunden und verfügt über sieben USB C 3.2 Gen - - -

2x1 Ports für Endgeräte mit einer hervorragenden Performance von bis zu 10 Gbit/s

(SuperSpeed USB 10Gbps). Über die externe Stromversorgung können bei einer

Maximalleistung von 57 Watt bis zu 2.4 A pro Port zur Verfügung gestellt werden. Dies

ermöglicht das problemlose Aufladen von iPhone, iPad, Smartphone und Tablet. Die

Stromversorgung erfolgt über das mitgelieferte Steckernetzteil oder ein optional erhältliches DIN

- - Rail Netzteil (Self Power).

HARDWARE INSTALLATION

DRIVER INSTALLATION

Because there are large differences between PC s, we can give you only a general installation ’

guide for the EX 12277HMS. Please refer your computer s reference manual whenever in -’

doubt.

1. - -Install the EX 12277HMS on a mounting rail by using the DIN Rail Kit or on the wall using

the Wall Mounting Brackets.

2. Connect the USB 3.2 Gen 2x1 cable with the USB 3.2 Gen 2x1 Upstream C Port at the EX- -

12277HMS.

4. Now connect the power connector of the supplied power supply to the DC socket of the

hub or connect a compatible DIN Rail power supply to the terminal block. Then plug the -

mains plug of the power supply unit into a wall socket.

5. Now connect the other end from the USB 3.2 Gen 2 cable (C Plug) to the USB C Port at - -

your PC.

All Operating Systems

After the hardware installation the Operating System will recognize the EX 12277HMS -

automatically and install the drivers.

CHECK INSTALLED DRIVER

Open the >Device manager<. Now you should see at „USB Controller-“ the following new entry:

If you see this or a similar information the hub is installed correctly.

Mounting of the DIN Rail Kit with -

three screws on the rear side

Mounting the Wall Mounting

Bracket with four screws on

each side

9 24V DC Buchse für - -

mitgeliefertes Netzteil

1x USB 3.2 Gen 2x1

Upstream C Port-

7x USB 3.2 Gen 2x1

Downstream C Ports -

9 24V T Block für - -

optionales Netzteil

+9V to +24V DC Connector (5.5 x 2.1mm):-

Produkt Specifikationer

Mærke:	EXSYS
Kategori:	USB HUB
Model:	EX-12277HMS
