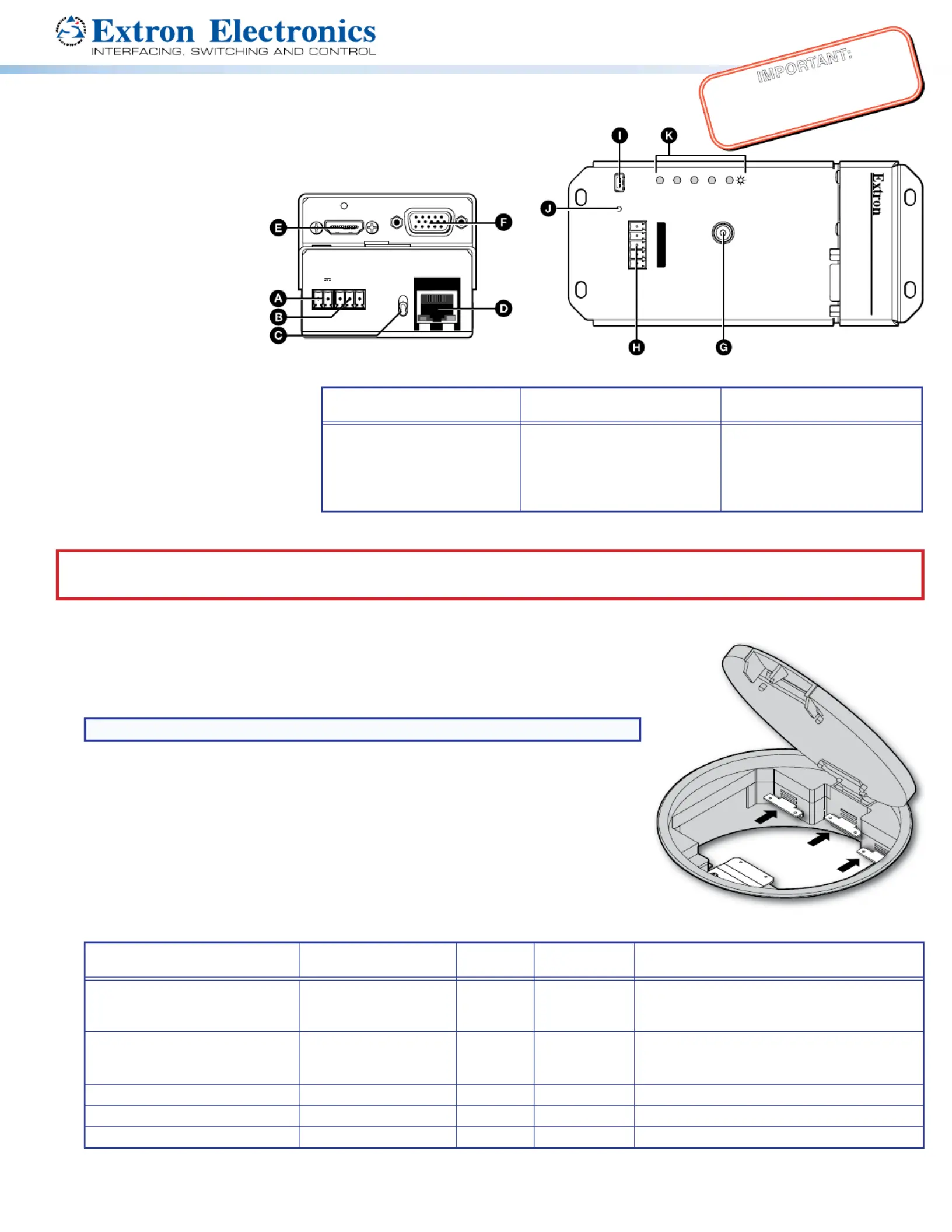

DTP T FB 332 and DTP T FB 232 • Setup Guide

This guide provides instructions for an experienced installer to install either

the Extron DTP T FB 332 or the DTP T FB 232 switching transmitter into an

Ackermann GB3 (OBO Betterman), MK Electric CableLink Plus Modular,

MK Electric CableLink Plus

Single Pan, ElectraPlan, or PUK

oor box and to make all

connections.

The transmitters switch

between one analog video and

one digital (HDMI) video input

and, paired with a compatible

receiver, can extend the

selected signal up to

330 feet (100 m) (DTP T FB 332) or

230 feet (70 m) (DTP T FB 232).

Installation

Planning

CAUTION: Failure to check these items may result in personal injury or property damage.

ATTENTION : La non-vérication des éléments listés ci-dessous peut provoquer des blessures ou dommages matériels.

Check that the installation meets the building, electrical, and safety codes.

Mounting and Cabling

Typica bol Floor x

Step 1 Preparing the ﬂoor box—

a. Install the oor box as directed by the manufacturer.

NOTE: Run all required cables and secure them with cable clamps.

b. Turn off or disconnect all equipment power sources.

Step 2 Installing adapters—

a. Determine a position in the oor box to mount the DTP T FB unit (see the image at right).

b. Identify the applicable adapter plates for the oor box (see the table below).

c. Install adapter plates to the same pair of mounting slots (see the table below for slot

recommendations) for the same position in the oor box. Slide the top ange into the

mounting slot and rotate the adapter plate down so the bottom ange rests against the

wall of the oor box.

Floor Box Adapter Plates Positions

Highest

Mounting Slot

Additional Notes

Ackermann GB3

(OBO Betterman)

995241 (2)

995241 (2) and 995242 (1)

1 and 3

3rd from top

For position 2, use the provided screws to attach

the 995242 adapter plate to either 995241

adapter plate.

MK Electric CableLink Plus

Single Pan

995243 (2) 1 and 3

Do not use position 2. Use mounting screws to

secure the adapter plates to the oor box (see

ﬁgure 3 on page 3).

MK Electric CableLink Plus Modular 995244 (2) 1, 2, and 3 3rd from top

ElectraPlan 995300 (2) 1, 2, and 3 3rd from top

PUK 995300 (2) 1, 2, and 3 3rd from top

IMPORTANT:

Go to www.extron.com for the complete

user guide, installation instructions, and

specications bef

ore connecting the

oduct to the po

wer source.

CONFIG G

RS-232 IR

Rx TxTx Rx

HDMI IN VGA IN

DTP T FB 332

AUDIO IN

OVER DTP

RESET

HDMI

VGA

HDCP

AUTO

Top Panel

Figure 1. DTP T FB Unit features

Side (under adapter plate)

(Before installation in ﬂoor box)

Side (above adapter plate)

(After installation in ﬂoor box)

Top

DC power input

Remote RS-232

TP function switch

DTP output

HDMI input

VGA Input

Audio input

RS-232/IR Over TP output

Conguration (USB)

Reset button

LEDs

SIG LINK

OUT

REMOTE

RS-232

POWER

12V

1.0A MAX

− +

DTP

HDBT

Side Panel

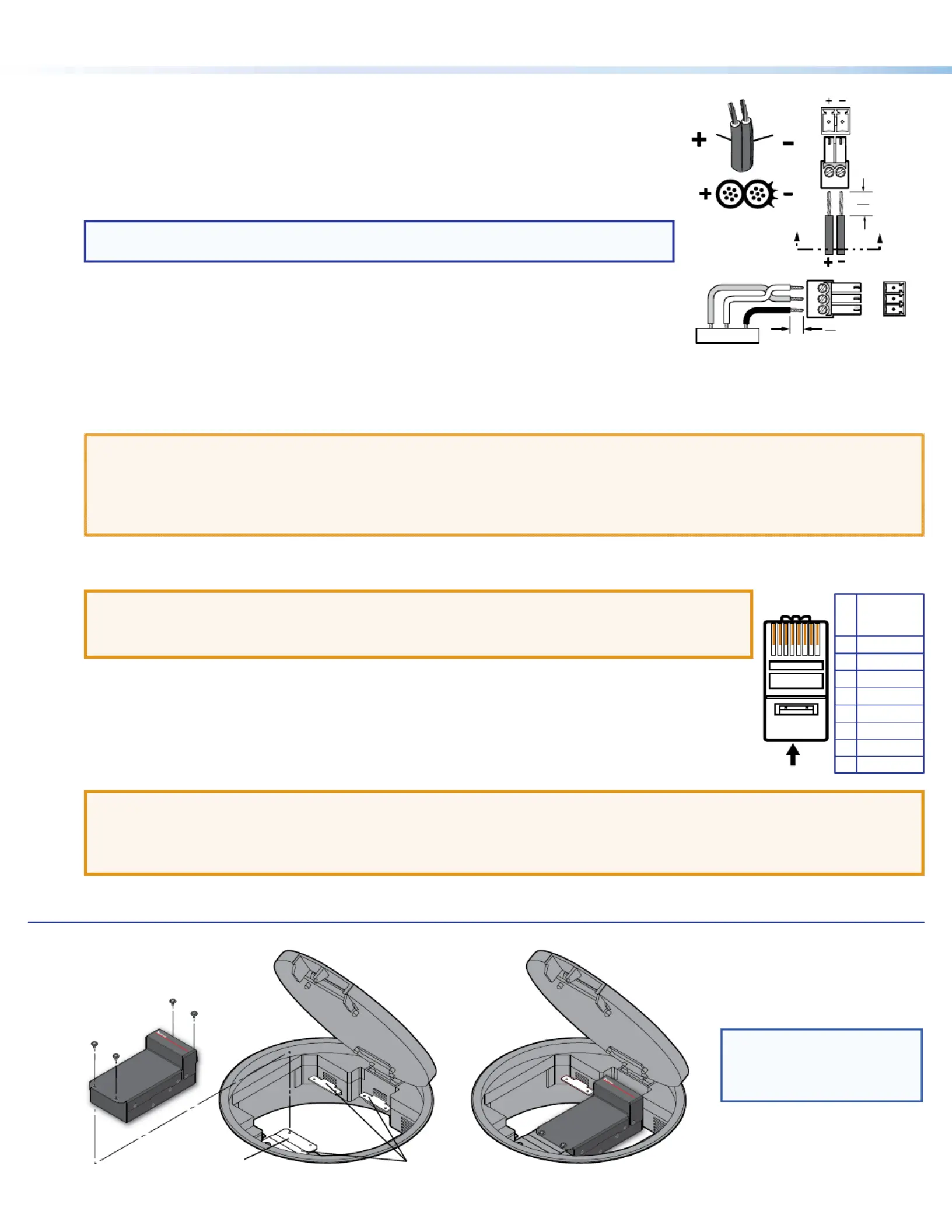

DTP T FB 332 and DTP T FB 232 • Setup Guide (Continued)

Step 3 — Make side panel connections under the adapter plates and set the

TP function switch

(see on page 1) — Connect the included 12 VDC power supply to either unit, Power ﬁgure 1

transmitter or receiver, as shown at right. Use the included tie-wrap to strap the cord to the

captive screw connector.

Connect an IEC power cord between the power supply and a 100-240 VAC, 50-60 Hz source.

NOTE: If the TP switch (

) is in , one power supply can power both units. DTP

If the switch is in , each unit requires its own power supply.HDBT

— For serial RS-232 control, connect a host device or control system to Remote RS-232 port

the 3.5 mm, 3-pole captive screw connector. The wiring and protocol are shown at right.

—TP function switch

If the receiving device is in the Extron DTP series, set this switch to . The TP output DTP

consists of HDMI with embedded audio, analog audio, RS-232 and IR, and remote power. The

transmitter and receiver can be powered by one 12 VDC power supply connected to either unit.

For an HDBaseT-enabled receiver type, set this switch to position. The TP output consists of HDMI with embedded audio plus HDBT

RS-232 and IR. The transmitter and receiver each requires its own 12 VDC power supply.

ATTENTION:

• Position this switch connecting the appropriate device to the TP connector. Failure to comply can damage the BEFORE

endpoint.

• Positionnez le sélecteur de connecter l’appareil approprié au connecteur TP. Ne pas respecter cette procédure AVANT

pourrait endommager le point de connexion.

— Connect the Out (RJ-45) port to the DTP In port on the receiver. Extron recommends that you terminate both cable ends in Out port

accordance with the following, at a minimum: TIA/EIA T 568B and 24 AWG, solid conductor, shielded cable with 400 MHz bandwidth.

ATTENTION:

• Do not connect this connector to a computer data or telecommunications network.

• Ne connectez pas ces port à des données informatiques ou à un réseau de télécommunications.

Signal LED indicator — Lights when the device is transmitting a video signal or a test pattern.

Link LED indicator — Lights when a valid link between a DTP or HDBT input and output is established.

Step 4 — Mount the unit in the ﬂoor box

a. Place the DTP T FB unit in the desired position in the oor box so that the side panel connectors face

towards the opening of the oor box.

ATTENTION:

• Ensure there is enough space between the top panel connectors and the lid of the oor box so the lid fully closes.

• Assurez vous qu’il y ait assez d’espace entre les connecteurs du panneau supérieur et le couvercle du boîtier de sol an

que celui-ci puisse se fermer entièrement.

b. Using the provided self-threading screws, secure the DTP T FB unit to the adapter plates (see gures 2 through 5).

Ackermann GB3 (OBO Betterman) ﬂoor box

DTP T FB 332

POWER

DTP T FB 332

NOTE: For position 2, install

adapter plate 995242 to

one of the other adapter

plates.

995242

995241

Figure 2. DTP T FB Unit in an Ackermann GB3 (OBO Betterman) Floor Box

Power Supply

Output Cord

Ridges

Smooth

Captive

Screw

Connector

16 (5 mm) MAX

SECTION A–A

RxTx Gnd

RS-232 De

vice

• 9600 Baud •

8 data bits

• No parity • 1 stop bit

REMOTE

RS-232

Rx Tx

16 (5 mm) MAX

Wire color

White-green

Green

White-orange

White-blue

Orange

White-brown

Brown

Blue

TIA/EIA T

568B

TP Wires

1 8234567

Pins:
