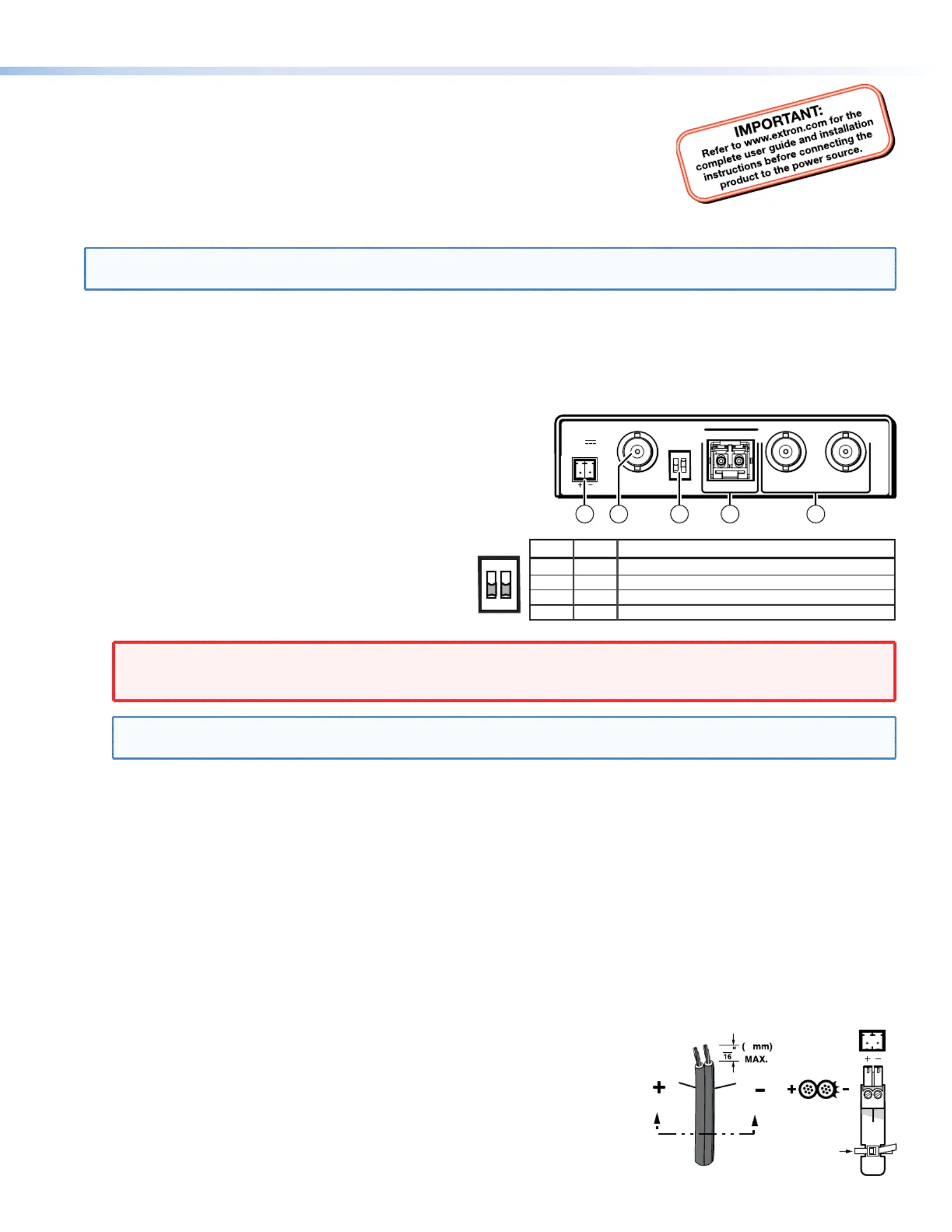

This guide provides instructions for an experienced installer to set up and operate

Extron® FOX 3G HD-SDI Transceiver.

The transceiver can be conﬁgured via its rear panel Mode DIP switches to operate in one

of three ways:

• Bidirectional transceiver

• Transmitter

• Receiver

See Transceiver Conﬁgurations on the rear of this guide if you need more information.

NOTE: In this guide, the term “transceiver” refers to any FOX 3G HD-SDI; the term “bidirectional transceiver” refers to a

FOX 3G HD-SDI speciﬁcally conﬁgured as a bidirectional transceiver.

Installation

Step 1 — Mounting

Turn off or disconnect all equipment power sources and mount the transceiver as required.

Step 2 — Connections and Initial Settings

aHD-SDI Input connector — If the FOX 3G HD-SDI is conﬁgured as

either a bidirectional transceiver or as a transmitter, connect an

HD-SDI, SDI, or 3G-SDI video input to this BNC connector.

b Mode switches — Set these DIP switches to the

positions shown at right to select the transceiver

conﬁguration. See Transceiver Conﬁgurations on the

rear of this guide for more information.

cFiber optic connectors —

WARNING: This unit outputs continuous invisible light, which may be harmful to the eyes; use with caution. For

additional safety, plug the attached dust caps into the optical transceivers when the ﬁber optic cable is

unplugged.

NOTE: Ensure that you use the proper ﬁber cable for your transceivers. Typically, singlemode ﬁber cable has a

yellow jacket and multimode ﬁber cable has an orange or aqua jacket.

Tx connector — In any conﬁguration, connect a ﬁber optic cable to the Optical Tx LC connector.

Connect the free end of this ﬁber optic cable to the Optical Rx connector on another FOX 3G HD-SDI transceiver that is

conﬁgured as a bidirectional transceiver or as a receiver.

Rx connector — In either the bidirectional transceiver or receiver conﬁguration, connect a ﬁber optic cable to the

Optical Rx connector to receive the signal from the transmitting unit. Connect the free end as detailed below:

• In a 2-transceiver system, connect the free end of this cable to the Optical Tx connector on the transmitting unit,

which is conﬁgured as a transmitter.

• In a daisy-chained system, connect the free end of this cable to the Optical Tx connector on the previous unit in the

daisy chain (conﬁgured as either a bidirectional transceiver or a transmitter).

d Buffered Outputs connectors — In any FOX 3G HD-SDI conﬁguration , connect a digital display to these BNC connectors.

In the bidirectional transceiver conﬁguration, connectors 1 and 2 both output the video that is sent from the other

transceiver.

In the receiver conﬁguration, only connector 2 outputs video and it is the

video sent by the transmitting unit.

In the transmitter conﬁguration, connectors 1 and 2 both output the video

signal that is input on the HD/SDI Input connector, a, on the same transceiver.

e Plug the included external 12 VDC power supply into this Power connector —

2-pole captive screw connector as shown at right. Use the supplied tie-wrap to

strap the power cord to the extended tail of the connector.

12V

0.3A MAX

FOX HDSDI

HD/SDI IN

POWER

BUFFERED OUTPUTS

MODE

OPTICAL

RxTx

1 2

25 1 3 4

SW2 Mode

Down

Bidirectional transceiver ( )default position

Transmitter with local monitor outputs

Receiver with daisy chaining

Spare (functions as receiver with daisy chaining)

SW1

MODE

1 2

Power Supply

Output Cord

SECTION

A–A

Ridges

Smooth

A A

Tie Wrap

FOX 3G HD-SDI Setup Guide

Operation

After the transmitting and receiving units and all of their connected devices are powered up, the system is fully operational.

If any problems are encountered, ensure all traditional and ﬁber cables are routed and connected properly. If your problems

persist, call the Extron S3 Sales & Technical Support Hotline that is closest to you, at the number shown below.

Fiber Compatibility Indications

Use the proper ﬁber cable for your transceivers. Each transceiver indicates its ﬁber compatibility,

singlemode or multimode, at power-up by blinking the four front panel Rate indicators, once for

multimode or twice for singlemode.

NOTE: All transceivers in the system be the same model (either all singlemode or all multimode). Mixed transmission mode must

units .will not work together

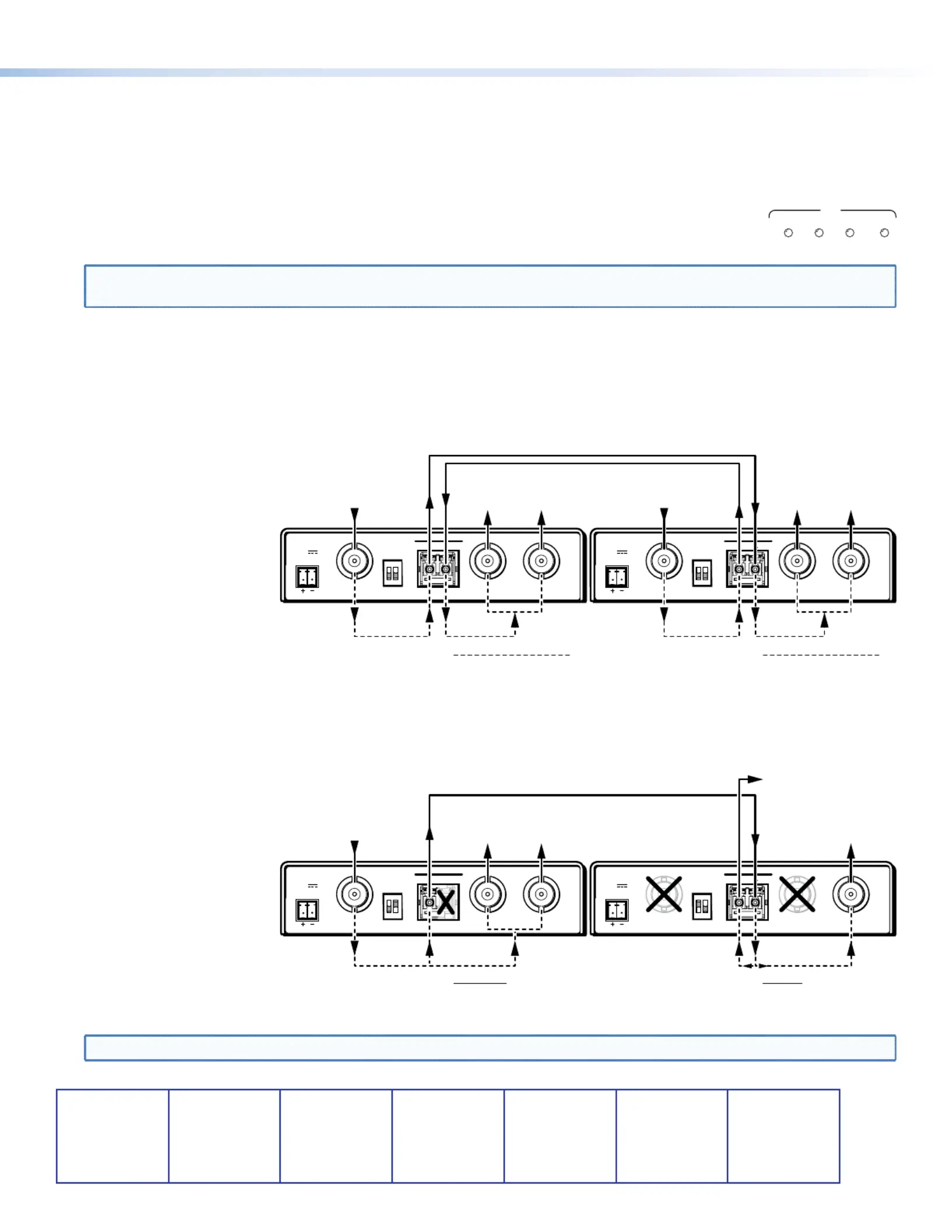

Transceiver Conﬁgurations

Bidirectional Transceiver

A bidirectional transceiver inputs digital video on its SDI/HD-SDI Input BNC. The transceiver converts the video input to a

proprietary signal and transmits it over a ﬁber link to another FOX 3G HD-SDI that is conﬁgured as either a bidirectional

transceiver or as a receiver.

A bidirectional transceiver can

also simultaneously receive a

proprietary signal from

another transceiver (in

any conﬁguration) on its

Optical Rx port, convert the

proprietary signal

back to the original format

digital video, and output

the video on its own two

Buffered Outputs BNC

connectors.

Transmitter and Receiver

A unit conﬁgured as a transmitter inputs digital video on its HD/SDI Input BNC. The transmitter converts the video input

to a proprietary signal and transmits the video over a ﬁber link to a FOX 3G HD-SDI that is conﬁgured as a receiver or as a

bidirectional transceiver. The transmitter also simultaneously outputs the digital video on its two Buffered Outputs BNCs.

A unit conﬁgured as a receiver

accepts a proprietary signal on

its Rx ﬁber optic port.

The receiver converts the

proprietary signal back to

original HD-SDI, SDI, or

3G-SDI video and outputs

the video on only one of its

own Buffered Output BNC

connectors, Output 2.

The receiver converts the

second digital video signal

that it created from the

optical input back into a proprietary signal and outputs it on the Optical Tx port over a ﬁber link to another FOX 3G HD-SDI

that is conﬁgured as a receiver or as a bidirectional transceiver.

NOTE: Up to 10 receivers can be daisy-chained in this manner.

68-1384-50

Rev A

07 10

Extron USA - West

Headquarters

+800.633.9876

Inside USA/Canada Only

+1.714.491.1500

+1.714.491.1517 FAX

Extron USA - East

+800.633.9876

Inside USA/Canada Only

+1.919.863.1794

+1.919.863.1797 FAX

Extron Europe

+800.3987.6673

Inside Europe Only

+31.33.453.4040

+31.33.453.4050 FAX

Extron Asia

+800.7339.8766

Inside Asia Only

+65.6383.4400

+65.6383.4664 FAX

Extron Japan

+81.3.3511.7655

+81.3.3511.7656 FAX

Extron China

+400.883.1568

Inside China Only

+86.21.3760.1568

+86.21.3760.1566 FAX

Extron Middle East

+971.4.2991800

+971.4.2991880 FAX

12V

0.3A MAX

FOX HDSDI

HD/SDI IN

POWER

BUFFERED OUTPUTS

MODE

OPTICAL

RxTx

1 2

12V

0.3A MAX

FOX HDSDI

HD/SDI IN

POWER

BUFFERED OUTPUTS

MODE

OPTICAL

RxTx

1 2

HD-SDI

In From

Source A

FOX 3G HD-SDI FOX 3G HD-SDI configured as bidirectional transceiver configured as bidirectional transceiver

HD-SDI

Out From

Source B

HD-SDI

Out From

Source B

HD-SDI

In From

Source B

HD-SDI

Out From

Source A

HD-SDI

Out From

Source A

12V

0.3A MAX

FOX HDSDI

HD/SDI IN

POWER

BUFFERED OUTPUTS

MODE

OPTICAL

RxTx

1 2

12V

0.3A MAX

FOX HDSDI

HD/SDI IN

POWER

BUFFERED OUTPUTS

MODE

OPTICAL

RxTx

FOX 3G HD-SDI FOX 3G HD-SDI configured as transmitter configured as receiver

FOX HD-SDI(s)

Configured as receiver(s)

Transmitted HD-SDI

from source A

HD-SDI

In From

Source A

HD-SDI

Out From

Source A

HD-SDI

Out From

Source A

HD-SDI

Out From

Source A

UNKNOWN

2.97

Gbps

1.485

Gbps

RATE

270

Mbps



FOX 3G HD-SDI Setup Guide (Continued)
