1MLM 226 Faceplates • Installation Guide

MLM 226 Faceplates Installation Guide

MLM 226 Faceplates

This guide provides instructions for installing the following Extron MediaLink™

Mounting Options faceplates, which are designed for use with the MLC 226 IP

MediaLink Controller.

The MLM 226 L, MLM 226 3GWP, or MLM 226 5GWP faceplate is shipped

with the MLC 226 IP controller, depending on the controller configuration that is

ordered. The rest of the mounting options described below may be ordered

separately as replacements, or for use with an MLC 226 IP that is ordered without

a faceplate.

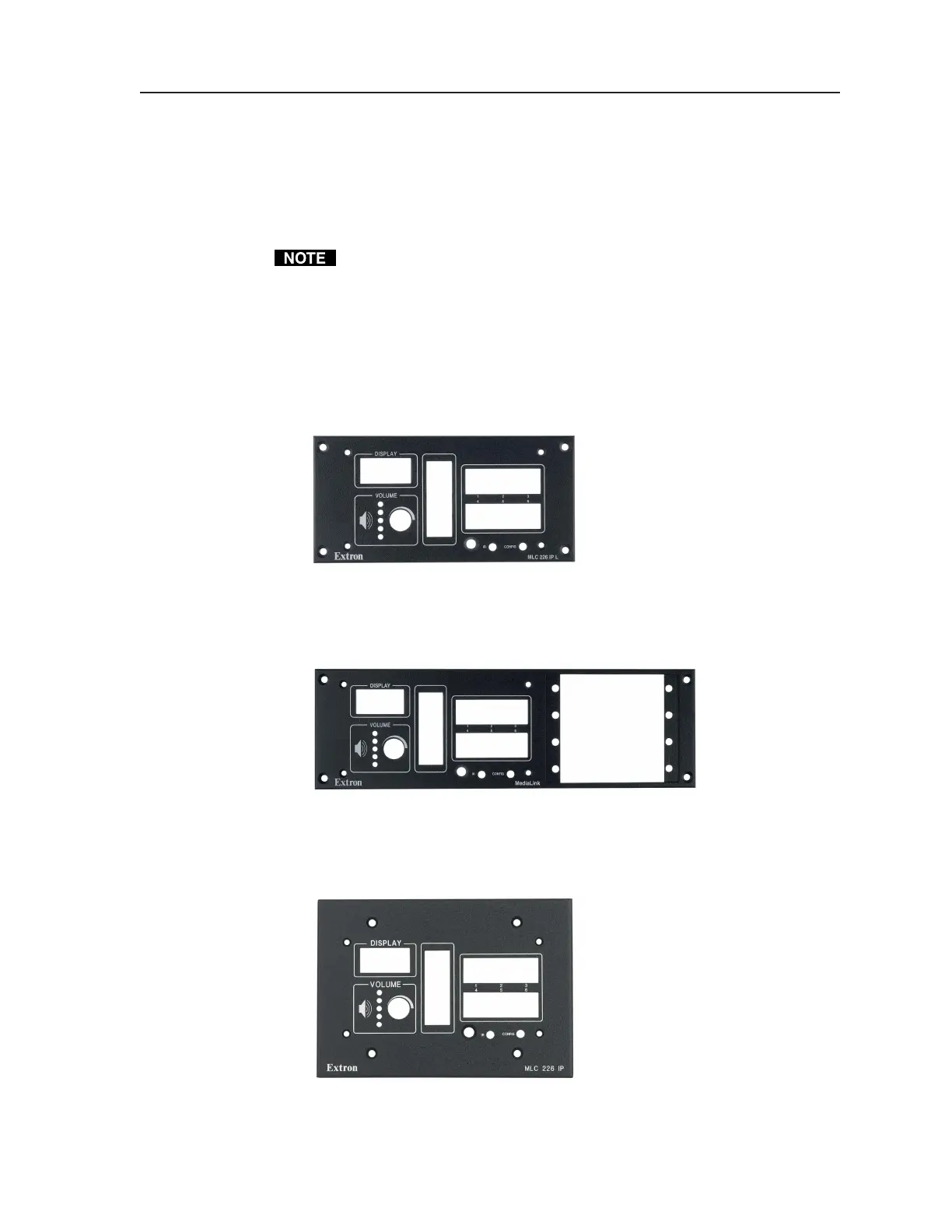

•MLM 226 L — A low-profile, 3.15" H x 6.50" W (8.0 cm H x 16.5 cm W) lectern/

furniture-mounting faceplate. This faceplate is required when you are mounting

an MLC 226 IP using an optional UCM RAAP or UCM 10X8P mounting kit.

Part numbers: 70-342-02 (black), 70-342-03 (white), 70-342-05 (RAL9010 white)

•MLM 226 LAAP — A low-profile, 3.15" H x 10.00" W (8.0 cm H x 25.40 cm W)

lectern/furniture-mounting faceplate with an opening that accommodates four

single-space AAPs

Part numbers: 70-343-02 (black), 70-343-03 (white), 70-343-05 (RAL9010 white)

•MLM 226 3GWP — A three-gang (4.50" H x 6.40" W [11.43 cm H x 16.26 cm W])

faceplate that can be mounted to a mud ring (mounting bracket), an Extron

Surface Mount Box, an Extron External Wall Box, or a standard electrical box

Part numbers: 70-376-02 (black), 70-376-03 (white), 70-376-05 (RAL9010 white)

68-919-01, Rev. D

08 07

MLM 226 Faceplates Installation Guide, cont’d

MLM 226 Faceplates • Installation Guide2

•MLM 226 5GWP — A five-gang (4.50" H x 10.04" W [11.43 cm H x 25.50 cm

W]) faceplate with an opening that accommodates four single-space AAPs. It

can be mounted to a mud ring, an Extron Surface Mount Box, an Extron

External Wall Box, or a standard electrical box.

Part numbers: 70-377-02 (black), 70-377-03 (white), 70-377-05 (RAL9010

white)

•MLM 226 7GWP — A seven-gang (4.50" H x 13.665" W [11.43 cm H x

34.71 cm W]) faceplate with two openings that accommodate four single-

space AAPs each (eight AAPs total). It can be mounted to a mud ring, an

Extron Surface Mount Box, an Extron External Wall Box, or a standard

electrical box.

Part numbers: 70-340-02 (black), 70-340-03 (white), 70-340-05 (RAL9010

white)

Replacing an MLC 226 IP Faceplate with an MLM

Faceplate

1. If your MLC controller is already installed in a wall or furniture, remove the

four screws that attach it to its mounting surface (marked a in the diagram

on the next page), and lift it out.

2. After the MLC has been removed from the wall or furniture, use a small

Phillips screwdriver to remove the four faceplate attachment screws (

b in the

diagram on the next page), and save them for later use.

CAUTION

Do not remove the four faceplate screws while the MLC is installed in a

wall or furniture, or the controller may fall down into the wall or

furniture.
