TWISTED PAIR
Transmit and receive A/V signals
1,000 feet (300 meters) or more over
a single CAT 5-type cable
Models available for composite video
or S-video, with audio
Transmits summed mono audio or
stereo audio
Gain and sharpness adjustments
on receivers for optimizing image
quality over long cable runs
Compatible with MTP Series
switchers, matrix switchers, and
distribution amplifiers
Remote power capability
Rack-mountable, 1U, one-eighth rack
width, metal enclosure or double
space AAP models
Versatile mounting options
LED power indicators
External universal ENERGY STAR®
qualified power supply included
MTP AV Series

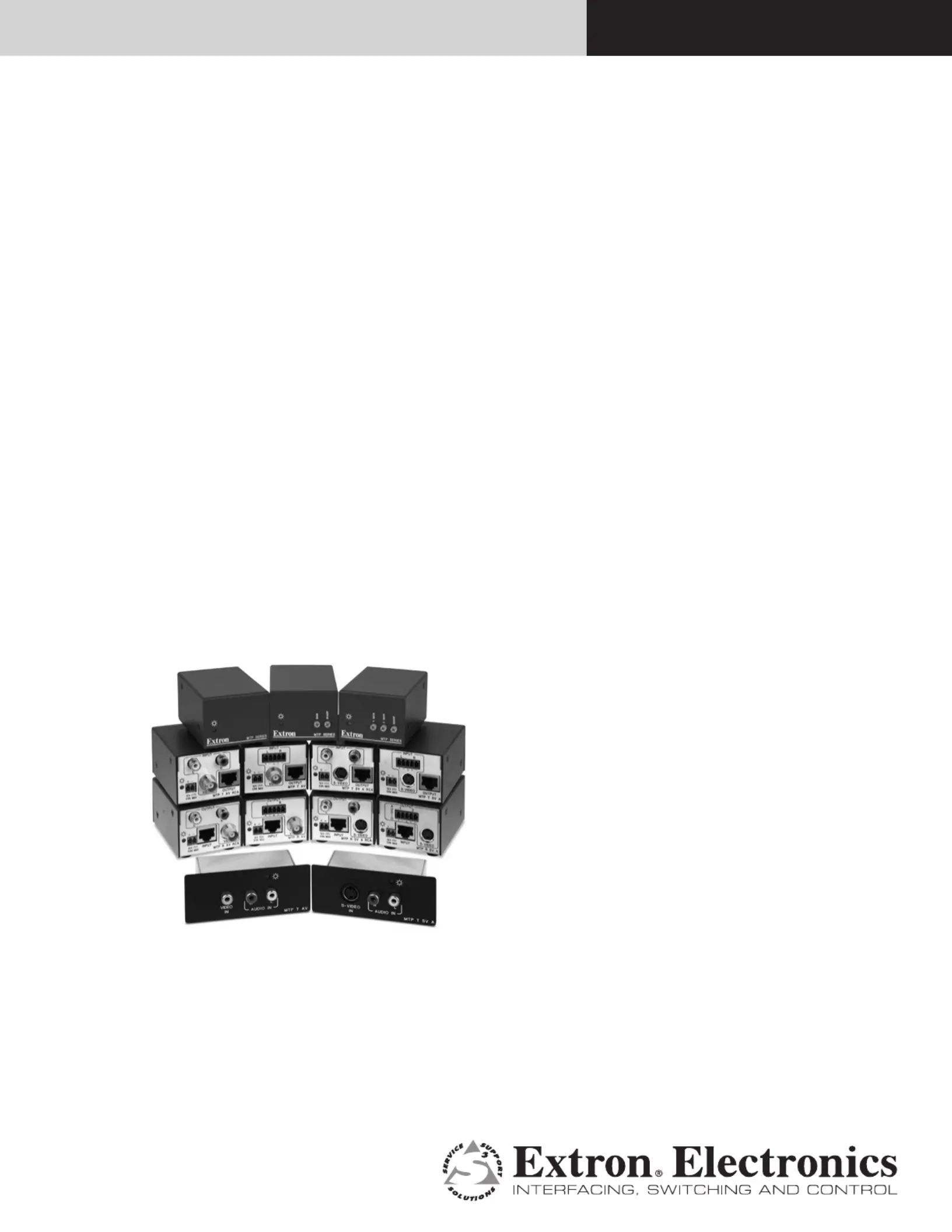

Extron MTP AV Series are economical, compact twisted pair transmitters and
receivers for extending S-video and composite video with audio 1,000 feet
(300 meters) or more over a single CAT 5-type cable�
MTP - TWISTED PAIR TRANSMITTERS & RECEIVERS FOR
COMPOSITE VIDEO, S-VIDEO, AND AUDIO
DESCRIPTION FEATURES
OUTPUT
VIDEO
SHARP
R
12V0.5aMAX
INPUT
L
MTP R SVARCA
Ceiling
Projector
Projector
Mounting
Bracket
Mounting
Bolt
Rack Shelf
1/4 Rack Width
False Front Faceplate
(2) 4-40 x 3/16"
screws
Extron MTP AV Series transmitters and receivers for S-video and
composite video with audio can be used with any CAT 5, 5e, or 6
twisted pair cable or with Extron Enhanced Skew-Free
™ A/V UTP cable
for cable runs of 1,000 feet (300 meters) or more� With remote power
capability, only the transmitter or the receiver has to be powered for
point to point applications� The compact, 1U, one-eighth rack width
design enables the MTP AV Series to maximize rack space� Up to
eight units will fit on a single rack shelf� Transmitters are also available
in a double space AAP - Architectural Adapter Plate size or the
PowerCage™ modular board design� The AAP is ideal for mounting
in various architectural mounting frames and products such as as the
Extron Cable Cubby or AVTrac�
Active Balanced Transmission
The MTP AV Series transmitters and receivers provide active,
balanced transmissions for both video and audio signals, delivering
superior image quality over long distances� The receiver units
provide sharpness and gain controls for optimizing image quality�
The sharpness adjustment provides variable high frequency video
equalization for enhanced detail, while the gain adjustment
compensates for overall signal level loss occurring in lengthy cable
runs�
Mono or Stereo Audio
Incoming stereo audio signals are summed and sent as mono audio
to the receiver, which provides a dual mono audio output� By default,
the MTP AV Series is compatible with the entire Extron MTP Series of
twisted pair products� Stereo audio transmission is supported via an
internal jumper, enabling the units to be configured for point-to-point
applications with stereo audio requirements�
Installation and Cost Advantage
Because MTP AV Series transmitters and receivers use twisted pair
cable for distribution, they offer considerable advantages in cost,
performance, and ease of installation over traditional coaxial cabling�
Twisted pair cable is a fraction of the size of coaxial cable, and much
lighter, more flexible, and less expensive, thus providing A/V system
designers and installers with an economical, space-efficient solution
for a variety of applications�
A Complete Twisted Pair Solution
These transmitters and receivers are part of the larger, comprehensive
MTP Series of twisted pair products, including switchers, distribution
amplifiers, and matrix switchers, to create more complex A/V systems
with multiple inputs and outputs� The Extron MTP Series provides
integrators and system designers with the most complete twisted pair
product offering in the industry�
Projector Mount Under-Desk Mount
Rack Mount
MOUNTING OPTIONS
Transmit and receive A/V signals 1,000 feet (300 meters) or
more over a single CAT 5-type cable
Models available for composite video or S-video, with audio
Supports summed mono or stereo audio transmission
Gain and sharpness adjustments on receivers for optimizing
image quality over long cable runs
Compatible with MTP Series switchers, matrix switchers, and
distribution amplifiers
Remote power capability
Rack-mountable, 1U, one-eighth rack width, metal enclosure
or double space AAP models
Ultra compact enclosures with versatile mounting options
LED power indicators on front and rear; front only on AAP
External universal ENERGY STAR® qualified power supply
included
