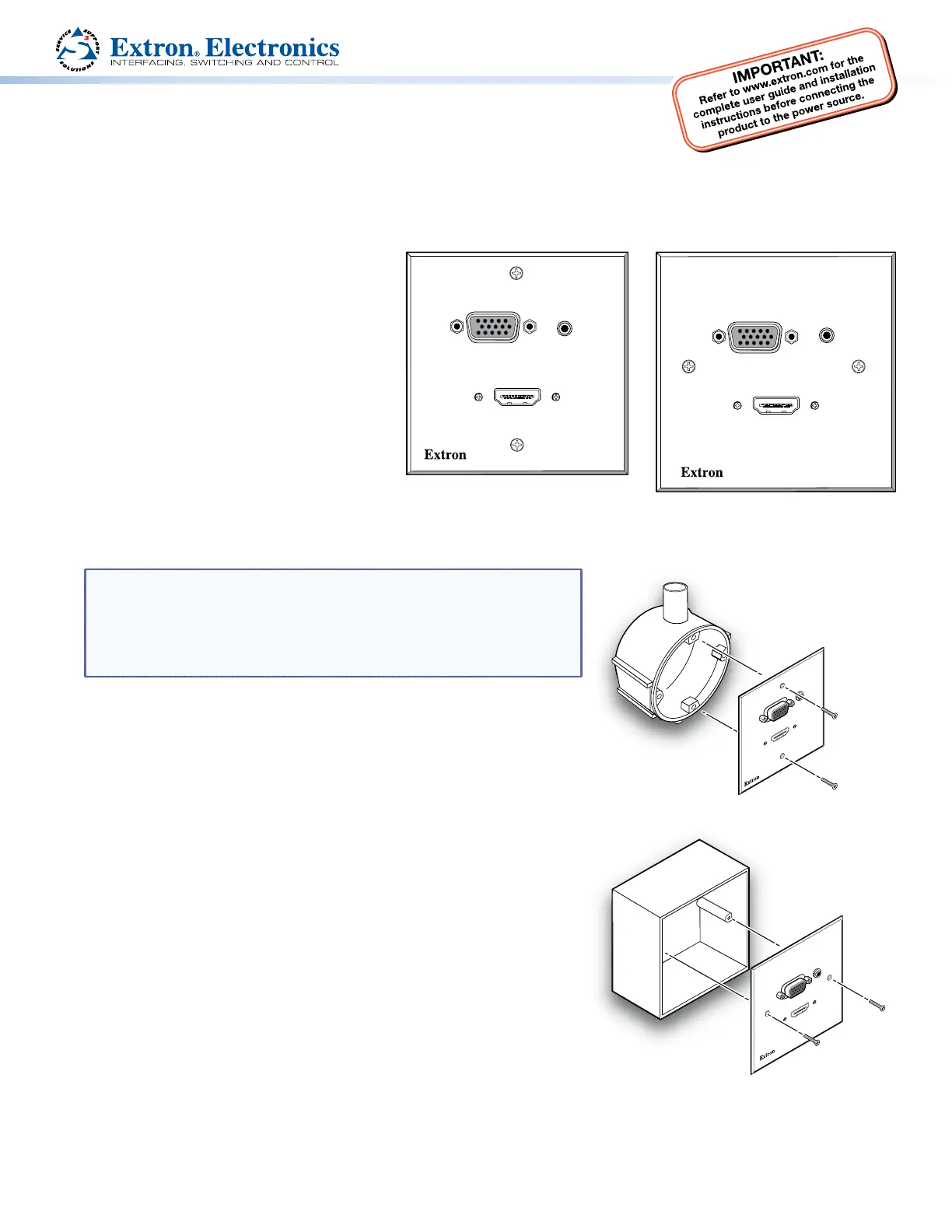

WPC 220 A Series • Installation Guide

The Extron WPC 220 A EU and WPC 220 A MK are wall mounted plates that accept video, audio, and HDMI signals through one

female 15-pin HD connector, one 3.5 mm tip-ring-sleeve (TRS) connector, and one female HDMI connector. The signals pass

through the units without modication and are output from the back via captive screw connectors (VGA and audio) and a female

HDMI connector on a 6 inch (15.24 cm) pigtail. The rear panel captive screw connectors take 18 AWG (1.02mm) to 26AWG

(0.40mm) wires.

The two form factors are shown in the gure to

the right:

zThe WPC 220 A EU (left) mounts onto

80mm one-gang European EU junction

boxes. The plate is 3.1 inches x 3.1 inches

(81mm x 81mm).

zThe WPC 220 A MK (right) mounts onto

MKtype one-gang UK electric junction

boxes. The plate is 3.35 inches x 3.35inches

(85mm x 85mm).

WPC 220 A EU WPC 220 A MK

WPC 220 A MK

COMPUTER AUDIO

HDMI

WPC 220 A EU

HDMI

COMPUTER AUDIO

VGA Wiring

NOTE: Extron recommends Extron MHRVGA bulk cable (part number

22‑024‑01 26‑112‑15 26‑112‑36) or assembled cables (partnumbers , ,

26‑238‑01 26‑238‑25, and ). The wire colors for these products are

shown in the VGA Connections table at the top of the next page. If other

cable products are used, the colors may not correspond to those shown

in the table.

The DDC and ID bit DIP switches, the +5 V pin, and the DDC pins are optional

but they can affect the monitors supported by the system (see the table to the

right of “DDC and ID Bit DIP Switch Settings” on the next page).

To connect wires from the VGA input to these modules, some wires must be

cut shorter than others (see the table in the “VGA Connections” section on the

next page). Follow these instructions:

1. Run the unterminated end of the cable to the junction box.

2. Strip away 3 inches (7.6 cm) from the end of the outer jacket of the cable.

3. Unravel each of the coaxial shields and twist each, individually, to make

3wires.

4. Cut 1 inch (2.5 cm) from the end of the individual wires marked with an

asterisk in the VGA Connections table on the next page.

5. Strip 3/16 inches (5 mm) of the inner jacket from the end of each wire and

secure the wire to the appropriate captive screw connector (see the VGA

Connections and TRS Connections tables on the next page).

6. Secure the faceplate to the junction box using the screws provided (see

the gures at right).

7. Connect the VGA input, audio input, or both.

COMPUT ER

AUDIO

30 mm M3.5

Screws (2)

UK Junction Box

Extron

WPC 220 A MK

COMPUT ER

AUDIO

EU Junction Box

20 mm M3

Screws (2)

Extron

WPC 220 A EU

WPC 220 A E U

WPC 220 A MK

HDMI

68-2372-01 Rev. A

02 13

Extron Headquarters

+1.800.633.9876 (Inside USA/Canada Only)

Extron USA - West Extron USA - East

+1.714.491.1500 +1.919.850.1000

+1.714.491.1517 FAX +1.919.850.1001 FAX

Extron Europe

+800.3987.6673

(Inside Europe Only)

+31.33.453.4040

+31.33.453.4050 FAX

Extron Asia

+65.6383.4400

+65.6383.4664 FAX

Extron Japan

+81.3.3511.7655

+81.3.3511.7656 FAX

Extron China

+86.21.3760.1568

+86.21.3760.1566 FAX

Extron Middle East

+971.4.299.1800

+971.4.299.1880 FAX

Extron Korea

+82.2.3444.1571

+82.2.3444.1575 FAX

Extron India

1800.3070.3777

Inside India Only

+91.80.3055.3777

+91.80.3055.3737 FAX

WPC 210 A Series • Installation Guide (Continued)

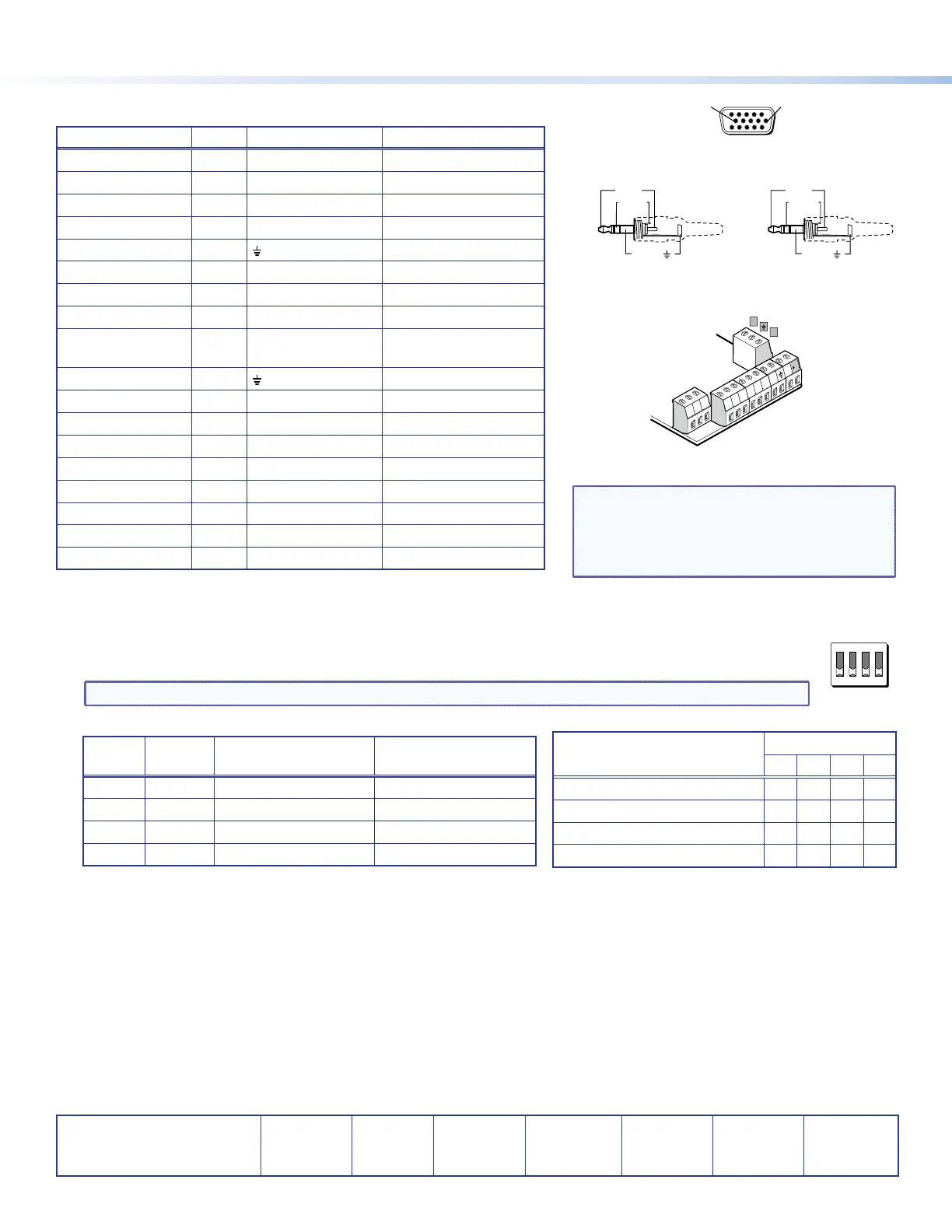

VGA and TRS Connections

HD‑15 Pin TRS Captive Screw Pin Color

1 Red* R Red coax

2 Green* G Green coax

3 Blue* B Blue coax

4 ID Bit 2 N/A Green (not used)

5 Ground (right block) Violet

6 Red Gnd* Rg Red coax shield

7 Green Gnd* Gg Green coax shield

8 Blue Gnd* Bg Blue coax shield

9 DDC +5 V*

(see note at right)

+5 Gray

10 Sync Gnd* (main block) Black (red/black pair)

11 ID Bit 0 N/A Blue (not used)

12 ID Bit 1 or DDC D Yellow

13 H sync* H Red (red/black pair)

14 V sync* V White (white/black pair)

15 ID Bit 3 or Clock C Black (white /black pair)

* Tip Audio T (Left) Orange

* Ring Audio R (Right) Brown

* Sleeve Audio S (Ground) Shield

DDC and ID Bit DIP Switch Settings

The table at left below shows the function of the DIP switches. The table at right below shows how the switches

affect the monitors supported and some of the more common ID bit settings. Check the manual supplied with your

display to see if ID bit termination is required by your AV system. If you are unsure, set all switches to off.

NOTE: If DDC is to be used, switches 1 and 3 must be set to on and switches 2 and 4 must be set to off.

1 2 3 4

DIP Switches

Display Used

DIP Switch

1 2 3 4

No ID bit required Off Off Off Off

Monochrome monitor (not XGA) On Off Off Off

Color monitor (not XGA) OnOff Off Off

Color monitor (supports XGA) On OnOff Off

Switch ID Bit

Off On

1 ID 0 HD-15 pin 11 open HD-15 pin 11 to ground

2 ID 1 HD-15 pin 12 pass-thru HD-15 pin 12 to ground

3 ID 2 HD-15 pin 4 open HD-15 pin 4 to ground

4 ID 3 HD-15 pin 15 pass-thru HD-15 pin 15 to ground

HDMI Connections

1. Run a HDMI cable from the HDMI display to the junction box.

2. Connect the cable to the rear panel HDMI connector. The rear panel HDMI connector is on a 6 inch (15.24 cm) pigtail, which

provides extra exibility to make the connection in the limited space of the junction box.

3. Connect a HDMI source to the front panel HDMI connector.

5 1

15 11

610

Female HD-15

Pin Locations

Slee ( )ve

Ring (

)

Tip (+)

3.5 mm Stereo

Plug Connector

(balanced audio)

Slee ( )ve

Ring (R)

Tip (L)

3.5 mm Stereo

Plug Connector

(unbalanced audio)

Captive Screw

Connectors

********

Connectors labeled in

gray are optional.

R GgRg G BgB

H V

T SR

Labels for captive

screws match HD-15

pins, as shown in

the table at left.

*Cut these wires 1 inch shorter. See the table at left.

NOTE: VGA pin 9 may be used to detect DDC

availability. Check the manual for your

display to see if this feature is required for

DDC communication. If you are unsure, do

not use the pin.
