WPD 100 AV Series Wallplates • Installation Guide

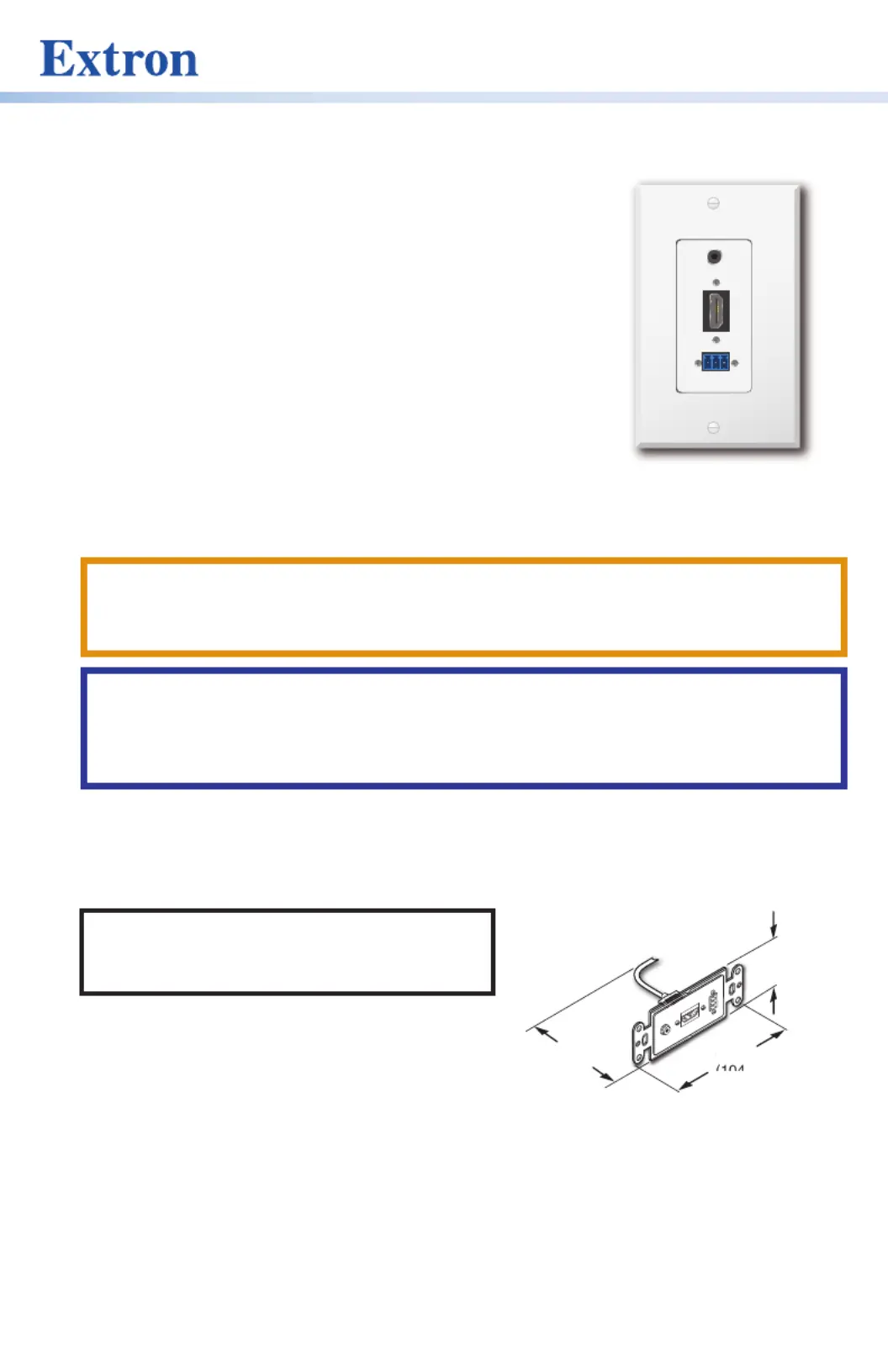

The Extron WPD 100 AV Series Wallplates are one-gang

pass-through wallplates with rear mounted audio connectors,

control connectors, and video cable pigtails. All models can be

installed in US standard one-gang junction boxes, and include a

decorator-style frame.

A B

HDMI

Planning - Check the Proposed Installation Location

Before starting the installation, t is important that you do the following: i

CAUTION:

• Failure to check the items listed below may result in personal injury.

• La non-vérification des éléments listés ci-dessous peut provoquer des blessures.

ATTENTION:

• Failure to check the items listed below may result in property damage.

• La non-vérification des éléments listés ci-dessous peut provoquer des dommages

matériels.

Ensure there are no utility cables or pipes at the intended location that may be damaged

or cause injury when installing the module.

Check that the installation meets the local and state regulatory requirements, including

building, electrical, and safety codes, and UL and ADA accessibility requirements.

NOTE: During installation, ensure the space

behind the module is sufficient for cable

bend radius and cable management.

Minimum Bend Radius

(104 mm)

2.40"

(60 mm)

1.60"

(41 mm)

HDMI

A B C

WPD 100 AV Series Wallplates • Installation Guide

For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related

topics, see the on the Extron website.Extron Safety and Regulatory Compliance Guide

All trademarks mentioned are the property of their respective owners.

Worldwide Headquarters: Extron USA West, 1025 E. Ball Road, Anaheim, CA 92805, 800.633.9876

Installation

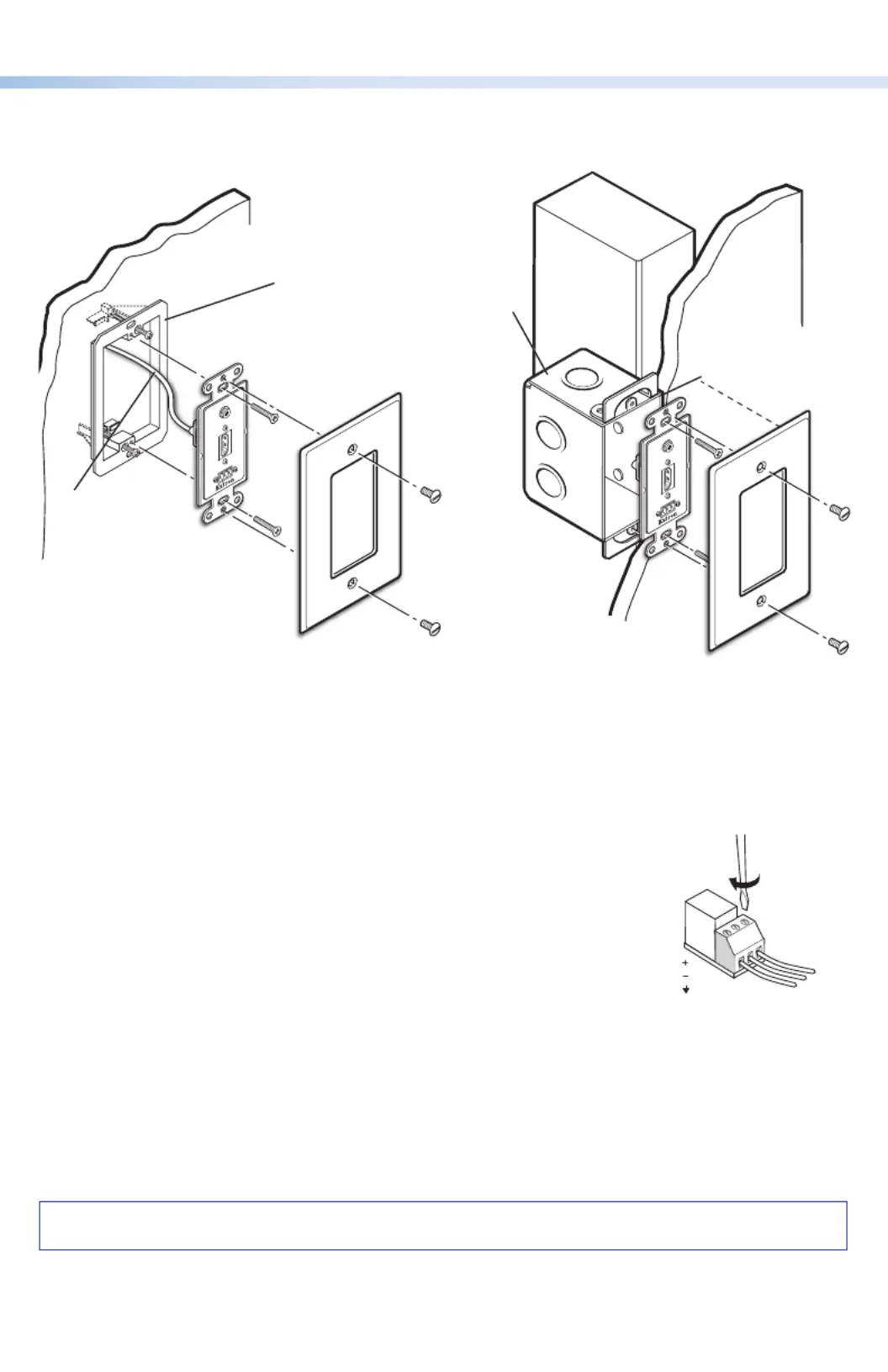

Wall Box Flush with

Wall Surface

Cut out the area

for the mud ring or

wall box.

Thread the cables

through the mud

ring or wall box.

Insert the appropriate

connectors into the

WPD ports.

Secure the WPD to the

Mud Ring/Wall Box and

attach the supplied

decorator-style frame.

Insert the mud ring or wall

box into the opening and secure it.

Mud Ring Wall Boxor

Extron

WPD 100 AV

HDMI

ABC

HDMI

ABC











Audio Wiring

The included 3-pole captive screw audio connector can be wired

for either balanced mono audio or unbalanced stereo audio, as

described below (see the figure at right). Then secure the output

audio cable into the 3-pole captive screw port.

• For balanced mono audio:

tip (T) = +, ring (R) = -, sleeve (S) = ground

• For unbalanced stereo audio:

tip (T) = left channel, ring (R) = right channel,

sleeve (S) = ground

Slee

ve (S)

Ring (R)

Tip (T)

3.5 mm Audio Jack

TRS

68-2279-01 Rev. F

01 21
