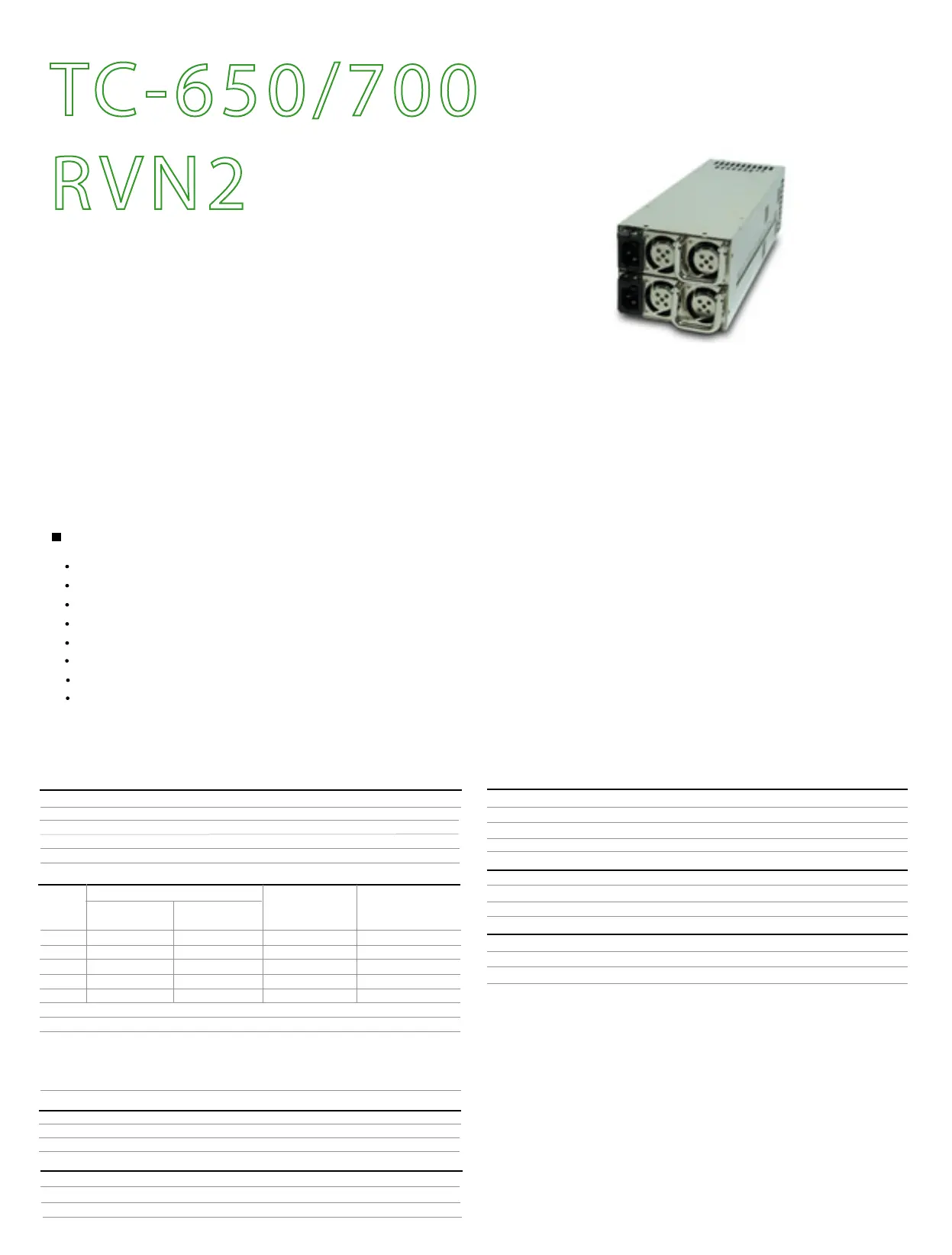

TC-650/700

RVN2

2U Type N+1 Redundant Power Supply

Features

Universal AC input/Full range

Active power factor Correction

Protections:Over Power/Over Voltage/Short Circuits

Current Sharing design on +3.3V, +5V and +12V

Front panel LED to Indicate Power Status

Power Fault Alarm Signals

Alarm Reset

100% burn-in test

Electrical Specifications:

Model No.

TC-650/700RVN2

Input Voltage 100~240VAC,±10%

Input Frequency 47Hz ~ 63Hz

Power Factor ＞ 0.96@230VAC/50Hz,full load

Output Ratings

+5V

+3.3V

+12V

REMARKS:

Short Circuit Shut down o/p voltage, re-power on to recover

Over Voltage +5V→5.7V~6.5V,+3.3V→3.7V~4.1V,+12V→12.8V~13.9V

1A 32A 1A 32A 5% 1% 50mV

3A 46A 3A 52A 5% 1% 70mV

1A 25A 1A 25A 5% 1% 50mV

1.Total Max output of +5V AND +3.3V not exceed 200W

2.Power module Total output power not exceed 650W for

TC-650RVN2 and 700W for TC-700RVN2.

3.Noise bandwidth is from DC to 20MHz.

-12V 0A 1A 0A 1A 5% 1% 70mV

Output

Voltage

Output Current

Min. Max. Min. Max.

+5VSB 0.1A 3A 0.1A 3A 5% 1% 50mV

Protections

Efficiency 72% Typical at full load

Hold up Time 16m sec. minimum, at full load

Over Power 110% ~ 150% rated output power

Function

Operating Temperature 0°C to 45°C

Power Good Signal 100ms~500ms, TTL compatible signal

Power Fail Delay ＞ 1msec. ,TTL compatible signal

PS-ON Power off:PS-ON = 2V min. ;Power on:PS-ON = 0.8V max.

Environmental

Storage Temperature -20°C to +70°C

Operating Humidity 20% to 90%,non-condensing

Storage Humidity 5% to 95%, non-condensing

Safety & EMI/RFI

Others

MTBF ＞ 100,000 hours

Coolings 38x38x28mmx4 DC FANS

Safety Standards UL,cUL,TUV,CB

EMI/RFI Standards CISPR22(EN55022) Class B, FCC Part15 Class B

Harmonic EN61000-3-2

Dimension(DxWxH) 300x101x84mm

Input Current 12A For 115VAC, 6A For 230VAC

TC-650RVN2 TC-700RVN2

Regulation

LOAD LINE

Output Ripple &

Noise Max.(p-p)

Input Ratings

Produkt Specifikationer

Mærke:	Fantec
Kategori:	Computer strømforsyning
Model:	TC-700RVN2
Vekselstrømsindgangsspænding:	100 - 240 V
Produktfarve:	Sølv
Dimensioner (BxDxH):	101 x 300 x 84 mm
Certificering:	FCC Part 15, Subpart B, Class B, EN55022 CISPR22 Class B, UL60950, CAN/CSA22.2 No.60950, TUV(IEC60950), CE, CB, ISO 9001
Effektkrav:	12
Gennemsnitstid mellem fejl (MTBF):	100000 t
Total effekt:	700 W
Strømforsyningenhed (PSU) formfaktor:	ATX
Perifere (Molex) strømstik (4-pin):	1
Diskettedrev, strømstik:	1
ATX strømstrik (24 stikben):	Ja
EPS strømstik (8-pin):	Ja
ATX strømstik (20+4 pin):	Ja
