Side 1/2

108

CH171D actuator, coupled with a Fantini Cosmi programmable thermostat by means of a bipolar cable, allows the

remotely control of two users that typically represent the heating system and the humidification system.

CH171D

CH171DCH171D

Remote relay actuator for Intellicomfort CH150R

HOMOLOGATION AND STANDARDS

Complies with EN60730-1 standards.

In conformity with R&TTE EN300 220-3, EN 301 489-03 directives.

ELECTRICAL CHARACTERISTICS

Power supply: 230V 50 Hz.

Absorbed power: 2VA.

Output relay parameters: 5(3)A 250 Vca.

Voltage-free switching contacts.

Disconnection type 1B.

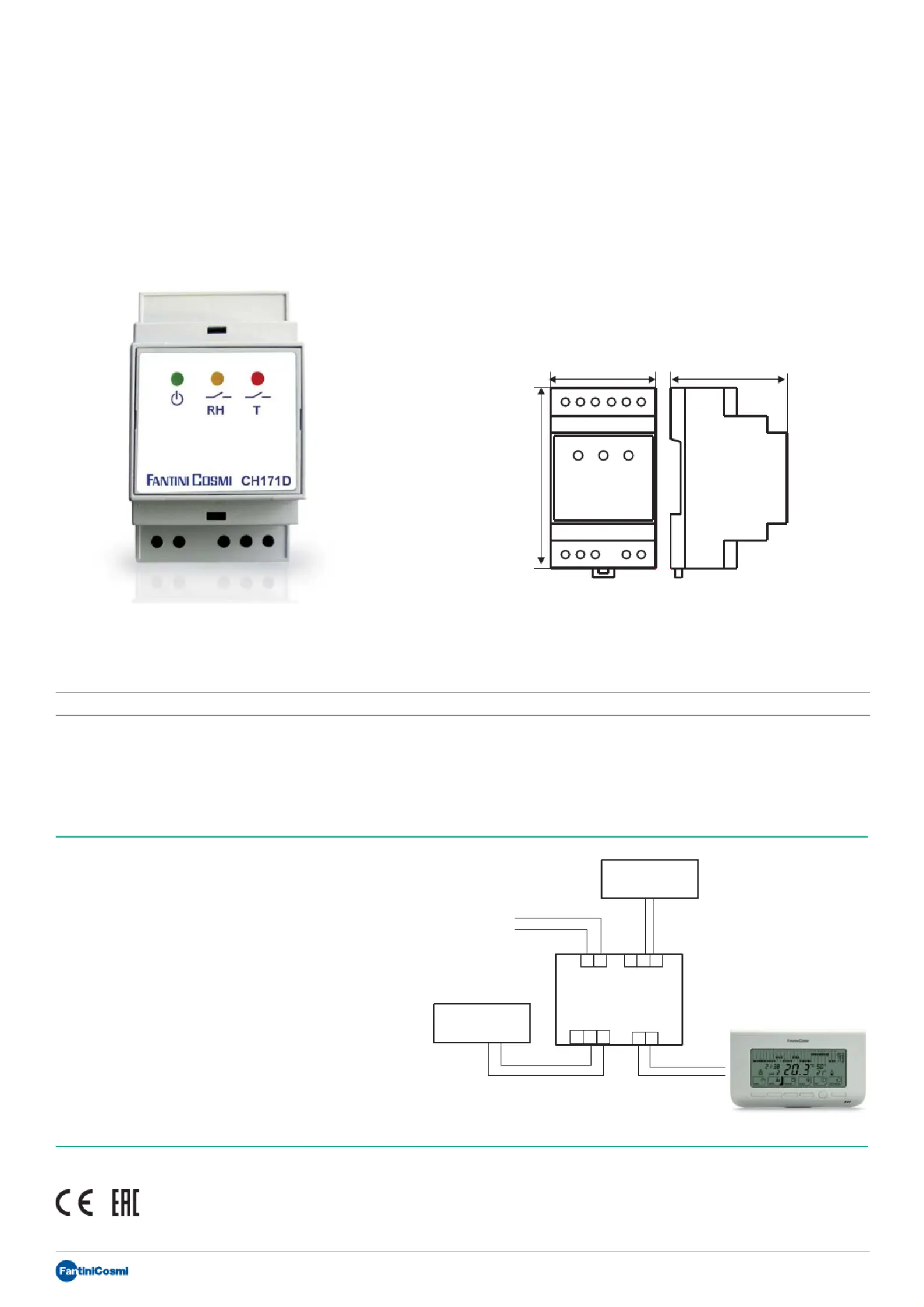

Dimensions (mm)

ACTUATOR

CH171D

230V-50Hz

BOILER

HUMIDIFIER

4 1 2L N

RH%

NC C NO

Mounting Remote relay

power supply

Contacts

rating

Adjustable

room

temperature

Protection

degree

CH171D DIN rail 230Vca 50Hz 5(3)A 250Vca 45 °C IP40 (back panel)

109

INSTALLATION

Installation shall be performed according to the current rules.

The distance between the actuator and transmitter must not exceed 100 m.

Connect the cables to the terminal board base according to the shown wiring diagrams.

Back panel mounting.

OPERATION

CH171D actuator, coupled with a Fantini Cosmi programmable thermostat by

means of a bipolar cable, allows the remotely control of two users that typically

represent the heating system and the humidification system.

The bipolar cable that connects the programmable thermostat to CH171D

actuator has two functions:

Programmable thermostat power supply;

Communication bus of the ON/OFF commands sent from the programmable

thermostat to CH171D.

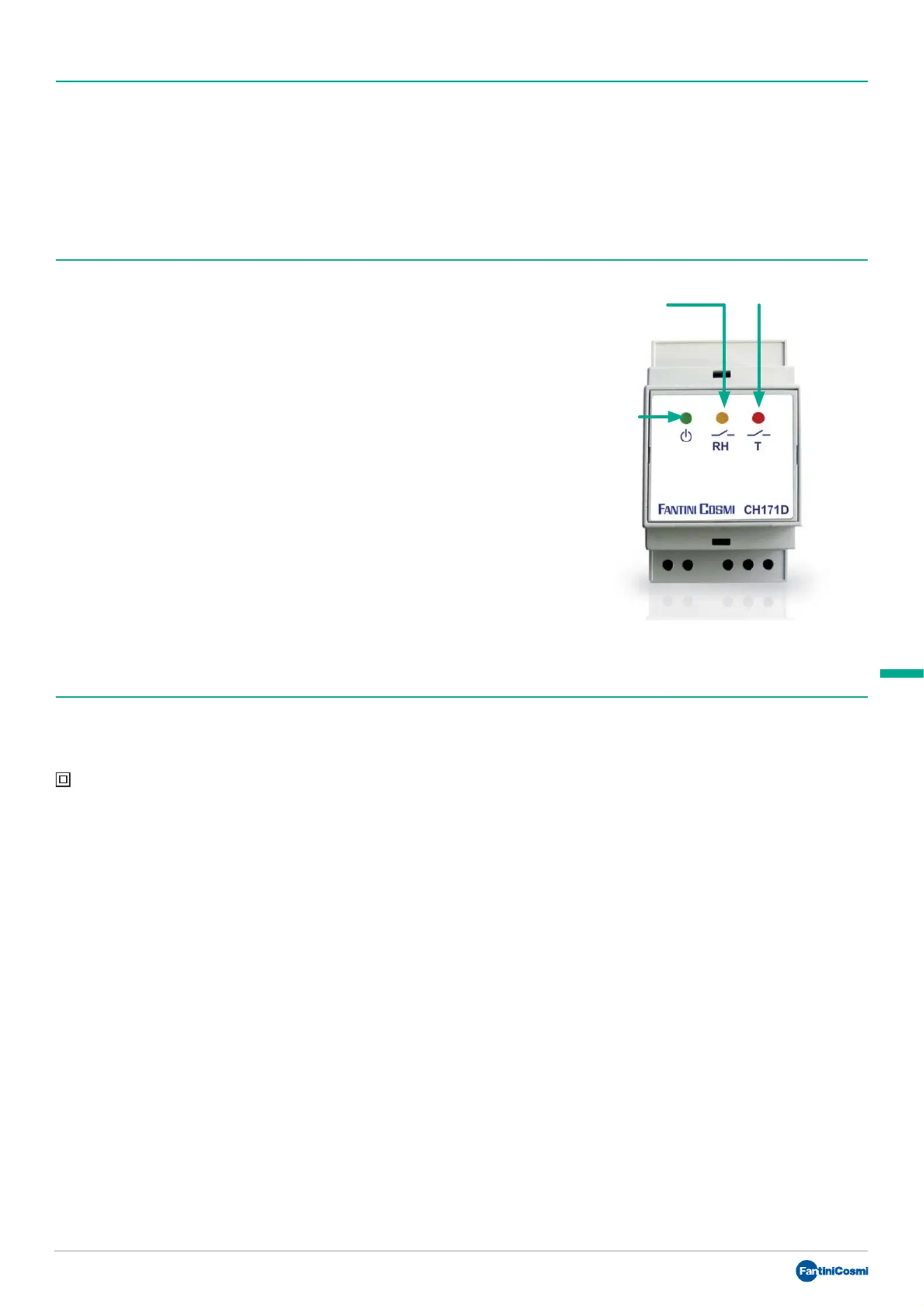

The receiving device operation CHARACTERISTICS three led giving the following

indications:

POWER ON: when this led is on it indicates that the actuator is properly powered.

Instantaneous and quickly flashing shows the receipt of the data sent via radio

from the programmable thermostat.

RELAY CONTACT FOR HEATING: when this led is on it indicates that the relay

contact used for heating is closed, otherwise it will be open.

RELAY CONTACT FOR HUMIDIFICATION: it indicates, if is on that the relay contact

used for humidification is closed, otherwise it will be open.

CHARACTERISTICS

Operating temperature: 45 °C.

Storage and transport ambient temperature: -25 ÷ 60 °C.

Voltage-free switching contacts.

Software class A.

double insulation.

CONTACT STATUS

FOR HUMIDIFICATION

POWER ON

CONTACT STATUS

FOR HEATING
