Lotus™ RT Sit-Stand Workstation

1789 Norwood Avenue, Itasca, Illinois 60143 • 1-800-955-0959 • www.fellowes.com

B r a n d s

PLEASE READ INSTRUCTIONS BEFORE USE.

DO NOT DISCARD.

LIRE LES INSTRUCTIONS AVANT UTILISATION.

NE PAS JETER.

LEA LAS INSTRUCCIONES ANTES DEL USO.

NO TIRAR.

BITTE LESEN SIE DIE ANLEITUNGEN SORGFÄLTIG

DURCH, BEVOR SIE DAS GERÄT BENUTZEN.

BITTE GUT AUFBEWAHREN.

LEGGERE LE ISTRUZIONI PRIMA DELL’USO.

NON GETTARE.

LEES DE INSTRUCTIES VOOR GEBRUIK.

NIET WEGWERPEN.

LÄS DESSA INSTRUKTIONER FÖRE ANVÄNDNING.

KASSERA EJ.

PRZED UŻYCIEM PROSZĘ PRZECZYTAĆ NINIE JSZĄ

INSTRUKCJĘ. NIE WYRZUCAĆ.

ПЕРЕД ИСПОЛЬЗОВАНИЕМ ПРОСЬБА ОЗНАКОМИТЬСЯ

СИНСТРУКЦИЯМИ. НЕ ВЫБРАСЫВАТЬ.

LEIA AS INSTRUÇÕES ANTES DA UTILIZAÇÃO.

NÃO AS ELIMINE.

CUSTOMER SERVICE & SUPPORT

www.fellowes.com

U.S.: 1-800-955-0959

Europe Freephone: 00800-1810-1810

Canada: 1-800-665-4339

Mexico: 001-800-514-9057

Benelux: +31-(0)-13-458-0580

Deutschland: +49 (0)511 545489-0

France: +33 (0) 1 78 64 91 00

Italia: +39-071-730041

Polska: +48-(22)-2052110

España/Portugal: +34-91-748-05-01

United Kingdom: +44 (0) 1302 836800

Australia: 1800 33 11 77

Lotus_RT_Manual_872443_RevB_10L_052918.indd 8-1 5/29/18 1:10 PM

ENGLISH

Lotus™ RT Sit-Stand Workstation

CONTENTS CONTINUED

SAFETY INSTRUCTIONS/WARNING

CONTENTS

≤ 30 lbs

≤ 13.61 kg

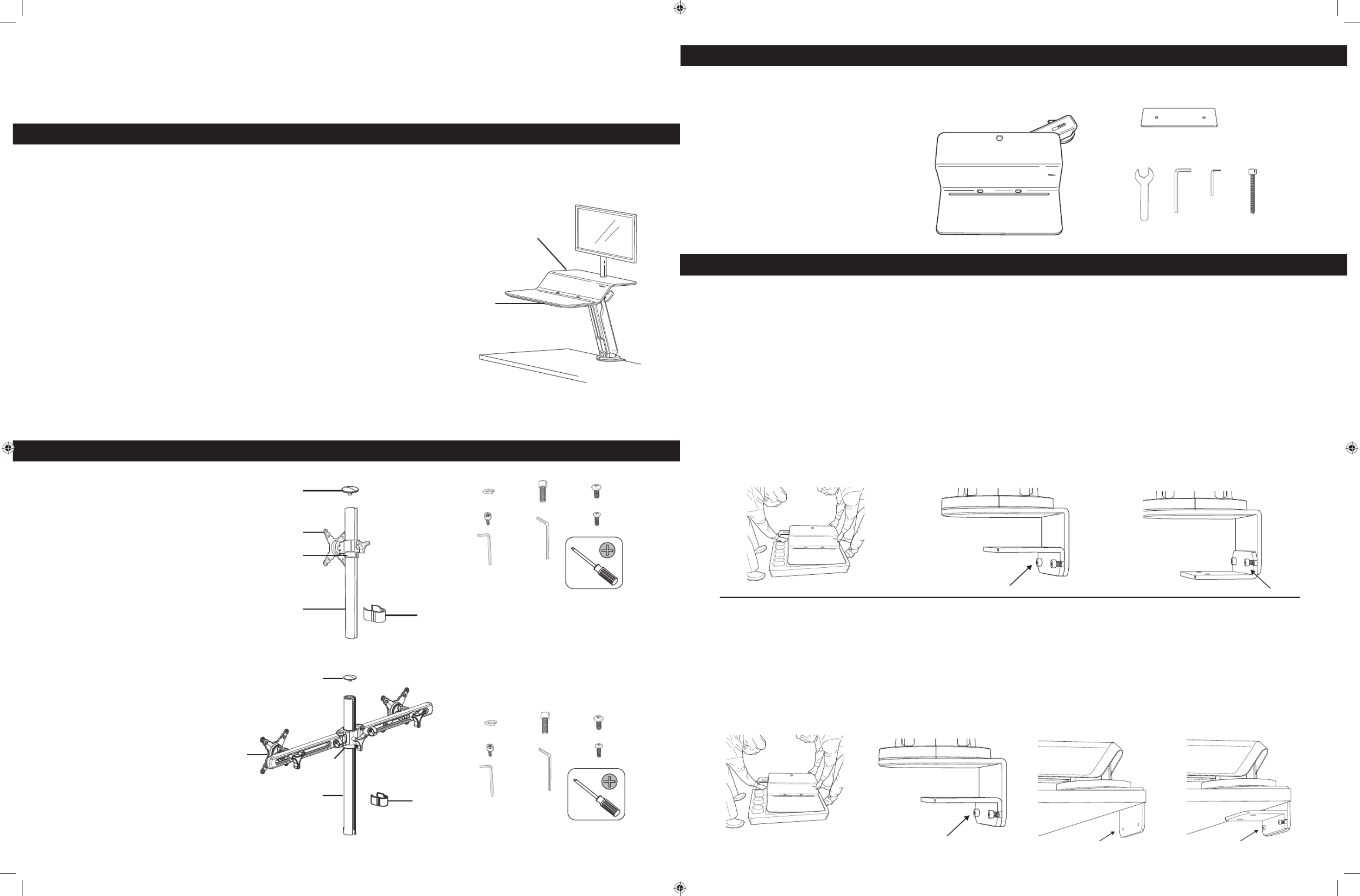

Monitor Arm Parts

1 Cap x1

2 Pole x1

3 VESA assembly x1

4 Fitting x1

5 Cord Clip x1

Hardware

A 10.5 x 2.5mm, 16mm OD Lock Washer x1

B M4 x 10mm Socket Head Cap Screw x1

C 4mm Allen Key x1

D M10 x 2.5 Socket Head Cap Screw x1

E 8mm Hex L-Key x1

F Phillips Pan Head Screw M5x12mm

x4(Single), 8(Dual)

G Phillips Pan Head Screw M4x12mm

x4(Single), 8(Dual)

Sit-Stand Parts

6 Base + Worksurface x1

Hardware

H Clamp Support Plate x1

I 10mm wrench x1

J 6mm Allen Key x1

K 4mm Allen Key x1

L M8 x 1.25mm Thread,

65mm Long Socket

Head Screw x2

Other Tools Required

Phillips Screwdriver

• WARNING: PINCH POINT! DO NOT PUT HANDS OR OTHER OBJECTS UNDER THE PLATFORM OR ARM DURING

OPERATION. SERIOUS INJURY MAY OCCUR.

• WARNING: DO NOT EXCEED MAXIMUM STATED WEIGHT CAPACITY. SERIOUS INJURY OR PROPERTY DAMAGE

MAY OCCUR.

• CAUTION: LIFT HAZARD! TWO PEOPLE ARE REQUIRED TO MOVE THE WORKSTATION. SERIOUS INJURY OR

PROPERTY DAMAGE MAY OCCUR.

• Ensure cable lengths are long enough and follow the cable routing instruction in this manual. Failure to follow

these instructions may result in equipment damage or personal injury.

• DO NOT adjust tension setting until all equipment and accessories have been placed on the workstation.

• DO NOT lean on the keyboard platform.

• Only compatible with Fellowes Monitor Arm Kit for Lotus.

• Make sure the desk or mounting surface is level and can support the combined weight of the workstation and

accessories.

• Remove all equipment and accessories from the workstation before moving.

• Not for use with glass surfaces. Maximum desk thickness: 3” (76mm) / Minimum desk thickness ¾” (19mm)

Ensure that the sit stand is anchored tightly to the desk/table before using it to prevent injury or damage to the product.

D F x8

E G

I K L x2J

ASSEMBLY

STEP 1B

Clamp Install with Limited Space

• Use 2 people to lift the Base and Worksurface (6) out of the box

• Remove the clamp using the 4mm Allen Key (K)

• Place on the rear of the desk and re-install the clamp underneath the desk. Move to Step 1C

STEP 1A

Clamp Install for Thicker Tables

• The clamp comes assembled to accommodate tables 1 5/8” (41.27mm) thick and requires 3 13/16”(96.52mm) of clearance behind the desk. If

your table is thicker, continue with Step 1A. If your desk is close to a wall and has limited space, 1/4” to 3 13/16” (6.35mm to 96.4mm), move

to step 1B. If neither apply, move to step 1C.

• Use 2 people to lift the Base and Worksurface (6) out of the box

• On the clamp, loosen one screw and remove the other using the 4mm Allen Key (K)

• Slide the clamp off to change the orientation. Slide back on as shown in image C

• Re-install screw and tighten the other. Ensure both are securely fastened. Move to Step 1C

A B C

B C D

K K

KKK

≤ 5 lbs

≤ 2.27 kg

Lotus_RT_Manual_872443_RevB_10L_052918.indd 2-3 5/29/18 1:10 PM

Produkt Specifikationer

Mærke:	Fellowes
Kategori:	Skrivebord
Model:	Lotus RT
Bredde:	901.7 mm
Dybde:	603.3 mm
Højde:	222.3 mm
Vægt:	19500 g
Produktfarve:	Hvid
Ramme, materiale:	Stål
Monteringstype:	Skrivebord
Harmoniseret systemkode (HS):	94038900
Oprindelsesland:	Kina
Højdejustering:	Ja
Hældningsvinkelområde:	0 - 100 °
Produkter pr. hovedkasse (udvendigt):	1 stk
Rotationsvinkel:	180 °
Maksimal vægtkapacitet:	13.61 kg
Drejelig vinkel:	180 °
Skruer inkluderet:	Ja
Højdejusteringsområde:	12 - 432 mm
Hældningsindstilling:	Ja
Forbedret kabelstyring:	Ja
Maksimal skærmstørrelse kompatibilitet:	26 "
Antal understøttede skærme:	2
Montering interface kompatibilitet (min.):	75 x 75 mm
Montering interface kompatibilitet (maks.):	100 x 100 mm
Antal skruer:	20
Maksimal vægtkapacitet (pr. skærm):	5.9 kg
Tastaturbakke:	Ja
Nøgletype:	Hexagonal wrench, Open-ended wrench
Tastaturbakke (BxD):	738 x 267 mm
Spændeskiver inkluderet:	Ja
Maksimal vægt pr. tastaturbakke:	2.27 kg
Arbejdsoverfladeareal:	720 x 210 mm
Skærmrotation:	Ja
Antal kabelclips:	1
Antal spændeskiver inkluderet:	1
