Side 1/12

OWNER’S MANUAL | MANUAL DE INSTRUCCIONES

MODE D’EMPLOI | MANUAL DO PROPRIETÁRIO

ENGLISH

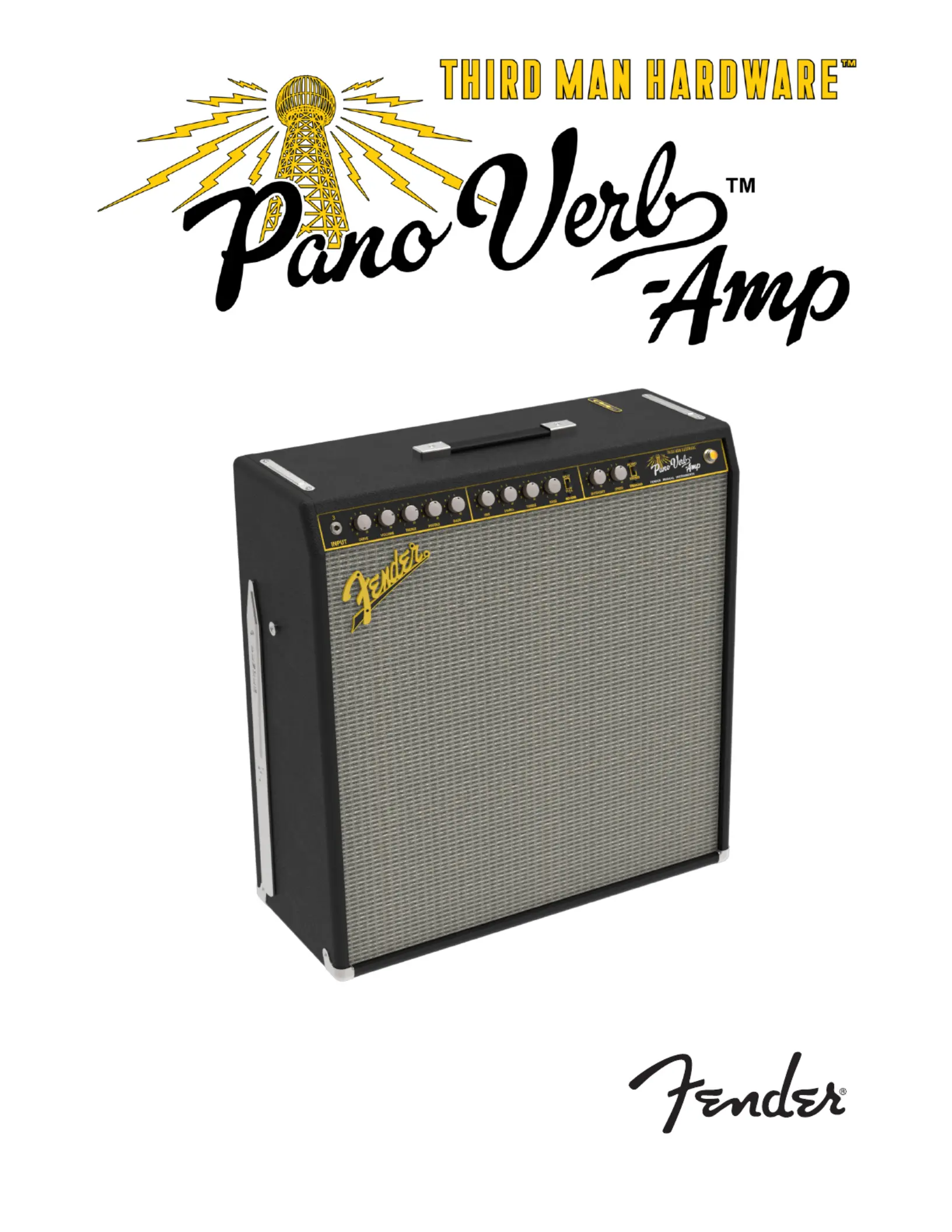

PANO VERB-AMP

Inspired by elements of three of Jack White’s vintage amps—a

1964 Vibroverb™, a 1960 Vibrasonic™ and a 1993 Vibro-King® but

containing many unique design features never before found on a

Fender amplier. Jack worked closely with Fender to create the Pano

Verb amp, an entirely new and versatile tube amplier unlike anything

you’ve heard before.

The Pano Verb’s cosmetics echo the Third Man iconic “yellow, black

and white” aesthetic, so it looks as incredible as it sounds. A product of

Fender in Corona, Calif., U.S.A., the Pano Verb is destined to become a

modern classic for players that desire a distinctive sound for both stage

and studio.

Features include:

• 70 watts tube output power (50W OUT 1, 20W OUT 2)

• Two 6L6 and two 6V6 power tubes

• Six 12AX7 preamp tubes

• One 12AT7 reverb tube

• Harmonic tremolo

• One 15” and one 10” Jensen® Special Design speaker

• 1963-style at grille logo in yellow

• Special metal control knobs

• +26dB adjustable boost control

• Split/Full switch puts reverb in mono (10” speaker only)

or stereo (both speakers)

• Stereo/Mono switch puts harmonic tremolo in mono

or stereo

• Black, yellow and white Third Man Hardware™ cosmetics,

including control panel and “power switch badge” on amp top

• Tilt-back legs

• Vintage-style strap handle

• Fitted cover and yellow two-button reverb/tremolo

footswitch included

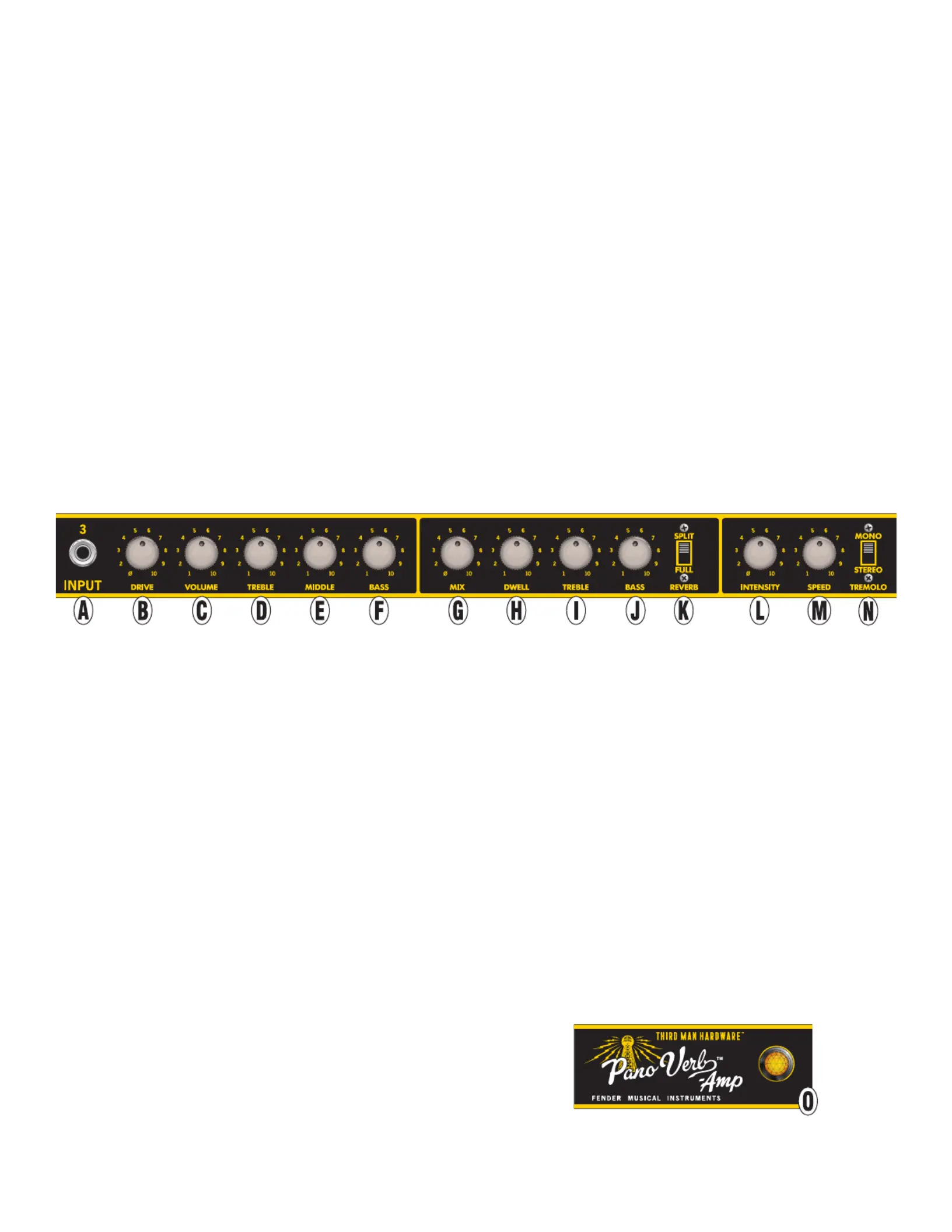

CONTROL PANEL

A. INPUT: Connect instrument here.

B. DRIVE: This control pushes the amp into overdrive as it is

turned up, making the sound louder, more distorted and more

compressed (adds up to +26dB of clean boost). This knob clicks

into the o position () at full counterclockwise, with boost

completely removed (true bypass) at that position.

C. VOLUME: Adjusts overall volume level.

D. TREBLE: Adjusts high-frequency tonal character.

E. :MIDDLE Adjusts midrange tonal character.

F. BASS: Adjusts low-frequency tonal character.

G. :MIX Adjusts amount of reverb added to input signal; reverb

can also be turned on and o using the included two-button

footswitch. This knob clicks into the o position () at full

counterclockwise, with no reverb heard at that position, and

overrides the footswitch setting.

H. DWELL: Adjusts amount of sustain in reverb eect. Lower

settings create a gated or “choked” eect; higher settings

produce a more pronounced or saturated eect.

I. TREBLE (REVERB): Adjusts high-frequency tonal character of

reverb eect.

J. BASS (REVERB): Adjusts low-frequency tonal character of reverb

eect.

K. REVERB SPLIT/FULL SWITCH: FULL setting sends reverb signal to

both speakers; SPLIT setting sends reverb signal to 10” speaker only.

Note that reverb MIX (G) controls amount of reverb sent to either

one or both speakers when using this switch.

L. INTENSITY: Controls tremolo eect depth. Tremolo can also be

turned on and o using the included two-button footswitch. This

knob clicks into the o position () at full counterclockwise, with no

tremolo heard at that position, and overrides the footswitch setting.

M. SPEED: Controls tremolo eect rate.

N. TREMOLO STEREO/MONO SWITCH: STEREO position presents

harmonic tremolo signal in stereo, alternating between both

speakers. MONO position presents harmonic tremolo signal in

mono through both speakers.

O. POWER JEWEL: Yellow power jewel at far right (below) illuminates

when amplier is on.
