Art.nr. 319306

FPD-13/650

USERS MANUAL 02

GEBRAUCHSANWEISUNG 04

GEBRUIKSAANWIJZING 06

MODE D’EMPLOI 08

MODEO DE EMPLEO 10

BRUKSANVISNING 12

KÄYTTÖOHJE 14

BRUKSANVISNING 16

BRUGERVEJLEDNING 18

êìäéÇéÑëíÇé èé äëèãìÄíÄñàà

O  22

2 Ferm

Product: Ferm Percussion drill.

Type FPD-13/650, Art.nr. 319306

Ferm, Genemuiden, The Netherlands.

Sound pressure level (L

) 92,9 dB(A)

Sound power level (L

) 105,9 dB(A)

Vibration (

) 7,3 m/s

SERIAL NUMBER

The serial number on the machine consists of the fol-

lowing elements.

Serial nr.

CAREFULLY READ THE INSTRUCTIONS BE-

FORE YOU USE THE PERCUSSION DRILL!

1. SPECIAL SAFETY RULES

BEFORE OPERATING THE MACHINE:

1. Check the following:

- do the voltage of the machine correspond with the

mains voltage

- are the mains lead and the mains plug in a good con-

dition.

2. Do not use extension cables which are too

long. Use extension cables with a core diameter of

1,75 mm

minimal and only when the cable is rolled

out completely.

In case of a blockage, switch of the machine immediately.

Always compare the maximum rotation speed of accesoi-

res with the maximum speed of the percussion drill.

5. Never attach de chuck key with a rope to the percus-

sion drill.

6. Pull the mainsplug from the socket before you change

a drill or accessory.

WHEN OPERATING THE MACHINE:

1. Check if the switch is placed in the ‘OFF’-position be-

fore you connect the machine to mains.

2. Keep the mains cable away from moving parts of the

machine.

3. First switch off the machine before you move the ma-

chine downwards along your body.

4. Never cover the ventilationslots.

IMMEDIATELY SWITCH OFF THE MACHINE

IN CASE OF:

1. Excessive sparking of the brushes and verticiliosis in

the collector.

2. Malfunction of the mainsplug, -socket or damaged ca-

bles.

3. Broken switch.

4. Smoke or smell caused by scorched insulation.

2. BEFORE OPERATING

THE MACHINE

1. Use only sharp drills of the following types:

Concrete/masonry

Hard metal

Metal HSS

Wood HSS

MOUNTING ACCESSORIES

Prior to mounting an accessory always unplug the tool.

Placing and removing bits

In addition to bits the machine can also hold screw bits

with a hexagonal shaft.

• On the collarscrew the drill chuck open.

• Place the shaft of the bit in the opening of the drill

chuck.

• Tighten the drill chuck until the click point has been

reached. The bit is now in fixed in the drill chuck.

• To change a bit, unscrew the drill chuck open again.

• Slide the sidegrip over the drillhead.

• Slide the measuring rod in the sidegrip and tighten the

ORDER NUMBER/YEAR OF CONSTRUCTION

Ferm 27

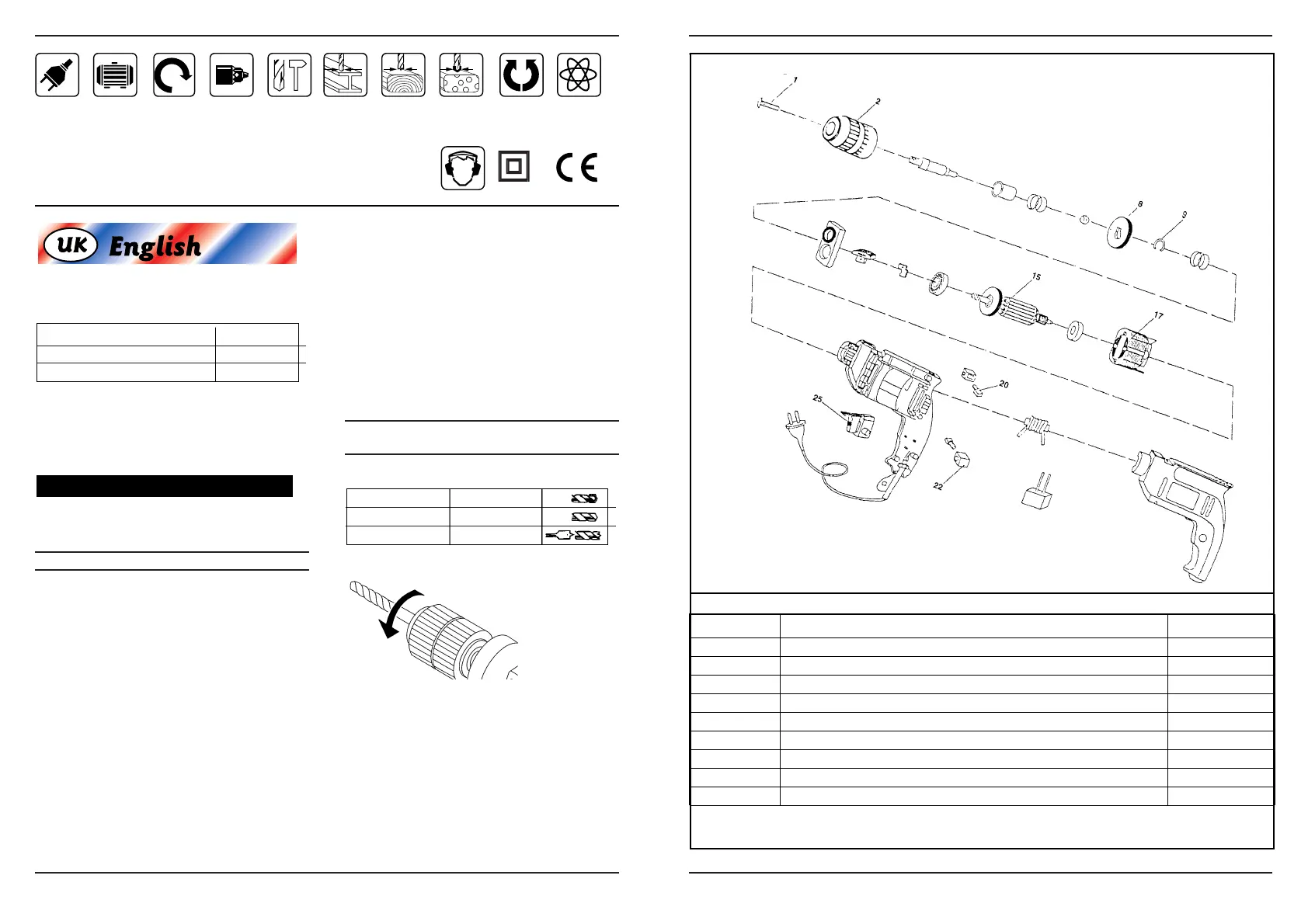

AVAILABLE SPARE PARTS FOR FPD-13/650

REF.NR. DESCRIPTION FERM.NR.

1 LEFT HAND SCREW (FOR DRILL CHUCK) 406387

2 DRILL CHUCK 956000

8 GEAR 407382

15 ARMATURE 407383

17 FIELD COIL 407385

20 CARBON BRUSH (SET) 407386

22 CARBON BRUSH HOLDER 407389

25 SWITCH 407384

- SIDE HANDLE 407388

EXPLODED VIEW

V~/Hz W /min mm /min mm mm mm

230/50 650

0 -2500

13 0-40000

25 13
