Side 1/2

Michael Koch GmbH, Zum Grenzgraben 28, 76698 Ubstadt , Tel.: +49 7251 9626200-Weiher, Germany

mail@bremsenergie.de, www.bremsenergie.de, mail@brakeenergy.com, www.brakeenergy.com

Dbl BWD500160K04LIP65FE_deu engl_20210723.docx- -

Brake resistor - BWD500160K04LIP65FE

CACR- - - KL2 40 W2000

*Sc

Description:

Short protecting- - -circuit proof, self

resistor unit for operation on converters (brake transistors) consisting of

4 resistor modules in anodized aluminium casings. Protection class according to IP65

, interconnected by

spring- type terminals. For detailed measurements, see technical drawing (on request).

Nominal capacity (W)

Dimensions LxBxH (mm)

Resistance values (Ohm)

800 ( 00 at ED = 35%, 20 ϑ

= 20°C)

216 x 211 x 91,5

Technical data:

Parameters

Symbol

Value

Unit

Conditions

Tolerance

± 5

Room temperature

Weight

approx 3,4

Connction data terminal

Conductor cross- section

. 6 Max mm

Depending on the design of the cable

cross- section

Storing temperature

- 25 ... +85

°C

Limit values (ϑ

)= 20°C, if nothing else is stated :

Parameters

Symbol

Value

Unit

Conditions

Max. permissible operating

voltage

≤ 700 AC

≤ 1000 DC

considering “self-protection”

≤

600 AC

≤ 8 50 DC*

considering CSA

and UL*

Energy consumption

7,5

with 1,2s (1% ED)

with 7,2s (6% ED)

Insulation voltage

ISO

≥ 4000

AC; f = 50 Hz; t = 1 s

Max. permissible casing

temperature

≤

250

°C

free convection

Temperature coefficient

20 ... 100

-6

Insulation resistance

ISO

≥ 100

M Ω

MEAS

= 1000 VDC

Inductance

≤ 30

µH

f = 300 kHz, U

MEAS

= 50 mV

Capacity against housing

≤ 300

f = 300 kHz, U

MEAS

= 50 mV

Thermic time factor

Approx 550

sec

Casing BWD500xxx

Max. permissible wire temperature

hot

max. + 600

°C

Approbation

cCSAus (CSA file# 210040)

cURus (UL file# E233422)

(both based on CSA-C22.2

and UL 508)

1):

- Self protection: At four time type capacity and free convection : Warning

1. No short circuit Mounted in areas without

2. No fault to frame free air change surface

3. Self-extinguishing – no fire temperatures up to

4. No melting of casing 350 degrees Celsius can

be reached.

2):

Test conditions: Water jet from nozzle 6,3mm inside diameter, flow rate 12,5l/min +/ 5%, water p- ressure according to volume flow,

distance 2,5-3m, test duration 3min

*Sc = single components

CACR-KL2-40-W2000 | 8164617 [8164619] 2021-08a

Michael Koch GmbH, Zum Grenzgraben 28, 76698 Ubstadt , Tel.: +49 7251 9626200-Weiher, Germany

mail@bremsenergie.de, www.bremsenergie.de, mail@brakeenergy.com, www.brakeenergy.com

Dbl BWD500160K04LIP65FE_deu engl_20210723.docx- -

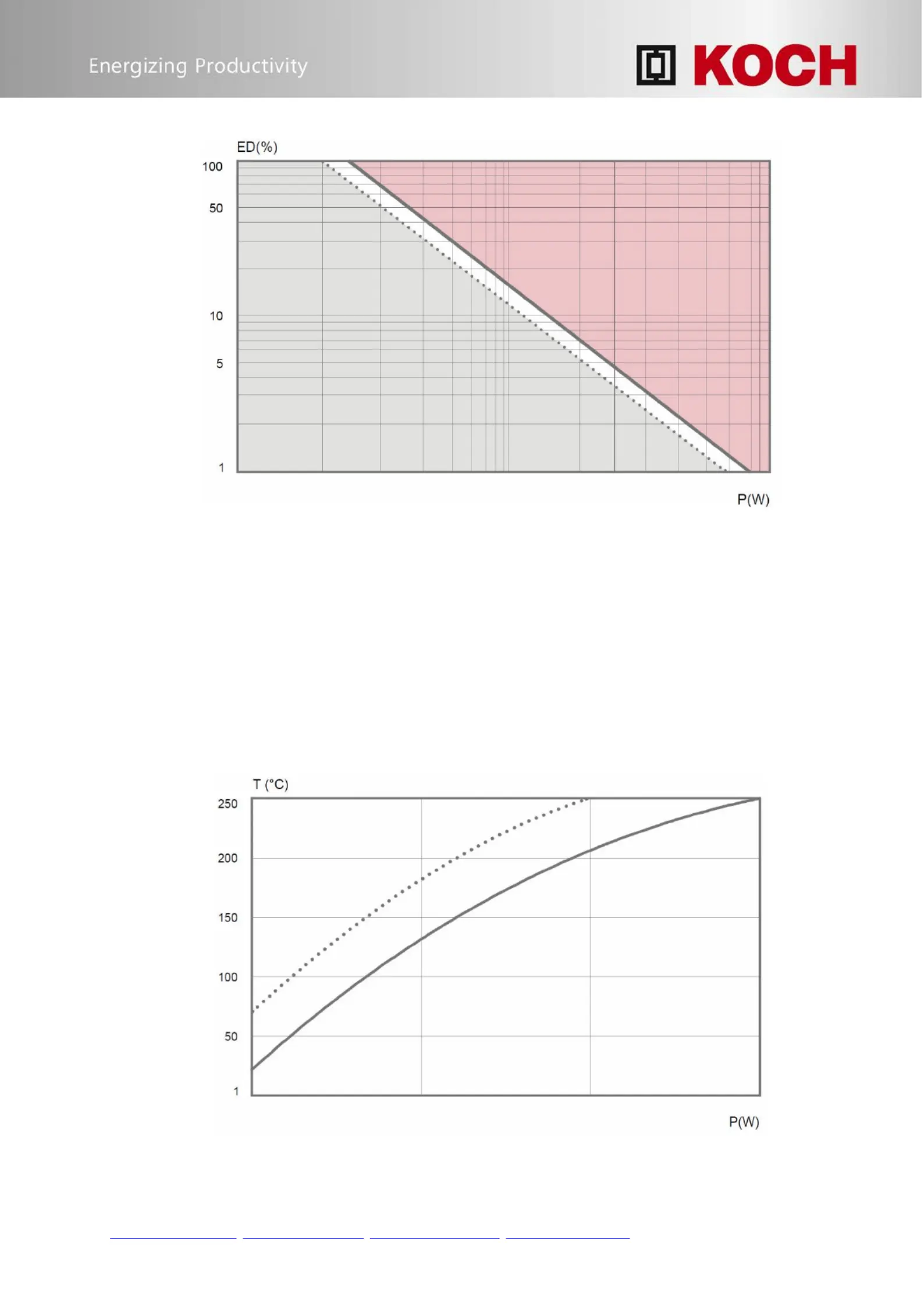

Pulse carrying capacity BWD500160K04LIP65FE

(without limitation the endurance)

This brake resistors cover any operation requirement in the range below the curve.

General set up:

1. Fundamentally the usual cycle time is 120 seconds.

2. The casing temperature can be determined applying the average performance on the included

temperature diagram. The average performance can be determined as follows: Pm = P[W] x ED[%] /100.

If you add 5K to the respective value in the temperature diagram you will have the casing temperature in

respect to the pulse capacity.

Housing temperature BWD500160K04LIP65FE

(At an ON period ED = 100%, Maximum temperature = 250°C)

Ambient temperature

20°C

Ambient temperature

70°C

4 00

8 00

2000

4 000

8 000

20 000

4 0000

Ambient temperature

70°C

400

800

1200

Ambient temperature

20°C

CACR-KL2-40-W2000 | 8164617 [8164619] 2021-08a
