Side 1/2
Translation of the original instructions
© 2021 all rights reserved to Festo SE & Co. KG
1 Applicable documents
All available documents for the product www.festo.com/sp.è
2 Safety
2.1 Safety Instructions
– Take into consideration the ambient conditions at the location of use.
– Only use the product in original status without unauthorised modifications.
– Store the product in a cool, dry, UV-protected and corrosion-protected envir-
onment. Ensure that storage times are kept to a minimum.
– Prior to mounting, installation and maintenance work: Switch off compressed
air supply and secure it from being switched back on.
– Observe tightening torques. Unless otherwise specified, the tolerance is
±20%.
2.2 Intended use
The product is intended for the transport of loads.
2.3 Training of skilled personnel
Installation, commissioning, maintenance and disassembly should only be con-
ducted by qualified personnel.
3 Further information
– Accessories www.festo.com/catalogue.è
– Spare parts www.festo.com/spareparts.è
4 Service
Contact your regional Festo contact person if you have technical questions
èwww.festo.com.
5 Product overview
5.1 Function
The piston rod moves outwards when the cylinder chamber is pressurised. The
advanced piston rod is retracted as follows:
– For double-acting cylinders, by pressurising the other cylinder chamber.
The cylinder force during advance and return is:
– different with piston rod at one end.
The position of the piston can be detected by proximity switches.

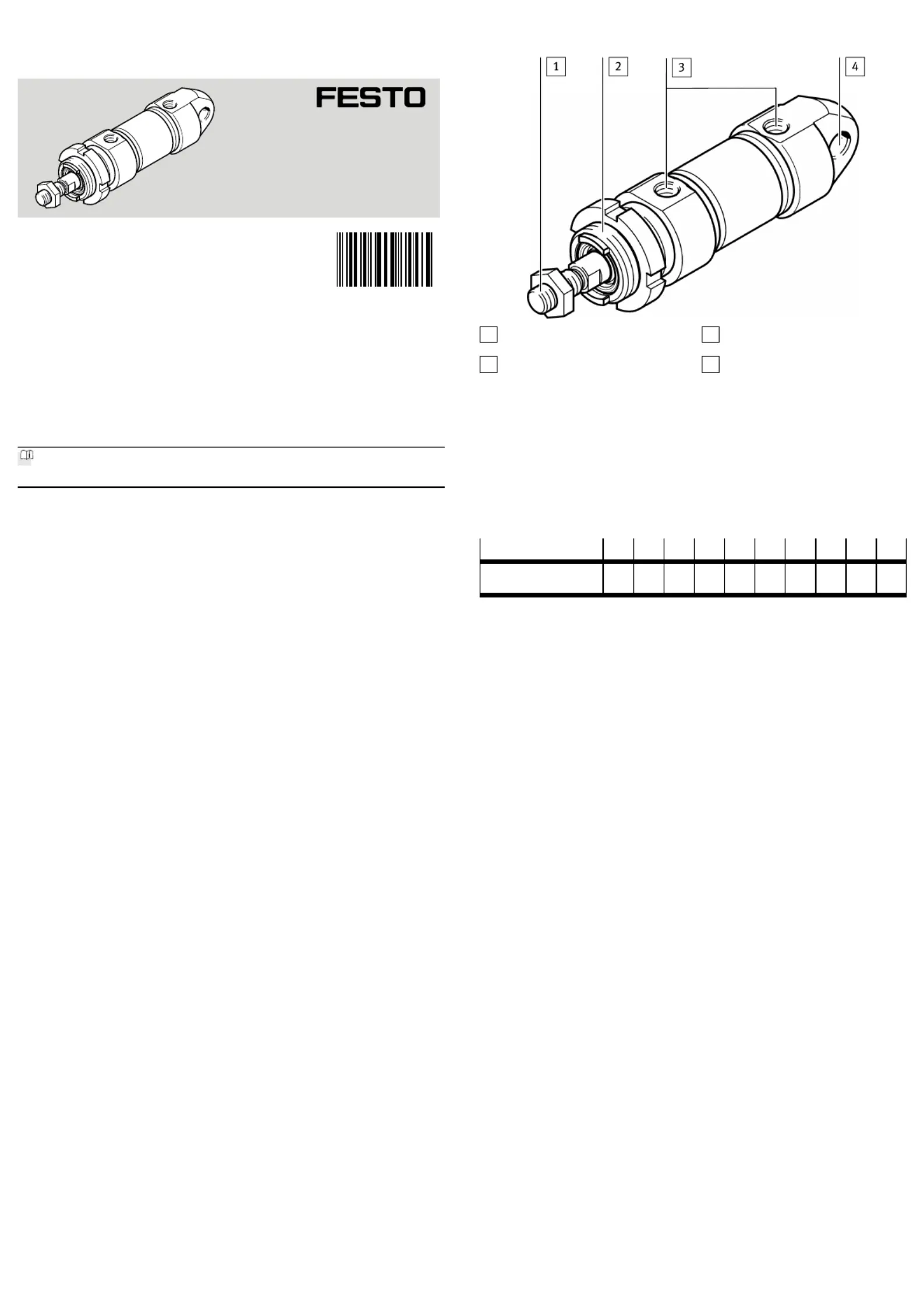

5.2 Design
1
Male thread on the piston rod for
mounting the payload
2
Male thread on the bearing cap for
mounting
3
Supply ports in the bearing/end
cap
4
Cross hole for mounting
Fig. 1 Sample illustration CRDSNU
5.3 Mounting
• Handle the cylinder so as to avoid any damage to the cylinder barrel and pis-
ton rod.
• Observe the following points:
– parallel mounting when using external guides
– installation without distortion
– Compliance with the permissible loads www.festo.com/catalogueè
• Observe tightening torque of lock nuts on the male thread .2
Size 12 16 20 25 32 40 50 63 80 100
Tightening torque
on the bearing cap
[Nm] 15 15 40 40 60 80 100 100 550 550
Tab. 1 Tightening torques on the bearing cap
• Avoid mechanical alignment inaccuracies between the piston rod and an
external guide using one of the following measures:
– absolutely precise alignment (general)
– use of a self-aligning rod coupler FK
– use of a guide unit FEN with compensating coupling
A rigid coupling impairs the service life and function of the cylinder.
5.4 Mounting Accessories
In the case of a large payload, high piston speed or when using quick exhaust
valves:
• Use suitable shock absorbers or external stops.
To prevent the payload from sliding down suddenly in the event of an air supply
failure in a horizontal or sloping mounting position:
• Use piloted check valves.
To set the speed:
• Use one-way flow control valves in the following supply ports:
– For single-acting cylinders: GRLZ (supply air)
– For double-acting cylinders: GRLA (exhaust air)
The one-way flow control valves are screwed directly into the supply ports. Use of
other accessories with a screw-in depth that is too long will damage the cushion-
ing piston.
For position sensing with proximity sensors:
• Use proximity sensors with mounting kit.
Avoid external influence caused by magnetic or ferritic parts in the vicinity of
the proximity sensors (spacing 10mm).³
6 Installation
6.1 Pneumatic Installation
• Connect tubing to supply ports.
7 Commissioning
7.1 Preparation
• Pressurise the system slowly. A soft start valve is used for gradual start-up
pressurisation www.festo.com/catalogue. è
With medium or large payloads or at high speeds:
• Use sufficiently large arrester fixtures. The product will tolerate the maximum
velocities and payloads without external arrester fixtures
èwww.festo.com/catalogue
8143197
CRDSNU
Round cylinder
8143197
2021-01c
[8143199]
Operating instructions
Festo SE & Co. KG
Ruiter Straße 82
73734 Esslingen
Germany
+49 711 347-0
www.festo.com
