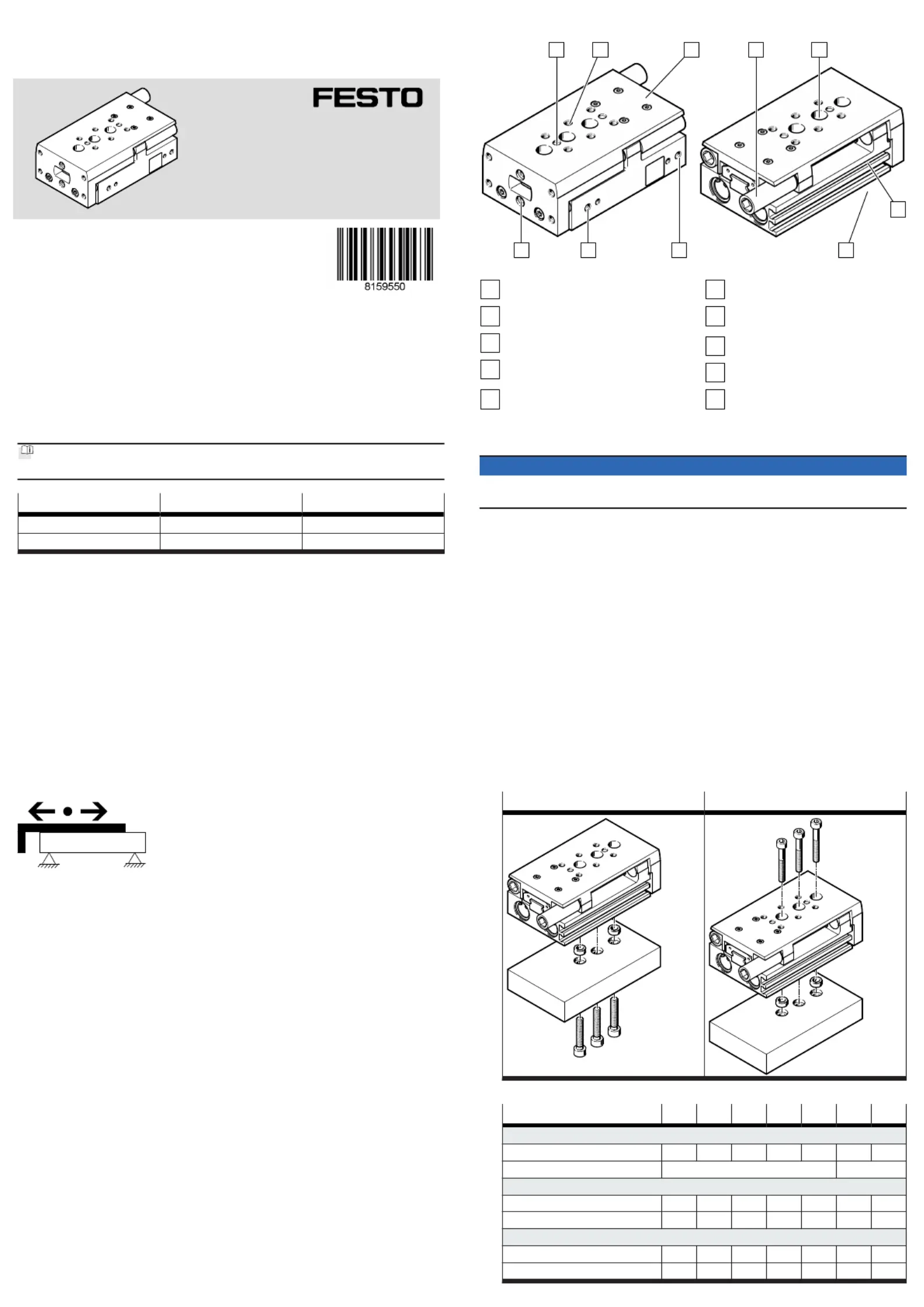

Side 1/3

DGST

Mini slide

Festo SE & Co. KG

Ruiter Straße 82

73734 Esslingen

Deutschland

+49 711 347-0

www.festo.com

Operating instructions

8159550

2021-09d

[8159552]

Translation of the original instructions

Applicable documents

All available documents for the product

www.festo.com/sp.

Documents Product Table of contents

Operating instructions Shock absorber DYSS-G8 –

Operating instructions Shock absorber DYEF-G8 –

Tab. 1

2 Safety

2.1

Safety instructions

–Only use the product in its original condition without unauthorised modifica-

tions.

–

Take into account the ambient conditions at the location of use.

–Observe the identifications on the product.

–

Store the product in a cool, dry environment protected from UV and corrosion.

Keep storage times short.

–Before working on the product, switch off the compressed air supply and lock it

to prevent it from being switched on again.

2.2

Intended use

The product is intended for the space-saving transport of masses. The product is

approved for slide operating mode.

Fig.1

2.3 Training of qualified personnel

Work on the product may only be carried out by qualified personnel who can

evaluate the work and detect dangers. The qualified personnel have skills and

experience in dealing with pneumatic (open-loop) control technology.

3 Additional information

–

Contact the regional Festo contact if you have technical problems

www.festo.com.

–

Accessories and spare parts

www.festo.com/catalogue.

4 Function

The product is a non-rotating twin-piston drive with bearing guide.

The slide is moved back and forth by alternate pressurisation of the supply ports.

The slide is braked at the end position by shock absorbers.

5 Product design

1 2 3 4 5

78910

Fig.2

Centring

Thread for mounting the payload

Slide

Shock absorber with threaded

sleeve

Drilled holes for mounting the

mini slide from above

Slot for proximity switch

Thread for mounting the mini

slide (concealed underneath)

Supply port (advance)

Supply port (retract)

Thread with centring hole for

mounting the payload

Transport

NOTICE

Unexpected and unbraked movement of components

• Secure moving components for transport.

Take product weight into account

11 Technical data.

Maintain the support clearance of 300 mm when attaching transportation£

equipment.

Assembly

7.1 Preparation

–

Position the product to ensure that the operating elements are accessible,

e.g. the clamping components for the shock absorbers.

–Mount the product without torsional stresses.

–

Mount the product on a mounting surface with a flatness of 0.05% of the stroke

length, but max. 0.1 mm.

–If necessary: select the mounting components or the accessories. The centring

sleeves are not included in the scope of delivery.

To prevent collisions: mount the mounting components outside the positioning

range.

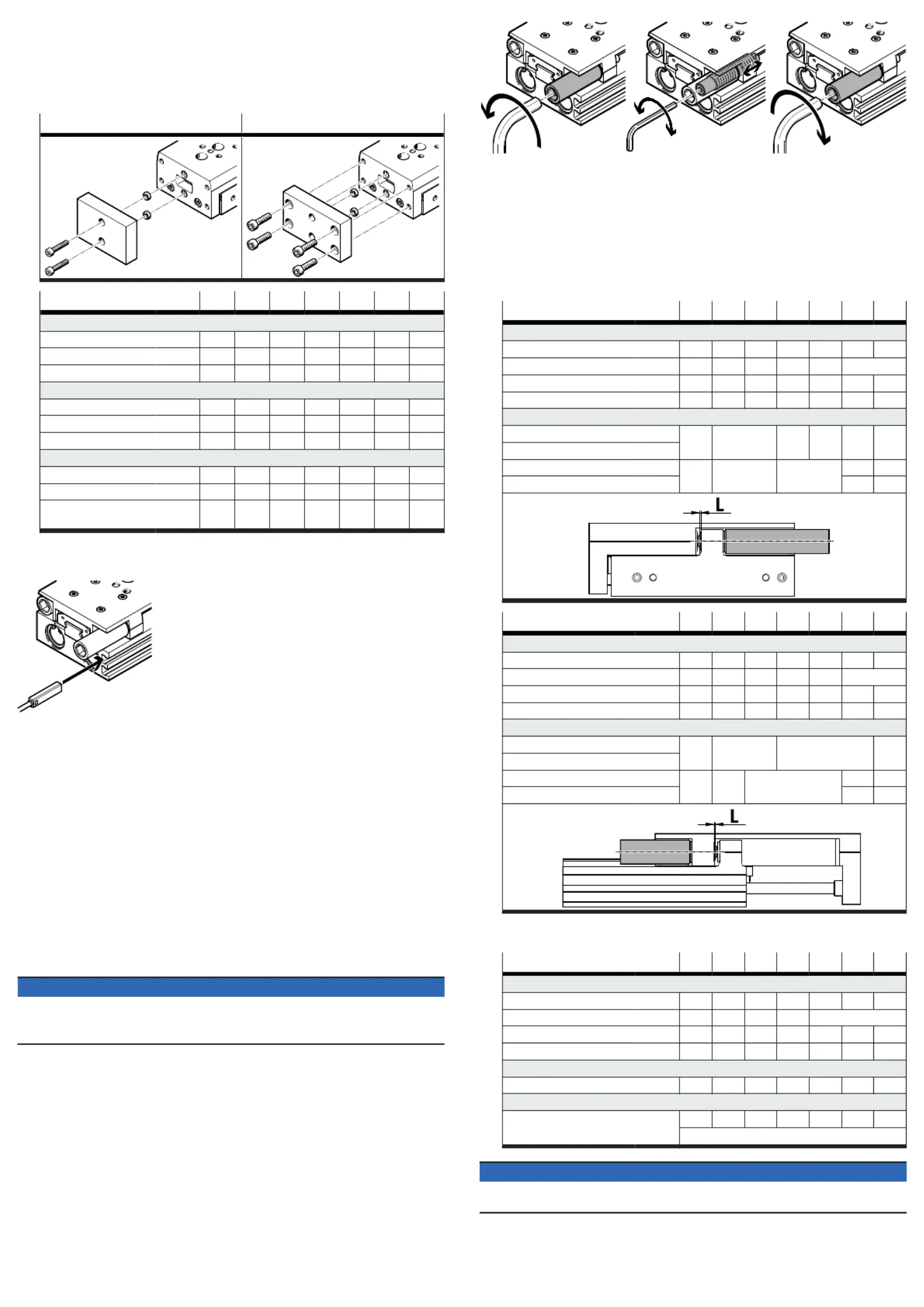

7.2 Mounting mini slide

Mount drive ensuring that the minimum number of screws is used.

Direct fastening Through-hole mounting

2. Tighten screws evenly.

DGST -6 -8 -10 -12 -16 -20 -25

Minimum number of screws dependent on the stroke

10 150 [mm] 2 2 2 2 2 2 2…

200 [mm] – 3

Direct fastening

Screw M4 M4 M5 M5 M6 M8 M8

Centring [H7] [mm] 5 5 7 7 9 12 12

Through-hole mounting

Screw M3 M3 M4 M4 M5 M6 M6

Centring [H7] [mm] 5 5 7 7 9 12 12
