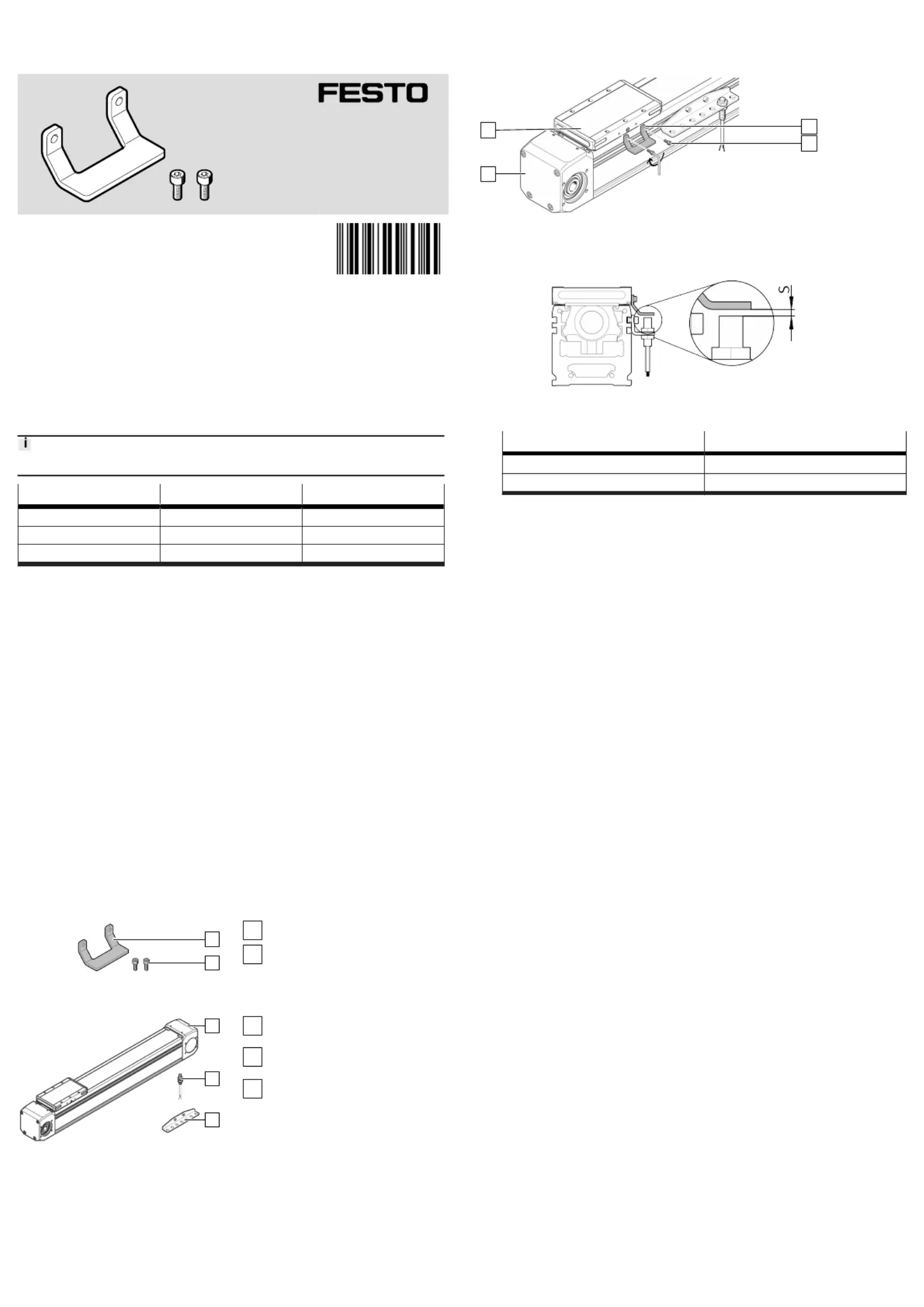

EAPM-E24-...-SLE

Switch lug

Festo SE & Co. KG

Ruiter Straße 82

73734 Esslingen

Germany

+49 711 347-0

www.festo.com

Assembly instructions

8203111

2024-01

[8203113]

8203111

Translation of the original instructions

Applicable documents

All available documents for the product

www.festo.com/sp.

Document Product Content

Operating instruction Axis ELGD –

Operating instruction Proximity switch SIEN-M8 –

Assembly instructions Sensor bracket EAPM-E24-SHE –

Tab. 1:

Applicable documents

Safety

2.1 Safety instructions

–

Only mount the product on components that are in a condition to be safely

operated.

2.2

Intended use

The switch lug triggers the switching function of an inductive proximity sensor to

query the slide position of an ELGD axis.

2.3 Training of qualified personnel

Work on the product may only be carried out by qualified personnel who can eval-

uate the work and detect dangers. Personnel must have the relevant mechanical

training.

Additional information

–Contact the regional Festo contact if you have technical problems

www.festo.com.

–Accessories and spare parts

www.festo.com/catalogue.

Product Range Overview

4.1 Scope of delivery

Fig. 1:

Scope of delivery

Switch lug (1x)

Screw (2x)

4.2

Not in scope of delivery

Fig. 2:

Not included in the scope of

delivery

Axis (1x)

ELGD

Proximity switch (1x)

SIEN-M8

Sensor bracket (1x)

EAPM-E24-SHE

5 Mounting

5.1

Mounting position

• Select the mounting position on the axis. The proximity switch, the sensor

bracket and the switch lug can be mounted on both sides of the axis.

5.2

Mounting

• Mount the proximity switch and the sensor bracket on the axis Applicableè

documents.

Fig. 3: Mounting switch lug

• Mount the switch lug[1] with the screws[2] on the slide[A] of the axis[3].

Tightening torque: 1.2 Nm ± 20%

Fig. 4: Sensing distance

•

Maintain the sensing distance S.

Proximity switch Sensing distance S

SIEN-M8B 1.5mm

SIEN-M8NB 2.5mm

•

Perform a test run of the axis Applicable documents.è
