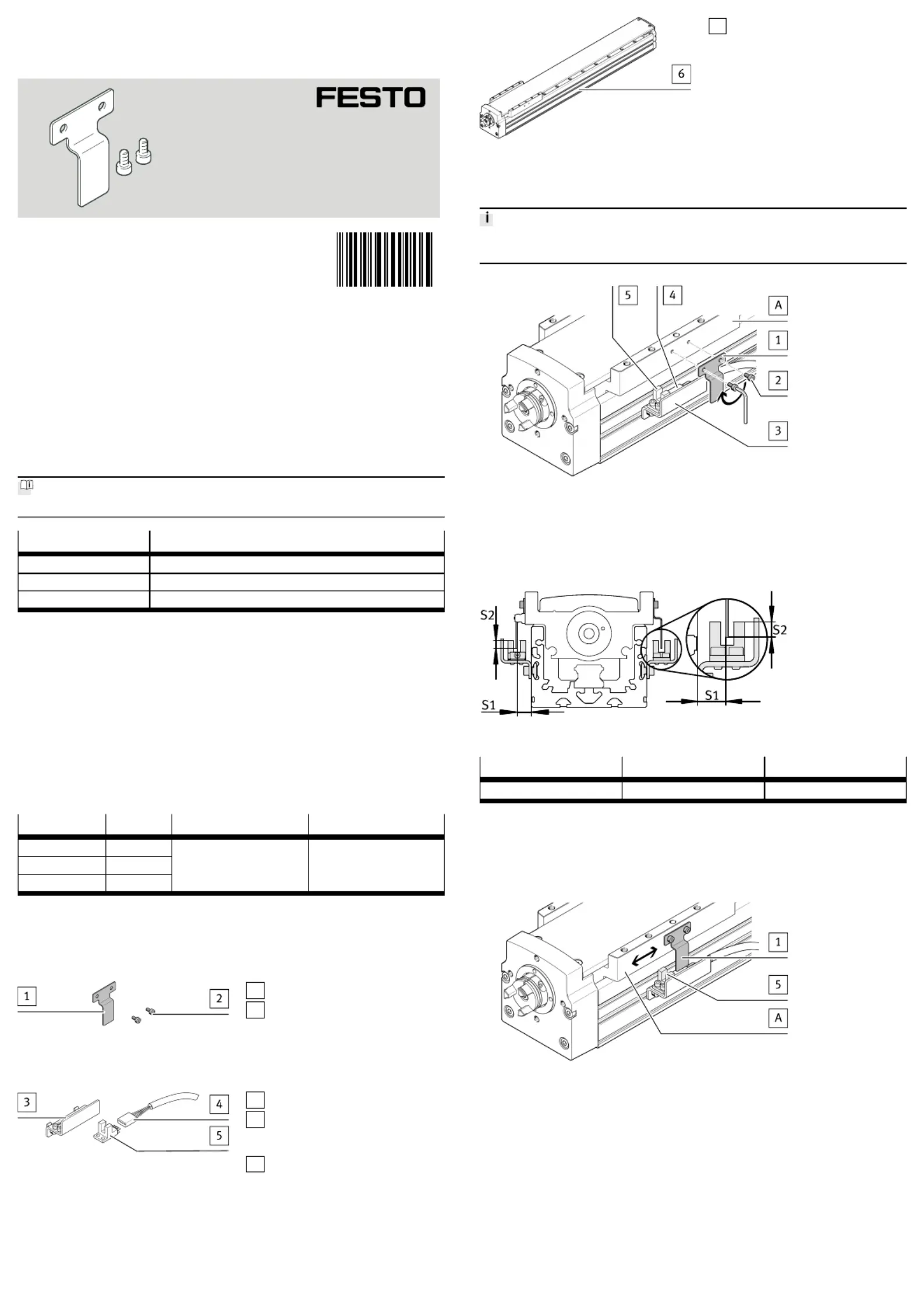

Translation of the original instructions

OMRON

is a registered trademark of its respective trademark holder in certain

countries.

1 Applicable documents

All available documents for the product www.festo.com/sp.è

Document Product

User documents Actuator

User documents Proximity switches

User documents Sensor bracket

Tab. 1

2 Safety

2.1 Safety instructions

– Only mount the product on components that are in a condition to be safely

operated.

– Observe tightening torques.

2.2 Intended use

2.2.1 Use

Triggering the switching function of an optical microsensor from OMRON for query

of the slide position of an actuator.

2.2.2 Permissible components

Switch lug Actuator Proximity switches Sensor bracket

EAPM-L9-90-SLE ELGT-BS-90

EAPM-L9-120-SLE ELGT-BS-120

EAPM-L9-160-SLE ELGT-BS-160

Optical microsensor

OMRON,Series EE-SX674

EAPM-L9-SHE

Tab. 2

3 Product Range Overview

3.1 Scope of delivery

Switch lug (1x)

Screw (2x)

M3x6

Fig. 1

3.2 Not in scope of delivery

Sensor bracket (1x)

Connector (1x)

EE-1001/1001-1, EE-1006,

EE-1009 (OMRON)

Sensor (1x)

Series EE-SX674 (OMRON)

Fig. 2

Actuator (1x)

ELGT-BS

Fig. 3

4 Assembly

The switch lug, sensor bracket and proximity switch can be mounted on the left or

right of the actuator .6

Fig. 4 Mount the switch lug on the actuator

1. Fasten the switch lug with screws to the slide[A]. Tightening torque:1 2

1.2Nm±10%.

2. Mount sensor bracket Applicable documents.3è

3. Ensure compliance with the sensor distancesS.

Fig. 5 Sensor distances

Sensor distance S1 S2

[mm] 11.5±1 6±0.3

Tab. 3

5 Test run

1. Switch on power supply.

2. In case of motors with a brake: release the brake.

Fig. 6 Test run

• Move the slide[A] with the switch lug slowly over the sensor .1 5

Sensor switches.5

8140654

EAPM-L9-...-SLE

Switch lug

8140654

2020-08

[8140656]

Assembly instructions

Festo SE & Co. KG

Ruiter Straße 82

73734 Esslingen

Germany

+49 711 347-0

www.festo.com
