Festo EMMB-AS-60-04-K-S30S Manual

Festo Ikke kategoriseret EMMB-AS-60-04-K-S30S

Læs gratis den danske manual til Festo EMMB-AS-60-04-K-S30S (3 sider) i kategorien Ikke kategoriseret. Denne vejledning er vurderet som hjælpsom af 12 personer og har en gennemsnitlig bedømmelse på 4.8 stjerner ud af 6.5 anmeldelser. Har du et spørgsmål om Festo EMMB-AS-60-04-K-S30S, eller vil du spørge andre brugere om produktet?

Download PDF
Side 1/3
EMMB-AS
Servo motor
Festo SE & Co. KG
Ruiter Straße 82
73734 Esslingen
Deutschland
+49 711 347-0
Operating instructions
8163182
2021-08b
[8163184]
Translation of the original instructions
© 2021 all rights reserved to Festo SE & Co. KG
1
About this document
1.1 Applicable Documents
All available documents for the product
è
www.festo.com/sp.
1.2 Product version
This documentation describes the following product versions:
EMMB-AS-...-K-...S/M/B Product version
K with featherkey
S Absolute encoder, single-turn
M Absolute encoder, multi-turn
B with holding brake
Tab. 1:
Product version
2 Safety
2.1 Safety instructions
–Observe labelling on the product.
–
Before working on the product, switch off the power supply and secure it
against being switched on again.
–Store the product in a cool, dry environment protected from UV and corrosion.
Keep storage times short.
–Observe tightening torques. Unless otherwise specified, the tolerance is
± 20 %.
–
Store the product in ambient conditions without oils, greases and grease-dis-
solving vapours.
2.2 Intended use
The motor is intended to be used as a component in drive systems in accordance
with EN 61800 and may only be operated in combination with a suitable servo
drive.
2.3 Foreseeable misuse
The holding brake must not be used for braking the motor.
2.4 Training of qualified personnel
Work on the product may only be carried out by qualified personnel who can
evaluate the work and detect dangers.
The qualified personnel must be familiar with the assembly and installation of
electric drive systems.
2.5 Area of application and approval
In combination with the UL inspection mark on the product, the information in this
section must also be observed in order to comply with the certification conditions
of Underwriters Laboratories Inc. (UL) for USA and Canada.
UL certification information
Product category code PRHZ2 (USA) or PRHZ8 (Canada)
File number E342973
Considered standards UL 1004-1/-6, C22.2 No.100
UL mark
Tab. 2:
UL/CSA certification information
3
Additional Information
–Accessories
è
www.festo.com/catalogue.
4 Product overview
4.1 Function
The product is a permanently excited, electrodynamic, brushless servo motor. The
integrated absolute encoder serves to record the angular position and derives the
angular velocity signals and other status variables. These signals are evaluated
by a higher-order servo drive. The de-energised holding brake enables the motor
shaft to be held at a standstill.
4.2 Product design
1 2 3 4 5 6
7 8 9 10 11

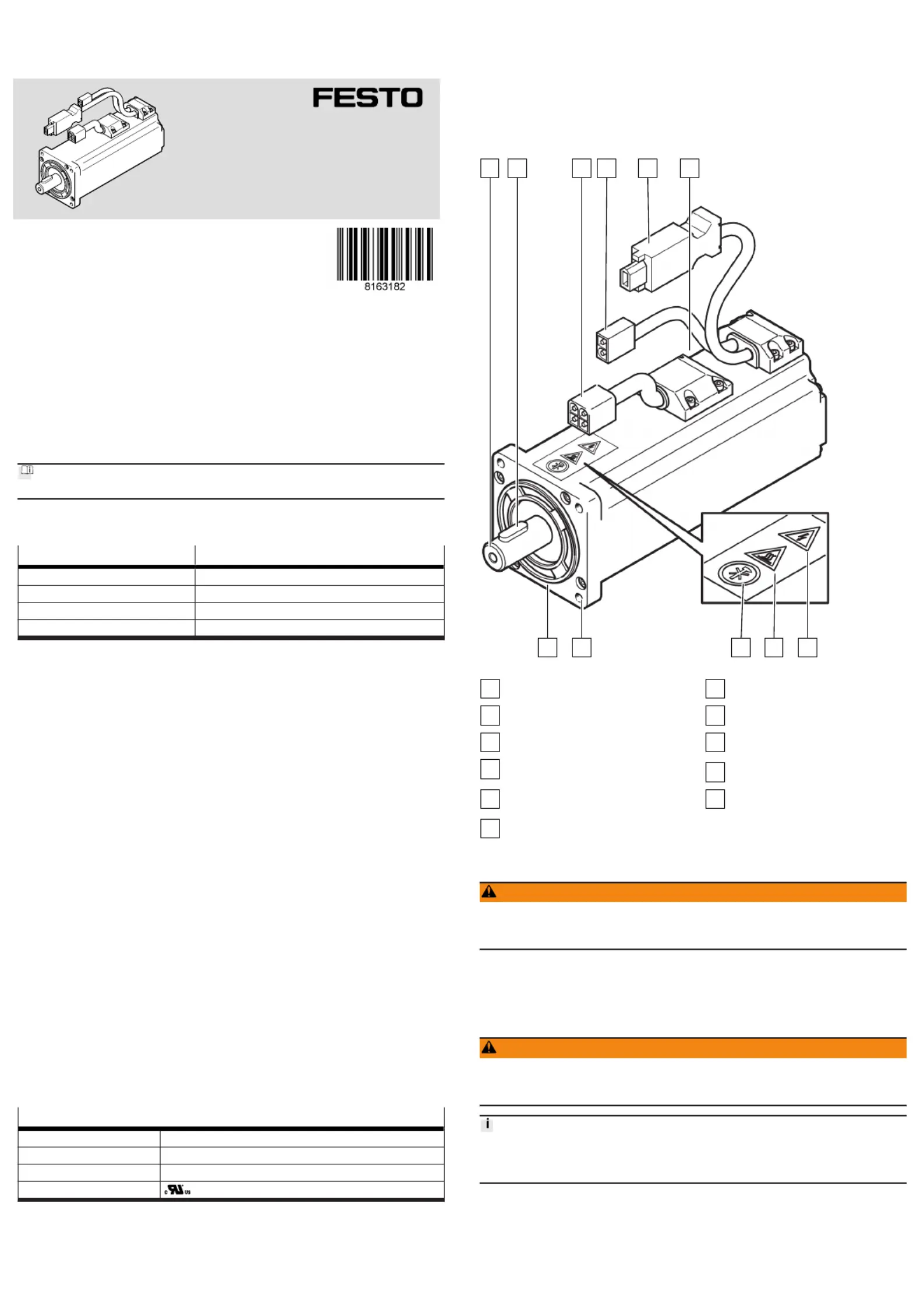

Fig. 1: Product design EMMB-AS (example EMMB-AS-60-04-K-S30MB)
1
Motor shaft
2
Featherkey
3
Electrical connection: motor
4
Electrical connection: holding
brake
5
Electrical connection: absolute
encoder
6
Product labelling
7
Motor flange
8
Through-hole for mounting
9
Note: mechanical impacts not
permitted
10
Warning: hot surface
11
Warning: dangerous electrical
voltage
5
Transport
WARNING
Risk of injury due to falling product
If the product is lifted incorrectly, it may fall and cut, crush or separate body parts.
• Lift the product only with suitable load-bearing equipment.
–Store and transport the product in its original packaging. Observe the weight,
the dimensions and the ambient conditions.
–Store and transport the product in a horizontal position.
6 Assembly
WARNING
Risk of injury due to unexpected movement of components.
• Bring moving parts of the connected mechanical system into a secure position
(e.g. move into the lower end position).
Axial and radial forces on the motor shaft.
Excessive axial and radial forces on the motor shaft can damage the motor.
• Comply with maximum permissible shaft loads
è
www.festo.com/catalogue.
6.1 Unpacking product
1.
Open packaging.
2. Remove all transport materials, e.g. foils, caps, cardboard boxes.
3.
Remove the product from the packaging and place it on the mounting surface.
4. Dispose of packaging and transport materials.
