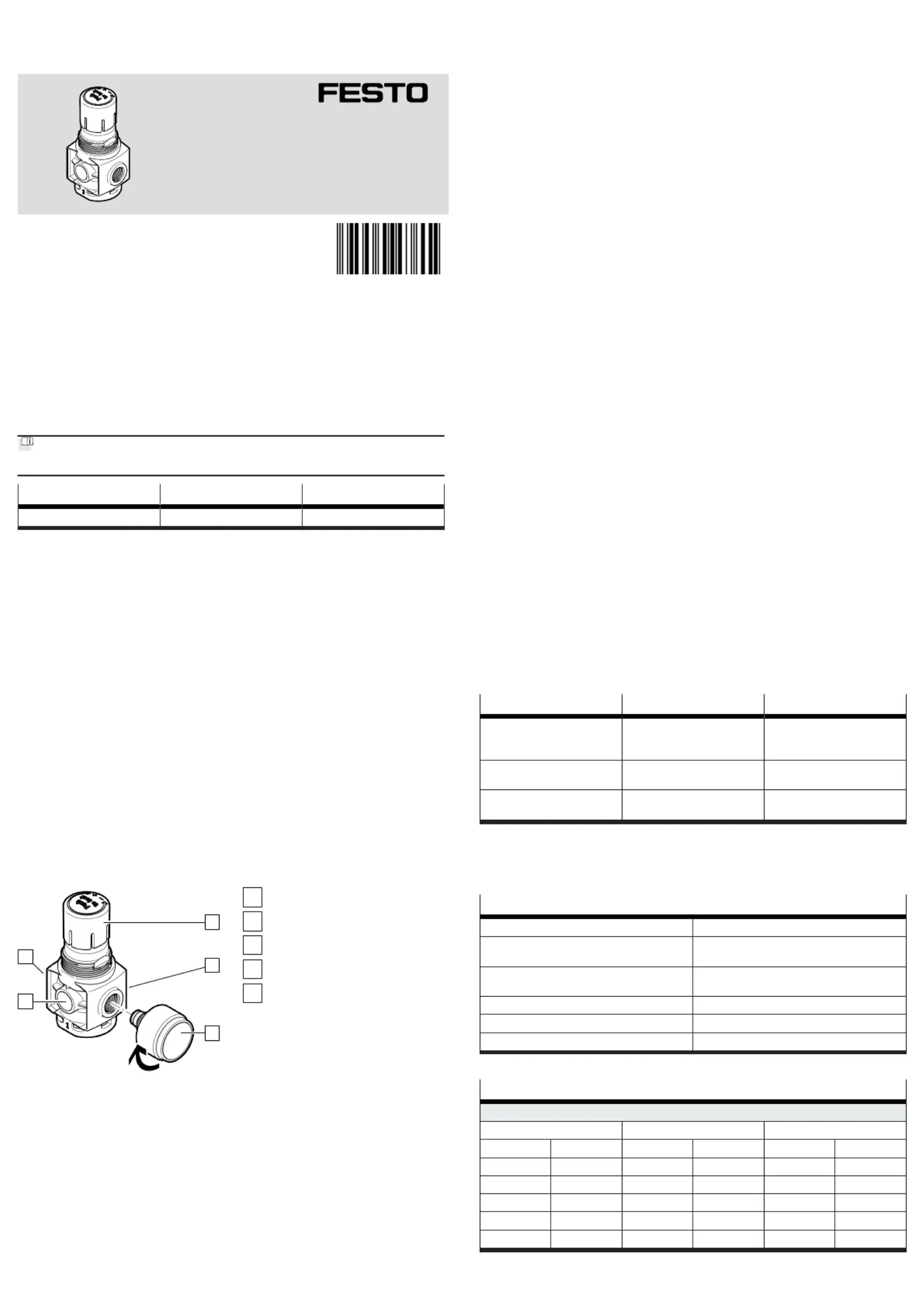

1.
MS2-LR-...-B
Pressure regulator
Festo SE & Co. KG
Ruiter Straße 82
73734 Esslingen
Germany
+49 711 347-0
Operating instruction
8189770
2023-02b
[8189772]
8189770
Translation of the original instructions
© 2023 all rights reserved to Festo SE & Co. KG
1
Applicable documents
All available documents for the product
è
www.festo.com/sp.
Document Product Contents
Assembly instructions Mounting bracket MS2-WR –
Tab. 1:
Applicable documents
2 Safety
2.1 Safety instructions
–
Only use the product in its original condition without unauthorised modifica-
tions.
–Only use the product if it is in perfect technical condition.
–
Observe the identifications on the product.
–Take into account the ambient conditions at the location of use.
–Before working on the product, switch off the compressed air supply and lock it
to prevent it from being switched on again.
2.2
Intended use
The pressure regulator regulates the compressed air in the downstream string
at the specified outlet pressure. The function includes an integrated secondary
exhaust and primary exhaust with backflow response.
3 Additional information
–
Contact the regional Festo contact if you have technical problems
è
www.festo.com.
–Accessories
è
www.festo.com/catalogue.
4
1
2
3
4
5
Fig. 1:
Product design
1
Rotary knob
2
Pressure gauge
3
Plug screw (back)
4
Pneumatic port P2
5
Pneumatic port P1
5 Assembly
5.1
Preparing assembly
For use with reduced particle emission:
• Remove soil from the product.
5.2
Direct fastening
–Space required above the product: 20mm³
–Space required under the product: 30mm³
–
Shut-off valves are installed in the compressed air supply line.
–The maximum permissible wall thickness is2.0mm.
1.
Slide the regulator head through the hole in the mounting surface.
2. Tighten the nutMS2-WRS
è
3 Additional information. Tightening
torque:9Nm±10%.
5.3 Wall mounting
–Space required above the product: 20mm³
–
Space required under the product: 30mm³
–
Shut-off valves are installed in the compressed air supply line.
• Fasten the product to the mounting surface with the mounting accessories
è
3 Additional information.
5.4 Mounting pressure gauge
When using the Z variant:
–
Replace the plug screw and use the alternative port on the back of the
product. Maximum tightening torque:0.5Nm
2.
Turn the pressure gauge clockwise to the stop. The pressure gauge seal is
pre-installed on the threaded connection journal.
3. Align scale. Unscrew pressure gauge anticlockwise and align the pressure
gauge scale vertically (after screwing in to stop unscrew a maximum of 1
revolution).
6
Installation, pneumatic
1. Use fittings, seals and suitable tubing from the Festo catalogue
è
3 Additional information.
2.
Screw the fittings into the pneumatic ports.
3. Insert suitable tubing into the fitting to the stop.
–Position tubing axial to the pneumatic ports.
–
Do not bend the tubing more than the minimum bending radius.
7 Commissioning
1.
Pull the rotary knob to unlock it.
2.
Turn the rotary knob completely in the direction.z
3.
Pressurise the system slowly: turn the rotary knob in the + direction until the
desired pressure is reached.
Maintain the permissible pressure regulation range
è
10Technical data.
The input pressurep1 should be at least0.05MPa (0.5bar; 7.3psi) higher
than the set output pressurep2 at all times.
4.
Press the rotary knob to lock it.
8
Cleaning
•
Clean the outside of the product as required with a soft cloth.
Permissible cleaning agents:
–Soap solution, maximum +60°C
–
Petroleum ether, free of aromatic compounds
9
Fault clearance
Malfunction Cause Remedy
A low flow rate, the operating
pressure is lost with air con-
sumption.
The supply line is constricted.
–
Check the line.
The pressure increases above
the set working pressure.
The valve disc at the sealing
seat is defective.
–
Replace the product.
A continuous audible blowing
noise at the rotary knob.
The valve seat is damaged.
–
Replace the product.
Tab. 2:
Fault clearance
10 Technical data
10.1
Technical data, mechanical
MS2-LR-...-B
Mounting position Any
Vibration resistance in accordance with
IEC60068-2-6
Severity level 2
Shock resistance in accordance with
IEC60068-2-27
Severity level 2
Temperature of medium [°C] –5…+50
Ambient temperature [°C] –5…+50
Storage temperature [°C] –5…+50
Tab. 3:
Technical data, mechanical
Type of severity level (SL)
Vibration load
Frequency range [Hz] Acceleration [m/s
2
]
Deflection [mm]
SL1 SL2 SL1 SG2 SL1 SL2
2 8 2 8 – – 3.5 3.5… … ± ±
8 27 8 27 10 10 – –… …
27 58 27 60 – – 0.15 0.35… … ± ±
58 160 60 160 20 50 – –… …
160 200 160 200 10 10 – –… …
