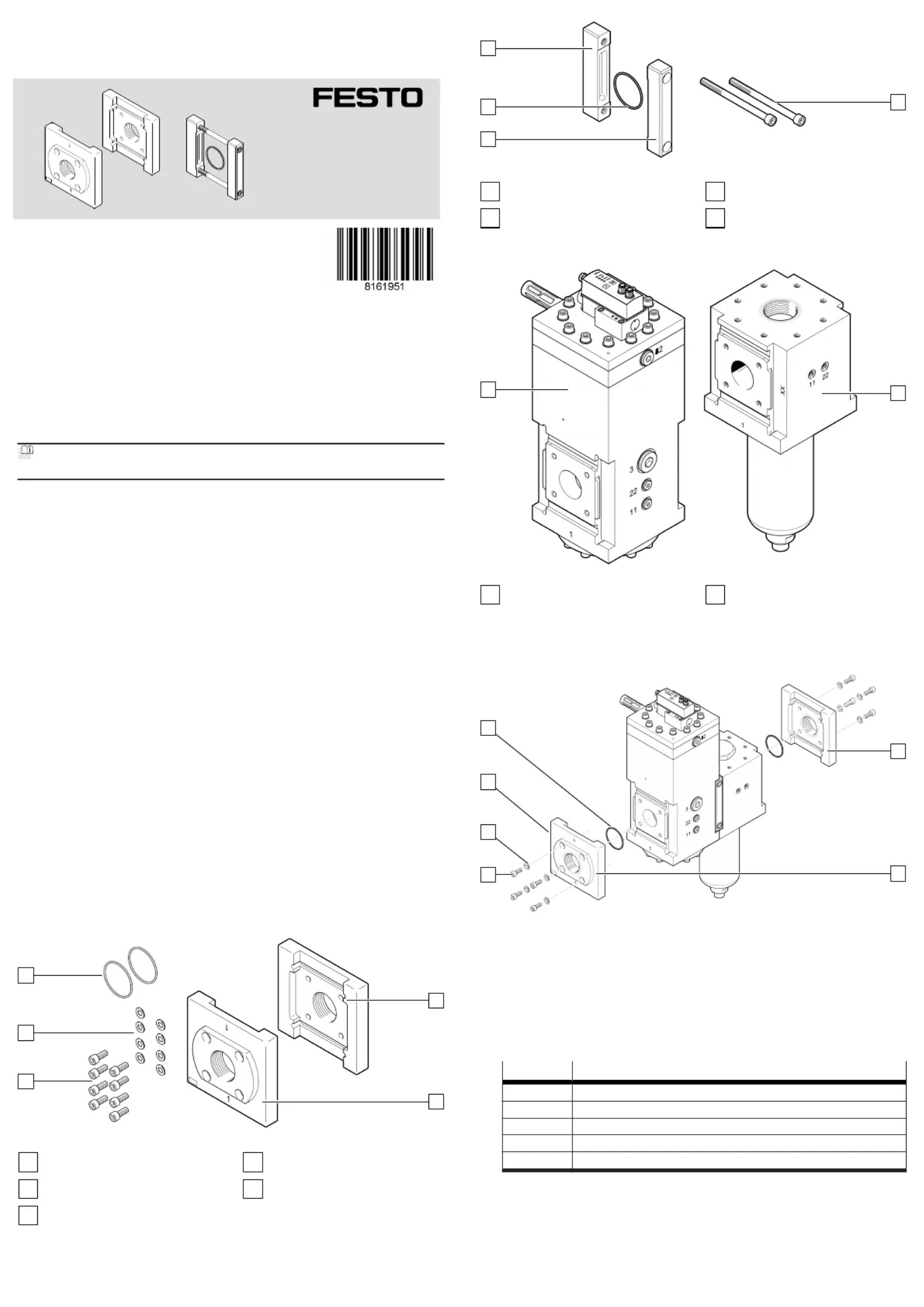

PAML-CP/-MK-186
Sub-base/Module connector
Festo SE & Co. KG
Ruiter Straße 82
73734 Esslingen
Deutschland
+49 711 347-0
Assembly instructions
8161951
2021-10b
[8161953]
Translation of the original instructions
© 2021 all rights reserved to Festo SE & Co. KG
1
Applicable documents
All available documents for the product
è
www.festo.com/sp.
2 Safety
2.1 Safety instructions
–
Only use the product in its original condition without unauthorised modifica-
tions.
–
Only use the product if it is in perfect technical condition.
–
Take the weight of an individual device or a service unit into account.
Dependent on the design, a mounted service unit can weigh more than 100 kg.
–
Under intended use the surface temperature may reach 60 °C. Allow the device
to cool down before working on it.
–Make sure the mounting surface is sufficiently strong for the maximum forces.
–
Only use suitable mounting components.
–Mount the individual device or the service unit only on flat surfaces.
2.2 Intended use
–The sub-base PAML-CP serves as an adapter for the pneumatic connection and
for pipe mounting for in-line installation of service units.
–The module connector PAML-MK is used to connect two service units of the
same size.
2.3 Training of qualified personnel
Work on the product may only be carried out by qualified personnel who can eval-
uate the work and detect dangers. Personnel must have the relevant mechanical
training.
3 Additional Information
–
Accessories
è
www.festo.com/catalogue.
4 Product Range Overview
4.1 Scope of delivery
1
2
3
4
5
Fig. 1:
Sub-base PAML-CP
1
Front plate (1x)
2
Rear plate (1x)
3
Screw (8x)
4
Washer (8x)
5
O-ring (2x)
6
7
8
9
Fig. 2:
Module connector PAML-MK
6
Screw (2x)
7
Front plate (1x)
8
O-ring (1x)
9
Rear plate (1x)
4.2
Not in scope of delivery
10
11
Fig.3
10
Electrical pressure regulator (1x)
PREL-186
11
Micro filter (1x)
PFML-186

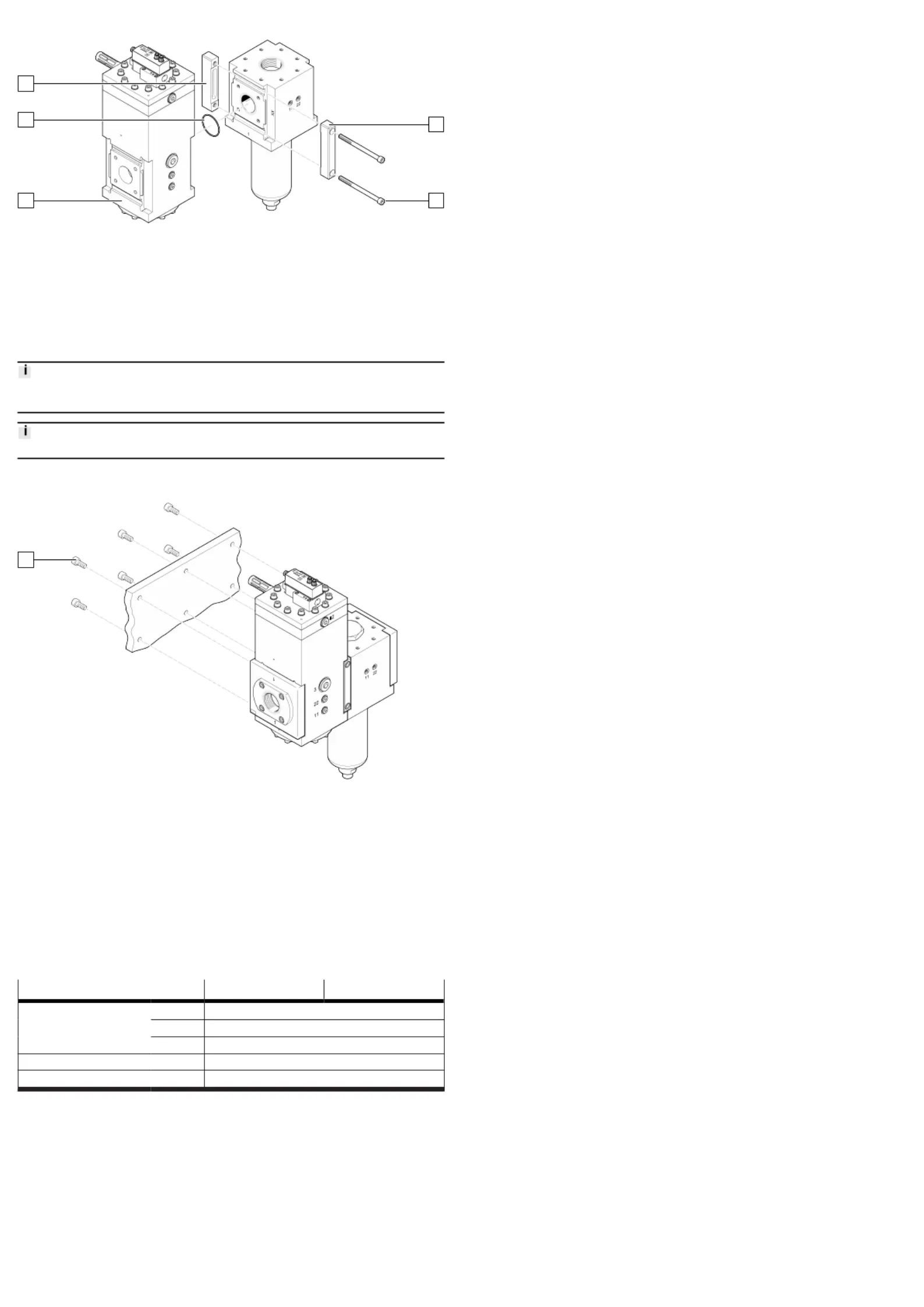

5
Assembly
5.1 Mounting the connecting plates PAML-CP
1
2
3
4
5
12
Fig.4
1. Orient the front plate and the rear plate so the stamp number on the1 2
sub-base corresponds with the stamp number on the housing (1 to 1 and 2 to
2) and the mounting thread for wall mounting points to the rear.aB
2. Insert the O-rings in the slots provided.5
3.
Position the front plate and the rear plate .1 2
4. Fasten the front plate and the rear plate to the service unit using four1 2
screws and four washers . Tightening torque: 27 Nm ± 15% 3 4
5. Comply with the maximum screw-in depth for the pipe connection.
ISO 228 Max. screw-in depth [mm]
G1/2 12
G1 1/4 20
G1 1/2 22
G2 24
G2 1/2 26
