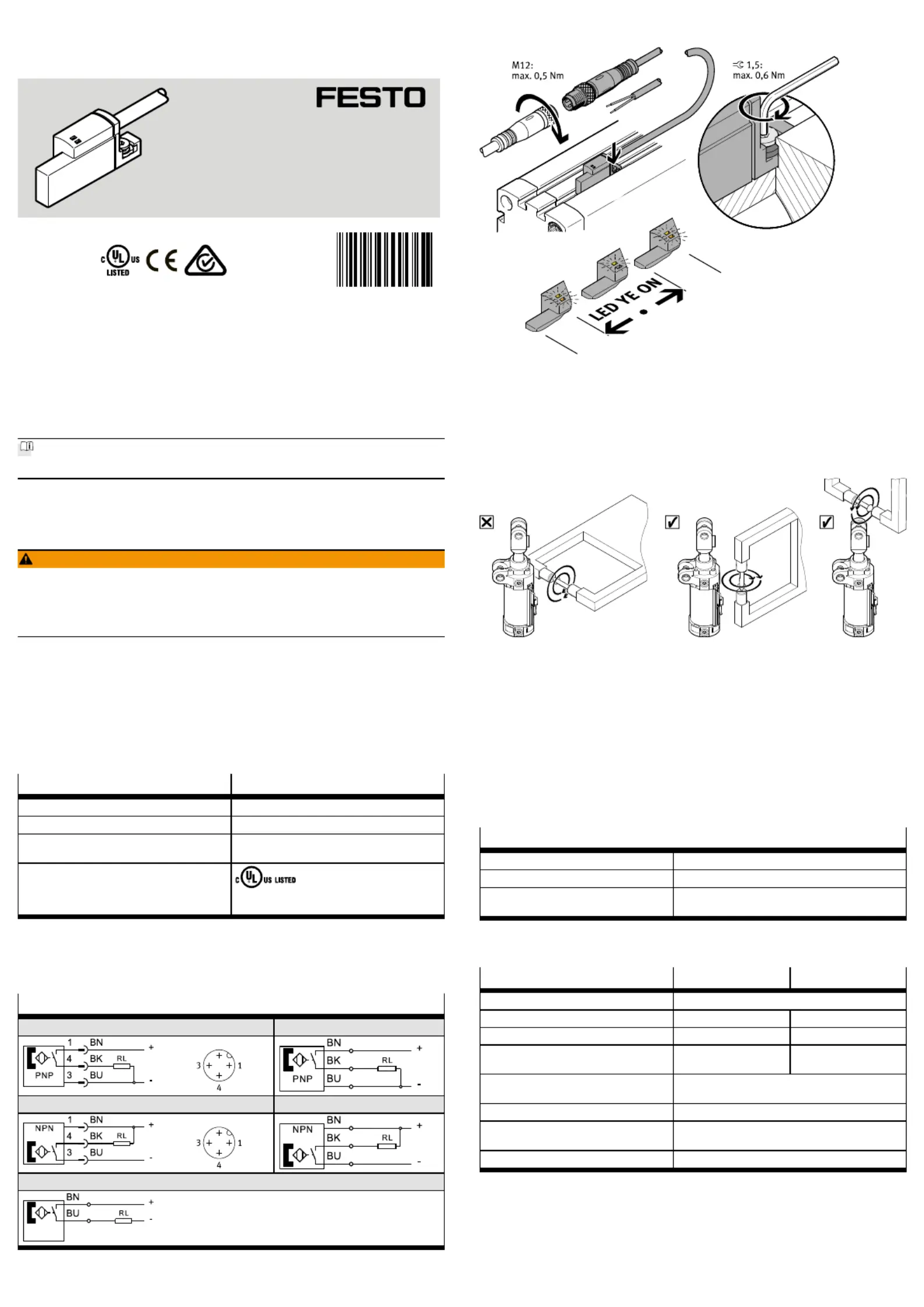

Translation of the original instructions

1 Applicable Documents

All available documents for the product www.festo.com/sp.è

2 Safety

2.1 Safety

– Before working on the electrics: switch off the voltage supply.

WARNING!

Risk of injury due to electric shock.

• For the electric power supply, use only PELV circuits that ensure a reliable

electric disconnection from the mains network.

• Observe IEC60204-1/EN60204-1.

2.2 Intended use

This product is intended for sensing the position of magnets (e.g. the piston posi-

tion) in Festo products. The device is intended for use in an industrial environ-

ment.

2.2.1 Area of application and approval

In combination with the UL inspection mark on the product, the information in this

section must also be observed in order to comply with the certification conditions

of Underwriters Laboratories Inc. (UL) for USA and Canada.

UL approval information

Product category code NRKH, NRKH7

File number E232949

Considered standards UL 60947-1, CAN/CSA C22.2 No. 60947-1

UL 60947-5-2, CAN/CSA C22.2 No. 60947-5-2

UL mark

Industrial Control Equipment

2MD1

Tab. 1

Only for connection to a NEC/CEC Class 2 supply.

3 Electrical connection

Circuit diagrams

SDBT-BSW-…-PU-…-M12 SDBT-BSW-…-PU-…-LE

SDBT-BSW-…-NU-…-M12 SDBT-BSW-…-NU-…-LE

SDBT-BSW-…-ZU-…-LE

Tab. 2

4 Mechanical installation

Fig. 1 Mechanical installation

5 Operating conditions

If the SDBT-BSW-...-PU or SDBT-BSW-...-NU is aligned at a right angle to the weld-

ing electrode or cable, it can result in maloperations in a limited range (applica-

tion-dependent).

Fig. 2 Operating conditions

Possible remedy:

– Adjust the distance between the proximity sensor and the source of malfunc-

tion (±20mm).

– Adjust the angle between the proximity sensor and the source of malfunction

(±20°).

– Adjust the strength of the welding current.

– On DW/DWA/DWB cylinders: mount sensor in a different position.

6 Technical data

6.1 Technical data UL

SDBT-BSW-…

Operating voltage range [VDC] 10…30

Ambient temperature [°C] –25…+80

NEMA enclosure type number

(Enclosure Type Rating)

Type 1

Tab. 3

6.2 Technical data, general

SDBT-BSW- - PU/NU ZU…

Operating voltage range [VDC] 10…30

Max. output current [mA] 100 80

Max. switching capacity [W] 2.8 1.9

Frequency of welding process

MFDC

[Hz] 1000 –

Frequency of welding process

[Hz] 50…60

Ambient temperature [°C] –25…+85

Ambient temperature with flex-

ible cable installation

[°C] –5…+80

Degree of protection IP65, IP68

Tab. 4

8140618

SDBT-BSW-...

Proximity sensor

8140618

2020-07c

[8140620]

Operating instructions

Festo SE & Co. KG

Ruiter Straße 82

73734 Esslingen

Germany

+49 711 347-0

www.festo.com
