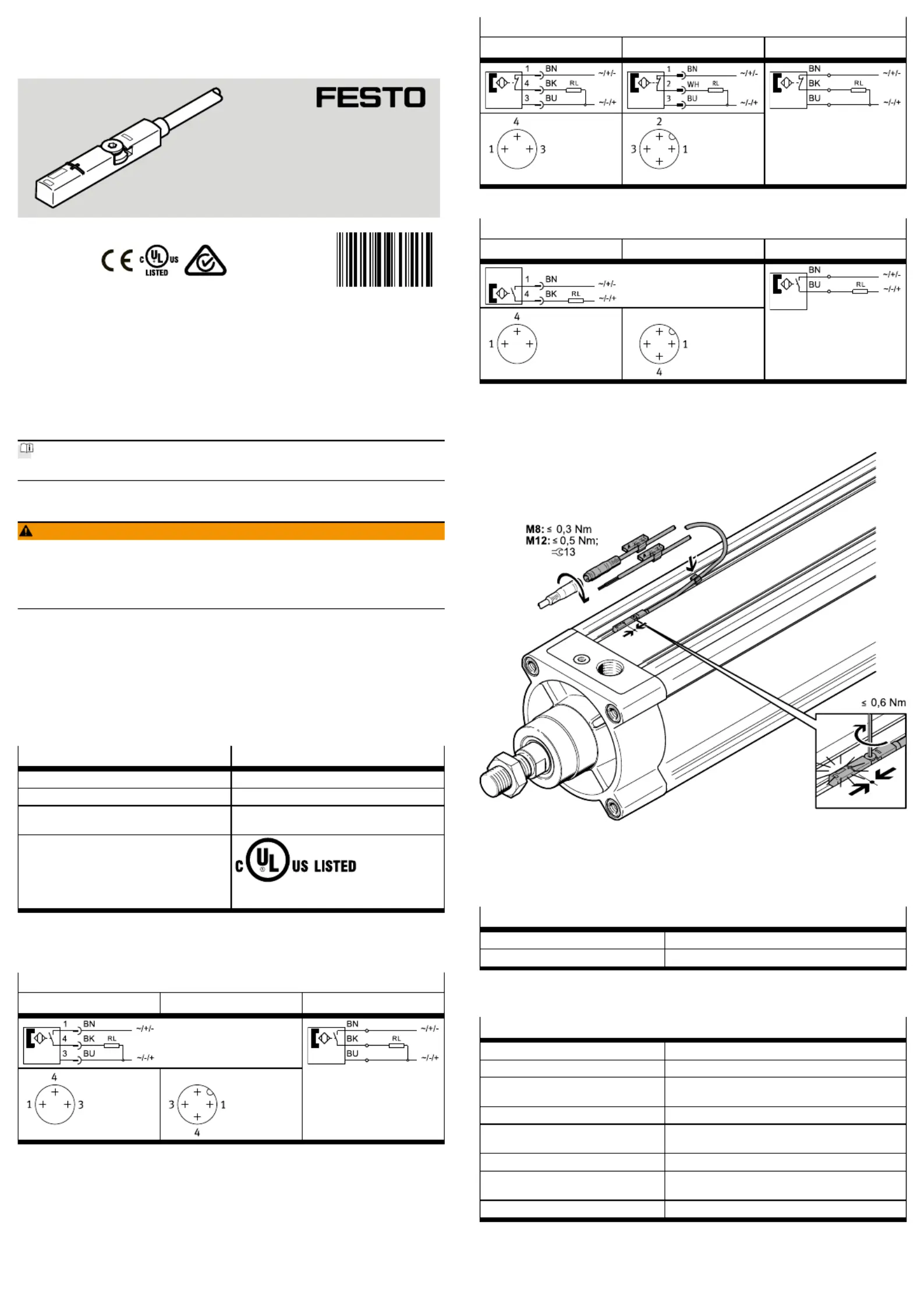

Translation of the original instructions

1 About this document

1.1 Further applicable documents

All available documents for the product www.festo.com/pk.è

1.2 Safety

– Before working on the electrics: switch off the voltage supply.

WARNING!

Risk of injury due to electric shock.

• For the electric power supply, use only PELV circuits that ensure a reliable

electric disconnection from the mains network.

• Observe IEC60204-1/EN60204-1.

1.3 Intended use

This product is intended for sensing the position of magnets (e.g. the piston posi-

tion) in Festo products. The device is intended for use in an industrial environ-

ment.

1.3.1 Area of application and approval

In combination with the UL inspection mark on the product, the information in this

section must also be observed in order to comply with the certification conditions

of Underwriters Laboratories Inc. (UL) for USA and Canada.

UL approval information

Product category code NRKH, NRKH7

File number E232949

Considered standards UL 60947-5-2

CAN/CSA C22.2 No. 60947-5-2

UL mark

Industrial Control Equipment

2MD1

Tab. 1

2 Electrical connection

SME-8M-DS-24V- -…

M8/M8D M12 OE

Tab. 2

SME-8M-DO-24V- -…

M8/M8D M12 OE

Tab. 3

SME-8M-ZS-24V- -…

M8/M8D M12 OE

Tab. 4

3 Mechanical installation

Fig. 1

4 Technical data

4.1 Technical data UL

SME-8M- -24V-… …

Operating voltage range [VDC] 5…30

Ambient temperature [°C] –20…+70

Tab. 5

4.2 Technical data, general

SME-8M- -24V-… …

Operating voltage range [V AC/DC] 5…30

Max. output current [mA] 500

Max. output current in

mounting kit

[mA] 80

Max. switching capacity [W] 10

Max. switching capacity in

mounting kit

[W] 2.4

Ambient temperature [°C] –40…+70

Ambient temperature with

flexible cable installation

[°C] –5…+70

Degree of protection IP65, IP68

Tab. 6

8112707

SME-8M-...-24V-...

Proximity sensor

8112707

2019-05

[8112709]

Instructions| Operating

Festo SE & Co. KG

Ruiter Straße 82

73734 Esslingen

Germany

+49 711 347-0

www.festo.com
