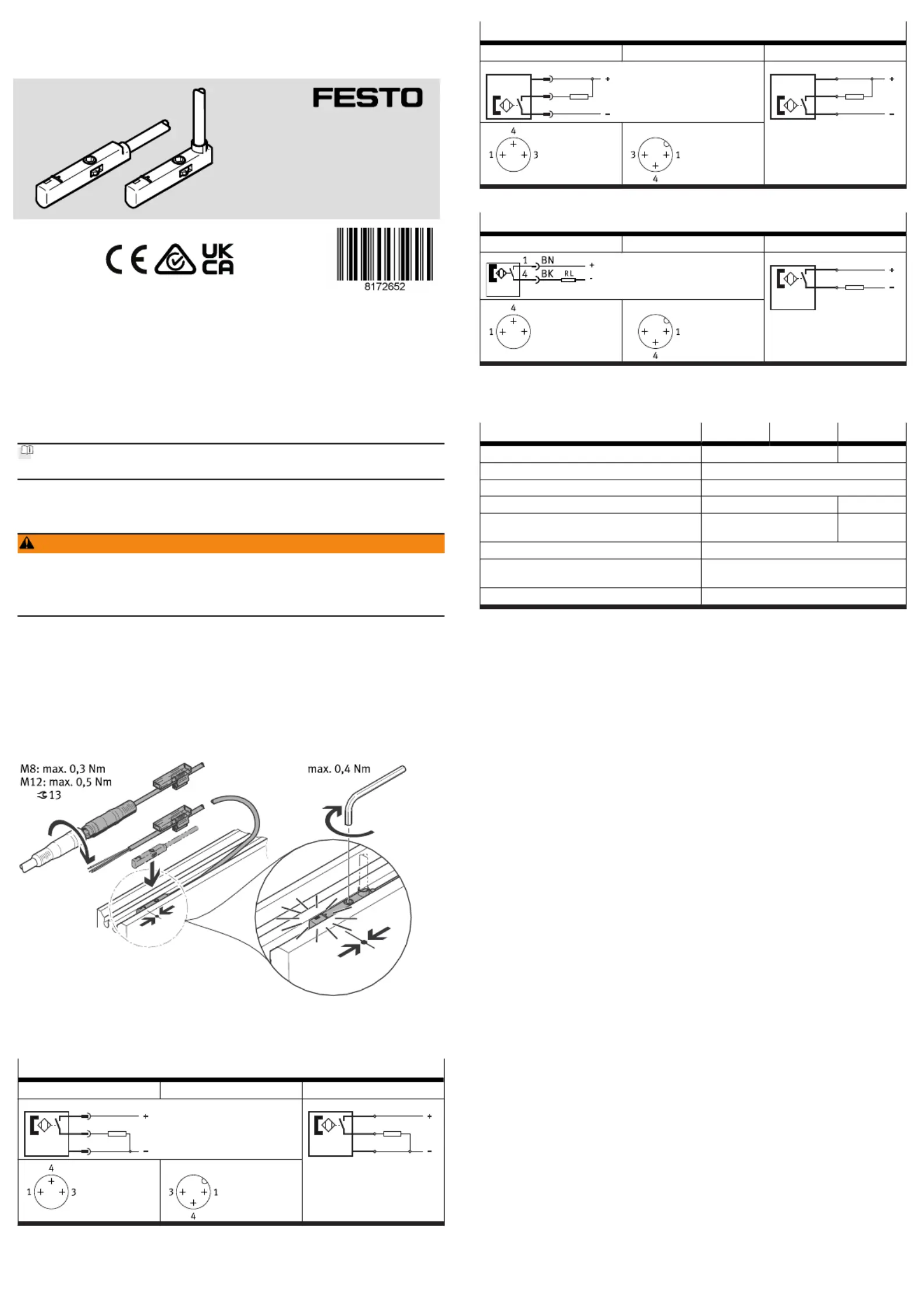

SMT-10M

Proximity switch

Festo SE & Co. KG

Ruiter Straße 82

73734 Esslingen

Deutschland

+49 711 347-0

www.festo.com

Operating instructions

8172652

2022-05e

[8172654]

Translation of the original instructions

© 2022 all rights reserved to Festo SE & Co. KG

1

Applicable Documents

All available documents for the product

è

www.festo.com/sp.

2 Safety

2.1 Safety instructions

WARNING

Risk of injury due to electric shock.

• For the electric power supply, use only PELV circuits that ensure a reliable

electric disconnection from the mains network.

•

Observe IEC 60204-1/EN 60204-1.

–Before working on the product: Switch off the power supply, ensure that it is off

and secure it against being switched on again.

2.2 Intended use

The proximity switch is intended for use in Festo products for sensing the position

of magnets, e.g. the position of the piston.

The product is intended for use in industrial environments.

3 Mounting

Fig. 1:

Mounting

4

Electrical installation

SMT-10M-PS-24V-...

-M8/-M8D -M12 -OE

PNP

BN

BK

BU

RL

1

4

3

PNP

BN

BK

BU

RL

Tab. 1:

Electrical connection SMT-10M-PS-24V-...

SMT-10M-NS-24V-...

-M8/-M8D -M12 -OE

NPN

BN

BK

BU

RL

1

4

3

NPN

BN

BK

BU

RL

Tab. 2:

Electrical connection SMT-10M-NS-24V-...

SMT-10M-ZS-24V-...

-M8/-M8D -M12 -OE

BN

BU

RL

Tab. 3:

Electrical connection SMT-10M-ZS-24V-...

5

Technical data

SMT-10M -PS -NS -ZS

Operating voltage range [V AC] 5 … 30 7 … 30

Max. output current [mA] 100

Max. output current in mounting kit [mA] 50

Max. switching capacity [W] 2.8 2.4

Max. switching capacity in mounting

kit

[W] 1.5 1.2

Ambient temperature [°C] –40 … +70

Ambient temperature with flexible

cable installation

[°C] –20 … +70

Degree of protection IP65, IP68

Tab. 4: Technical data
