Side 1/1

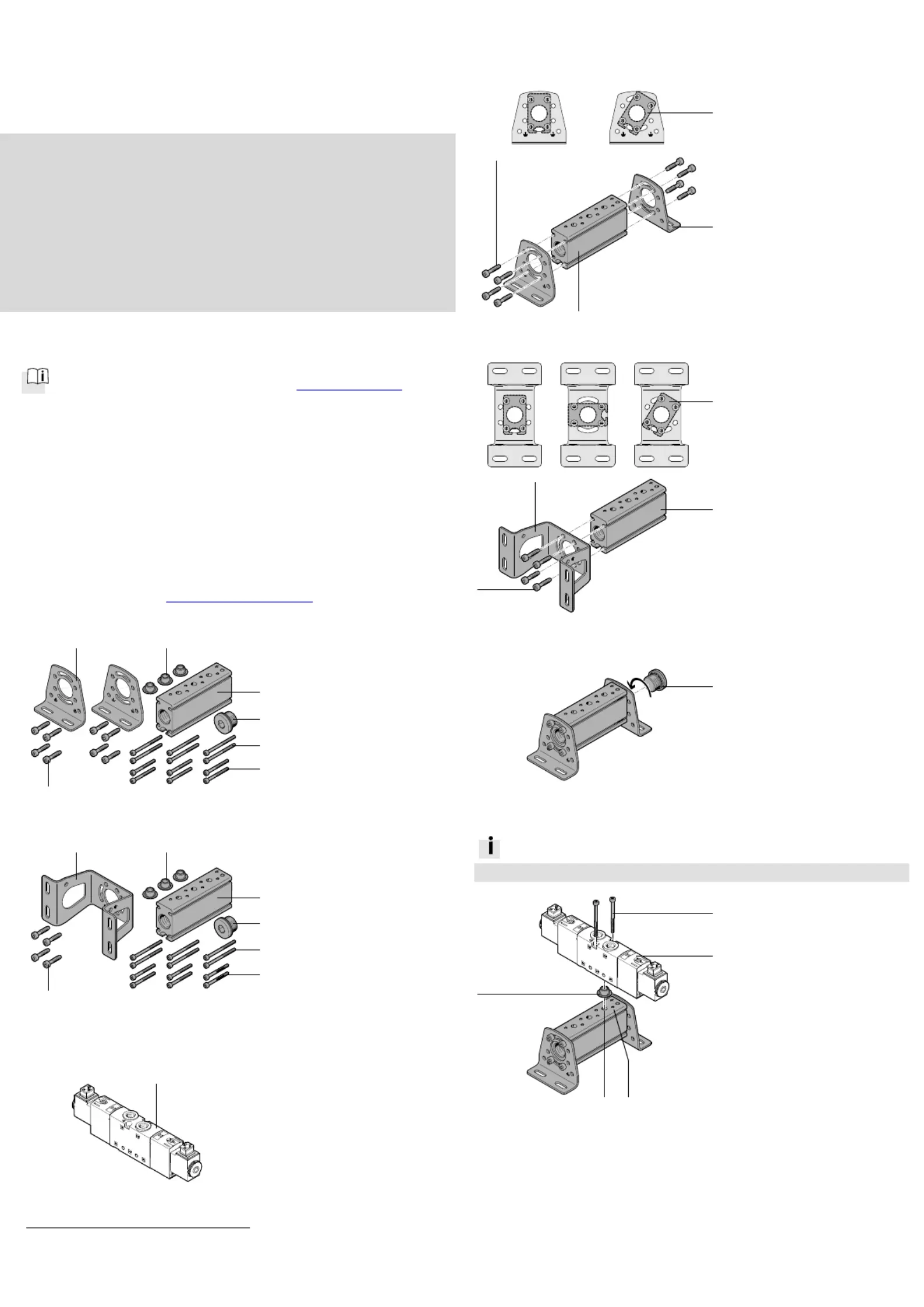

Assembly instructions (Original instructions)
8067341
1701c
[8067343]
†‡
Common supply manifold
VABM-B10-20-...-P53
Festo SE & Co. KG
73734 Esslingen
Germany
+49 711 347-0
www.festo.com
1. Applicable documents
All available documents for the product www.f
esto.com/pk
2. Safety
Switch off compressed air before mounting work.
Observe tigh
tening torques.
3. Intended use
Pneumatic linking of the valves.
4. Further info
rmation
Accessories for VABM www.fes
to.com/catalogue
5. Scope of delivery
20260d_1
VABM-B10-20-...-P53
1 Common supply
manifold
2 Blanking plug B-3/8
3 Screw M3x40
1)2)
4 Screw M3x30
1)2)
5 Screw M4
(thread-cutting)
6 Mounting bracket
7 Seal
1)
(1x)
(1x)
(nx)
(nx)
(8x)
(2x)
(nx)
20260d_2
VABM-B10-20-...-P53-E
1 Common supply
manifold
2 Blanking plug B-3/8
3 Screw M3x40
1)2)
4 Screw M3x30
1)2)
5 Screw M4
(thread-cutting)
6 Mounting bracket
7 Seal
1)
(1x)
(1x)
(nx)
(nx)
(4x)
(1x)
(nx)
6. Not in scope of delivery
20260d_3
8 Solenoid valve
VUVS-... or
pneumatic valve
VUWS-...
1)
(nx)
1)
The number of screws , seals 3 4/7 and valves 8 is dependent on the available valve
positions.
2)
Number = 2 x available valve positions
7. Mounting the mounting bracket 6
6
6
66
7a. VABM-B10-20-...-P53
20260d_4
Define alignment of
the common supply
manifold 1.
20260d_7
Place both mounting
brackets 6 on the common
supply manifold 1.
Tighten all screws 5. If you
screw it in again, use the
threads already present.
7b. VABM-B10-20-...-P53-E
20260d_5
Define alignment of
the common supply
manifold 1.
20260d_8
Place the mounting
bracket 6 on the common
supply manifold 1.
Tighten all screws 5. If you
screw it in again, use the
threads already present.
8. Mounting of blanking plugs 2
2
2
22
2026
0d_6
Screw the blanking plug 2
in at the desired position,
as required.
9. Mounting of valve 8
8
8
88
Information
Screws 4 can only be mounted with solenoid valves 8 VUVS-LK…-S.
20260d_9
/ Push screws 3 4 into the
drill holes of the valve 8.
Only screws 3 are
loss-protected.
Push seal 7 into channel 1
of the valve 8. Rotating
movement required during
mounting.
Place channel 1 of the
valve 8 onto the
opening (A).
Position the valve 8 on
the threads (B).
Tighten screws 3 4/ .
1
1
2
2
5
5
7
7
6
6
8
3 Nm _ 20 %
3 Nm _ 20 %
1.4 Nm _ 20 %
3
/
4
6
5
1
1
5
6
8
7
A B
1
1
2
8.5 Nm
_ 15 %
3
4
3
4
