INSTALLATION GUIDE

ACCESSORY DOOR PANELS FOR DISHWASHER

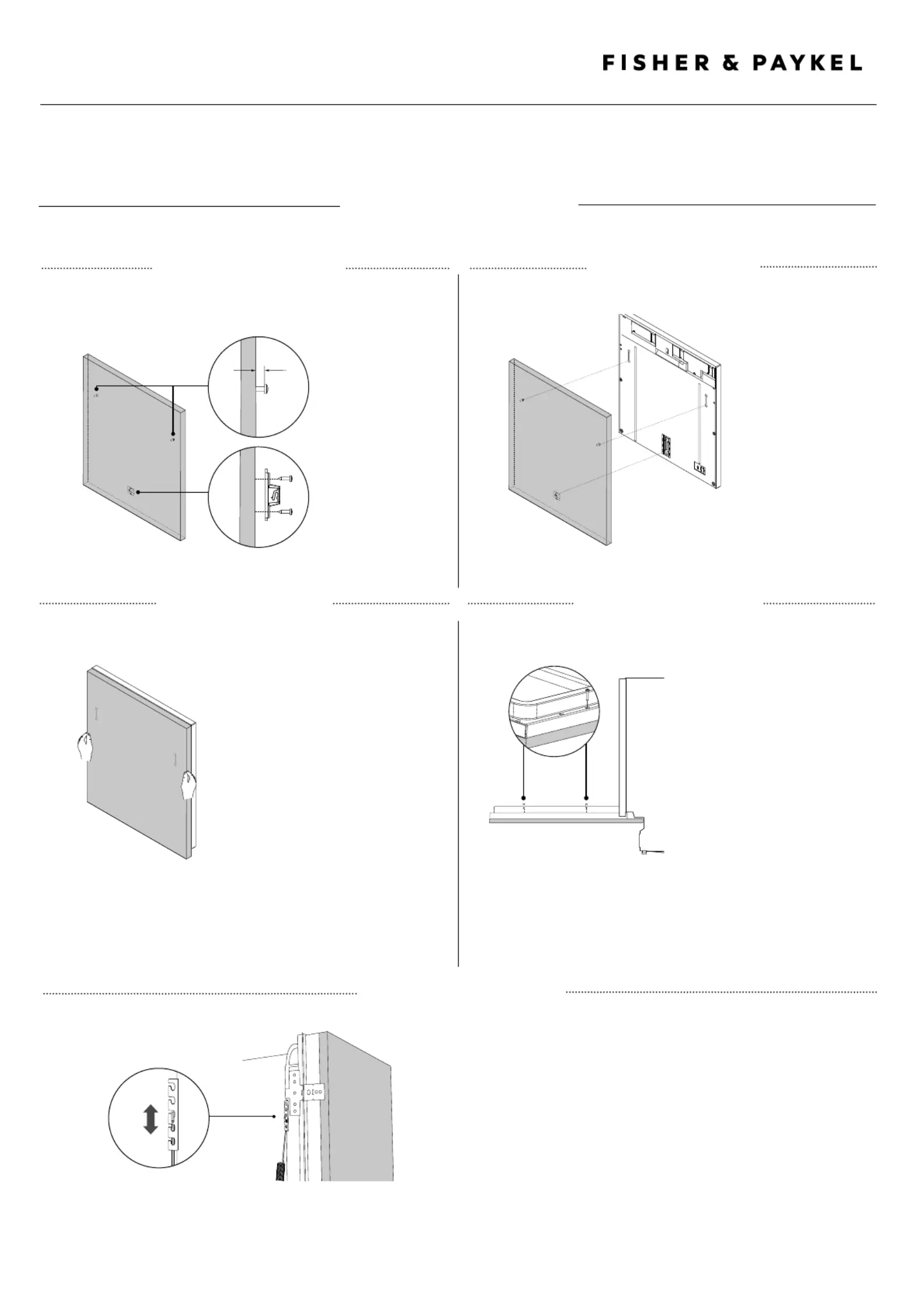

FIX SLIDER BRACKET

Close the door of the

dishwasher and align

the screws of the

accessory panel into

the lower keyhole of

the dishwasher door.

Fix the slider bracket

to the panel through

the lower pilot holes

IMPORTANT!

z

This guide is provided to assist in safely installing this accessory door panel to the dishwasher.

z

For more information, refer to the Installation Guide supplied with your dishwasher.

z

Handles are not supplied with this kit and can be purchased separately through an authorised Fisher & Paykel dealer.

3mm

Top screw detail

(between panel and screw head)

Slide the custom panel up so

that the top of the door panel is

flush with the control panel.

The panel can only slide

upwards and can be lifted off

and reinstalled if required

z

Check the door balance by opening

and closing the door.

z

If the door drops when released,

increase the tension.

z

If the door rises when released,

decrease the tension.

HANG DOOR PANEL

ALIGN DOOR PANEL

Open the door and remove the

four screws and replace with

Ø3.9 x 1 1/2” (38mm) screws to

fix the panel into place.

ADA DOOR PANEL (82085)

The selected handle must be fitted to the panel prior to installation onto the product.

CHECK DOOR BALANCE

SECURE DOOR PANEL

INSTALLATION GUIDE

ACCESSORY DOOR PANELS FOR DISHWASHER

INSTALL INFILL BRACKET

z

Open the door.

z

Push a small screwdriver

downward through the

screwhole from the

top of the appliance to

remove the plastic plug.

z

Do not install the

mounting bracket!

z

Remove two screws pre-installed

from the infillbracket.

z

Use the same screws to attach

the bracket to the topof the

appliance. Do not tighten fully.

side wings

z

Push the appliance into the cabinetry.

Ensuretheinfillbracket do not hit the top of the

cabinet while pushing.

z

Slide the side wings of the bracket outward to

cover the hollow space.

z

Hand tighten the two screws for the infill bracket

and reinstall the hole plugs.

Before installing the standard (tall) door panel, an infill bracket must be attached as a cosmetic feature to fill the gap between the

top of the dishwasher and underside of cabinet top. The infill bracket is not needed for cabinets using ADA door panels.

ALIGN DISHWASHER IN CABINETRY

ALIGN AND SECURE DOOR PANEL

z

Fix slider bracket

(See step 1 of ADA door panel)

z

Hang door panel

(See step 2 of ADA door panel)

z

Align door panel

Slide the standard door panel up so that the distance

between the top of the door panel and control panel

is 1.65” (42mm).

The panel can only slide upwards and can be lifted

off and reinstalled if required.

z

Check door balance

(See step 4 of ADA door panel)

z

Secure door panel

(See step 5 of ADA door panel)

1.65” (42mm)

REMOVE HOLE PLUGS

The selected handle must be fitted to the panel prior to installation onto the product.

STANDARD (TALL) DOOR PANEL (82084)

595703A 12.19
